A transmission oil cooler can leak externally at a line or fitting, or internally across the heat-transfer wall. An internal leak may mix automatic transmission fluid (ATF) with engine coolant when the cooler sits inside a radiator tank, or may exchange fluids in a separate coolant-to-oil module. The contaminated reservoir does not identify which cooler failed. Engine oil coolers and head-sealing faults must remain in the diagnosis.
Identify whether the vehicle uses an integrated radiator-tank cooler, external air-to-oil cooler, coolant-to-oil exchanger or a combination. Sample both fluids before flushing, inspect external lines, and pressure-test the suspected heat exchanger separately at the specified pressure. ATF in coolant often reflects transmission pressure exceeding coolant pressure during operation; coolant in the transmission may occur during cooldown or with different operating pressures.
Evidence | Possible Source | Next Test |
|---|---|---|
ATF-like film in expansion tank | Transmission cooler or another oil circuit | Compare both fluid samples and isolate coolers |
Milky transmission fluid | Coolant/water entry | Cooler pressure test and transmission inspection |
Leak only at hose fitting | Line, seal, flare or tank fitting | Clean and observe under operating pressure |
Radiator cooler fails isolation test | Internal integrated-cooler breach | Replace radiator/service boundary |
Cooler passes; engine oil in coolant | Engine oil cooler or engine fault | Follow engine oil/coolant branch |

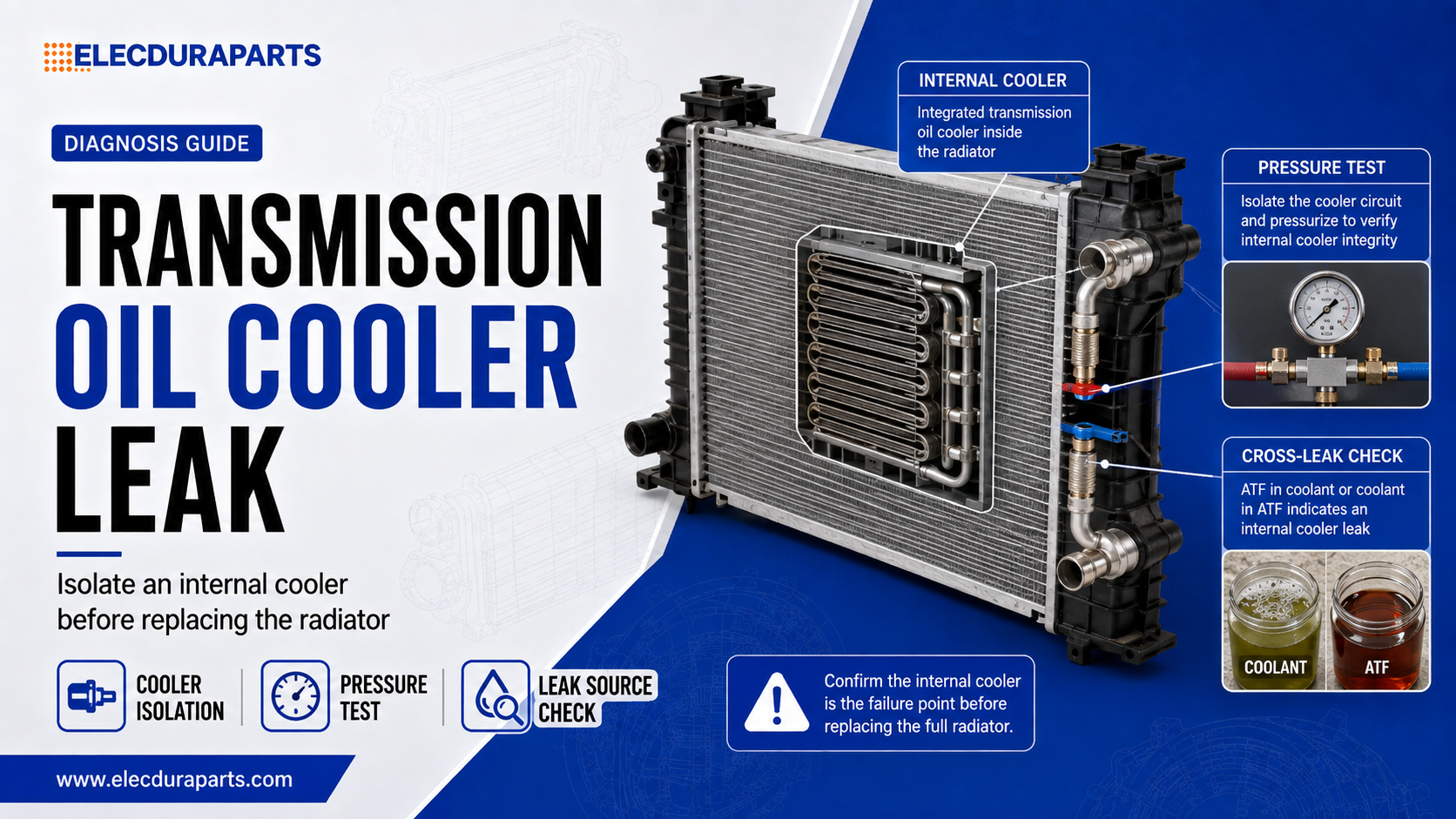

ATF passes through a tube or small heat exchanger inside one radiator tank. Coolant surrounds it. An internal breach usually makes the complete radiator the service part, while damaged external fittings may have a separate repair path.
This cooler sits in the airflow stack and contains only transmission fluid. It cannot directly put coolant into ATF, though it can leak externally or retain debris after a transmission failure. A remote thermostat or bypass valve may control flow.
A separate plate or housing exchanger carries both fluids and can create the same internal mixing as a radiator-tank cooler. Match ports and flow routing, not just the rectangular appearance of an engine oil cooler.
Collect coolant and transmission samples in clean transparent containers before adding fluid. Record color, layer separation and source location. ATF formulations vary and aged coolant can be brown; visual identification is directional only. Laboratory analysis may be justified for warranty or fleet failures.
Engine oil can enter coolant through an engine oil cooler or head/block path. Use the oil cooler versus head-gasket guide. Compare the transmission level and condition; an unexplained ATF loss strengthens but does not complete the case.
Clean the area and operate the system under safe conditions. Check crimps, quick connectors, flare seats, O-rings, retaining clips, abrasion points and rigid-line cracks. The existing transmission cooler line-leak guide covers those external boundaries.
External ATF can spread across a radiator tank and collect near coolant residue. Conversely, a dry fitting cannot prove the internal tube is sound. Pressure isolation is required for internal confirmation.
Follow the vehicle or radiator manufacturer procedure. Remove or isolate the cooler ports, drain safely, and apply the specified test medium and pressure. Monitor for pressure decay or bubbles on the opposite fluid side. Do not use full shop-air pressure; a cooler can be damaged or become hazardous.
Some microcracks open only hot. If the approved procedure includes heated immersion or thermal cycling, control temperature and pressure precisely. A cold pass does not invalidate strong hot-operation evidence, but improvised heating can create a false failure.
During driving, transmission line pressure may push ATF into coolant. After shutdown, pressure in the transmission circuit falls while hot coolant remains pressurized, allowing coolant to move back through the same breach. The final appearance depends on leak size, operating time and pressure history. This is why “only oil in coolant” does not guarantee the transmission remained uncontaminated.
Modern units may have no dipstick, and water can settle or disperse. Follow the transmission procedure for sampling and level. Coolant can damage friction material, adhesives, bearings and controls; a simple pan drain may not remove it.
Confirmed Finding | Primary Part | Associated Work |
|---|---|---|
Integrated cooler internally leaks | Radiator or specified tank/cooler assembly | Transmission and cooling contamination plan |
Separate coolant-to-oil exchanger leaks | Correct exchanger and seals | Inspect housing and fluid circuits |
External air cooler leaks | Air-to-oil cooler/lines | No direct coolant mixing unless another fault exists |
Transmission failed and sent debris | Cooler may require replacement | Follow contamination and warranty policy |
Only line fitting leaks | Approved fitting, seal or line repair | Verify tube and tank threads |
The flush-or-replace guide explains why unknown internal passages and thermostatic bypasses may prevent reliable cleaning. Never use one generic flush decision for every transmission.
For an integrated radiator, confirm OE number, vehicle, engine, transmission, core dimensions, tank orientation, cooler-port thread or quick-connect type, port spacing, hose necks, mounts, sensor ports and cap arrangement. Two radiators for the same model can differ only by transmission-cooler provision.
For a separate cooler, add fluid type, stacked-plate or tube-and-fin construction, port direction, mounting, bypass/thermostat provision and pressure/temperature requirements. Do not transfer engine-oil cooler specifications to a transmission circuit.
Inspect cooler-port threads, caps, internal cleanliness, pressure integrity, tank crimps, core geometry and mounting dimensions. Shipping caps must prevent moisture and debris without damaging threads. Packaging must not load cooler fittings. Elecdura’s wholesale oil cooler and wholesale radiator pages define the relevant product ranges.
ATF can coat hoses, seals and small coolant passages. Use only an approved cleaning process and inspect swollen rubber. Several fill, circulate and drain cycles may be required, but aggressive solvent can damage the new radiator and water-pump seals. Verify heater-core flow and stable cold level afterward.
Water and glycol can attack friction materials, bearings, bushings, solenoids and adhesives. A cooler-line exchange does not guarantee removal from the torque converter or valve body. Transmission specialists should define disassembly, testing and fluid recovery based on contamination amount and operation time.
Additional operation distributes contamination and can turn a cooler repair into a complete transmission failure. Tow or move the vehicle according to safe service procedures.
Use adapters that match the flare, thread or quick-connect without side load. Do not clamp directly on a thin tube. A test-induced crack at the fitting can be mistaken for the original internal failure.
Verify hoses, valves and adapters with a known sealed reference. Apply leak-detection solution externally where compatible. If testing submerged, release trapped air from outside surfaces so a single old bubble is not read as continuous leakage.
Pressurizing the oil passage while observing coolant space is common, but some procedures also pressure the coolant boundary. Follow the component specification because thin plates respond differently to internal and external pressure.
Remote and integrated thermostats may bypass the cooler when fluid is cold or pressure drop is high. A stuck bypass can cause overheating without leakage, and it can prevent flushing fluid from reaching the core. Identify valve state before interpreting flow.
A sound cooler may be too small, externally blocked or bypassed. Compare oil inlet/outlet temperature, airflow and load. Do not replace a leak-free heat exchanger solely because the transmission is hot until control and sizing are verified.
Cap the cooler ports immediately, retain fluid samples and mark the leak location. Sectioning can distinguish corrosion, fatigue, brazing void and impact damage. For a fleet, compare transmission pressure, coolant chemistry, mounting stress and failure hours across vehicles before attributing a batch defect.
Heavy radiators must be supported by tank and side-frame structures, not threaded fittings. Bent ports create line stress and sealing problems even when the internal core passes pressure. Incoming inspection should include thread gauges and port alignment.
After the approved cleaning or transmission repair, confirm both fluid levels and appearance, line pressure where specified, cooler inlet/outlet temperature, external leaks and stable coolant pressure. Reinspect samples after a full duty cycle. Residual oil film in the tank can persist, so track whether contamination decreases or fresh fluid continues to appear.
If the radiator also has restricted coolant tubes, consult the radiator core construction guide and replace the unit based on both pressure integrity and heat-transfer requirement.
Sample before cleaning. Compare ATF, engine oil and coolant from known locations. Record transmission and engine levels. A colored film in the tank is evidence of contamination but not yet of source.
Use the vehicle diagram to list integrated radiator cooler, separate transmission warmer, engine oil cooler and any power-steering or hybrid circuit. Only a component sharing both suspect fluids can create direct mixing.
Pressure-test cooling system, inspect cooler lines and check transmission case ventilation. Road splash or service spills can mimic external leakage. Repair obvious line faults, but continue if internal fluid evidence remains.
Use capped, pressure-rated adapters and specified test values. Mark each result. Do not connect coolers in series for one test because a leak cannot then be assigned to a component.
Estimate duration and operating load, then inspect transmission control and friction symptoms. This evidence determines whether cooler replacement is enough or a transmission specialist must disassemble the unit.
The cooler may warm cold ATF as well as remove heat under load. Deleting an integrated coolant-to-oil stage can lengthen warm-up and alter viscosity. Replacement routing must preserve the original thermal architecture unless an approved conversion exists.
Towing packages may add an air cooler in series with the radiator cooler. Confirm flow order and thermostatic bypass. A restriction in either stage increases pressure drop and can stress hoses or seals even without internal leakage.
A tank coated with ATF is a witness, not usually the source. Replace it only if material damage or cleaning limits justify it, after locating the shared heat exchanger.
An improvised bypass can change warm-up, pressure drop and warranty. The leaking internal passage also remains open to coolant unless isolated correctly. Follow an engineered, approved configuration.
Clear-looking replacement fluid does not prove friction materials escaped glycol damage. Use diagnostic codes, pan inspection and specialist criteria before return to service.
Yes, when a transmission cooler shares a wall with coolant and the boundary leaks.
Yes. Pressure direction can reverse after shutdown or under different conditions, so inspect both fluids.
Yes when the manufacturer provides a controlled procedure and pressure limit. Unregulated shop air can damage it.
Usually when its internal cooler is not a separately supported service component. Confirm the product boundary for the application.
Send the OE radiator or cooler number, vehicle, engine and transmission, cooler-port photos and measurements, fluid-sample evidence, confirmed isolation-test result and quantity through Elecdura’s contact page. State whether the cooler is integrated, air-cooled or coolant-to-oil so the correct service part is matched.
Integrated radiator coolers are common, and several radiators may fit the same body with different transmissions. VIN and cooler-port detail are essential. Space limits often make an internal breach a complete radiator replacement.
Large external coolers, long lines and thermostatic bypasses add joints and pressure drop. Duty cycle, towing load and warm-up strategy matter. Use the commercial vehicle range to define application, then confirm transmission model.
Hydraulic and transmission coolers may share a stacked frame yet carry different oils. Contamination identification is critical. Inspect the off-highway application, hose labels and cooler ports before isolation.
Provide vehicle/equipment model, serial or VIN, engine, transmission, OE and cross-reference numbers, core dimensions, cooler type, port threads and spacing, line fittings, mounts, operating medium, external stack position and quantity. Add whether a thermostat, bypass, fan or shroud is included.
Retain pre-flush samples, pressure-test video or readings, photos of the first leak point, installation alignment, transmission pressure history and contamination scope. A returned radiator already flushed clean cannot reliably show the original cross-leak.
If the suspected product is hydraulic rather than transmission-related, use the hydraulic oil cooler range and back-pressure guide. For engine oil contamination, use the oil filter housing versus cooler diagnosis. These fluids require separate evidence.
Yes. Thermal expansion can open a small crack. Use an approved temperature-conditioned test rather than excessive pressure.
Oil exposure can swell or soften some elastomers. Inspect and replace components according to material and service guidance.
Its cooler integrity and cleanliness are uncertain. A controlled new or validated replacement is preferable for warranty-sensitive repairs.
Record the final fluid specification, exact fill quantity and complete cooler routing on the repair order for reliable future comparison.
Keep the failed exchanger and both pre-cleaning fluid samples until the vehicle passes its post-repair duty cycle and warranty evidence is accepted.
Fluid mixing identifies a breached boundary, not automatically a radiator. Map every shared exchanger, preserve samples and isolate each candidate. Once the source is proven, define two separate scopes: the heat exchanger that must be replaced and the contamination recovery required for the transmission and cooling system.
Validate the repaired vehicle under the original towing, traffic or equipment load where safe. Confirm transmission temperature, line pressure where specified, cooler temperature drop, coolant pressure and fluid appearance. Recheck after cooldown because pressure reversal can reveal a leak that is invisible while driving.
Keep cooler caps, port protectors and batch labels intact until installation. Record pressure-test certificates and port-gauge results. If a unit is returned, cap both circuits without cleaning and retain its installation evidence. This allows the breach to be located rather than inferred from a washed component.
For radiator-plus-cooler assemblies, the radiator core types resource helps buyers document the coolant-side construction alongside transmission-port details.
Retain paired fluid samples and pressure records until the repaired vehicle completes its representative load verification.
