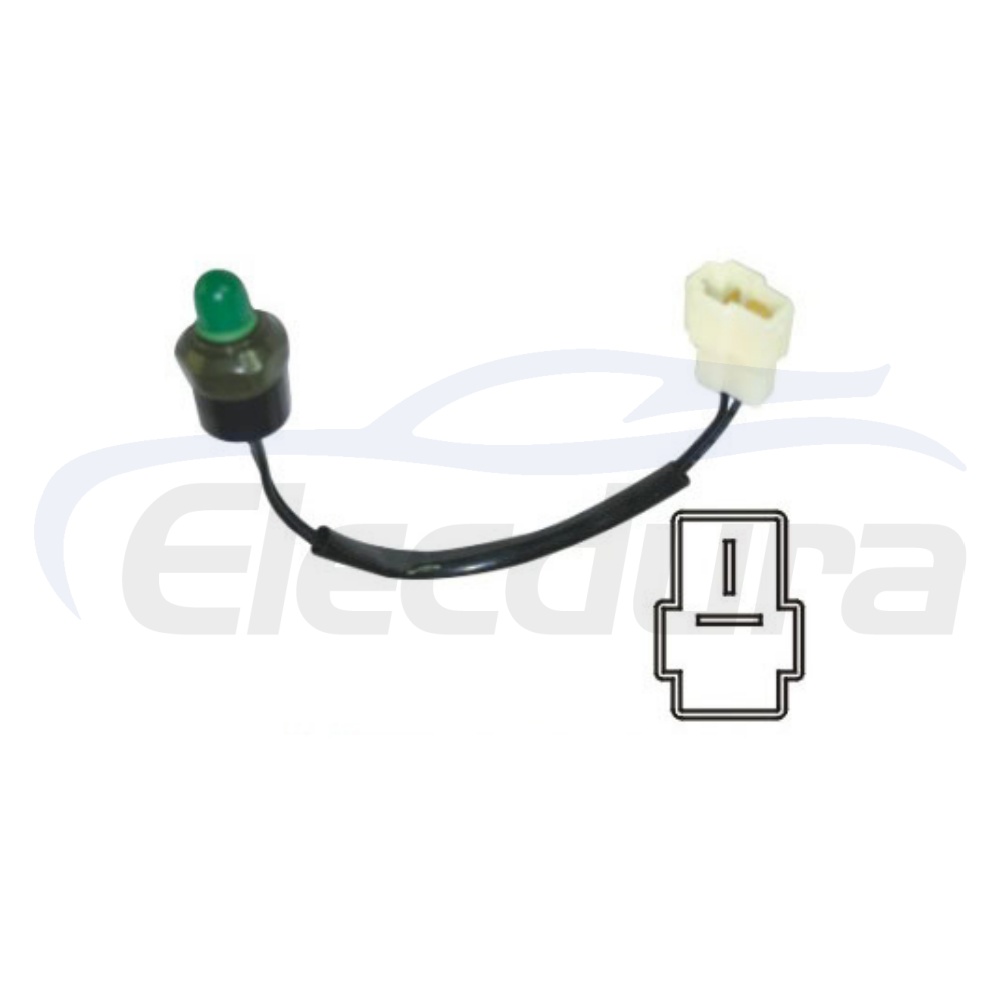

SW 11218C PS 2011 A/C Pressure Switch for 1990-2000 Nissan Pathfinder Maxima

High precision triple logic pressure switch for Nissan HVAC systems supporting R12 and R134a environments. Integrated multi-stage high pressure safety tiers up to 32 kg/cm² and 2.0 kg/cm² low pressure cut-off for comprehensive compressor protection. Machined 3/8-24 UNF male fitting ensures a leak-free seal in professional automotive wholesale distribution.

Brands:
Nissan
Lead Time:
60 days
Minimum Order:
100
Certification:
IATF 16949, CE
Warranty:
12 Months

Availability:



Inquiry

Product Description

Product Description

SW 11218C A/C Pressure Switch Cross Reference

Brand Name	Reference Number
Global Air	SW 11218C
Industry Ref	PS 2011
Nissan OE	92137-1P101
Santech	MT0625
Four Seasons	35811

Technical Specifications for SW 11218C A/C Pressure Switch

Technical Parameter	Specification Detail
Thread Size	3/8-24 UNF Male
High Pressure Cut-Off (A/B/C)	27 / 32 / 30 kg/cm² OFF
Low Pressure Cut-Off	2.0 kg/cm² OFF
Function Type	Triple Logic Safety Switch
Refrigerant Compatibility	R-12 and HFC R-134a
Quality Standard	IATF 16949

SW 11218C A/C Pressure Switch Vehicle Application

Vehicle Make	Vehicle Model	Year Range
Nissan	Pathfinder WD21 R50	1990 to 2000
Nissan	Maxima J30 A32	1989 to 1999
Nissan	Sentra B13 B14	1991 to 1999
Nissan	300ZX Z32	1990 to 1996

Sourcing SW 11218C A/C Pressure Switch FAQs

How does the multi-logic (A/B/C) high pressure setting benefit Nissan systems?

Nissan engineering for this era utilized multiple pressure thresholds to accommodate varying compressor types and cooling fan speeds. Our SW 11218C covers these variations with a peak 32 kg/cm² fail-safe ensuring the switch is a universal solution for premium Nissan high-pressure ports. Every batch is 100 percent bench-tested to verify all logic points.

Can we implement private label laser marking for our bulk orders?

Yes. For our professional importers and Top 100 global wholesalers we provide high-definition laser etching. We can mark your brand logo and the SW 11218C reference number directly on the sensor body to help you build brand authority in the Nissan aftermarket.

What is the standard manufacturing lead time for wholesale orders?

Our fixed lead time is 60 days. This duration allows for precision diaphragm assembly and IATF 16949 multi-point calibration along with comprehensive vacuum leak testing. This rigorous cycle ensures the long-term reliability required by international procurement networks.

Is this switch compatible with R134a retrofitted systems?

Absolutely. We use high-grade internal seals and diaphragms that are chemically resistant to both R12 and HFC R134a refrigerants as well as modern PAG oils. This prevents seal degradation and signal failure in older vehicles updated to modern environmental standards.

Do you support mixed wholesale orders for Japanese car sensors?

Yes. We prioritize flexibility for our international distributors. You can combine the SW 11218C with other Nissan or Toyota pressure sensors to meet our 100-unit MOQ to effectively optimize your logistics costs.

How do you protect the 3/8-24 UNF threads and terminals during shipping?

Each unit is individually sealed in a moisture-proof industrial bag with a protective plastic cap on the threads. For bulk export we use reinforced export-grade cartons with internal shock-absorbing dividers to ensure the terminals and threads arrive in perfect condition.
