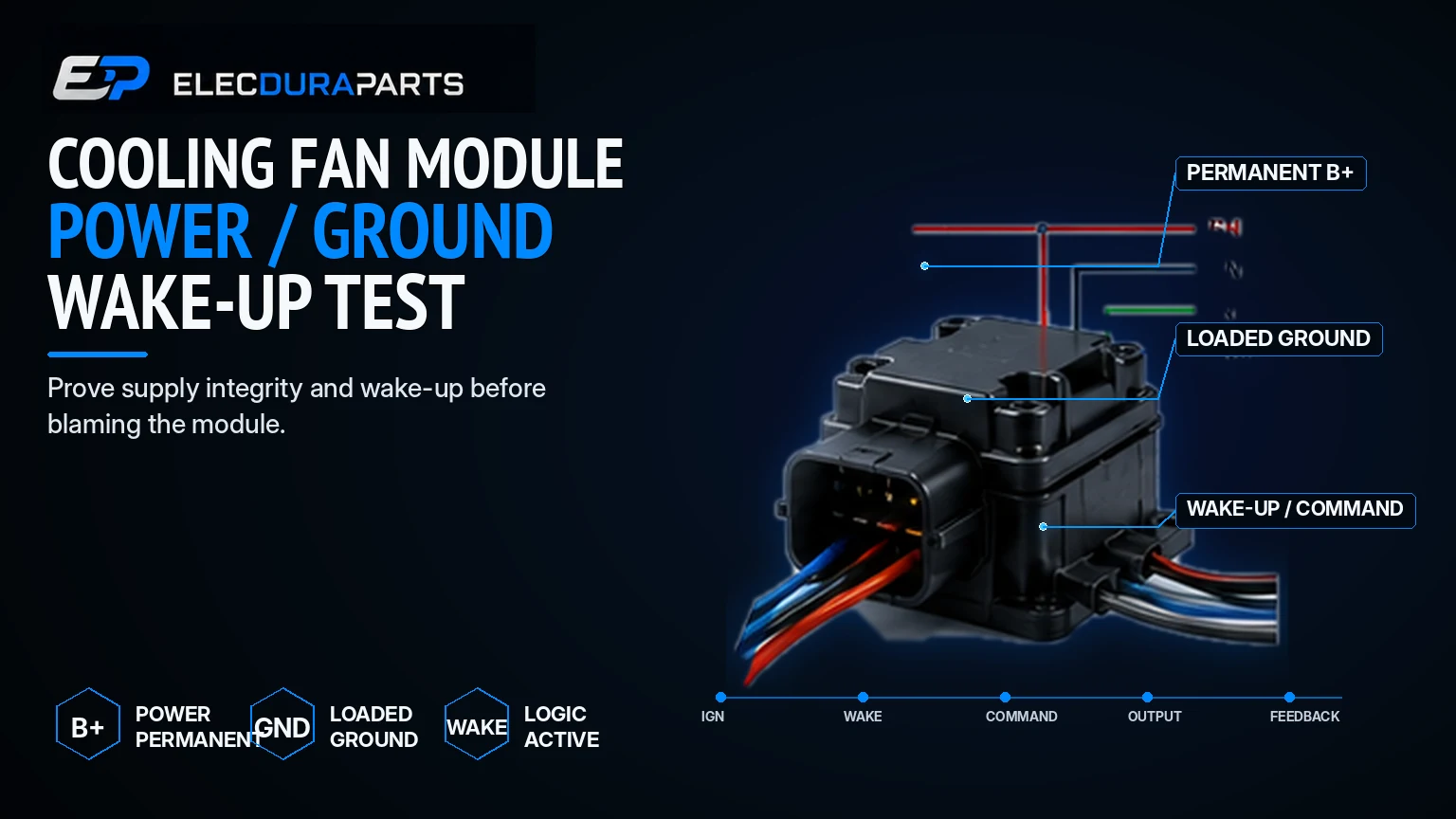

Cooling Fan Module Power, Ground, and Wake-Up Diagnosis

A cooling fan module can appear completely dead even when the module itself is healthy. If permanent battery power is missing, a loaded ground rises above battery negative, an ignition wake-up feed never arrives, or a shared fuse terminal loses contact under current, the module cannot respond to PWM, LIN, CAN, or scan-tool commands. Replacing the module without proving these conditions risks an immediate repeat complaint.

The correct starting point is a cooling fan module power and ground test performed in the operating state that produces the failure. This article treats the module as an electronic controller with several separate needs: a current-carrying motor supply, a stable electronic ground reference, a wake-up condition, a valid command path, and a compatible load. Those needs must be tested in order rather than collapsed into one “has voltage” check.

Elecdura supplies both separate fan control modules and fan assemblies with integrated electronics. The service boundary varies by application. Some modules can be replaced separately, while others are calibrated, sealed, or mechanically integrated into the shroud. Diagnosis must therefore identify both the electrical fault and the configuration required for replacement.

Quick Answer: What Must Be Present Before a Fan Module Can Work?

The order matters. A network diagnosis cannot be trusted if the module ground reference is unstable. A correct PWM command cannot produce fan speed when the high-current supply collapses. A replacement module cannot survive a motor that is mechanically loaded or drawing excessive current.

First Identify the Module Architecture

Separate module mounted on the shroud

This design often has a high-current battery feed, one or more grounds, a low-current command wire or network pair, and heavy motor outputs. The module may be available separately, but connector heat and motor current must be evaluated before replacement. Check the fan control unit range only after the original terminal layout and control method are identified.

Electronics integrated into the fan motor

Brushless and some high-power brushed assemblies contain electronics inside the motor housing. The external connector may combine supply, ground, command, and feedback. A “motor failure” and “module failure” may therefore require the same complete assembly, but the evidence is still important for warranty and for preventing damage to the replacement.

Relay or resistor system mistaken for a module

Not every finned box near a fan is a programmable controller. Some components are simple resistors, relay packs, or solid-state power stages driven by discrete inputs. The fan module versus resistor guide helps establish the architecture before test methods are selected.

Do not infer terminal function from wire size alone

Heavy wires usually carry motor current, but ground-switched systems, shared outputs, sensing circuits, and integrated electronics create exceptions. Obtain the correct wiring diagram and identify connector cavity numbers. Do not apply battery power to an assumed command terminal.

Why “12 Volts at the Connector” Is Not Enough

A digital multimeter can display system voltage through a high-resistance connection because the meter draws almost no current. When the module commands the radiator fan motor, the same connection may lose several volts and overheat. Test permanent power and ground while the circuit carries a meaningful load.

Separate logic supply from motor supply

Some modules use one supply for both electronics and motor power; others have separate feeds. The logic side may remain awake and communicate even when the motor feed is missing. Conversely, a high-current feed may be present while the logic wake-up is absent. This explains why a scan tool can communicate with a module that cannot drive the fan—or why the fan circuit has battery voltage but the module appears offline.

Ground voltage affects both power and information

Ground is the reference used by the controller to interpret input and output voltages. Excessive ground-side voltage drop can reduce motor voltage and shift the electronic reference simultaneously. A module may reset, report implausible fan speed, distort a PWM threshold, or stop communicating. Use the loaded fan voltage-drop procedure to measure the power paths rather than relying on continuity alone.

Diagnostic Sequence

1. Verify the complaint and command state

Record coolant temperature, refrigerant pressure, engine speed, vehicle speed, battery voltage, requested fan percentage, actual fan speed where available, and related fault codes. A fan may remain off because the ECU does not request airflow. Many vehicles also use after-run cooling, A/C pressure protection, high-speed inhibition, or staged operation. Understand what the system is asking before judging the response.

Use a bidirectional scan-tool command when supported. Compare low, medium, and high requests. If the module responds at one command but not another, the supply may be collapsing with current, the motor may be overloaded, or one control path may be different.

2. Inspect the complete current path

Inspect battery terminals, main fuses, fuse-box terminals, relays, splices, connectors, module heat sink, grounds, motor connector, blade clearance, and shroud condition. Look for discoloration, melted plastic, spread terminals, green corrosion, water tracks, fretting, loose eyelets, and prior undersized repairs.

Water damage requires a source investigation

A wet module connector may be the result of missing seals, damaged wire insulation, capillary water travel, incorrect harness routing, pressure washing, or a cracked housing. Replacing the module without correcting ingress can repeat the failure. For integrated units, compare the sealing and connector orientation of the proposed replacement cooling fan.

3. Test permanent battery power under load

Measure voltage at the battery posts and at the module supply while the fan is commanded on. Then measure the power-side voltage drop from battery positive to the module supply. If the drop is excessive, divide the path across the fuse, relay, fuse-box junction, splice, and connector until the loss is isolated.

A fuse that looks intact can have resistance at its blades or holder. A relay that clicks can have burned contacts. Test across closed components while current flows. If the module does not drive the motor and therefore cannot create a load, use a manufacturer-approved load test rather than shorting the circuit or substituting an unsafe lamp.

4. Test all module grounds under load

Some modules have separate power and logic grounds. Identify every ground terminal and test each according to the diagram. Place one meter lead at the module ground and the other at battery negative while the circuit is active. A continuity beep with the vehicle off does not prove a current-carrying ground.

If drop is high, test the connector terminal, harness splice, chassis eyelet, body bonding, and battery cable separately. Clean metal alone is not enough; the terminal must retain pressure and the cable must be sound beneath the insulation.

5. Verify wake-up or ignition input

A permanent feed keeps power available, but many controllers remain asleep until a key-on input, ECU output, or network message requests wake-up. Depending on design, wake-up may be a discrete ignition voltage, PWM activity, LIN dominant/recessive traffic, CAN network activity, or a change in another terminal state.

Test the condition, not only the wire

A wake-up line can show voltage yet fail to meet the controller’s threshold because of ground offset or a resistive splice. It may also be present only briefly. Use a scope when timing matters and compare the signal with module current draw or communication startup. Never assume a network wire should have battery voltage.

6. Confirm command and communication

Only after stable power, grounds, and wake-up are proven should the PWM/LIN/CAN path become the main suspect. For a PWM command, verify frequency, duty cycle, amplitude, pull-up/pull-down design, and whether the command is active-high or active-low. For LIN, check supply/reference integrity and network activity without treating a multimeter average as data content. The dedicated PWM and LIN diagnosis covers these signal details.

7. Check motor load and module protection

A module may intentionally shut down when motor current is excessive, rotor movement is blocked, temperature is too high, or feedback is implausible. Measure average current and, where useful, perform a fan-motor current ramp test. Inspect bearings, blade contact, debris, wrong rotation, and an incorrect motor or blade fitted during earlier repairs.

8. Build a power-up timeline

Intermittent controllers are easier to diagnose when the events are placed on one timeline. Record the moment the ignition state changes, the wake-up terminal becomes active, network communication begins, the ECU transmits a fan request, the module output turns on, motor current rises, and feedback appears. A scope with several channels is ideal, but synchronized scan data and meter observations can still establish the order.

If permanent power and ground remain stable but the wake-up condition arrives late or disappears, the fault is upstream of the module. If wake-up and command are present but the module repeatedly resets as motor current rises, check the high-current supply, ground offset, connector temperature, and motor load. If the module remains awake and reports a valid command but output never appears, module-specific output tests become more relevant.

Distinguish sleep current from an open circuit

An asleep module may consume very little current by design. That low current is not proof of an open supply. Confirm that the expected wake-up event occurs and observe whether current changes. Similarly, do not keep a network artificially awake during a parasitic-current test and then treat the result as normal module sleep behavior.

9. Recheck after the repair under the original load

A repaired terminal or ground must be verified at the speed and temperature that produced the failure. Command every available fan stage, monitor power- and ground-side drop, confirm motor current and actual airflow, and allow the connector and module to reach a representative temperature. Clear codes only after recording the original evidence, then confirm which codes return.

If electrical operation is correct but coolant temperature or A/C pressure still rises, do not keep replacing control electronics. Inspect fan rotation, blade pitch, shroud sealing, condenser/radiator restriction, and the air path. The broader cooling fan diagnostic guide helps move from module-level evidence to the rest of the system.

Decision Matrix: Supply, Wake-Up, Command, or Module?

Common Misdiagnoses

Replacing the module because there is no communication

No communication can result from missing wake-up, logic power, ground reference, network wiring, or a gateway condition. Prove the controller is powered and awake before condemning it.

Calling a pulsed motor output “low voltage”

A meter averages PWM. A controlled low-duty command can therefore display a value below battery voltage. Measure supply voltage separately and use a scope or scan data to understand the output strategy.

Replacing the module but keeping a melted connector

Heat damages terminal plating and spring pressure on both sides. A new module connected to a weak terminal can fail again. Determine whether resistance, motor overcurrent, or both caused the heating.

Ignoring the motor because the module stores a fault

A module fault code may describe overcurrent, blocked rotor, feedback, or internal protection rather than an internally failed controller. Test the motor load and mechanics.

Assuming every replacement module requires programming

Programming, coding, adaptation, or plug-and-play behavior varies by application. Review the fan module programming guide and the OE procedure. Do not use programming as a substitute for correcting missing power or ground.

Replacement Matching and Wholesale Orders

Two modules can share a housing yet use different firmware, pin functions, current capacity, command logic, fan motor, or connector keying. Match by more than appearance. Collect:

• OE number from the module, motor, shroud, and vehicle catalog

• Vehicle make, model, year, engine, market, and cooling/A/C package

• Connector-face photographs, cavity numbers, terminal sizes, and wire positions

• Permanent power, ignition/wake-up, ground, command, feedback, and motor-output functions

• PWM, LIN, CAN, discrete, relay, or resistor control architecture

• Supply voltage, motor current, fan diameter, blade count, and rotation

• Separate module or integrated assembly service boundary

• Programming, coding, adaptation, or calibration requirements from the OE procedure

• Failure evidence, connector condition, required quantity, and packaging requirements

For importers and distributors, sample approval should include connector keying, terminal retention, sealing, thermal interface, mounting geometry, output current behavior, communication response where applicable, fan rotation, blade clearance, and packaging support. Elecdura’s wholesale cooling fan program covers complete assemblies, while the engine cooling parts range provides related system context.

FAQ

Can a fan module have power but still be asleep?

Yes

Permanent battery power does not always wake the electronics. A separate ignition input or network condition may be required.

Can I test the fan module ground with an ohmmeter?

Use resistance only as a preliminary check

A loaded voltage-drop test is more reliable because it exposes resistance while current flows.

Why does the module work at low speed but fail at high speed?

Higher current can expose supply loss, motor drag, connector resistance, or thermal protection

Compare power and ground voltage drop, motor current, command, and module temperature at both speeds.

Does no PWM waveform prove a wiring fault?

No

The ECU may not be requesting fan operation, or the architecture may use LIN, CAN, a discrete signal, or a pull-up supplied by the module. Verify the diagram and command state.

Should a module and motor be replaced together?

Only when the service design or evidence supports it

An integrated assembly requires combined replacement. With separate components, test motor current, connector damage, and module output before defining the replacement scope.
