Deutz oil cooler replacement should start with the engine family, old part reference, core size, port layout, gasket interface, and installation position. The Deutz name alone is not enough. Common industrial and off-highway engine families such as 1011, 2011, 2012, 1013, and later TCD series can appear in generators, compact equipment, loaders, agricultural machines, forklifts, and construction machinery. Their oil cooler arrangements may differ by engine version, production range, filter base, housing design, plate stack, and market application.

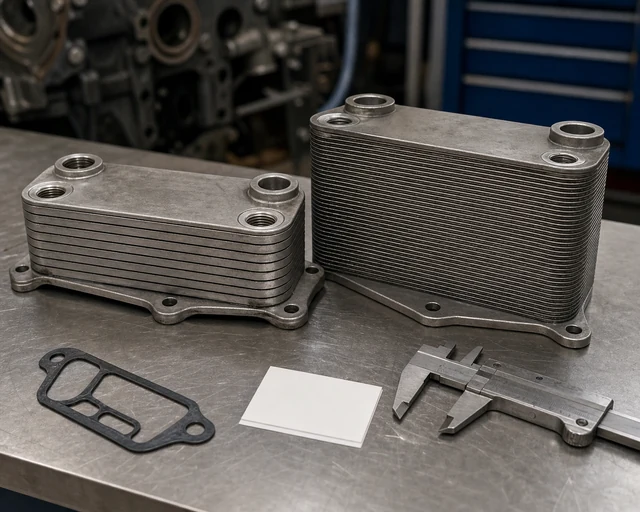

Plate stack height and core size affect flow and cooling performance, so they should be compared before batch orders.
For B2B buyers, the main risk is ordering a cooler that looks close but changes sealing, oil flow, or mounting. A correct aftermarket match should preserve the original heat-transfer function, oil passage layout, port size, gasket openings, and bracket or housing interface. This guide explains how to match a Deutz oil cooler by core size, port layout, and application evidence before approving replacement or batch purchasing.
Matching field | Why it matters | Evidence to collect |
|---|---|---|
Engine family and serial range | Different Deutz versions may use different cooler housings | Engine plate photo, model, serial number, application |
OE or old part reference | Starts the cross-reference and supersession check | Label, casting mark, catalog number, old invoice |
Core size and plate stack | Affects heat transfer, oil flow, and housing fit | Length, width, thickness, row/plate count, side photos |
Port layout or passage openings | Controls oil routing and gasket alignment | Port diameter, passage shape, gasket face photos |
Sealing system | Prevents external leaks and oil/coolant mixing | Gasket profile, O-ring grooves, housing surface condition |
Application duty | Explains heat load and operating risk | Generator, loader, excavator, forklift, agricultural or industrial use |
The buyer should compare physical fitment and functional fitment. Physical fitment means the cooler installs. Functional fitment means it supports the correct oil flow, sealing, temperature control, and durability in the actual Deutz application.
Deutz engines are used across many industrial and off-highway applications, so the same oil cooler request may mean different hardware in different markets. A compact air-cooled or oil-cooled engine package may use a different cooler strategy from a liquid-cooled industrial engine. A generator set may have different duty and access requirements from a loader or excavator. A replacement chosen from a generic product photo may miss the housing or gasket detail that actually determines fit.
Buyers should ask for the engine plate whenever possible. Model, serial number, rated power, machine application, and previous part reference are more reliable than a verbal description. If the engine plate is unavailable, the old cooler and housing photos become essential. The supplier needs to see passage openings, sealing faces, bolt pattern, and installed position.
For distributors, Deutz application records should be stored after each successful installation. Record engine family, machine type, old reference, replacement reference, photos, dimensions, gasket details, and customer feedback. This turns a one-time sale into a repeatable stocking decision.
A Deutz engine model can appear in several machine packages, and the cooler installation can be affected by filter base, housing design, mounting clearance, and surrounding service access. A generic request such as "Deutz 2012 oil cooler" may be enough to start a search, but it is not enough to approve shipment for a distributor or fleet buyer. The old part gives the supplier the real interface.
Useful photos include the cooler installed on the engine, the removed cooler from every side, the gasket face, the passage openings, the bolt pattern, the cooler thickness, and any external ports. If the old cooler failed, include the leak or contamination evidence. If the old part has already been replaced once, include the machine-side housing photos so the supplier can check whether the installed part was correct.
Photos also reduce language problems across markets. One buyer may call the part an oil cooler core, another may call it an oil cooler element, and another may request the complete filter-housing cooler. A photo of the interface is more reliable than terminology alone.
Core size is more than outside length and width. Thickness, plate count, passage layout, and heat-transfer area affect performance. A cooler with the same footprint but different plate stack can change oil flow resistance or heat rejection. If it is thinner, it may not control oil temperature under load. If the internal passages differ, it may create pressure drop or bypass behavior that the original system did not have.
Measure the old cooler carefully. Record overall length, width, thickness, mounting face height, passage opening size, and any step or offset in the housing interface. Side photos help identify plate stack and depth. If the old cooler is distorted, compare the housing and gasket pattern as well so the replacement is not matched to a damaged part.
When a Deutz replacement has the same outer dimensions but different flow behavior, Oil Cooler Pressure Drop becomes an important diagnostic reference. Pressure drop is not always visible from photos, so port size, passage layout, and plate design should be checked before a sample is approved.

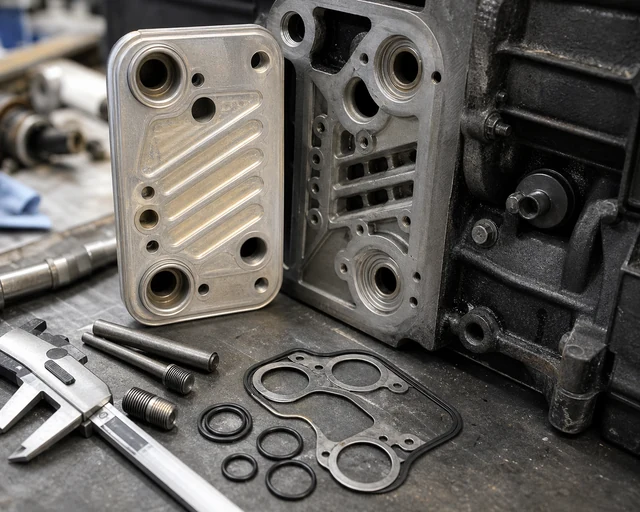

Port layout and passage alignment must match the engine housing; a visually similar cooler can still restrict flow or leak.
Some Deutz oil cooler assemblies use external ports or hose connections, while others rely on housing passages and gasket openings. The buyer should confirm which style is being replaced. For external ports, check diameter, thread type, sealing method, angle, and projection. For housing-mounted coolers, check oil and coolant passage openings, gasket profile, bolt pattern, and whether any orientation marking is present.
Port layout can create failures even when the cooler body looks correct. A smaller port may restrict flow. A wrong thread can require an adapter that adds stress. A passage opening that does not align with the gasket can block flow or create cross-leakage. A cooler that sits slightly proud of the housing can crush the gasket unevenly and leak after warm-up.
For B2B matching, close-up photos of the gasket face are often more important than front-view photos. If the buyer can provide the old gasket or seal pattern, include it in the inquiry. It helps the supplier identify whether the replacement belongs to the same engine version.
Sealing parts should be treated as part of the replacement decision. A Deutz oil cooler may fail because the core leaks, but many field complaints come from old gaskets, hardened O-rings, scratched housing faces, corrosion, uneven tightening, or debris left on the sealing surface. A cooler-only replacement will not fix a damaged housing surface.
Before installation, inspect gasket grooves, O-ring seats, passage edges, bolt holes, and housing flatness. Confirm whether the cooler requires a specific gasket set or if seals are supplied separately. If the buyer is ordering for a remote repair location, missing seals can delay the repair even when the cooler itself arrives on time.
For wholesale programs, the quotation should clearly state whether the part is cooler-only, cooler with seals, or a full kit. The packaging should keep seals separate from sharp metal edges so they are not damaged before use.

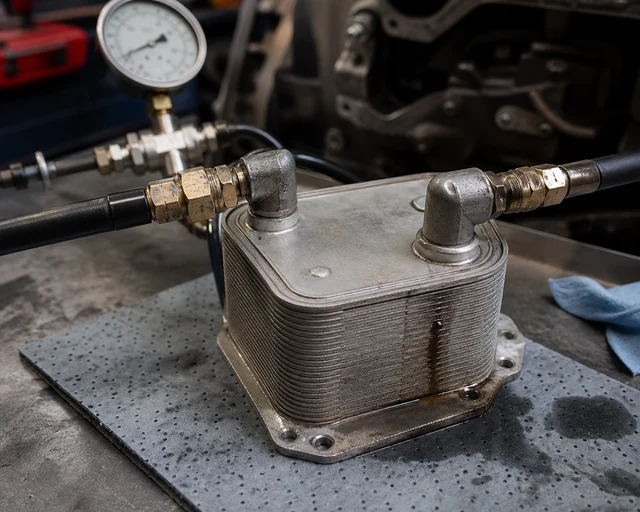

Pressure testing and leak evidence help separate a failed cooler core from gasket, housing, or installation problems.
Deutz oil cooler complaints may include external oil leakage, coolant-side contamination in liquid-cooled applications, high oil temperature, oil pressure concerns, or repeat gasket leakage. Each symptom requires a different check. External leaks should be traced after cleaning the area. Mixing complaints should be pressure-tested through the relevant cooler and housing passages. Temperature complaints should be compared with oil pressure, load, and cooler specification.
A pressure test should be performed according to the cooler and engine service method. The test record should include pressure, hold time, leak point, and whether the cooler was tested alone or with the housing. Leakage at the core supports cooler replacement. Leakage at a sealing face may require gasket, O-ring, or housing repair rather than the cooler core alone.
When the Deutz engine is installed in construction or agricultural equipment, the oil cooler may work alongside hydraulic or other heat exchangers. The Hydraulic Oil Cooler reference is useful for separate hydraulic-circuit cooling, but it should not be confused with the engine oil cooler itself. The circuit type must be stated clearly in the order request.
After a Deutz oil cooler is installed, verification should cover more than external leakage. Check oil pressure behavior, oil temperature under the original complaint condition, fluid condition, and whether the housing remains dry after warm-up. If the original issue was oil and coolant mixing, inspect both fluids after the engine reaches operating temperature and again after cool-down.
If the original issue was high oil temperature, a short idle test is weak evidence. Retest under a comparable load, route, or machine duty. If oil temperature remains high, review airflow, oil grade, pressure drop, bypass behavior, and whether the replacement has a different passage layout. A new cooler can be physically correct but still unsuitable if it changes flow characteristics.
For repair networks, the final test record should include date, engine application, oil pressure, oil temperature, leak check, fluid condition, and installer notes. This record helps the distributor resolve any future claim with evidence rather than memory.
Photos should show the old cooler from every side, the housing interface, gasket surface, passage openings, bolt pattern, any external ports, and the installed location. Add a ruler or caliper in measurement photos when possible. If the cooler is still installed, show how hoses, brackets, filter base, and surrounding parts interact with it.
Aftermarket matching should also compare kit contents. Does the customer need the cooler only, cooler with seals, cooler with housing, or a full service kit? If the gasket is not included, the quotation should say so. If a housing surface is damaged, a cooler-only sale may not solve the complaint.
Elecdura's Engine Oil Cooler page is the most relevant starting point for Deutz engine applications. The broader Oil Cooler category can help buyers compare adjacent oil-cooling products, but the engine family and housing interface remain the deciding factors.
Batch orders require more control than a single repair. A distributor should create a reference sheet with Deutz engine family, application, old part reference, approved replacement, core dimensions, passage photos, gasket details, packaging requirement, and customer feedback. If multiple Deutz variants are stocked, each version should have a separate photo record.
MOQ and price discussions should happen after fitment is confirmed. A lower-cost batch is not useful if several versions are mixed together or if the included gasket does not match the application. For repeat sales, the distributor should also decide whether to stock cooler-only units, seal kits, or complete service packages.
When the first sample is approved, save receiving photos and installation feedback. Future batches should be compared with that approved sample before they are released to customers.
If the old Deutz oil cooler failed internally, the repair should include contamination control. Oil residue in the coolant side, coolant residue in the oil side, sludge, bearing debris, or old gasket material can create repeat problems after the new cooler is installed. The cleaning plan depends on the failure direction and engine design, but the result should be documented so the customer understands what was removed and what was retested.
For distributors, this information matters because many claims appear after incomplete cleaning. A customer may see oil film again in the reservoir and assume the replacement cooler failed, even though the residue came from the old failure. A clear repair record should state whether fluids were changed, filters were replaced, passages were cleaned, and the system was checked after warm-up.
The first mistake is combining similar Deutz coolers under one stock code without proving that the gasket face and passage layout are the same. The second is buying cooler-only units when the customer expects seals or a complete kit. The third is approving a lower-cost sample without testing it on the real application. The fourth is ignoring packaging until a sealing face is scratched in transit.
A distributor can prevent these issues by using a controlled approval sheet. The sheet should include sample photos, dimensions, engine application, included parts, carton standard, inspection notes, and the customer or technician who confirmed installation. When a future order arrives, the warehouse can compare it against the approved record before shipping.
Quality checks should cover sealing surfaces, passage openings, plate stack, bolt holes, external ports, protective caps, gasket kit contents, label accuracy, and packaging. A small scratch on a sealing face can create a leak. A missing cap can allow debris into an oil passage. A mislabeled cooler can reach the wrong application even if the part itself is well made.
For wholesale shipments, packaging should prevent metal-to-metal rubbing and protect thin edges, gaskets, and ports. Cartons should identify part numbers clearly. If the cooler includes seals, those seals should be packed separately from sharp metal edges and labeled so the technician does not discard them with packaging.
Receiving inspection should be part of the buyer's process. Photograph the carton, label, cooler, sealing faces, and kit contents before adding the part to stock. This record helps separate shipping damage, stocking error, and product quality if a later claim appears.
If the part is shipped to a remote job site, this inspection should happen before dispatch from the distributor warehouse. Finding a missing gasket, wrong label, or scratched sealing face before shipment is far cheaper than discovering it after the machine is already waiting for repair.
Deutz engine model, serial number, machine type, and market region.
Old oil cooler part number, casting mark, label, or supplier reference.
Photos of cooler body, housing interface, gasket face, passages, and bolt pattern.
Core length, width, thickness, plate stack, passage size, and port details.
Failure evidence: external leak, mixing, high oil temperature, pressure concern, or damaged housing.
Gasket, O-ring, housing, or kit requirements.
Target quantity, packaging requirement, label requirement, and repeat-order plan.
Evidence found | Recommended action | Reason |
|---|---|---|
Old and new gasket faces differ | Stop and confirm application | Misaligned passages can leak or restrict flow |
Core leaks during pressure test | Replace cooler | Core integrity is confirmed as failure point |
Leak is only at housing seal | Replace seal and inspect housing surface | Cooler core may still be serviceable |
High oil temperature after sample installation | Review plate stack, passages, and pressure drop | Physical fit may not equal functional match |
Batch unit differs from approved sample | Hold shipment for review | Prevents repeat customer claims |
Deutz oil cooler replacement should be managed as a technical matching task. Confirm engine family, old part reference, core size, port or passage layout, gasket profile, housing interface, and failure evidence before approving the order. Avoid matching only by brand name or exterior shape. Small differences in plate stack, passage alignment, or sealing surface can create leakage, pressure drop, or temperature issues after installation.
