Two radiator fans mounted beside each other do not necessarily operate as two independent 12-volt motors. Some vehicles connect both motors in series for low speed and switch them in parallel for high speed. Others use separate relays, one shared resistor, two integrated modules, or one controller that drives both motors. The correct diagnosis begins by identifying the electrical architecture rather than assuming that each motor should always receive full battery voltage.
This matters because a failed motor in a series low-speed path can stop both fans, while high speed may still operate one or both motors. In a parallel circuit, one open motor may leave the other running normally. In an independently controlled assembly, one fan can remain off because of its own power, ground, command, or feedback fault. The same visible symptom therefore leads to different test points and replacement decisions.
The objective of this guide is to identify the current path, reproduce each commanded stage, and decide whether the fault belongs to a motor, relay, resistor, module, connector, or application mismatch. Elecdura’s radiator cooling fan assemblies include single- and dual-fan configurations, so connector pinout and control logic must be confirmed along with dimensions and mounting points.

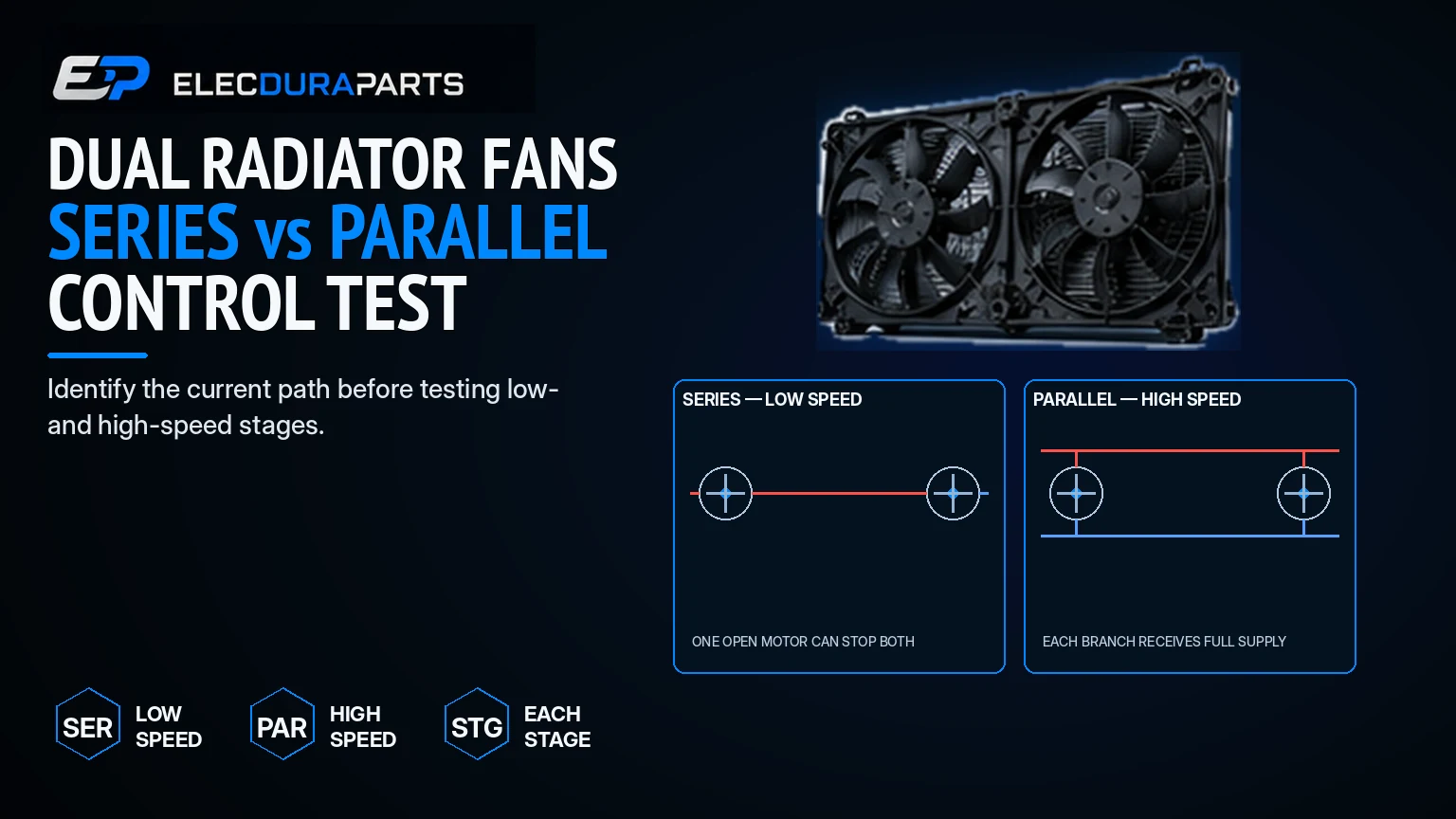

Architecture | How speed is produced | Typical failure behavior |
|---|---|---|
Series low speed | Two motors share system voltage in one current path | One open motor or connector can stop both fans at low speed |
Parallel high speed | Each motor receives a full supply/return path | One branch can fail while the other continues |
Resistor-controlled | A resistor drops voltage for one or both motors | Low speed fails while direct high speed remains |
Independent relay control | Each motor has its own switched circuit | Symptoms follow the failed branch |
Independent PWM/LIN modules | Electronic controllers vary motor speed | One fan may obey command while the other limits, resets, or loses communication |
Do not use voltage division alone to identify a series circuit. Motor speed, back-electromotive force, motor condition, measurement reference, and active relay state affect the reading. Confirm the architecture from a wiring diagram and then verify it with controlled measurements.
A wide radiator and condenser may be better covered by two smaller fans than one central fan. A dual layout can fit around engine, grille, crash-beam, and accessory constraints while pulling air across more of the heat-exchanger face.
Low-speed airflow may handle normal coolant and A/C loads with less noise and electrical demand. High speed can then be reserved for elevated coolant temperature, high refrigerant pressure, low vehicle speed, towing, or heat soak. A series/parallel relay network produces two speeds without an electronic motor controller.
Two motors do not automatically mean full redundancy. Series low speed depends on both motors and the interconnecting path. Some control strategies also require both feedback signals before commanding full operation. Never promise continued cooling from “the other fan” without understanding the circuit.
A common arrangement uses three relays. In low-speed mode, relay contacts route current through motor A and then motor B before returning to ground. Each motor receives part of the available voltage. In high-speed mode, relay contacts reconfigure the paths so each motor has a parallel supply and ground path. The actual number and labeling of relays vary.
Trace from battery positive through the fuse and low-speed relay, through the first fan motor, through a changeover or series/parallel relay, through the second motor, and finally to ground. An open winding, disconnected plug, burned changeover contact, or broken inter-fan wire can interrupt the entire path.
Two identical healthy motors under similar aerodynamic load may show roughly similar voltage, but unequal bearing drag, blade load, winding condition, or connector resistance changes the division. A slow motor can alter the voltage seen by the other. Use current, voltage drop, and speed together rather than expecting an exact 50/50 split.
High-speed relay operation normally gives each motor a more direct supply and return. Test each branch from the appropriate fuse/relay to its motor and ground. One branch can have correct voltage while the other loses power through a fuse, relay, splice, or connector.
A changeover relay must move from one contact to another and carry motor current. The coil can energize while the high-current contacts remain burned, welded, or resistive. Use a relay load test and measure voltage across closed contacts.
A resistor may reduce voltage to one or both motors. The resistor, thermal fuse, connector, or airflow around the resistor can fail. Confirm whether the resistor is in the active path and whether motor overcurrent contributed to its failure. Replacing a resistor without checking the fan motor load can produce another overheated component.
Some vehicles use a primary engine-cooling fan and a separate condenser fan. Their control thresholds and physical roles differ. The A/C fan may respond to refrigerant pressure before coolant temperature rises. Test requests and current paths individually.
A central fan control module may drive two outputs, monitor current, or switch stages electronically. Verify module power, grounds, wake-up, command, and output channels. A protection shutdown caused by one overloaded motor may affect both outputs.
Each fan can have its own brushless electronics and command/feedback connection. A shared network request does not guarantee that both controllers receive the same supply quality or report the same state. Use the PWM/LIN diagnosis when communication and electronic speed control are involved.
Record coolant temperature, A/C request, refrigerant pressure, battery voltage, fan command, and actual fan response. Use scan-tool output controls when supported. Test low and high speed separately. A system that works only on high speed presents different evidence from one that works only on low speed.
Record which motor starts first, whether both rotate in the correct direction, whether speed is stable, and whether airflow passes through the condenser/radiator toward the engine side as designed. A fan can spin yet provide poor system airflow because of a reversed motor, incorrect blade, missing seal, or damaged shroud.
Use the vehicle wiring diagram to label fuses, relay coils, relay contacts, resistor, module, motors, splices, grounds, and command sources. Highlight the current path for each speed. Do not proceed from a generic three-relay diagram unless it matches the vehicle.
Two-pin motors often use external switching, but a two-pin assembly can still be supplied through a module elsewhere. Multi-pin connectors can carry several speeds, feedback, or integrated control. Confirm terminal functions before applying power.
Measure directly across each motor’s supply and return terminals while the stage is active. In a series circuit, each motor may receive a portion of system voltage. In parallel high speed, each should receive the voltage permitted by its own path. Compare readings with battery voltage recorded at the same moment.
Use the loaded voltage-drop method to locate resistance. In series mode, also test the interconnecting path between motors and the relay contact that performs the reconfiguration. In parallel mode, test each branch independently.
Combined supply current cannot show how load is divided between motors. Clamp each branch separately where possible. Compare cold/hot and low/high operation. If one motor draws excessive or unstable current, inspect bearings, blade clearance, wiring, and waveform. A current-ramp analysis can expose commutator or periodic load faults.
Two physically similar fan connectors may tempt a technician to swap them. This can be unsafe or electrically invalid if polarity, feedback, or module connections differ. Instead, compare measured power, ground, command, current, and response for each branch. Only perform component substitution when the service procedure confirms compatibility.
Monitor relay, fuse-box, resistor, module, and connector temperature while both fans operate at maximum demand. A shared supply connection can pass one fan but fail when both branches draw current. A terminal may lose tension as it heats, creating a stage-specific failure.
Observed behavior | Architecture-dependent suspects | Best next test |
|---|---|---|
Neither fan works on low speed; both work on high | Series path, low-speed relay, changeover contact, resistor, or command | Trace the complete low-speed current path |
One fan works on high; the other does not | Failed motor or individual parallel branch | Measure voltage drop and current at the failed branch |
One fan is slow and the other unusually fast in series mode | Unequal motor/load resistance or connection loss | Measure voltage across and current through both motors |
Both fans start then stop | Shared supply loss, module protection, overcurrent, or command withdrawal | Record supply, command, current, and module state together |
Fans work with A/C but not with high coolant temperature | Sensor/ECU strategy or separate command path | Compare requested fan state and input data |
New relay or resistor overheats | Motor overcurrent, terminal resistance, wrong component, or poor cooling | Test motor current and loaded voltage drop |
Consider a three-relay series/parallel system with an open winding in motor B. During low speed, current must pass through motor A and motor B, so neither motor operates. During high speed, motor A receives its own parallel path and runs, while motor B remains stopped. If the technician tests only high speed, motor A appears healthy and the loss of the shared low-speed path may be mistaken for a relay fault. Testing both stages and tracing the active path resolves the apparent contradiction.
Now consider a motor B with bearing drag rather than an open winding. In low-speed series operation, its electrical and mechanical condition changes how voltage divides between the two motors. Motor A may receive a different voltage and rotate at an unexpected speed even though it is not faulty. At high speed, motor B may draw excessive current through its parallel branch, heat its connector, or open a fuse. Comparing individual motor current with the radiator fan current-draw procedure prevents the unusual speed of motor A from becoming the wrong replacement decision.
A third case involves correct motor circuits but a missing low-speed ECU request. Both motors can pass direct electrical tests and still remain off during normal operation. The fault may be an input value, control strategy, pressure signal, temperature signal, or command wire rather than either motor. Use scan data to establish whether the request exists before bypassing relays. The step-by-step two-speed fan circuit diagnosis can be used after the architecture is confirmed.
A running fan does not prove every relay contact, and a stopped fan does not prove its motor is open. Each speed can use a different combination of contacts and branches. Write the current path for the exact commanded state beside the measured voltage and current results. This simple record keeps low-speed evidence from being mixed with high-speed assumptions.
In a series path, one open point stops current through both motors. Test motor continuity only as a preliminary check, then prove operation and current under a controlled load.
Integrated modules may use low-current PWM or LIN command wires. Applying battery voltage can damage electronics. Identify power and command terminals from reliable service information.
A replacement motor must match voltage, rotation, shaft, blade attachment, connector, speed/current behavior, and intended blade load. If the blade or shroud is damaged, use the motor versus complete assembly guide.
Incorrect rotation, recirculation, missing seals, blocked fins, and damaged blades can reduce airflow. Inspect the complete engine cooling system when electrical operation is correct but temperature or A/C pressure remains high.
Appearance alone is especially risky with dual fans because the shroud can accept different motors, modules, connectors, and blade combinations. Collect:
OE numbers from the assembly, each motor, module, resistor, and vehicle catalog
Vehicle make, model, year, engine, transmission, market, cooling and A/C package
Overall shroud width/height/depth and mounting-hole positions
Fan A and fan B blade diameter, blade count, rotation, and offset
Connector faces, keying, cavity count, terminal size, and wire position
Series/parallel, resistor, independent relay, PWM, LIN, or integrated architecture
Supply voltage, current behavior, and feedback requirements
Included relays, module, resistor, flaps, seals, brackets, and wiring
Required quantity, sample plan, and packaging protection
Compare the proposed part with the correct fan assembly category and not only a vehicle name. For distributor programs, Elecdura’s wholesale cooling fan range can be reviewed by OE reference and configuration.
Verify mounting geometry, connector keying, terminal retention, rotation, blade clearance, shroud flatness, motor startup and steady current, every available speed stage, command/feedback response, and packaging support. Confirm that series/parallel switching does not cause abnormal voltage distribution or connector heating. Keep separate records for each SKU.
An open motor or connector interrupts the single low-speed current path. High-speed parallel operation may behave differently.
Series-connected motors share the available voltage. Resistor and PWM systems also intentionally reduce or pulse motor voltage. Use the wiring diagram and active control state.
Confirm shaft, blade, rotation, voltage, current, connector, control type, and the condition of the other motor and shroud.
Check high-speed relays, fuses, contacts, grounds, commands, and each motor under the higher current load.
It may use relays, a resistor, one central module, or two integrated controllers. Identify the architecture before ordering.
Send Elecdura the assembly and motor OE numbers, vehicle/engine application, photos of both connector faces and wire positions, shroud and fan dimensions, circuit architecture, low/high-speed voltage and current results, included module/resistor details, required quantity, and sample-test requirements through the contact page. These details allow both fan branches and their control logic to be matched as one system.
Also identify which fan sits behind each heat-exchanger zone and whether the harness crosses between motors. That installation evidence prevents left/right motor assumptions and helps preserve the intended low-speed and high-speed current paths during sample approval.
Retest both stages.
