Electric-bus HVAC is a procurement problem before it becomes a comfort complaint. A conventional vehicle may use an engine-driven compressor and a familiar underhood layout. An electric bus can combine a high-voltage electric compressor, rooftop or remote condenser modules, multiple fan assemblies, refrigerant and coolant loops, controls that communicate with the vehicle, and an operating schedule that includes long dwell periods in high ambient conditions. A part that looks close is not necessarily safe, controllable, or serviceable in that system.
For distributors, the opportunity is clear: fleets and workshops need a supplier that can turn a bus identity and a failure report into a complete, defensible component request. The risk is equally clear: quoting a compressor, condenser, or fan from appearance alone can create a mismatch that reaches beyond cooling performance. Begin any major HVAC inquiry with verified vehicle and system data, then use the wholesale A/C compressor range only as the entry point for an application-led match rather than a visual substitute.
Start with the operating architecture, not a generic replacement label.
An electric bus may use HVAC to condition the passenger cabin while thermal systems also protect batteries, power electronics, or other electrical components. The exact architecture varies widely by manufacturer, route type, climate, and vehicle generation. That variation is why “electric bus compressor” is not a sufficient purchase specification. The buyer needs to describe the role of the component in the vehicle’s actual thermal system.
Component area | What can vary | What a distributor should capture |
|---|---|---|
High-voltage compressor | Voltage class, power range, inverter/control interface, refrigerant and oil requirements, mounting, ports | Bus model/VIN, original part number, connector photos, label data, refrigerant circuit details. |
Condenser module | Rooftop, rear, side, or remote location; core dimensions; fan arrangement; service ports; integrated drier strategy | Module photos, overall dimensions, connection locations, damaged-area images, vehicle build details. |
Fan assembly | Voltage, airflow target, blade and shroud design, direction, controller, harness, mounting pattern | Motor label, connector/pin photo, direction of airflow, shroud measurements, control-module reference. |
Controls and sensing | Pressure, temperature, speed feedback, CAN or vehicle-specific logic | Fault description, connector details, OEM reference, diagnostic observations from qualified staff. |
Duty cycle | Urban stop-start, depot charging, high passenger load, long idle dwell, local ambient conditions | Route pattern, season, complaint timing, and whether the problem occurs under load or at standstill. |
This information is not bureaucracy. Each line can change whether a substitute component will mount, communicate, move air in the required direction, or remain within the vehicle’s thermal strategy. A sales order based on “12V fan” or “electric compressor” without the rest of the evidence is a guess.
When a fleet calls because cabin cooling is weak, the reported component may be wrong. A high-pressure complaint can relate to condenser airflow, a blocked heat exchanger, fan control, charge condition, a restriction, or a command issue. A loud compressor may be reacting to system conditions rather than causing them. The distributor should record the reported diagnosis, but keep the quote open until the physical and application information supports the requested component.
Vehicle make, model, production year, VIN or fleet asset reference, and operating market.
Original component number and clear label photographs, including compressor or fan motor labels.
Wide photographs showing the component’s location and surrounding duct, shroud, bracket, or piping.
Electrical connector views: face, pin count, locking shape, harness length, and any visible markings.
Refrigerant-circuit connection photos and relevant A/C label information.
Measured dimensions and mounting points, taken only after the original reference has been recorded.
The operating condition when the fault occurs: moving, stopped, charging, high passenger load, or high ambient temperature.
With this package, a distributor can determine whether it has a direct application match, needs a cross-reference review, or should decline a speculative substitute. It also makes technical escalation much more productive because the specialist sees the same evidence that the workshop sees.
For an urgent roadside or depot request, use a staged intake rather than abandoning verification. Prioritize the fleet asset or VIN reference, the original part label, and a connector or installed-location photo first. Add duty-cycle history, dimensions, and full module photographs before final fitment approval if they are not immediately available. This keeps the case moving without turning an emergency request into an unsupported substitute order.
High-voltage compressor selection must match electrical, control, and refrigeration interfaces together.

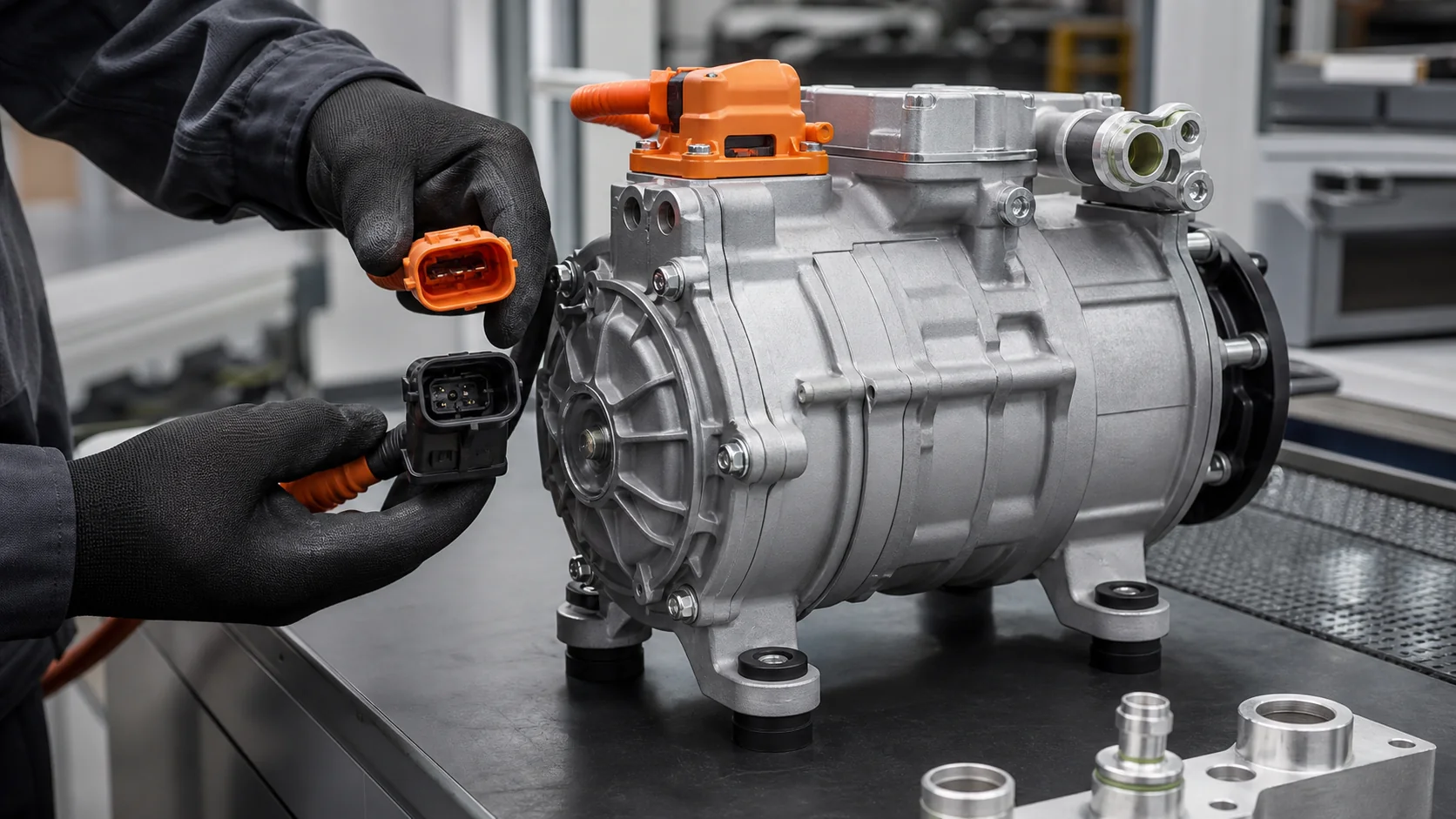

A high-voltage electric compressor is not just a compressor with an electrical plug. It may contain its own drive electronics or rely on a defined control architecture. Voltage category, connector configuration, communication behavior, insulation requirements, refrigerant and lubricant compatibility, discharge and suction orientation, mounting isolation, and cooling capacity all need to align with the vehicle. A part that fits the bracket but cannot receive the correct command is not a viable replacement.
Do not use a generic “higher voltage is better” or “same wattage is close enough” rule. Electric-bus compressor circuits can operate at hazardous high-voltage levels and have vehicle-specific protective strategies. Workshops must follow the manufacturer’s safe-isolation, PPE, and diagnostic procedures. The distributor’s role is to request the data that supports a safe match and avoid claims that a universal compressor will integrate into a bus HVAC network.
For returns or quality investigations, retain the original label, connector images, bus identity, and a description of the failure condition. If a compressor has been exposed to a low-charge system, restriction, fan failure, or contamination event, those observations belong in the case file. They help distinguish a supplied-unit concern from a system condition that could damage any replacement.
Condenser airflow is a module-level fitment decision.

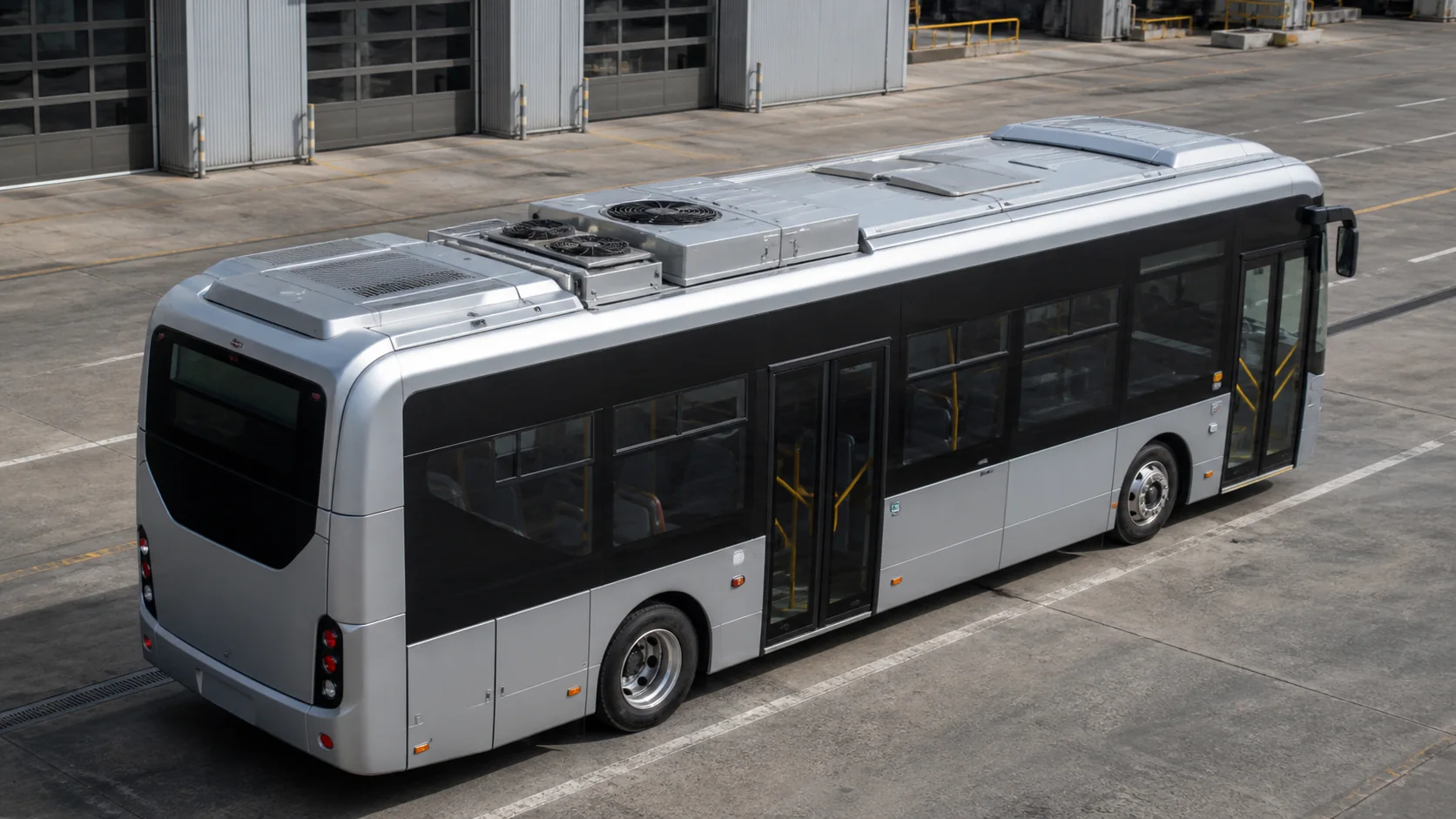

On a bus, the condenser may be a rooftop pack with multiple fans, a rear-mounted module, or part of a remote thermal assembly. Its performance depends on heat-transfer area, fin condition, airflow path, fan direction, shroud sealing, and control response. A visually similar core with the wrong thickness, port geometry, or fan envelope can reduce capacity even if it does not leak.
Use a verified A/C condenser application as the starting category, then confirm the bus-specific module design. Ask whether the original drier is integrated, whether service ports are part of the assembly, and whether the fan/shroud is supplied separately. The answer affects both the quotation and the installation plan. It is often more practical to quote a matched assembly or a documented component set than to send one unverified piece into a rooftop system.

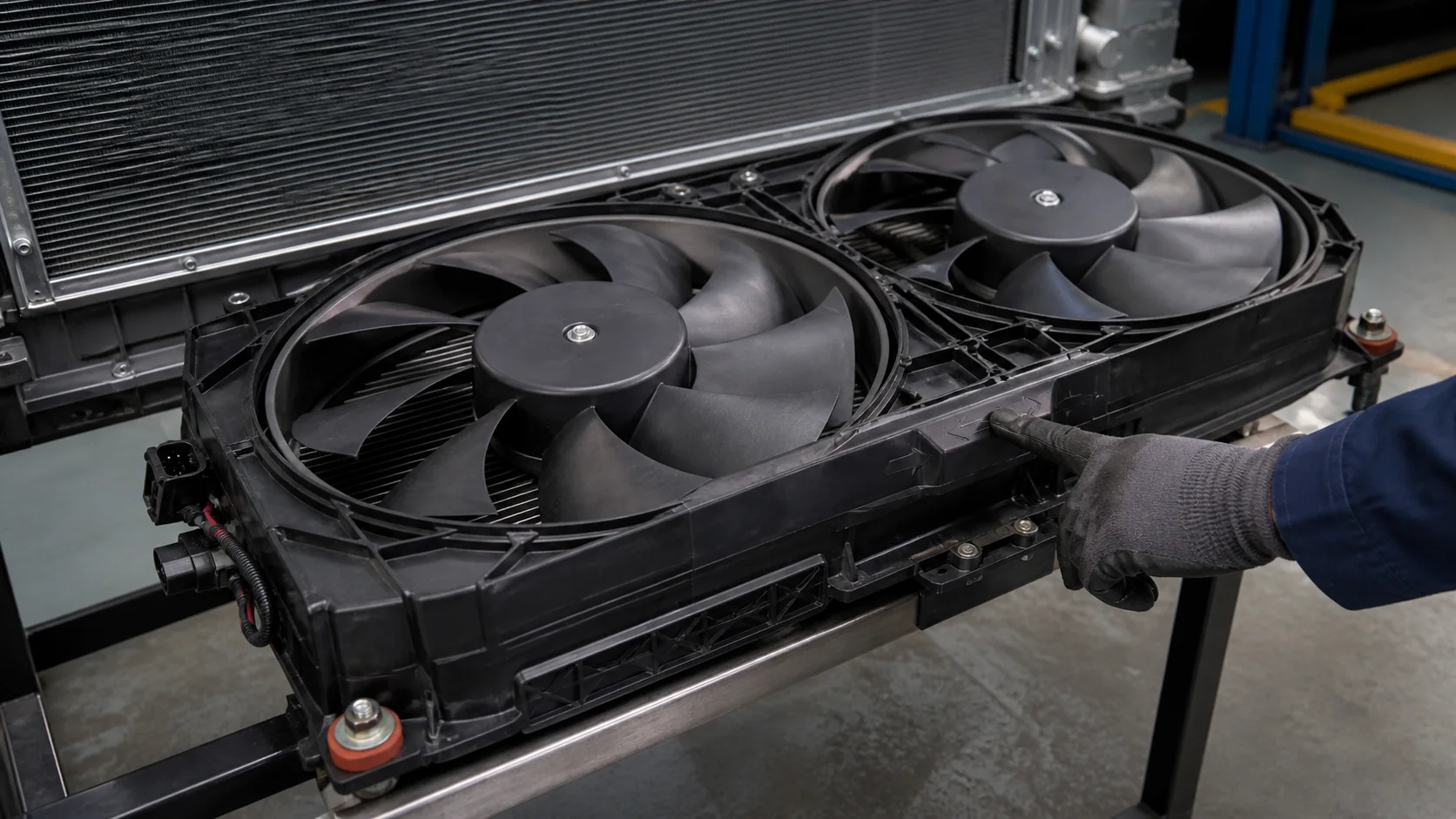

Is the fan pushing or pulling air through the condenser in its installed position?
What is the motor voltage and the full part number on the label?
Does the unit have an integrated controller, a separate control module, or a simple power connection?
What connector, pin count, and harness length are present?
How is the shroud sealed to the heat exchanger, and are any rubber mounts or brackets damaged?
Does the complaint occur with one fan inoperative, at low speed only, or after a prolonged stationary period?
Those questions shift the conversation from “please send a fan” to “please identify the airflow and control component that the module actually needs.” They also flag the orders where an incomplete shroud or damaged mounting system could defeat a correctly matched motor.
Electric buses see a duty cycle that is different from a highway coach or a passenger car. Stop-start city operation can reduce ram-air assistance. Long loading stops can keep the HVAC working while the vehicle is stationary. High passenger density adds cabin heat load. Depot charging and local climate can create operating periods that are not visible in a short workshop test. When the fault occurs is therefore as important as what fault code was reported.
A useful order or support note records whether cooling deteriorates during a route, only at a standstill, after several hours, on hot afternoons, or during charging. Urban routes with frequent passenger-door openings and stop-start dwell can create a different continuous cabin heat load from steady intercity driving with more consistent airflow. It also records whether the driver sees a consistent control warning or simply reduced cabin comfort. This information does not replace diagnosis, but it helps the workshop focus on airflow, command, charge, and thermal-load conditions that a one-minute bay test may miss.
Electric-bus HVAC quotes should make their assumptions visible. State the vehicle reference used, the original number cross-referenced, the supplied items, and the information still to be verified. If the fan motor is supplied without shroud or controller, say so. If a compressor match depends on a connector photograph or label confirmation, hold the order until that is provided. A transparent boundary is better customer service than a rapid but weak promise.
Quote wording example | Why it helps |
|---|---|
“Matched against supplied original number and connector image; final installation must follow bus manufacturer procedure.” | Shows the fitment basis without claiming universal interchangeability. |
“Fan motor only; shroud, mounts, and controller not included unless listed.” | Prevents a complete-module expectation from a component-only order. |
“Condenser assembly match pending port-position and integrated-drier confirmation.” | Stops a near-match from becoming a physical installation failure. |
“System fault cause not established by this part quote.” | Keeps the sales role separate from workshop diagnosis. |
A bus taken out of service has a different cost profile from a passenger car awaiting an appointment. Fleet buyers may value availability of high-impact module components, seals, fan assemblies, and verified compressor references more than a small unit-price saving. The distributor can support this by separating critical spares from long-lead parts and by storing the evidence required for repeat ordering: fleet asset, original references, connection photographs, and previous repair scope.
Do not overstock every electrical item just because it is difficult to source. Use fleet history, route exposure, and lead time to decide which components deserve a planned stock position. Review returns and repair records for recurring physical damage, fan failures, connector issues, or heat-exchanger contamination. This creates a practical spares strategy without pretending that every bus HVAC system is the same.
A correctly sourced part still needs a controlled handover. The final check should follow the vehicle manufacturer’s procedure, but the distributor can encourage the fleet to retain a concise acceptance record. It should identify the part installed, the related items renewed, the condition of the condenser/fan module, any required electrical safety checks completed by qualified personnel, and the observed HVAC result under an appropriate operating condition.
For a fan replacement, an acceptance note may confirm correct rotation, secure shroud mounting, intact harness routing, expected speed response, and absence of abnormal noise or vibration. For a condenser module, it may confirm secure mounting, undamaged fins, clear airflow path, correctly seated lines, and the completion of the specified refrigerant-service process. For a high-voltage compressor, it should not improvise a test method; it should reference that the approved commissioning and safety procedure was followed by trained personnel.
This record helps in two ways. It protects the workshop if the vehicle later develops a separate problem, and it creates a consistent evidence base for the distributor if an early-life issue is reported. The handover is not an administrative afterthought. It is the point at which a part purchase becomes a fleet-availability outcome.
Technical sales conversations often blur two different questions: “Can you supply the correct item?” and “Will this item solve the complaint?” The first can be answered through application, label, interfaces, and documented cross-reference data. The second requires a qualified diagnostic process on the vehicle. Keeping the questions separate makes the distributor more credible. It avoids promising that a fan will resolve a high-pressure condition before airflow, controls, charge, and heat-exchanger condition are understood.
Use a simple escalation path for uncertain requests. Counter staff collect the vehicle reference and evidence. A technical reviewer checks whether the original number and interfaces support a match. The workshop retains responsibility for diagnosis and safe installation. If critical information is missing, the order remains pending rather than being converted into a near-match. This approach may take one extra exchange at the start, but it prevents the far more expensive exchange of a returned, installed electrical component later.
Large components attract attention; small interfaces often create the mismatch. Inspect the location and clocking of refrigerant ports, the depth of sealing surfaces, connector keying, strain relief on the harness, rubber-isolation mounts, drain paths, and the relationship between the shroud and heat exchanger. A replacement fan that moves the intended air can still fail early if the harness is stretched, the shroud does not seal, or the mount transfers vibration into the module.
Ask for photos with a scale only after the part-number search is exhausted. Dimensions are a useful verification layer, but they should not be the only matching method. Similar components can share a diameter and mounting envelope while differing in motor electronics or control behavior. The more modern the thermal system, the less safe it is to infer equivalence from one visible feature.
Once a fleet has a verified component match, save the non-sensitive application record with the item: asset family, original number, approved replacement number, connection and mounting photographs, associated parts, and any installation notes that affected the repair. The next order can then begin with a known match instead of a new visual search. This is especially valuable for operators with mixed bus generations, where two almost identical vehicles may carry different HVAC modules.
Review that record after any supersession or redesign. A past match is useful evidence, not a permanent assumption. If a supplier changes a connector, fan controller, or service-port arrangement, update the approved reference and flag the affected fleet range before the next urgent breakdown order arrives. This small discipline also gives purchasing teams a reliable basis for spares forecasts, alternative sourcing reviews, and clear counter training. It prevents a genuine historical success from being misused as proof that every later vehicle is identical. Keep the latest evidence linked to the exact approved fleet configuration and installation position.
Not on appearance, voltage class, or refrigerant type alone. Bus HVAC architecture, capacity, connectors, controls, mounting, and approved application data must support the match.
No. Motor control, airflow direction, blade profile, shroud integration, voltage, speed feedback, and mounting can all differ. Record the original label and installed arrangement.
Qualified personnel must follow the vehicle’s high-voltage safety and diagnostic procedures. A distributor can improve the repair by collecting correct application data and routing uncertain cases for technical review.
Start with a clear original-component label, then add a wide installed-location view and connector/port photographs. Together, these are more useful than a single distant rooftop picture.
Electric-bus HVAC components work as an electrical, refrigeration, airflow, and control system. The strongest distributor support begins with a verified bus identity, captures the original component and interfaces, includes route conditions in the support note, and sets a clear quotation boundary. That process reduces speculative substitutions, protects fleets from avoidable downtime, and creates a better foundation for parts availability as electric-bus service demand grows.
