Fendt A/C compressor and condenser orders should not be approved by tractor brand alone. A Fendt tractor may need a different compressor depending on model series, engine layout, bracket position, pulley alignment, clutch voltage, rear-head design, hose port direction, and production variation. The condenser can also vary by core size, mounting brackets, pipe routing, receiver drier arrangement, and cab cooling package. For dealers and importers, the safest order is built from evidence: old-part photos, OE numbers, model and serial information, pulley details, connector style, and system-side layout.
This article focuses on the matching work behind Fendt agricultural A/C parts. It is written for parts dealers, repair networks, and distributors that need to reduce wrong shipments and avoid "almost right" components. A compressor that bolts on but has the wrong pulley offset can destroy the belt. A condenser that looks similar but has the wrong pipe angle can force hose stress. A compressor with the wrong clutch voltage can fail before the repair is complete. Good sourcing turns those risks into a checklist before the order leaves the warehouse.
Fendt compressor matching starts with visible details: pulley, clutch, mounting ears, rear head, and port direction.
Fendt tractors are often used in demanding agricultural environments where cab A/C is not a comfort luxury; it supports operator productivity during long field work. When the A/C system fails in season, dealers need fast and accurate replacement parts. The pressure to ship quickly can lead to a common mistake: ordering by brand and a broad model name without checking the exact compressor or condenser configuration.
Several factors make Fendt matching sensitive. Tractor models can have different engine arrangements, compressor brackets, cab packages, belt drives, and regional specifications. A machine that looks similar from the outside may use a different compressor family. Replacement history also matters. A tractor may already have an aftermarket compressor installed, a modified hose, or a repaired bracket. In those cases, the current old part may not match the original catalog exactly, but it still provides important fitment clues.
For distributors, this means the quotation should not rely on a single text field such as "Fendt compressor." It should collect enough evidence to identify the actual compressor and the surrounding A/C layout. A Fendt A/C compressor request should be checked against the machine, the old part, and the system layout before a substitute is approved.
The compressor family affects mounting, oil capacity, displacement, pulley arrangement, and service behavior. Agricultural compressors may include familiar aftermarket families such as 10S, 10PA, SD-type, TM-type, or other OE-style replacements, depending on the application. The buyer does not need to become a compressor engineer, but they do need to recognize that two compressors with similar housings can have different displacement, rear heads, pulley offsets, and brackets.
If the old compressor label is readable, photograph it before removal. Include any OE number, aftermarket number, barcode, casting mark, or model mark. If the label is missing, take photos from the front, rear, side, top, and mounting-foot angle. A rear-head photo is especially useful because suction and discharge port direction can separate otherwise similar compressors. A front photo is needed for pulley and clutch comparison.
For buyers stocking agricultural A/C compressors, classifying by compressor family helps warehouse control. It also prevents a common error where a sales team substitutes a visually similar compressor that fits the bracket but does not match the belt or hose position.
Pulley mismatch is one of the fastest ways to turn a simple compressor replacement into a repeat repair. The belt must run in the correct plane. If the pulley offset is wrong, the belt can ride against the edge, squeal, heat up, or fail. If the groove count is wrong, the belt will not seat correctly. If the pulley diameter differs significantly from the original, compressor speed can change and clutch clearance may be affected.
Before ordering, confirm pulley type, groove count, approximate diameter, and offset. A front-facing photo with a ruler or caliper is valuable. If the old pulley is damaged, check the belt type and bracket alignment. Some buyers focus only on the compressor body and ignore the clutch pulley, but the pulley is often the first visible sign that the replacement is wrong.
For Fendt applications, this check is especially important because agricultural equipment may be serviced in markets where parts are cross-referenced from multiple sources. A product listing may show a compatible compressor, but the shop still needs to verify that the pulley matches the machine in front of them. A dealer handling several Fendt model families should not assume a shared compressor body means a shared pulley.
Many agricultural A/C compressors use an electromagnetic clutch. The clutch voltage must match the tractor electrical system. A 12V clutch and a 24V clutch are not interchangeable. Using the wrong voltage can cause weak engagement, coil overheating, blown fuses, or immediate failure. In some cases the connector also changes, which can lead to field wiring repairs that reduce reliability.
Buyers should confirm clutch voltage, connector shape, wire count, and connector position. A photo of the clutch wire and plug should be included with the order request. If the tractor has been repaired before, check whether the connector is original or spliced. A spliced connector may tell the sourcing team that the old part was already substituted once.
For higher-risk agricultural applications, the electrical check should be more specific than "same plug." Confirm whether the clutch coil is 12V or 24V, whether the connector uses a sealed plug or a single bullet terminal, whether the lead length matches the bracket position, and whether the old harness shows heat damage or field splices. If the old clutch failed electrically, ask whether the repair shop measured coil resistance, supply voltage, and ground quality. A correct compressor can still be blamed for a no-engagement complaint when the real fault is a pressure switch, relay, thermostat control, or poor ground.
Electrical checks should also be part of diagnosis. If the old compressor does not engage, it may be because the clutch coil failed, but it may also be caused by low refrigerant pressure, a faulty pressure switch, relay issue, thermostat control, or wiring problem. If the replacement compressor is ordered before electrical diagnosis, the new compressor may not solve the customer's complaint.
Compressor variations can differ in clutch, pulley, rear-head, and mounting details even when the general application sounds similar.
A compressor can look correct on a table and still fail to mount correctly on the tractor. Mounting ears, ear thickness, bolt spacing, thread style, and bracket contact surfaces all matter. If the compressor sits slightly out of position, the belt may misalign. If the mounting ear thickness differs, the bracket may clamp poorly or stress the housing. If a boss or casting rib interferes with the bracket, installation may require unsafe grinding or modification.
Ask for side-view photos of the old compressor showing all mounting ears. When possible, measure bolt-hole spacing and ear thickness. If the old compressor is still installed, take a photo showing how it sits on the bracket. This helps identify whether a replacement requires the same ear geometry or whether a bracket adapter was used.
For wholesale orders, mounting mismatch is a high-cost error because it may not be discovered until the repair shop has already removed the old compressor. The shop loses time, the customer loses the machine, and the distributor receives an urgent complaint. A few photos before ordering are cheaper than a return after failed installation.
The rear head controls where suction and discharge hoses connect. On many compressors, the rear head can vary even when the front housing looks similar. Port orientation, fitting type, sealing method, spacing, and service-port clearance must be checked. A compressor with ports rotated differently can force the hose into a tight bend, interfere with the engine bay, or place the line too close to heat or moving parts.
Hose routing matters because agricultural tractors vibrate, flex, and operate in dusty environments. A hose under tension may leak later even if it seals during the initial repair. A line routed too close to a belt, fan, or exhaust component can fail after field use. If the new compressor changes port angle or height, the repair shop may need a different hose or fitting.
For dealers, the ideal request includes a rear-head close-up and an installed-position photo showing hose direction. If the compressor has both suction and discharge ports on a manifold block, photograph the block from the side. If the system uses individual fittings, photograph each fitting and seal style. These details are more reliable than text descriptions such as "same ports" or "looks like original."
When a compressor fails, many buyers focus only on the compressor. But the condenser often determines whether the repair lasts. A restricted or contaminated condenser can push high-side pressure up and contribute to repeat compressor failure. A condenser with poor airflow can make the cab cool poorly at idle. A condenser with the wrong pipe routing can create hose stress and leaks.
For Fendt and other tractor applications, condenser matching should include core size, overall dimensions, mounting tab position, pipe diameter, fitting angle, receiver drier arrangement when present, pressure-switch port, and bracket clearance. The condenser may be mounted where dust, chaff, and debris reduce airflow. A replacement should be reviewed not only for physical fit but also for cleaning access and airflow path.
If the old compressor failed internally and sent debris through the system, condenser replacement may be required depending on construction and contamination level. Some parallel-flow condensers are difficult to flush thoroughly. In a high-value agricultural repair, saving the old restricted condenser can damage the new compressor and turn a one-time job into a repeat warranty case. Buyers sourcing from a wholesale A/C condenser supplier should connect condenser decisions with compressor failure evidence, not treat the condenser as a separate catalog item.

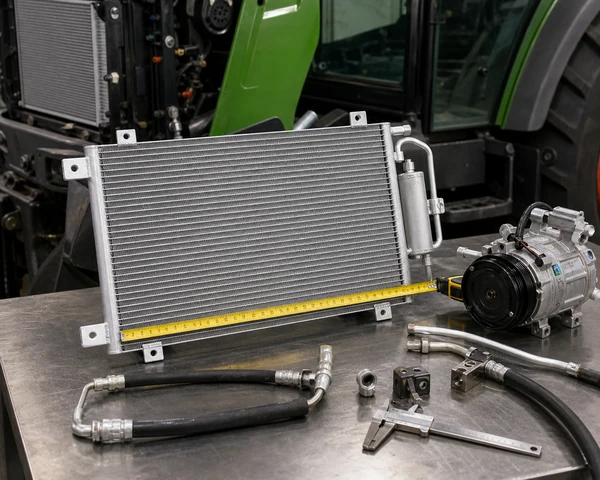

Condenser core size, pipe routing, bracket tabs, and compressor failure evidence should be checked together before approving the order.
Fendt model names can be broad. A dealer may describe the machine by series, horsepower class, or common market name, but the parts system may require a more precise model and serial range. Production updates can change compressor brackets, A/C lines, or condenser layout. Importers should request the full model, year if known, engine details if relevant, and serial number when available.
Serial number is especially useful when a machine sits near a production change. A repair shop may not know that two tractors with the same model name use different A/C parts. The old-part photo remains critical, but serial information helps confirm whether the machine follows the expected factory configuration or has been modified.
When serial data is not available, increase the photo requirements. Ask for the compressor installed on the bracket, the belt path, the clutch connector, the rear-head ports, the condenser front, and the hose ends. A full set of photos can often solve what the model number cannot.
A failed A/C system does not always mean the compressor is bad. Before ordering a compressor, the repair team should check belt condition, clutch command, clutch coil resistance, refrigerant charge, pressure switch or sensor signal, condenser fan or airflow, leaks, and contamination evidence. If the compressor clutch does not engage, an electrical or pressure-control fault may be the reason. If the compressor engages but cooling is poor, condenser airflow, expansion valve behavior, charge level, or internal compressor performance may be involved.
If the compressor has seized, blackened oil, metal debris, or severe noise, the replacement scope changes. The order may need compressor, receiver drier, expansion valve, O-rings, flushing plan, and condenser review. A bare compressor shipped into a contaminated system is at high risk. For sourcing teams, it is better to ask why the old compressor failed before deciding whether the quote should be compressor-only or a broader A/C repair package.
This is where wholesale A/C compressor sourcing should support the repair, not only the part number. The supplier should help buyers identify whether the requested item is an isolated replacement or part of a system repair.
Fendt model, series, year if known, and serial number when available.
OE number, aftermarket number, or old compressor label photo.
Front photo showing pulley groove count, clutch, and belt alignment.
Side photos showing mounting ears, bolt spacing, and bracket contact points.
Rear-head photo showing suction and discharge port orientation.
Clutch voltage and connector shape.
Hose routing photo before removal.
Condenser dimensions, bracket position, pipe routing, and pressure-switch port when ordering condenser parts.
Failure notes: leak, clutch not engaging, noise, seizure, poor cooling, or contamination.
Packaging and labeling requirements for distributor stock.
A dealer should not stock Fendt A/C parts as one general bucket. Separate the program into compressor families, clutch-voltage groups, pulley families, and condenser layout groups. This reduces confusion when counter staff receive urgent seasonal requests. It also helps sales teams ask better questions: not "which Fendt do you have?" but "send the old compressor label, pulley photo, clutch connector, and rear-head view."
For fast-moving items, keep product photos visible in the ERP, quotation sheet, or sales catalog. A front photo, rear-head photo, and connector photo are more useful than a single beauty image. If two compressors have similar OE references but different port positions, show both rear heads side by side in the internal sales notes. This helps prevent a substitute from being approved only because it shares the same broad model family.
For slow-moving or high-risk applications, do not overstock by guesswork. Use enquiry history, return history, and local tractor population. If Fendt tractors in the market are concentrated in a few model series, build stock around those models. If enquiries are scattered, quote against photos and order in smaller batches until the demand pattern becomes clear. Agricultural A/C demand can be seasonal, so wrong inventory may sit for a long time after harvest season ends.
Not every compressor replacement needs a condenser. However, certain failure signs should make the buyer review both parts. If the old compressor seized, made grinding noise, discharged dark oil, or showed metal debris, the condenser may be contaminated. If the tractor cooled poorly at idle before compressor failure, condenser airflow or internal restriction may have contributed. If the condenser is damaged by debris, has corroded fins, or has stressed pipe joints, replacing the compressor alone may not restore stable cooling.
A practical quotation rule is to divide jobs into clean replacement, leak repair, and failure-recovery repair. A clean replacement may need only compressor, O-rings, oil confirmation, and drier review. A leak repair may need hose, condenser, switch port, or fitting checks. A failure-recovery repair may need compressor, condenser, drier, expansion valve review, flushing plan, and oil charge confirmation. This prevents the lowest quote from becoming the highest total repair cost after repeat failure.
For distributors, offering optional related parts is a way to support customers without overselling. The quote can show the compressor as the primary item and list condenser, drier, O-rings, and pressure switch as recommended checks based on the failure condition. That gives the repair shop room to choose while making the technical risk visible.
Agricultural A/C compressors are heavy enough to damage themselves in weak packaging. Before shipping bulk orders, check that the clutch face is protected, ports are capped, mounting ears are not exposed to impact, and labels remain readable. Condensers need corner protection, pipe-end protection, and stable carton support so brackets and tubes do not bend in transit.
Pre-shipment inspection should include visible clutch condition, pulley rotation, connector condition, port cap presence, and packaging integrity. For condensers, inspect fin condition, mounting tabs, pipe angles, and receiver drier or switch-port features when present. A bent condenser tube discovered by the end customer may be blamed on manufacturing even when the damage happened during handling.
For dealers shipping to rural repair shops, clear labels are useful. The label should include the main part number, cross-reference, application family, and handling warning where needed. If the order includes several similar Fendt compressors, use separated inner labels to prevent warehouse mixing. Similar-looking compressors in one shipment can easily be swapped if the carton label is vague.
The best distributors turn field feedback into better matching data. If a customer reports that the pulley is off by a few millimeters, record the old and new pulley offset. If the rear port hits a hose, save the installation photo. If a condenser bracket does not line up, record the model, serial, and bracket measurement. These small notes become a private fitment database that improves future quotes.
Return reasons should also be specific. "Wrong part" is not enough. Use reasons such as wrong pulley groove, wrong pulley offset, wrong clutch voltage, wrong connector, wrong rear head, wrong port angle, wrong mounting ear spacing, wrong condenser pipe direction, damaged in transit, or customer ordered by incomplete model. This level of detail helps the sourcing team decide whether the catalog needs correction or whether the sales process needs better photos.
Over time, the dealer can build a more reliable Fendt A/C program than a generic catalog page. The advantage comes from knowing which variations actually create trouble in the market and which evidence prevents the mistake before shipment.
For Fendt projects, the best quotation starts with photos and application evidence. Send the old compressor label, pulley view, rear-head view, mounting view, clutch connector, and machine details. If condenser replacement is involved, include core dimensions, bracket photos, pipe orientation, and failure notes. If the compressor failed internally, include oil condition, debris evidence, receiver drier status, and whether the condenser can be reliably cleaned or should be replaced.
That information allows the supplier to confirm the most suitable replacement, flag possible mismatch risks, and recommend whether the order should include related A/C parts. A Fendt A/C repair is easiest when the correct part is selected before the tractor is disassembled. For dealers serving seasonal agricultural customers, accurate matching is not just a parts issue; it protects repair time, customer trust, and field uptime.
Elecdura can review the compressor label, pulley face, rear-head ports, mounting ears, condenser dimensions, pipe routing, and failure evidence when distributors need a matched Fendt A/C sourcing plan. The stronger the evidence package, the lower the risk of shipping an "almost right" compressor or condenser into a time-sensitive field repair.
