Radiator Fan Connector Pinout Matching Without Guesswork

Two radiator fan connectors can have the same number of cavities and a nearly identical shell while using different terminal assignments, current capacity, command logic, feedback, or keying. Applying power by wire color or plugging in a similar-looking replacement can reverse the motor, damage an integrated controller, create a no-communication fault, or overheat a terminal that was not designed to carry motor current.

Radiator fan connector pinout matching is therefore a functional process, not a visual shortcut. The goal is to establish which terminals are permanent power, switched power, motor output, ground, wake-up, PWM, LIN, CAN, speed feedback, or diagnostic lines—and then confirm that the replacement uses the same electrical architecture and mechanical connector interface.

Elecdura’s radiator fan assembly range includes relay-controlled motors, resistor systems, separate modules, and integrated smart fans. The correct plug must match the motor, controller, blade load, shroud, and vehicle strategy as one system.

Quick Answer: What Must Match Besides Plug Shape?

Identify the Fan Architecture Before the Pinout

Two-pin brushed motor

A simple two-pin radiator fan motor commonly uses one power and one return terminal. Speed may be controlled elsewhere by relays, a resistor, or an external module. Even here, polarity, wire size, terminal capacity, and connector keying matter. Reversing polarity can reverse rotation on many permanent-magnet motors.

Three- or four-pin motor with multiple speed paths

Additional terminals may represent separate windings, resistor bypass, shared ground, or internal thermal protection. Do not assume the extra wire is PWM. Trace the circuit and identify which relay state energizes each path.

Integrated PWM fan

A smart fan often has heavy power and ground terminals plus one or more smaller command/feedback terminals. The command may be active-high or active-low and may use a specified frequency range. A missing internal pull-up can make a disconnected line look different from an externally driven line.

LIN- or CAN-controlled assembly

A network-controlled fan module requires compatible electronics and message interpretation, not merely matching voltage. A LIN terminal is not a generic PWM input. CAN requires a network pair and system integration. Confirm the exact architecture from reliable service or OE data.

Connector cavity count cannot identify protocol

Manufacturers can use three, four, or more cavities for several different designs. Unused cavities, shared grounds, diagnostic outputs, and market-specific variants make pin count only a starting clue.

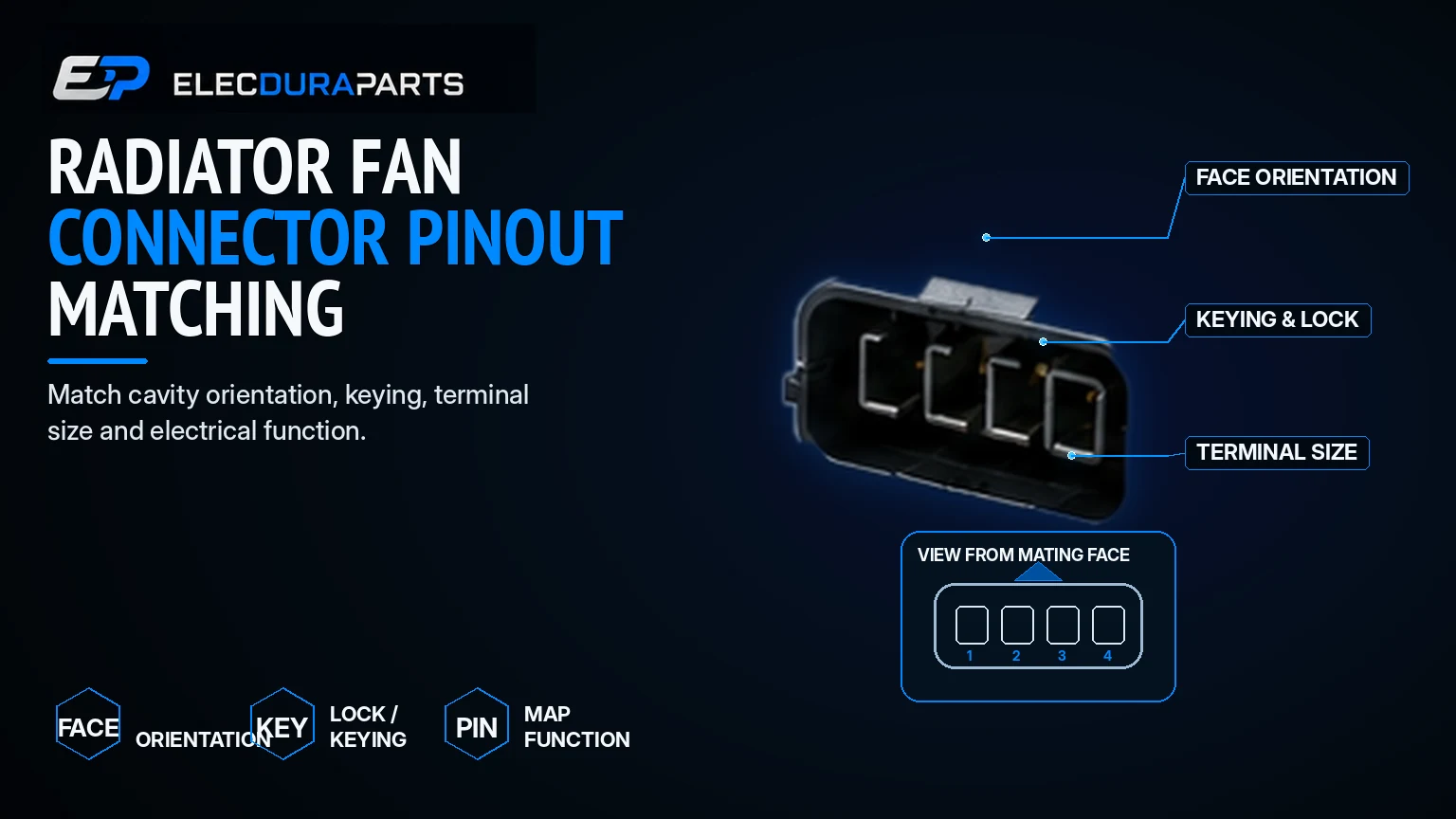

How to Read Connector Orientation Correctly

Define the viewing side

A pinout drawn from the terminal face is mirrored when viewed from the wire side. Record whether the diagram shows the fan-side male terminals, harness-side female terminals, mating face, or rear wire-entry face. Include the latch at the top or another fixed orientation reference in every photograph.

Use molded cavity numbers

Many shells contain small molded numbers near the cavities. Clean the connector carefully and use magnification. Do not renumber the cavities left-to-right based on a photo when the original manufacturer uses a different sequence.

Record secondary locks and seals

A connector-position assurance device or terminal-position assurance lock may change color or shape between variants. Its presence affects terminal retention and service procedure. Perimeter seals and individual wire seals must fit the terminal and cable diameter; a connector that mates but does not seal is not a correct replacement.

Do not force a connector that “almost fits”

Shaving a key, removing a lock, or forcing a latch defeats mis-mating protection and can load the terminals sideways. The resulting partial contact increases resistance and heat. Match the correct shell and terminal system.

Evidence Hierarchy for Pin Identification

1. OE wiring diagram and connector view

The most reliable source identifies connector designation, cavity number, wire function, splice, fuse, relay, module, and ground. Use the diagram for the exact model year, engine, market, and cooling package.

2. OE number and part-label data

OE references on the motor, module, shroud, and harness can separate variants that share the same outer dimensions. A supersession may change the connector or require an adapter; do not assume that every cross-reference is electrically identical.

3. Controlled electrical measurements

With the correct diagram and safety procedure, measure which terminals have permanent power, switched power, ground, command, and feedback. Perform a loaded voltage-drop test on high-current terminals. Use a scope for PWM and network activity.

4. Wire gauge, color, and routing

Heavy gauge often indicates motor current, while small wires often carry command or feedback. This is supporting evidence only. Wire colors vary by market, production date, prior repair, and supplier. A spliced harness may no longer follow factory colors.

5. Visual comparison

Photos help confirm keying, latch, terminal type, seal, and orientation but cannot prove terminal function or firmware. Use visual matching after the electrical identity is established.

Safe Diagnostic Procedure

1. Inspect before disconnecting

Record latch orientation, harness routing, wire positions, strain relief, heat shields, clips, and evidence of water or heat damage. Photograph the connector while installed. Do not pull on wires or probe through seals with oversized pins.

2. Isolate high-current and signal cavities

Use the diagram, terminal size, and routing to identify likely groups, then verify. Never apply a test light intended for motor circuits to a PWM, LIN, CAN, feedback, or sensor terminal. Use high-impedance tools and a scope where required.

3. Verify ground by voltage drop

Continuity to chassis does not prove a ground can carry current. With the fan commanded on, measure between the fan/module ground terminal and battery negative. Excessive drop can shift signal references as well as reduce motor voltage.

4. Verify power under the real load

Measure battery voltage and fan/module supply at the same moment. A connector can display 12 volts when unplugged and collapse under motor current. Subdivide loss across the fuse, relay, splice, harness, and terminal.

5. Identify the command signal

For PWM, record frequency, duty cycle, amplitude, and active-high/active-low behavior in a defined fan command. For LIN, confirm a LIN architecture and observe network activity without treating the meter average as message content. Use the PWM/LIN fan diagnosis for signal interpretation.

6. Verify feedback separately

Some fans report speed or fault state. Feedback may be a pulse train, network data, or a diagnostic line. Do not bridge it to the command terminal. Compare scan-tool actual speed with physical operation and waveform evidence.

7. Load-test repaired terminals

After replacing a pigtail or terminal, command maximum fan demand and monitor voltage drop, current, temperature, and connector stability. A cosmetic repair that does not restore terminal tension and crimp quality can fail again.

Common Pinout Mistakes and Their Consequences

Connector Heat Is a System Problem

A melted connector can begin with weak terminal tension or poor crimping, but motor overcurrent can accelerate the damage. Measure motor current and inspect bearings, blade contact, debris, shroud distortion, and incorrect replacement parts. A fan current-draw test and, where useful, a current-ramp waveform help determine whether the load contributed.

Heat can wick into the conductor and damage insulation or plating beyond the visible shell. Cut back only to verified clean conductor and use an approved crimp, seal, wire gauge, and strain relief. Do not twist wires together and cover them with tape in a high-current engine-compartment circuit.

Integrated module terminals need special attention

If the male terminal is molded into an integrated controller, reliable repair may require replacing the fan control unit or complete assembly. A new pigtail cannot restore a burned or loosened module-side terminal.

Replacement Matching Decision

Pinout is one part of fitment. The replacement must also match OE application, voltage, motor type, control strategy, fan diameter, blade pitch/count, rotation, shroud geometry, mounting, module or resistor, and included harness. Use the fan motor versus complete assembly guide to define the service boundary.

Information required for a quotation

• OE references from fan, motor, module, shroud, connector, and vehicle catalog

• Vehicle make, model, year, engine, VIN applicability, market, and cooling package

• High-resolution mating-face and wire-side connector photographs

• Latching side, molded cavity numbers, keying ribs, secondary lock, and seals

• Wire positions, gauge, colors as supporting data, and verified terminal functions

• Power, ground, wake-up, PWM, LIN, CAN, feedback, and motor-output architecture

• Fan/shroud dimensions, rotation, blade count, mounting points, and integrated parts

• Measured voltage, voltage drop, motor current, command, and fault evidence

• Required quantity, pigtail requirement, sample plan, and packaging specification

Importers can compare complete configurations in Elecdura’s wholesale cooling fan program. Related engine cooling parts may use similar connector families, but that similarity must never be treated as proof of an identical pinout.

Incoming Inspection for Wholesale Orders

For each SKU, verify connector keying, cavity numbering, terminal plating and size, terminal retention, seals, secondary lock, wire gauge, strain relief, harness length, pin-to-function continuity, and electrical response. Perform a controlled power/ground/command test on samples appropriate to the architecture. Confirm rotation, current, speed response, feedback, and connector temperature.

Keep the approved connector-face image and pin-function sheet with the exact OE and sample identity. Do not reuse one diagram across similar variants. Packaging must protect the connector and harness from side loading, prevent the blade or shroud from crushing the pigtail, and keep seals clean.

How Connector Variants Appear Within One Vehicle Family

A vehicle name can remain unchanged while the cooling package changes with engine output, transmission, towing equipment, climate specification, air-conditioning refrigerant system, production date, or supplier. One version may use a relay-controlled two-pin motor, while another uses an integrated controller with permanent power, ground, and LIN. A facelift can move the module from the shroud into the motor without changing the overall fan diameter.

For example, two BMW radiator fan applications may share a broad housing shape but use different connector keying, current capacity, communication, and mounting details. The same risk exists in Mercedes-Benz cooling fan configurations and other multi-engine platforms. Vehicle brand and model are filters, not final electrical proof.

Production-date splits

Catalogs may specify a chassis number, VIN range, build date, or option code. Preserve that qualifier in the quotation and purchase order. If the OE number has been superseded, determine whether the later part is a direct replacement, requires an adapter harness, includes an updated module, or needs coding. Do not silently remove the application boundary because both parts appear in one catalog search.

Aftermarket pigtails and prior repairs

A vehicle may arrive with a connector already replaced. Wire colors may no longer match the factory diagram, cavities may have been repinned, and an aftermarket pigtail may use different insulation or seal colors. Trace each wire to a known circuit point and compare its measured behavior with the diagram. Record the actual vehicle-side arrangement separately from the proposed OE arrangement.

Adapter harnesses require two verified pin maps

An adapter is not simply a mechanical gender changer. Document the vehicle-side cavities, replacement-side cavities, and the function carried between them. Verify current capacity, wire gauge, seal family, strain relief, and whether signal polarity or electronics are involved. Passive wiring cannot convert LIN to PWM or make incompatible firmware understand a different command.

Post-Installation Functional Validation

After installation, clear the work area and command every supported fan stage. Confirm startup, direction, speed response, current, connector voltage drop, module communication, and feedback. Run the A/C and cooling system under a controlled load and confirm that condenser pressure and coolant temperature respond as expected. A fan that spins during a direct-power check is not fully validated.

Monitor the new connector during the maximum-current state. Check for temperature rise, intermittent output, terminal movement, or a change in voltage drop. Reinspect harness routing so the pigtail cannot rub the blade, contact a hot surface, hold water at the connector, or carry the weight of the harness. On a complete vehicle-specific cooling fan assembly, also verify shroud seals, flaps, and air guides that can be displaced during installation.

Document the final pin map

Attach the connector-face image, cavity-to-function table, OE numbers, measured voltage/current results, and any adapter details to the repair or incoming-inspection record. This documentation protects future technicians and allows a supplier to investigate warranty claims against the exact configuration rather than a generic fan description.

FAQ

Can I identify fan power and ground by wire color?

Not reliably

Color is supporting evidence only. Use the correct wiring diagram, cavity numbers, routing, and controlled measurements.

Why does a replacement connector fit but the fan not run?

Physical mating does not prove electrical compatibility

The pin assignment, control protocol, pull-up strategy, feedback, firmware, or terminal current capacity may differ.

Can I swap two pins to make the fan rotate correctly?

Only on a verified simple motor circuit and according to service information

Swapping pins on an integrated electronic fan can damage the controller. Confirm architecture first.

Does a three-wire fan always use PWM?

No

The third terminal can serve a second speed, feedback, wake-up, diagnostic, or network function depending on the design.

Should a melted connector be replaced with the fan?

Inspect both mating sides and motor current

If the fan/module terminal is damaged or the motor caused overcurrent, replacing only the harness pigtail is insufficient.
