A radiator fan can move the required air and still be mechanically unacceptable. A cracked blade root, shifted balance clip, eccentric hub, worn bearing or distorted shroud can transmit vibration through the radiator support and steering structure. The complaint may appear only at one fan speed, after heat soak or when the A/C system requests a higher stage.
Radiator fan vibration diagnosis should begin with speed, direction and physical evidence—not with automatic motor replacement. Electrical current can show load, but it cannot locate a missing blade mass or prove that a radiator support is resonating. Elecdura’s radiator fan motor range includes separate motors and integrated assemblies; the measured mechanical fault determines whether the service boundary is a motor, blade, shroud or complete module.
Quick answer: record the speed and operating condition that produce the vibration, inspect the blade and shroud with power isolated, then verify fan rotation, clearance and mounting. Measure hub or blade runout and motor-shaft radial/axial play using the application procedure. If available, compare vibration amplitude and frequency through a controlled speed sweep. A once-per-revolution peak points toward imbalance or eccentricity; rough broadband vibration and play support bearing damage; marks at the shroud support contact or distortion. Replace only the component whose geometry and service boundary are verified.
Ask whether the driver feels vibration in the steering wheel, floor, dashboard or only hears a buzz from the front of the vehicle. Record coolant temperature, A/C request, vehicle speed, fan stage and engine speed. A vibration that follows fan command but not engine RPM has a different source path from an engine accessory or compressor complaint.
A blade passing behind a support can create normal tonal noise. Turbulence through blocked fins can produce pulsation without mechanical imbalance. Structural vibration is supported when amplitude rises at mounts and body panels as the fan crosses a particular speed. Use observation and measurement rather than describing every sound as a bad bearing.
Where scan-tool or service controls permit, command the fan through its range while the vehicle remains safely secured. Increase and decrease speed gradually. Record the onset, peak and disappearance of vibration. Do not defeat guards or place hands and instruments in the blade path.
Electric fans can start without warning after shutdown. Follow the vehicle procedure to disable the fan circuit and verify that stored or remote-start commands cannot energize it. On hybrid and electric vehicles, respect high-voltage and thermal-management isolation requirements even when the fan itself uses low voltage.
A damaged composite blade can separate at speed. Keep personnel and tools out of the blade plane during operational checks. Replace protective covers before any commanded-speed test. Never hold a vibrating shroud by hand to “feel” whether it improves.
If a crack, loose hub, missing blade section or severe contact is visible, stop the test. Continued rotation can damage the radiator, condenser, wiring and nearby hoses.
Clean loose debris carefully and inspect every blade from root to tip. Look for cracks, chips, deformation, rubbed edges, foreign material and missing molded or attached balance features. Compare blade pitch and spacing around the hub. Repair material, paint or accumulated dirt can change mass distribution.
Centrifugal force increases strongly with rotational speed. A chip that appears cosmetic at rest can create substantial rotating force during high fan command. The same principle explains why vibration may be absent at low stage but severe at high stage.
A blade exposed to exhaust heat, collision stress or incorrect storage can warp. Its tip may track closer to the shroud at one angular position. Compare the full rotation at a fixed reference without forcing the blade sideways.
An unvalidated repair changes strength and mass and can separate in service. Replace a cracked or materially damaged blade using the approved supply boundary.

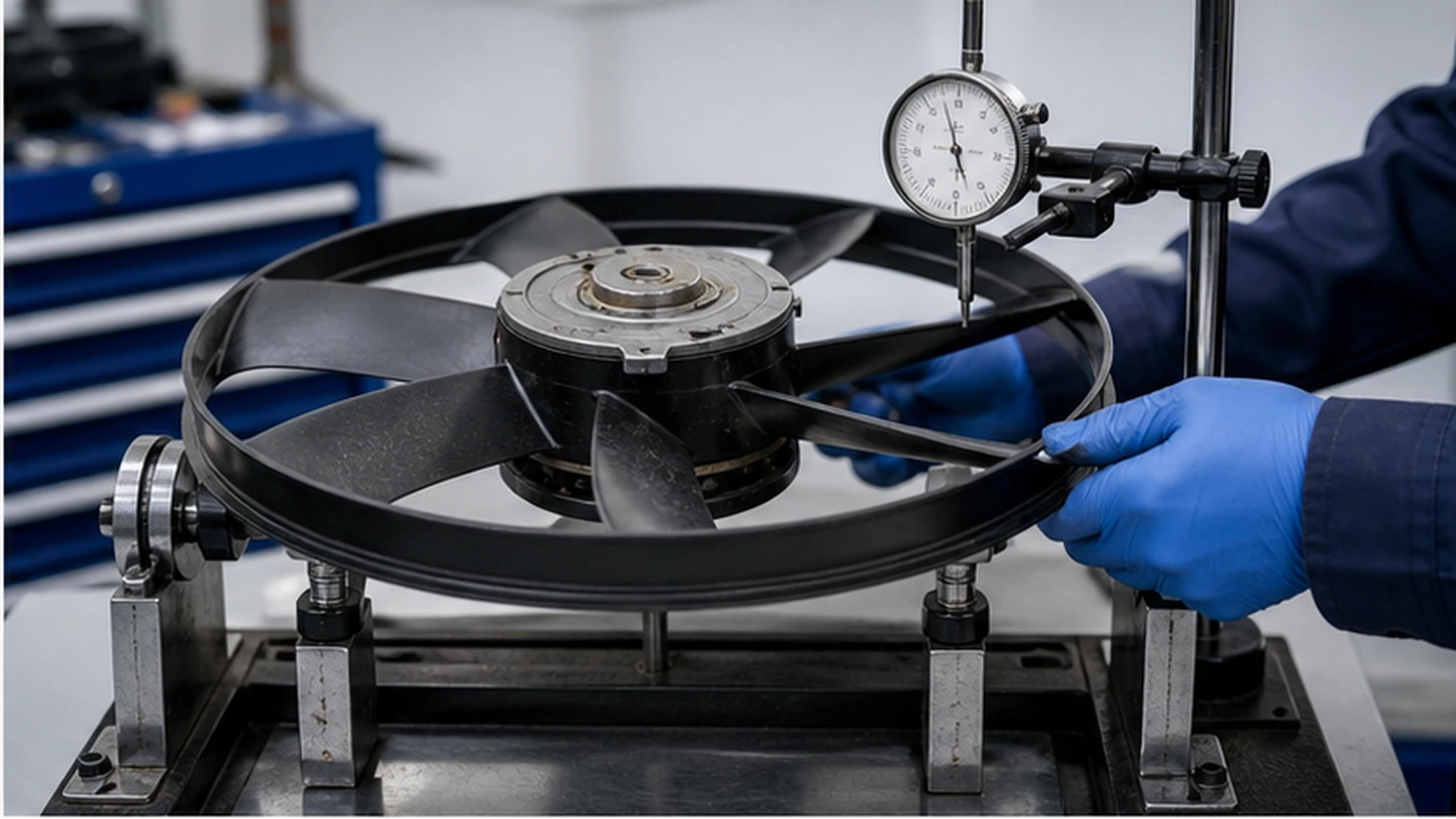

Mount a dial indicator or fixed reference according to the service method. Rotate the fan slowly by hand with power isolated. Measure at a defined hub or blade reference, not across flexible tips unless the procedure specifies it. Mark the high point and repeat the rotation to verify consistency.
Runout measurement separates an eccentric hub or distorted blade from a uniform rotating assembly.
If every blade follows the same offset at the hub, inspect the shaft, hub seating and molded bore. If one blade deviates while the hub remains true, the blade itself is distorted. Document measurement position and temperature; flexible plastic changes with support and heat.
Blade diameter, speed, shroud clearance and construction vary. Compare with manufacturer data or a verified reference. A number without the measurement radius and method is not a usable specification.

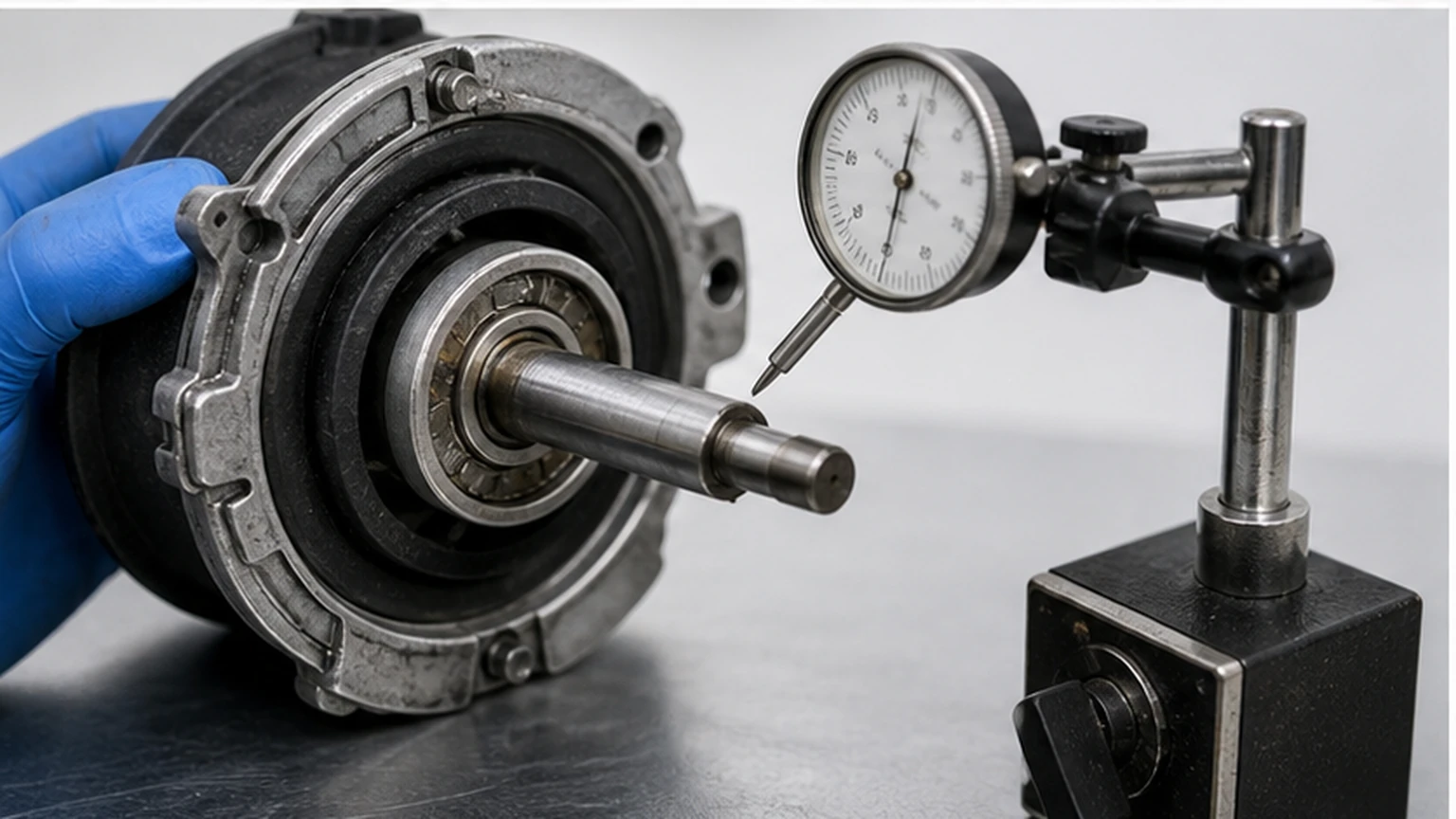

With the assembly disabled, support the motor and check the shaft or hub for radial and axial movement using the specified method. Rotate slowly and feel for roughness, tight spots or inconsistent magnetic detent. Inspect the motor housing for heat discoloration, corrosion and evidence of water entry.
Bearing play and rough rotation support a motor fault only after hub and blade geometry are separated.
A worn bearing allows the hub to orbit rather than rotate around a stable axis. This can create once-per-revolution vibration and intermittent shroud contact. Confirm that apparent movement is not flexibility in a plastic hub or loose mounting bracket.
Thrust wear or an incorrectly seated blade can move forward and backward under airflow load. Static clearance may appear sufficient, then disappear at operating speed. Inspect contact marks on both sides of the blade and shroud.
A bearing can feel acceptable by hand yet become noisy when heated or loaded aerodynamically. Correlate play, sound, vibration spectrum and temperature behavior. Do not condemn a sealed motor solely because normal magnetic cogging feels uneven.
Examine the complete blade path for polished plastic, dust-free arcs, cut marks and melted areas. Check shroud flatness, tabs, fasteners and radiator support alignment. A collision or incorrect radiator installation can move the shroud toward a healthy fan.
Motor reaction torque, engine movement, airflow load and body flex can close a marginal gap. Inspect mounts and repeat the controlled command while observing from a safe position. Do not lever the shroud while the fan runs.
A loose shroud can resonate and allow air to recirculate. Restore every clip, foam seal and mount before judging the replacement motor. Elecdura’s complete cooling fan assemblies should be considered when the shroud, blade and motor are supplied as a matched structure.
Broken insulators, bent brackets and loose heat exchangers can amplify normal fan forces. The vibration source and the component transmitting it may be different.

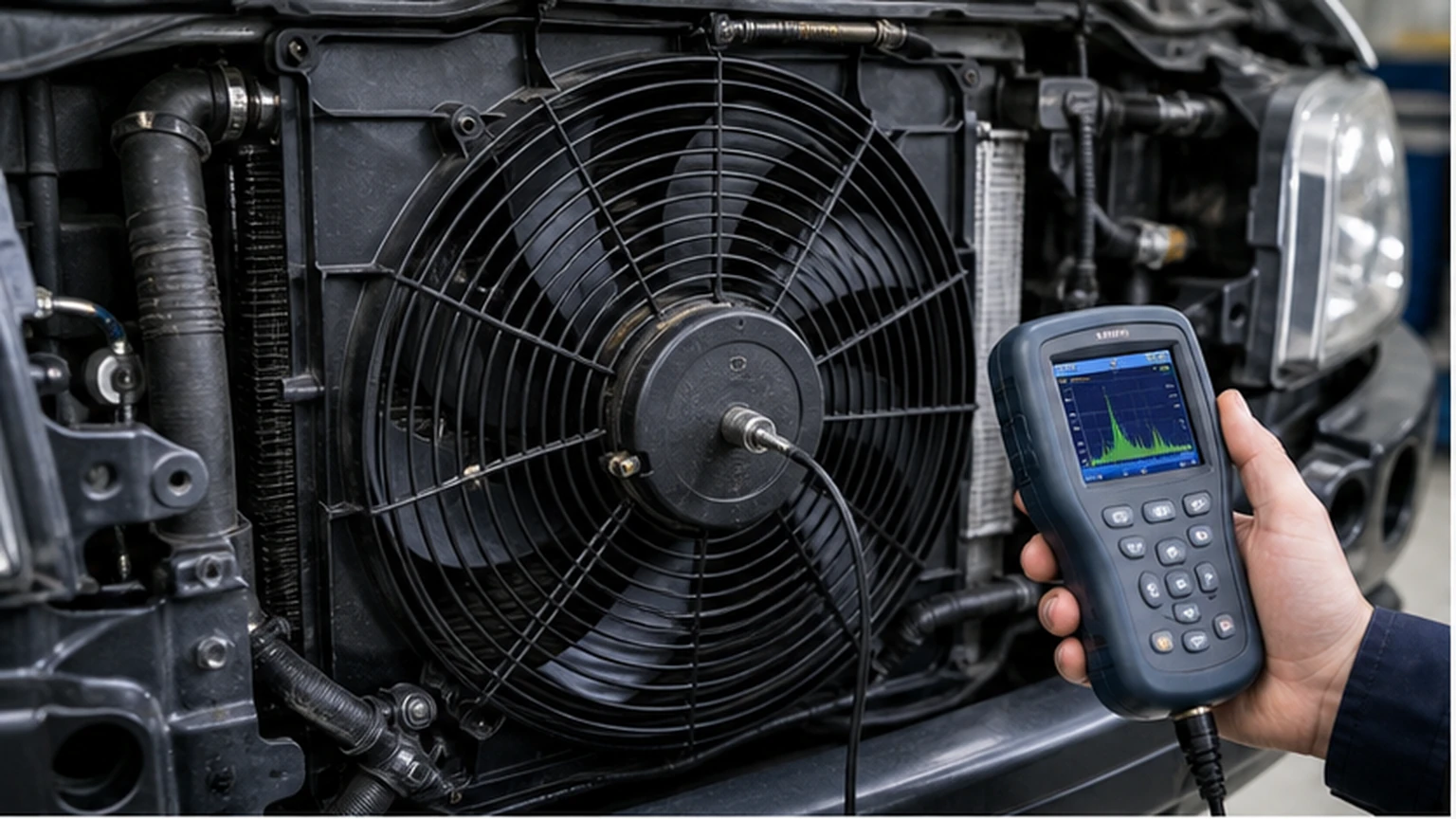

Attach a suitable accelerometer or vibration instrument to a rigid motor or shroud point specified by the test plan. Record direction, mounting method, sample rate, fan speed and operating temperature. Compare repeat runs at the same command.
A controlled speed sweep shows whether vibration follows rotation, resonance or bearing roughness.
A dominant frequency that follows fan rotational speed can indicate unequal mass, eccentric hub or shaft runout. Confirm actual fan speed; commanded percentage is not RPM. Blade-pass frequency appears at rotational speed multiplied by blade count and can reflect normal aerodynamic forcing or airflow obstruction.
Bearing damage, rubbing and loose structure can produce wider-frequency content. A narrow peak at one vehicle-structure frequency may instead show resonance. Move the sensor between motor, shroud and radiator support to understand the transmission path.
Acceleration, velocity and displacement are not interchangeable, and sensor location changes the value. Use an application or supplier validation limit with units, bandwidth and mounting method. Do not publish a universal vibration threshold.
A mechanically sound fan can vibrate if a brushless controller commutates irregularly, a phase is missing or PWM command is unstable. Compare command waveform, actual speed and vibration timing. The separate fan control module category belongs to this branch only after blade, hub and bearing evidence are sound.
If RPM repeatedly rises and falls, inspect control inputs, communication and module protection. A fixed mechanical imbalance normally scales with speed; it does not itself command the speed to hunt.
Confirm power and ground integrity when speed is unstable, but keep this article’s decision centered on mechanical vibration. The already published current-draw content should carry detailed electrical load diagnosis rather than being duplicated here.
Observed pattern | Likely direction | Separating evidence |
|---|---|---|
Vibration follows fan RPM with engine speed fixed | Blade, hub, bearing or shroud | Commanded speed sweep and vibration frequency |
Vibration follows engine RPM with fan off | Engine accessory, mount or compressor | Fan-disable comparison under approved conditions |
Single-speed buzz with otherwise smooth fan | Structural resonance | Sensor movement between motor and support |
Scraping only during turns or braking | Loose mount or marginal clearance | Contact marks and support movement |
Strong airflow pulse without shaft play | Blade damage, obstruction or recirculation | Blade tracking and airflow-face inspection |
RPM hunting with changing vibration | Control input or module protection | Command, waveform and scan data |
An A/C compressor or condenser complaint may activate the fan more often, but activation is not the same as cause. Use the air-conditioning system boundary and A/C condenser range only when pressure and heat-rejection evidence points there.
A motor can be the correct boundary when bearing play, shaft runout or internal roughness is proven and the blade/hub, shroud and mounts remain serviceable. Confirm that the blade can be removed and reinstalled without damage and that balance is maintained.
A blade can be serviced separately where the manufacturer permits it and the shaft, hub interface and shroud are sound. Match diameter, blade count, pitch, rotation, hub offset and fastening method. A visually similar blade can load the motor differently.
Use the complete boundary when the shroud is distorted, mounting points are broken, an integrated module is nonserviceable or motor and blade are factory-balanced together. Elecdura’s condenser fan supply and cooling fan assembly supply require the exact vehicle configuration.
Repeat the same speed sweep, vibration location and temperature condition. Verify blade clearance, airflow direction, electrical connector temperature and fastener security. A replacement is not validated by quiet idle alone.
Provide OE number, VIN or exact vehicle, model year, engine, cooling package, market and A/C configuration. Photograph the connector, pin layout, motor label, blade, hub, shroud, mounting tabs and neighboring heat exchangers. Record rated voltage, blade diameter and count, rotation direction, fan depth and whether control electronics are integrated.
Confirm left/right position, master/slave control, connector allocation and shroud geometry. One motor may have a different rating from the other. Do not copy electrical or blade specifications across positions.
Include runout, shaft-play, crack or contact photographs in the enquiry. The Elecdura technical enquiry page should receive those details plus required quantity and assembly scope.
Receiving inspection should check blade integrity, hub seating, shaft play, free rotation, shroud geometry, fasteners, connector protection and balance features. Sample powered tests need guarding, controlled voltage, speed measurement and a defined vibration method.
A fan can leave production balanced and arrive distorted if a carton presses on blade tips or the hub. Support the shroud’s structural perimeter, prevent stacked loads from reaching the rotor and keep loose hardware away from the blade.
A supplier may revise one component without changing the assembly’s appearance. Preserve lot and revision identity so a vibration complaint can be linked to the actual combination. Elecdura’s wholesale program can coordinate mixed orders, but vibration acceptance remains SKU specific.
A perfect-looking blade can have mass or hub eccentricity outside the agreed limit. Use runout, balance or vibration data with a controlled fixture.
A fan may run continuously because of a coolant temperature, pressure-sensor or control issue. Check the engine coolant thermostat, A/C pressure switch or fan-module matching only when their own data is abnormal. Long run time may expose vibration but does not prove those components created the imbalance.
Heat-exchanger movement can amplify the complaint. Inspect the radiator and condenser mounts without ordering either for a fan-origin vibration unless leakage, deformation or thermal evidence requires it.
The broader engine cooling parts range provides context for the surrounding system, but it should not turn a mechanical fan-vibration investigation into an unrelated parts list. Preserve the measured boundary: rotating mass, shaft support, shroud contact, mounting structure or control instability.
Uneven dirt, heat distortion, hub eccentricity, shifted balance material and material variation can create imbalance without a missing blade.
Blade mass, runout, shroud contact, mounts and structural resonance can produce similar symptoms. Measure shaft play and frequency before replacing the motor.
A blade section can separate and damage heat exchangers, hoses and wiring. Disable and replace according to the service procedure.
Record the speed sweep and sensor locations. Imbalance force rises with speed, while vehicle structures can amplify a narrow band.
Provide OE number, vehicle/cooling package, connector and mount photographs, blade diameter/count/pitch, rotation, shroud dimensions, integrated-module status, runout or bearing findings, quantity and packaging requirements.
A strong diagnosis connects operating condition, fan speed, blade inspection, hub runout, shaft play, shroud clearance, vibration frequency and support condition. This evidence separates a mass imbalance from bearing damage, contact, control hunting and resonance.
For wholesale matching, send Elecdura the OE reference, exact vehicle and cooling package, motor and connector identity, blade and shroud geometry, measured runout or play, vibration condition, required assembly boundary and quantity. Those details allow the supplied part to correct the mechanical source rather than merely replace a fan that happens to be noisy.
