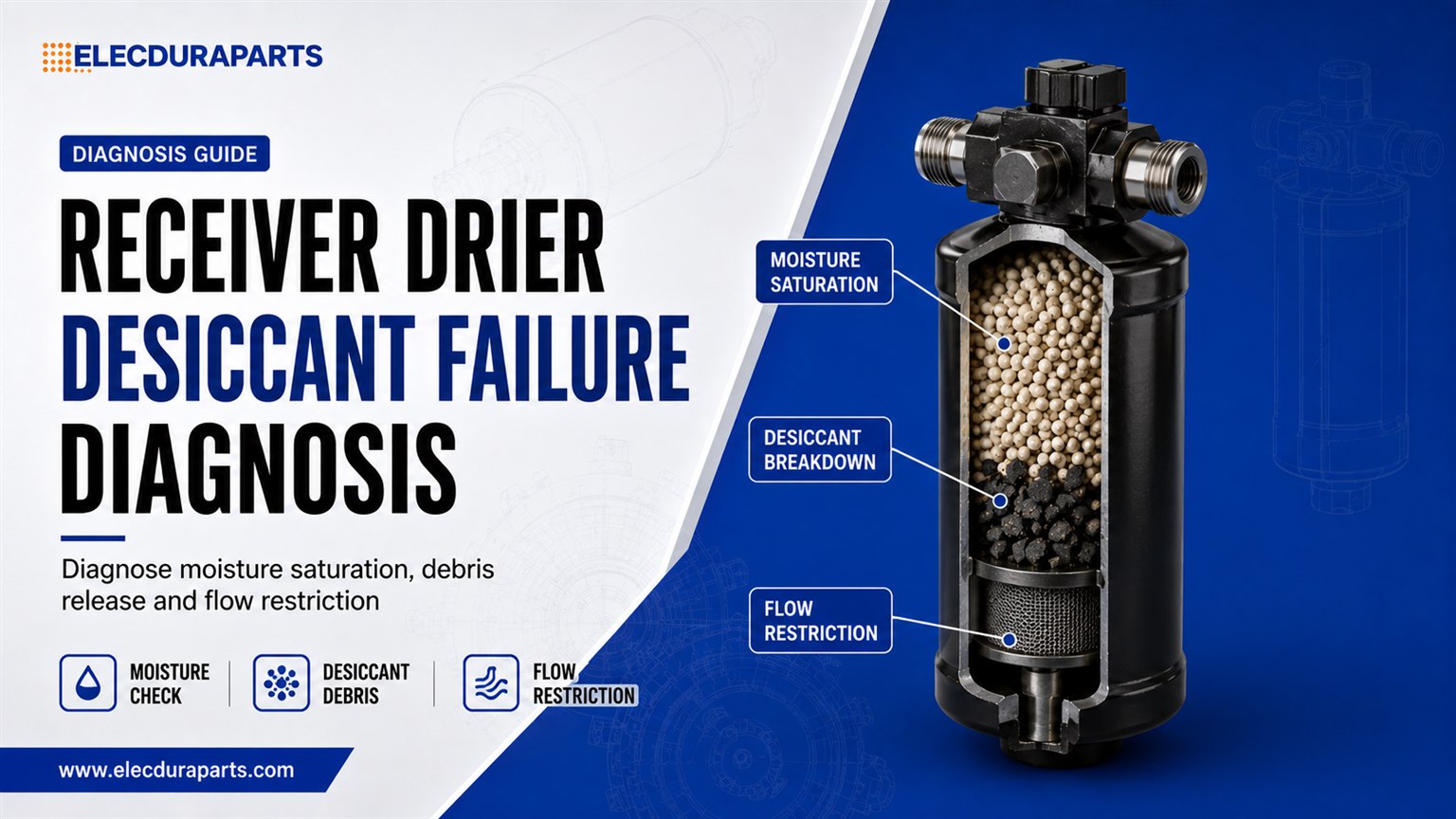

Receiver Drier Desiccant Breakdown: Moisture, Debris, and System Risk

A receiver drier protects an automotive AC circuit by storing liquid refrigerant, filtering material, and holding a limited amount of moisture in desiccant. It is not a permanent water separator. Once the desiccant becomes saturated, is exposed to an incompatible refrigerant or oil, breaks down, or escapes from a damaged bag or cartridge, moisture and particles can circulate through the liquid line and metering device.

Weak cooling, frost near the drier, or a high-pressure fault does not prove desiccant failure. Charge errors, condenser restriction, a damaged hose, an expansion valve, poor airflow, and sensor faults can create similar symptoms. Diagnosis must establish the drier's construction, exposure history, temperature and pressure behavior, and physical contamination before defining replacement scope.

Quick Answer: What Are the Main Desiccant Failure Modes?

Understand What the Receiver Drier Does

It belongs on the liquid side of a TXV system

A receiver drier normally sits after the condenser and before the expansion valve. It stores liquid, filters contaminants, and contains desiccant. An accumulator belongs on the suction side of many orifice-tube systems and separates liquid before the compressor. The two components are not interchangeable even if both contain desiccant.

Identify architecture before ordering

Trace the refrigerant circuit, locate the metering device, and verify the component with application data. The receiver drier replacement guide should be applied only after TXV/receiver and orifice/accumulator systems are separated.

Desiccant capacity is finite

The material adsorbs moisture on internal surfaces. It cannot accept unlimited water, and it begins absorbing humidity as soon as protective caps are removed. A new drier left open on a bench can lose useful capacity before installation. Evacuation removes vapor from accessible spaces but cannot reliably restore saturated desiccant.

Build the Moisture-Exposure History

Record every period when the circuit was open

Ask when hoses, condenser, compressor, or expansion valve were disconnected, how ports were capped, and how long repairs remained unfinished. Include transport and storage of new parts. A component delivered without sealed caps has an unknown moisture history even if it looks clean.

Repeated low-charge operation matters

A leak allows refrigerant out and can permit humid air to enter as pressure and temperature cycle. Recharging without repairing the leak does not remove accumulated moisture or replenish desiccant. Record recovered mass and leak evidence from each service.

Review evacuation and charging practice

Document pump condition, oil, hoses, vacuum depth, time, ambient temperature, decay test, refrigerant identity, and charged mass. Vacuum retention checks gross leakage but does not measure desiccant capacity. A wet service machine or contaminated hose can reintroduce moisture.

Recognize Saturated Desiccant Without Guessing

Moisture symptoms occur elsewhere in the circuit

Water can freeze at the expansion device, producing intermittent restriction that changes as ice forms and melts. Moisture can react with refrigerant and oil to form acids, corrode aluminum and steel, damage motor insulation in electric compressors, and degrade lubricant. None of these symptoms identifies the drier alone without exposure evidence.

Use moisture indicators only within their limits

A sight glass or indicator can provide useful evidence on systems designed with one, but color interpretation depends on refrigerant, temperature, oil, contamination, and component design. Do not add a generic indicator or judge an unfamiliar color without its specification.

Oil condition supports the broader diagnosis

Dark, acidic, or contaminated oil can accompany moisture damage, high heat, and internal compressor wear. Collect labeled samples and compare locations. Use the exact AC compressor oil type and quantity; mixing incompatible lubricant can create chemical and electrical problems that resemble moisture damage.

Find Desiccant Beads or Powder

Inspect downstream components before cleaning

Check drier outlet residue, liquid line, expansion valve inlet screen, and recovered material using approved procedures. Round beads, irregular fragments, or fine pale powder can support bag or cartridge breakdown. Photograph scale, color, quantity, and location. Do not combine every sample into one container.

Differentiate desiccant from metal and seal debris

Metal may be shiny or magnetic depending on alloy; elastomer fragments flex and vary in color; desiccant can crush or appear granular. Laboratory identification may be required for a warranty dispute. Avoid unsupported statements such as “white debris always means drier failure.”

Debris can move in both normal flow and service operations

Normal refrigerant flow carries particles toward the metering device, while flushing or reverse pressure can redistribute them. Collect evidence before flushing. If an expansion valve is blocked, inspect upstream material rather than replacing only the valve.

Diagnose a Drier Restriction With Temperature and Pressure

Look for a repeatable temperature drop

A restriction can produce pressure drop and refrigerant flashing, creating a temperature change across the drier. Measure inlet and outlet at stable load with probes placed consistently. Surface emissivity, ambient airflow, and phase behavior affect readings, so one cold spot is a clue rather than proof.

Compare system-side consequences

A restricted liquid line can starve the evaporator, produce low suction pressure, reduce cooling, and raise compressor discharge temperature. The pattern can resemble low charge. Verify recovered refrigerant mass and observe subcooling, superheat, and liquid-line behavior before adding refrigerant.

Separate drier restriction from condenser restriction

Measure temperature pattern through the condenser and drier and consider port locations. A contaminated parallel-flow condenser can retain compressor debris before it reaches the drier. Do not assign restriction to the coldest visible component without pressure and construction evidence.

Determine Why the Desiccant Failed

Incorrect refrigerant or oil can attack materials

Desiccant type, binder, bag material, seals, and oil compatibility are application-specific. A drier intended for another refrigerant family may physically fit but degrade chemically. Confirm the drier part number, refrigerant, oil, and any retrofit history.

Additives can complicate the circuit

Unapproved sealants, excessive dye, moisture-removal chemicals, and mixed oils can coat desiccant, block screens, or create residues. Record every product added. Do not attempt to “dry” a system by adding chemicals instead of repairing leaks and replacing saturated components.

High temperature accelerates aging

Condenser airflow failure, overcharge, non-condensables, restriction, and compressor inefficiency can keep the drier exposed to excessive liquid-line temperature. Verify fan and condenser performance with the AC condenser airflow test. Replacing the drier alone does not correct the heat source.

Mechanical damage can rupture a cartridge

Impact, vibration, incorrect installation torque, damaged retaining caps, and manufacturing defects can release material. Inspect mounting and line stress. An integrated drier cap forced into a damaged bore can cut seals or fracture the cartridge.

Define the Full Contamination Scope

Microchannel passages can trap drier material

Fine powder or beads can lodge in small condenser and evaporator passages. Strong outlet flow does not prove every parallel path is clean. Compare the cost and risk of cleaning with the AC condenser repair-cost decision, then follow manufacturer guidance for the exact heat-exchanger construction.

Do not create an internal link to an unpublished draft

Use the existing integrated receiver-drier condenser guide to determine whether the cartridge is separately serviceable and which sealing and moisture-control risks belong to the complete assembly.

Repair and Replacement Decisions

Separate moisture damage from compressor-generated contamination

Moisture can degrade oil and corrode materials, while a mechanically failing compressor can generate metal and dark residue without desiccant breakdown. The two conditions can coexist. Compare debris before and after the drier, inspect compressor ports, and retain oil samples. The AC compressor black-death procedure applies when severe internal wear has distributed material; it should not be triggered merely because a used drier contains dark oil.

Use acid or moisture tests only as specified

Field test kits have limits for refrigerant, oil, concentration, color interpretation, and contamination. A negative sample does not prove that desiccant still has capacity, and a positive result does not identify which component admitted the moisture. Record sample location, temperature, oil type, test lot, and result, then combine it with open-time and material evidence.

Apply stricter cleanliness rules to high-voltage electric compressors

In an electric compressor, circulating oil and refrigerant contact motor-related components. Moisture, acid, conductive debris, and wrong lubricant can reduce electrical insulation as well as mechanical life. Use the correct insulated equipment and the electric AC compressor oil compatibility guidance. A drier replacement cannot restore insulation already damaged by contaminated oil.

Record isolation evidence before and after repair

Follow manufacturer lockout, discharge, PPE, and insulation-test procedures. Test only at the specified voltage and with the compressor isolated as directed. Preserve codes, measured isolation, oil condition, and moisture history. Do not energize a compressor with a confirmed isolation fault merely to check cooling.

Inspect the expansion device after particle release

Desiccant beads can lodge at a TXV inlet screen, needle, or electronic valve seat. Powder can pass through a coarse screen and disturb flow. Document inlet and outlet material and decide whether the valve is replaceable or inspectable. Cleaning a visible screen does not prove the valve's internal passages and sensor mechanism remain reliable.

Check for intermittent restriction through a complete cycle

A particle can move as flow and pressure change, producing cooling that fails and returns. Record liquid-line temperature, suction pressure, superheat, valve command where available, and the timing of the restriction. Recheck after shutdown and restart rather than declaring success from one stable period.

Set a documented no-reuse boundary

Define replacement when open time exceeds the manufacturer's limit, desiccant material escapes, the filter is restricted, the component is uncapped in storage, chemical incompatibility exists, the service cap or bore is damaged, or compressor contamination reaches the drier. A written gate prevents cost pressure from turning an unverified component into a repeat-failure risk.

Keep removed components sealed for analysis

Cap the old drier and label flow direction, vehicle, date, refrigerant, and sample relationship. Leaving it open after removal adds ambient moisture and makes later capacity or material analysis less representative. Do not cut it open until external evidence and any return requirements are documented.

A saturated drier is replaced, not regenerated in the workshop

Heating, evacuating, or blowing through an automotive drier does not provide a validated restoration of moisture capacity, filtration, bag integrity, or seals. Replace the correct drier or serviceable cartridge. Keep the new component sealed until final assembly.

Integrated designs may require condenser replacement

If the drier is permanently built into the condenser or the service cap is damaged, replace the specified assembly. If a cartridge is separately serviceable, inspect the bore, cap, seals, retaining features, and debris path before installation.

Flushing does not replace component inspection

Desiccant components and expansion valves are not normally flushed for reuse. Hoses with mufflers and parallel-flow heat exchangers can retain particles. Use approved solvent and dry gas only on permitted parts and verify removal. Severe contamination may require replacement rather than unprovable cleaning.

Protect the compressor

Moisture, acid, particles, and restricted flow threaten compressor lubrication and temperature. Inspect oil and inlet material. If the compressor is damaged, use the AC compressor kit versus bare compressor decision and document the compressor warranty evidence.

Commission the Circuit After Drier Replacement

Minimize open time and use clean caps

Prepare hoses, seals, tools, and fasteners before uncapping the new drier. Do not use shop rags or tape that sheds material. Replace compatible seals, lubricate only as specified, and torque fittings while supporting ports to avoid stress.

Evacuate and charge by the approved process

Use dry, maintained equipment; verify vacuum and leak behavior; then charge the specified refrigerant mass. Evacuation cannot compensate for a reused saturated drier or liquid water trapped in oil. Record ambient conditions and service-machine identity for warranty traceability.

Verify temperatures, pressures, and moisture-control repair

Run under defined airflow and load. Record suction/discharge pressure, liquid-line temperatures across the drier, subcooling and superheat where applicable, vent air, fan operation, and compressor command. Recheck after heat soak and a normal restart.

Replacement Matching and Wholesale Quality Control

Match refrigerant and desiccant compatibility

Provide OE number, vehicle and engine, build range, refrigerant, oil type, drier location, inlet/outlet size and orientation, mounting, pressure switch or sensor port, sight glass if fitted, serviceable cartridge details, condenser integration, and quantity. Appearance and thread size alone do not prove internal compatibility.

Confirm cap, seal, and storage requirements

Ports must remain dry and sealed. Receiving inspection should reject missing or loose caps, wet cartons, damaged threads, displaced seals, corrosion, or an expired storage condition where specified. Open a sample only within a controlled inspection plan because inspection itself exposes desiccant.

Define supplier evidence

Ask for application mapping, refrigerant/desiccant compatibility, filtration construction, leak test, cleanliness, moisture-control handling, cap retention, traceability, and packaging. Claims such as “universal” or “all refrigerants” require exact supporting coverage.

Review Elecdura's AC condenser range, AC supplier quality controls, aftermarket support, and wholesale terms. Send the OE reference, refrigerant, drier and condenser photos, contamination samples, open-time history, required quantity, packaging requirements, and destination through the contact page.

FAQ

Can a receiver drier be reused after the AC system is opened?

Follow the vehicle maker's open-time and repair rule

Desiccant begins absorbing moisture when exposed. Compressor, condenser, leak, or long-open repairs commonly require replacement even when no debris is visible.

Can vacuum dry a saturated receiver drier?

Workshop evacuation does not validate restored desiccant capacity

Replace the specified drier or cartridge. Vacuum is part of system commissioning, not a proven regeneration procedure for a used automotive drier.

What do desiccant beads in the expansion valve mean?

They support an upstream drier bag or cartridge failure

Inspect the drier, condenser, liquid line, valve, oil, and downstream circuit. Preserve samples before flushing and determine how far material traveled.

Can a blocked receiver drier look like low refrigerant charge?

Yes; both can starve the evaporator

Recover and weigh charge, measure temperature across the drier, assess subcooling/superheat, and inspect for debris. Do not add refrigerant based on low suction pressure alone.

What information is needed for a wholesale drier order?

Provide fitment, refrigerant, construction, and handling data

Send OE number, application, refrigerant and oil, port and mounting photos, drier/condenser configuration, sensor ports, quantity, cap and packaging needs, and destination.
