An air-conditioning system that cools on the road but becomes warm at idle often has a heat-rejection problem, but the condenser itself is not automatically defective. Vehicle speed can force air through a partially blocked stack even when an electric fan is slow, rotating backward, recirculating hot air or missing its seals. The same complaint can also result from overcharge, non-condensable gas, sensor bias, compressor-control error or an expansion-device restriction.
An AC condenser airflow test must connect airflow with high-side pressure and refrigerant temperature at the same operating point. Watching the fan spin is insufficient, and a single pressure reading does not show whether the condenser received enough cool air. Elecdura’s wholesale A/C condenser range includes different core, fan and vehicle-packaging configurations, so acceptable values remain application specific.
Quick answer: reproduce the complaint at controlled idle with doors, blower setting, recirculation mode and ambient condition recorded. Verify refrigerant charge and pressure-sensor plausibility, confirm commanded and actual fan stage, then measure airflow direction and distribution across the condenser face. Record high- and low-side pressure plus condenser inlet/outlet tube temperature. If forced airflow or vehicle movement rapidly lowers high-side pressure and improves cooling, investigate fan delivery, blockage, shrouding and hot-air recirculation before replacing refrigerant components.
The condenser transfers heat from hot high-pressure refrigerant to outside air. At road speed, ram air can overcome weak fan performance and moderate blockage. At idle, heat rejection depends on the fan system, pressure-driven control logic, duct seals and an unobstructed heat-exchanger stack.
Improvement while driving supports an airflow investigation, but engine speed also changes compressor speed on belt-driven systems. Alternator output and control strategies can change as well. Reproduce the complaint with measured airflow and pressure rather than treating vehicle speed as a conclusive bypass test.
A strong cabin blower does not prove that air crosses the condenser. The HVAC blower moves air through the evaporator inside the vehicle, while the radiator or condenser fan moves ambient air through the front heat exchangers. Weak vent volume needs its own blower and duct diagnosis.
Note ambient dry-bulb temperature, humidity where relevant, engine temperature, idle speed, doors and windows, cabin blower setting, recirculation mode and outlet temperature. Record refrigerant type, recent service and whether the system has a variable-displacement or electric compressor.
Allow the system to operate for the specified time, but stop if pressure or temperature exceeds a safe limit. Use the same conditions after each intervention. Comparing a heat-soaked first test with a shaded, cooled second test can make any repair appear successful.
Observe whether cooling degrades only when stationary, only after extended idle, only with high engine coolant temperature or only during a particular fan command. A delayed failure can indicate heat-soaked electronics or a fan module entering protection rather than a static blockage.
Recover and weigh refrigerant only when the service procedure and evidence require it. Overcharge, undercharge, non-condensables and trapped air can alter high-side behavior. Compare pressure sensor data with approved gauges and ambient static pressure after stabilization.
High high-side pressure at idle can result from insufficient heat rejection, excessive refrigerant mass, non-condensables or a downstream restriction. Low suction pressure may reflect evaporator load, compressor control or metering behavior. Interpret both sides with temperature and command data.

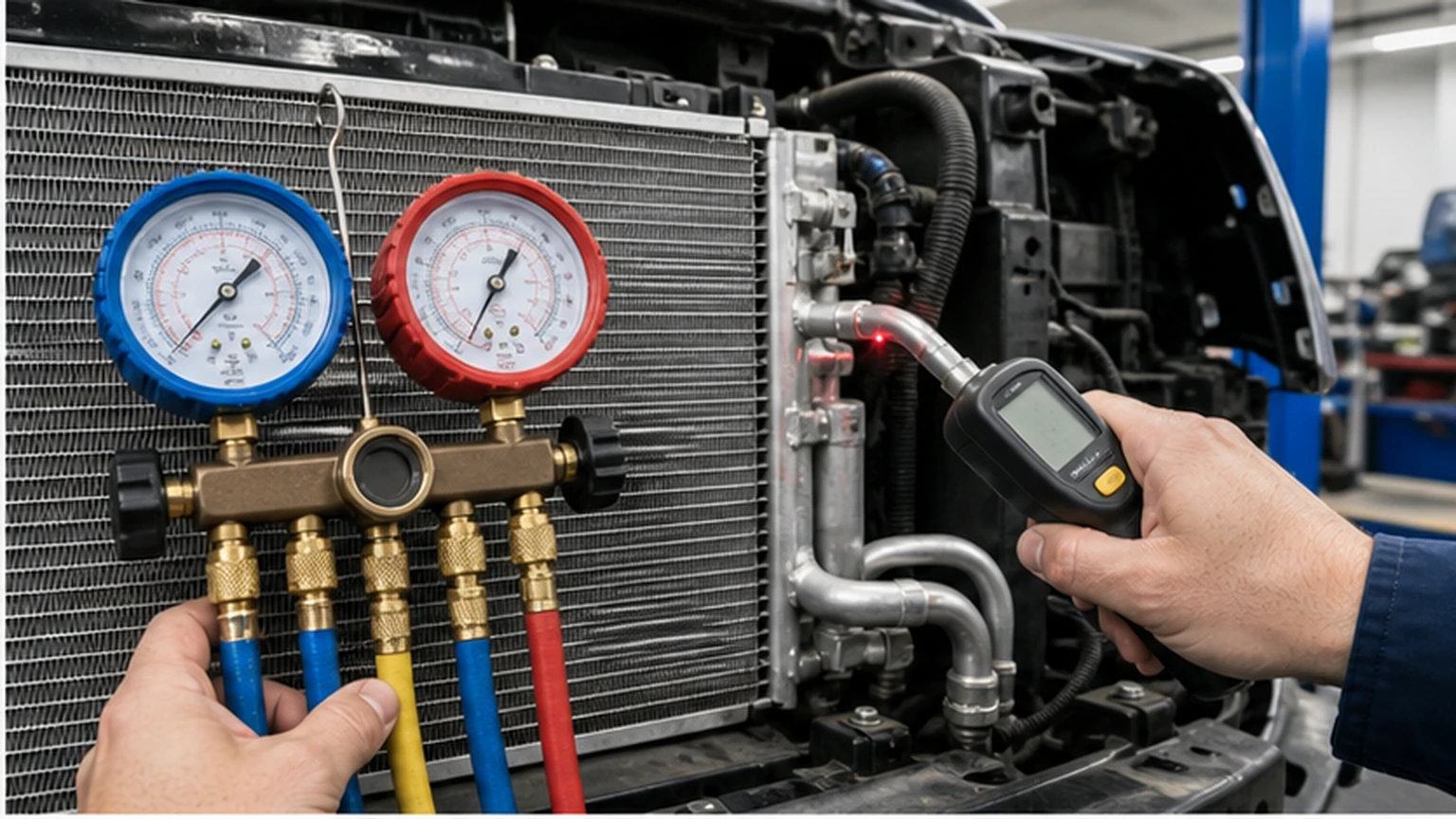

Pressure and condenser tube temperature should be recorded at the same stabilized idle condition.
Use trained personnel, refrigerant-specific recovery equipment and application-approved service procedures. Hybrid and electric compressors may require electrically compatible lubricant and high-voltage safety controls. The POE versus PAG guide explains why cross-contamination is not a minor service detail.
A fan can rotate while delivering far less than required. Check requested fan speed, actual speed if available, power, ground, PWM or LIN command and relevant inputs such as A/C pressure and coolant temperature. Compare low, medium and high stages where the system supports them.
One relay, resistor, module channel or motor winding can fail while another stage remains. The fan may run quietly at low speed but never reach the pressure-triggered stage needed at hot idle. Elecdura’s fan control module range applies only after the power, ground, command and motor load paths have been separated.
An incorrectly wired or mismatched motor can turn the blade backward. It may create noise and some local air movement while fighting the intended vehicle flow direction. Confirm blade orientation, motor polarity and whether the assembly is configured as a puller or pusher.
Integrated electronics can be damaged by direct power on the wrong terminals. Follow the wiring diagram and manufacturer test method. The broader guide to fan-module programming and OE matching explains why replacement electronics can have application-specific control requirements.
Use a vane anemometer, airflow grid or manufacturer-approved method. Map several points rather than measuring only the center. Keep instrument distance and orientation consistent, and protect the operator from rotating blades. Compare airflow at each commanded fan stage.

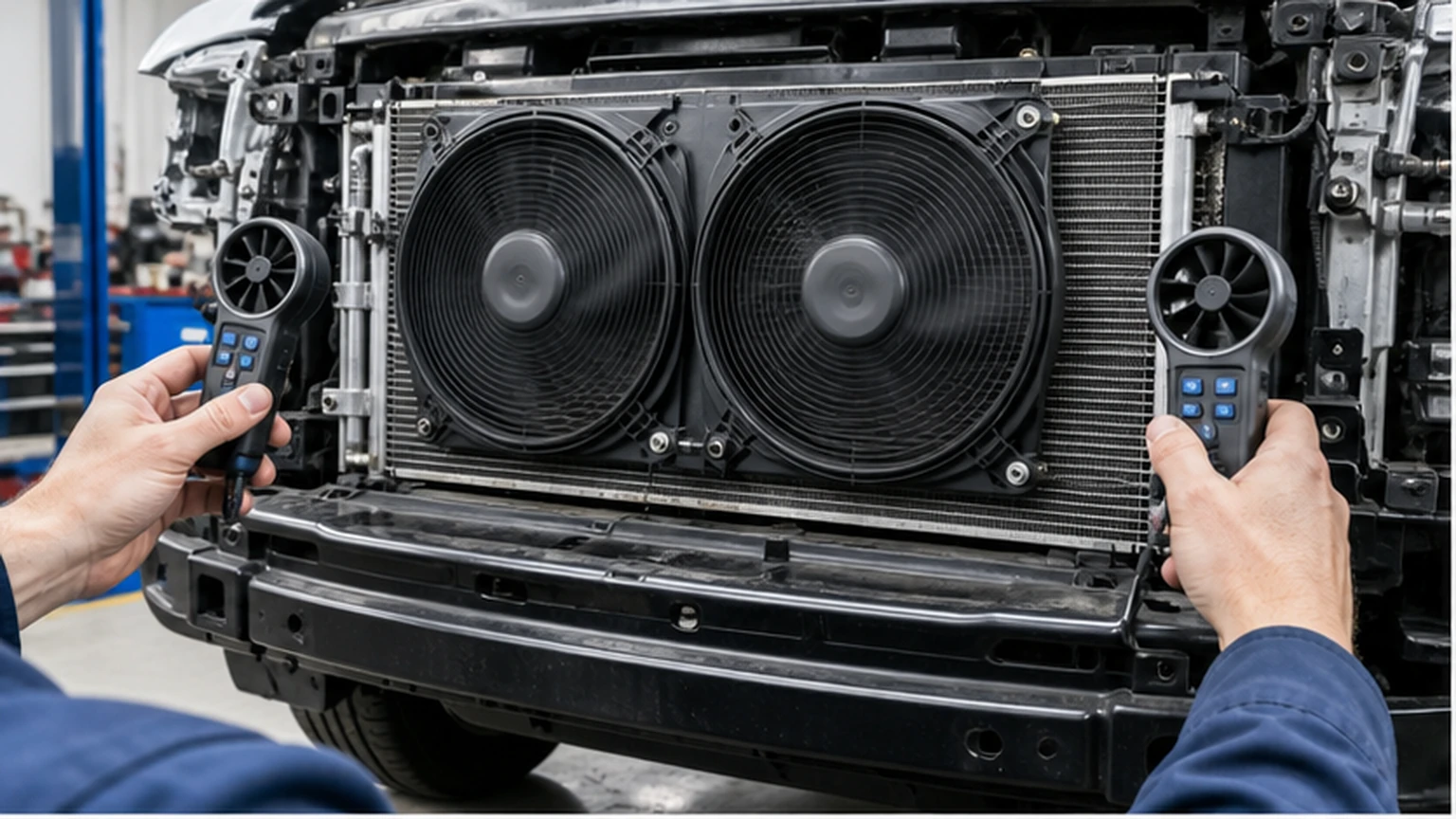

A multi-point map reveals dead zones that a spinning-fan visual check cannot show.
A high reading directly behind one blade does not prove uniform core flow. Missing shrouds, gaps and fan placement can leave large dead zones. Compare left/right and upper/lower regions, especially where condenser circuits enter and leave.
Air should enter from the intended cool side and leave toward the engine compartment or designated duct. Turbulence near the grille can confuse a handheld reading. Use light ribbon or safe smoke visualization only where permitted, away from hot and rotating components.
Some vehicles use active grille shutters or controlled ducts. Confirm commanded and actual position. A stuck shutter can starve the condenser even when the fan and core are healthy.
The condenser may sit in front of a radiator, charge-air cooler or additional heat exchangers. Debris can collect between layers where it is invisible from the grille. Inspect with suitable lighting and access rather than forcing water or compressed air through delicate fins.

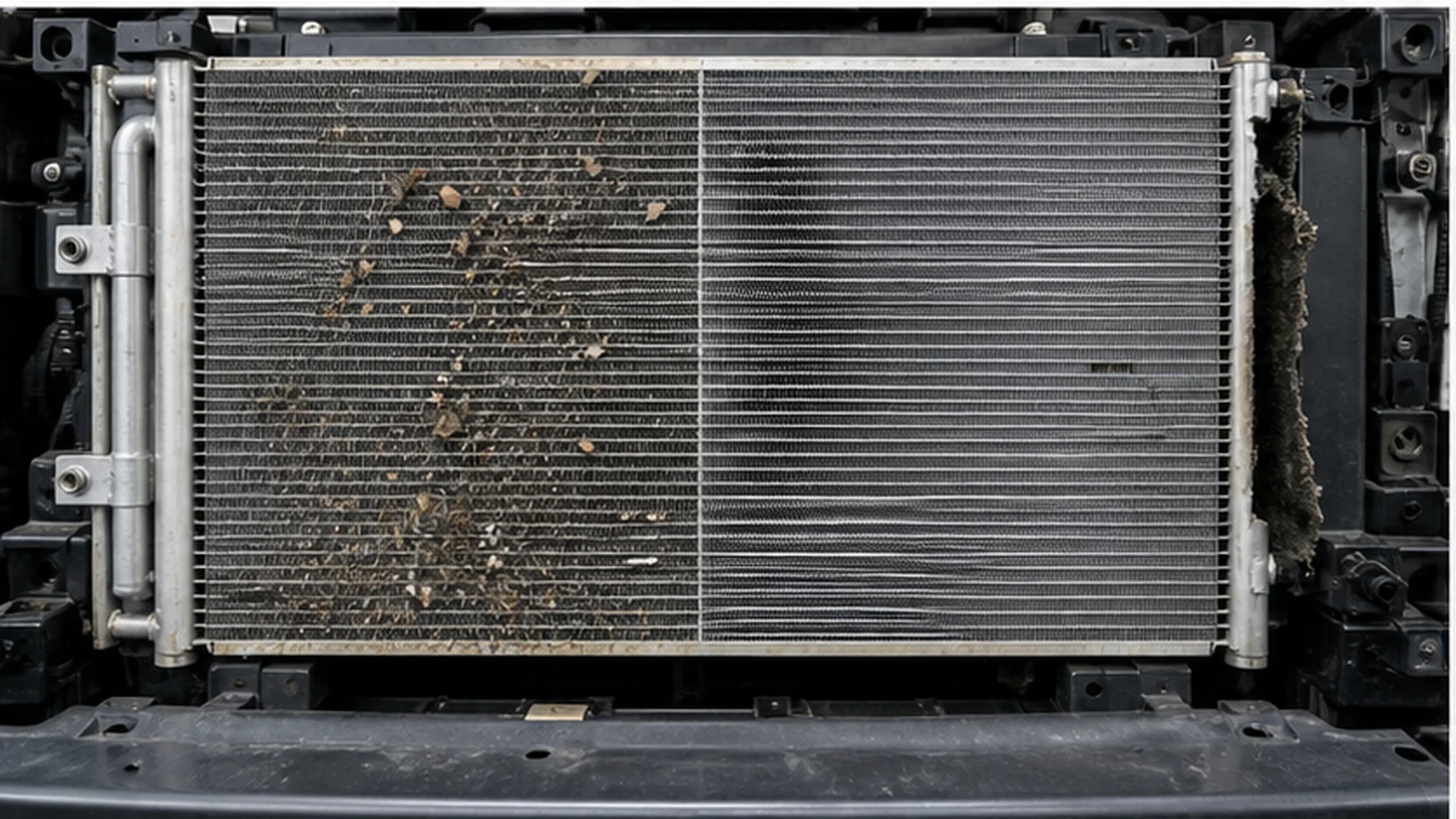

External blockage and missing seals reduce the cool air that actually crosses the condenser core.
Dirt blocks vehicle-side airflow. Corroded or separated fins reduce heat transfer even if air passes. Bent fins can sometimes be straightened carefully, but widespread corrosion, detached fins or crushed tubes may justify replacement. Avoid claims based only on surface appearance.
Foam strips, side seals, lower dams and shrouds force fan suction through the heat exchanger rather than around it. A small perimeter gap can recirculate hot engine-compartment air at idle. Photograph missing pieces before ordering so the repair includes the actual airflow path.
Use low-pressure methods and compatible cleaners from the appropriate direction. High-pressure water can fold fins and push debris deeper between stacked cores. Protect electrical fans and modules from water intrusion.
Measure refrigerant-line or core-surface temperature near the condenser inlet and outlet with a repeatable method. The hot gas entering the condenser should reject heat as refrigerant condenses and subcools, but expected profiles vary by system design, ambient condition, refrigerant mass and control strategy.
This can support inadequate airflow or excessive heat load. Check airflow map, fan stage and recirculation. It does not distinguish overcharge or non-condensables by itself, so retain pressure and service evidence.
A pronounced early transition or cold region may support internal restriction or charge-related behavior, depending on architecture. Use thermal imaging as a pattern tool, not a substitute for gauges and refrigerant mass verification.
Shiny aluminum, painted surfaces and wet fins produce different infrared readings. Use contact probes or prepared reference points where accurate temperature is required. Do not compare reflective tubes without controlling the measurement method.
Where the service procedure permits, use a correctly positioned external fan to supply ambient air through the grille while monitoring pressure and outlet temperature. The fan should simulate vehicle-side flow without obstructing the grille or blowing hot shop air.
If high-side pressure falls and cooling improves when external airflow is added, investigate installed fan delivery, blockage, seals and recirculation. This intervention does not prove the condenser is structurally sound; a corroded core may also need abnormal airflow to compensate.
If verified airflow produces little change, examine refrigerant charge, non-condensables, compressor control, metering restriction and sensor data. The A/C compressor range should enter procurement only when compressor-specific pressure, command and mechanical evidence confirms it.
Water can lower condenser temperature dramatically regardless of the underlying vehicle airflow fault and may damage electrical components. A controlled air intervention is easier to interpret and closer to the intended heat-transfer mechanism.
Pattern | Likely direction | Evidence needed before replacement |
|---|---|---|
Cools while driving, high pressure at idle | Fan airflow, blockage, seals or recirculation | Fan command/current, airflow map, controlled-air response |
Fan runs but face has dead zones | Shroud, blade, motor speed or stack obstruction | Multi-point airflow and physical inspection |
Good airflow, pressure remains excessive | Charge, non-condensables, restriction or control | Recovered mass, pressure/temperature pattern and commands |
Pressure data disagrees with gauges | Sensor or circuit bias | Reference comparison and electrical test |
Condenser externally clean but thermally weak | Fin separation, internal restriction or refrigerant issue | Temperature map and pressure evidence |
New fan overheats connector | High motor load or terminal resistance | Current and loaded voltage-drop test |
Low airflow caused by inadequate motor speed, excessive current, blade damage or integrated control failure can justify a radiator/condenser fan motor or complete cooling fan assembly. Confirm whether the blade, shroud and module are included.
Leakage, crushed tubes, widespread fin separation, unrepairable corrosion or a verified internal restriction can justify the core. A dirty but intact condenser may need careful cleaning and restored sealing rather than replacement.
Correct refrigerant mass, evacuate according to procedure and test the A/C pressure switch or sensor when the evidence identifies those branches. Parts replacement cannot correct trapped non-condensable gas.
After repair, repeat stabilized pressure, vent temperature, fan stage and airflow map under the same ambient and cabin-load conditions. Inspect connector temperature and verify that coolant temperature remains controlled.
For a condenser, provide OE number, vehicle identification, model year, engine, market, refrigerant type and A/C option. Photograph overall core, inlet/outlet fittings, receiver-drier location, sensor ports, mounting tabs and neighboring heat exchangers. Record core height, width and thickness separately from tank dimensions.
Thread, pad fitting, O-ring seat, pipe angle and bracket location can differ on visually similar cores. Confirm whether the receiver-drier, pressure sensor, seals and mounting hardware are included. Elecdura’s air-conditioning parts category can support related items, but each needs its own OE and failure evidence.
Provide rated voltage, connector shape, pin count, wire positions, blade count, rotation direction, shroud size, mounting points and whether control is integrated. A single- and dual-fan package can share vehicle application wording while using different cooling options.
State the required supply boundary. Some vehicles service the condenser, fan and radiator independently. Ordering a complete front module without evidence increases freight, damage exposure and returns.
Inspect condenser cores for squareness, fin damage, tube deformation, clean sealed ports, fitting geometry, bracket alignment and receiver-drier protection. Leak-test samples with an agreed medium, pressure, stabilization time and acceptance limit. Do not use an air leak test as proof of thermal efficiency.
Use rigid perimeter and corner support so carton loads do not crush fins or bend pipes. Cap every refrigerant port against moisture and debris. Keep loose sensors and hardware from contacting the core.
Check blade clearance, balance, rotation, current, speed and control response using the intended voltage and fixture. No-load free rotation cannot validate installed airflow. The wholesale condenser fan program should preserve motor/module revision and lot traceability.
Foam air seals compressed for long storage may not recover. Package them without permanent deformation and identify their installation position. Missing sealing material can make a sound replacement appear ineffective at idle.
The same fan often serves both condenser and engine radiator. A coolant overtemperature problem may change fan command and A/C protection logic. Confirm coolant system status without assuming that a coolant thermostat or radiator fault caused the refrigerant pressure pattern.
For multi-component sourcing, use Elecdura’s wholesale program only after each product boundary is documented. A condenser, fan, module and pressure sensor can appear on one quotation, but they should never appear merely because the vehicle arrived with warm vent air.
If the airflow map confirms that the motor itself cannot deliver the commanded stage, the cooling-fan manufacturer evaluation guide provides a separate supplier-screening framework. It should support sourcing after diagnosis, not replace the electrical and airflow measurements performed on the vehicle.
Test installed fan airflow, staging, core blockage, seals and recirculation while recording pressure. Compressor-speed and charge issues must also be excluded.
A slow, backward or poorly shrouded fan can rotate visibly while leaving most of the core with inadequate flow.
Verify refrigerant mass and observe the response to controlled airflow. Do not release refrigerant as a diagnostic shortcut.
Localized fin damage may be repairable, while crushed tubes, leakage or widespread fin separation can justify replacement.
Provide OE number, vehicle and A/C option, refrigerant, core and fitting photographs, dimensions, receiver-drier and sensor scope, fan electrical details where required, quantity and packaging requirements through the Elecdura enquiry page.
A defensible idle-cooling diagnosis synchronizes four things: fan command and delivery, airflow across the complete condenser face, high- and low-side pressure, and refrigerant temperature change. The response to controlled ambient airflow then shows whether heat rejection is the leading branch or whether diagnosis must return to charge, compressor, sensor and metering controls.
For wholesale matching, send Elecdura the OE reference, vehicle/A/C configuration, condenser fittings and dimensions, fan architecture, pressure and temperature behavior, airflow map, blockage or seal evidence, included-component boundary, quantity and packaging requirements. That evidence ensures the quotation addresses the measured idle fault instead of treating every high-pressure complaint as a condenser failure.
