A serpentine automotive A/C condenser carries refrigerant through one long tube circuit, while a parallel-flow condenser divides the flow across many narrow passages connected by headers. That structural difference changes heat rejection, refrigerant charge sensitivity, contamination behavior, flushing decisions, and replacement matching. Neither design can be judged from its outline alone. The useful question is how the internal circuit was engineered for the vehicle's refrigerant, compressor, airflow package, and control strategy.
For repair networks and parts distributors, the distinction becomes most important after compressor damage. A solvent that leaves a condenser looking clean does not prove that every microchannel is open or free of metal. The replacement decision must combine failure evidence, internal construction, vehicle service information, and the condition of the rest of the automotive air-conditioning system.
Decision point | Serpentine condenser | Parallel-flow condenser |
|---|---|---|
Internal path | One continuous flattened tube, usually folded through the core | Headers distribute refrigerant through multiple small multiport tubes |
Heat-transfer packaging | Effective but requires a comparatively long tube route | Large internal and external surface area in a compact core |
Debris distribution | Particles follow a longer single route and may collect at restrictions or turns | Particles divide among many passages and can lodge deep inside several tube groups |
Restriction pattern | Localized restriction may affect the circuit progressively | Some passages can block while others continue flowing, creating maldistribution |
Flush verification | Possible only when the approved procedure and component construction permit it | Difficult to verify after severe compressor contamination; replacement is often specified |
Replacement matching | Tube route, fittings, mountings, core size, and refrigerant capacity | Header/pass layout, subcooling section, drier, ports, fittings, mountings, and core geometry |
“Parallel flow” and “microchannel” are often used together in aftermarket conversation, but they are not a complete specification. Tube count, port geometry, number of passes, header partitioning, fin density, receiver-drier arrangement, and subcooling volume can differ. A visually similar replacement A/C condenser therefore cannot be approved from width and height alone.

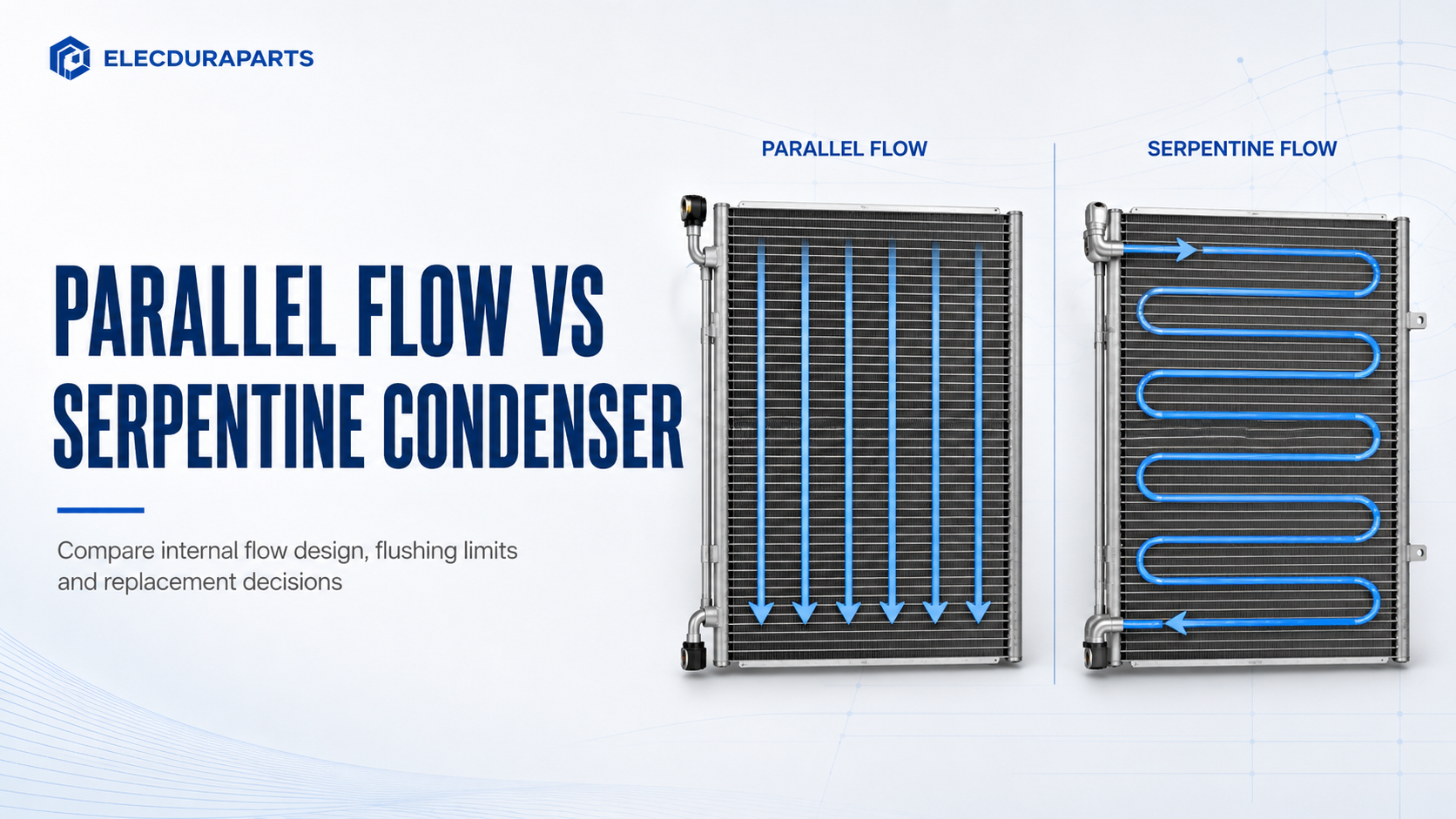

Serpentine and parallel-flow cores distribute refrigerant through fundamentally different internal paths.
In a conventional serpentine core, a flattened tube bends repeatedly across the face of the condenser. Hot high-pressure vapor enters near the top or side, rejects heat to the tube wall and fins, condenses, and leaves as high-pressure liquid. Because the refrigerant follows a continuous route, pressure loss and heat transfer accumulate along that route. Tube geometry, bends, fin contact, and airflow distribution all influence performance.
A severe obstruction in a continuous circuit can produce a recognizable temperature change upstream and downstream of the restricted area. Yet the temperature pattern is not self-interpreting. Refrigerant is supposed to change phase through the condenser, and liquid subcooling near the outlet is normal. A technician must compare temperatures with high-side pressure, ambient conditions, fan operation, refrigerant charge, and the vehicle maker's expected behavior.
Older vehicles that use serpentine units may also have service fittings, hose connections, and mounting arrangements that no modern universal core reproduces. When supporting legacy applications, the A/C parts range must be checked as a system rather than treating the condenser as an isolated rectangle.
A parallel-flow core uses inlet and outlet headers connected by many flat tubes containing small internal ports. Partitions inside the headers direct refrigerant through groups of tubes in successive passes. Flow divides, recombines, and changes phase while moving across the core. This arrangement creates high heat-transfer area with low refrigerant volume, which is valuable for compact modern front-end packages.
Two condensers can share external dimensions yet use different header partitions. That changes how many tubes serve each pass, refrigerant velocity, pressure drop, condensation area, and subcooling capacity. Moving an inlet or outlet is therefore not a cosmetic revision. It can represent a different internal circuit intended for another compressor, refrigerant charge, or vehicle configuration.
The outlet may also feed an integrated receiver-drier or a dedicated subcool section. Buyers should confirm whether the drier cartridge, plug, O-rings, brackets, or sensor port are included. The presence of a cylindrical side tank does not prove that its internal function matches the original unit.
Both condenser types depend on air crossing the entire active face. At road speed, ram air may hide a weak fan. At idle, high-side pressure can rise rapidly if a condenser fan is slow, rotating in the wrong direction, missing a shroud seal, or commanded incorrectly. Debris between the condenser and radiator can block airflow even when the visible front surface looks clean.
The condenser commonly sits ahead of the radiator and sometimes ahead of charge-air or oil coolers. Bent fins, foam-seal gaps, incorrect core spacing, and recirculation around the stack change air velocity. The downstream engine radiator can also be restricted, increasing underhood temperature and reducing the temperature difference available for A/C heat rejection.
Compare A/C behavior at idle and at a controlled higher road-equivalent airflow. Confirm fan command, actual speed, rotation, blade condition, and air direction. Inspect the space between cores rather than only the front face. A large performance improvement when external airflow increases supports an airflow problem, but technicians must still confirm charge and compressor control before reaching a final conclusion.
Where the vehicle uses a shared radiator cooling fan assembly, engine temperature, refrigerant pressure, vehicle speed, and control-module commands may all influence fan speed. A fan-related high-pressure complaint should therefore be separated from a restricted condenser before parts are ordered.
Mechanical compressor failure can release metal particles, carbonized oil, elastomer fragments, and desiccant or internal wear material into the discharge stream. The condenser is the first major heat exchanger downstream of the A/C compressor, so it becomes a collection point. The quantity and type of contamination depend on the failure mode; a failed control valve is not the same event as a seized compressor that has distributed metallic debris.
In a parallel-flow core, the inlet header divides contaminated refrigerant among many tubes. Larger particles may stop near entries, while smaller particles travel into individual ports. Flow continues through the least restricted paths. A flush stream can preferentially take those open paths and exit apparently clean while bypassing blocked or contaminated passages.
If several tubes are restricted, remaining tubes carry more refrigerant. Local velocity and pressure drop change, active heat-transfer area decreases, and outlet condition becomes less predictable. The system may cool weakly, show elevated discharge pressure, or perform acceptably under light load but fail at idle or high ambient temperature. These symptoms overlap with overcharge, non-condensable gas, weak airflow, and compressor-control faults.
A serpentine tube may provide a less divided flushing path, but that does not make every serpentine condenser safe to reuse. Small sections, mufflers, trapped bends, integrated driers, degraded oil, or corrosion can prevent reliable cleaning. Component construction and the approved service procedure remain decisive.
Contamination can divide among microchannels, leaving some paths open while other passages remain blocked.
There is no responsible universal yes-or-no answer. Flushing is a service procedure that must be compatible with the refrigerant circuit, flushing agent, equipment, component construction, and local handling requirements. A clean-looking solvent sample is only one observation; it is not proof of restored flow area or oil cleanliness.
The vehicle or component manufacturer specifies condenser replacement after internal compressor failure.
Metal, heavy carbon, desiccant, or elastomer debris is present downstream of the failed compressor.
The core contains non-serviceable microchannels, an integrated receiver-drier, muffler, or trapped section that cannot be verified.
Thermal inspection suggests persistent maldistribution after the permitted cleaning procedure.
Corrosion, impact damage, tube leakage, damaged fins, or mounting distortion already compromises the part.
The labor and comeback risk of reuse exceeds the controlled cost of replacement.
Compressors, expansion devices, accumulators, receiver-driers, and some heat exchangers may be excluded from flushing. Follow application-specific information. Replace required filtration or desiccant components, and inspect the entire circuit before installing a new compressor. The compressor identification process should also confirm the correct control type and application, not merely the pulley diameter.
Document the original complaint, recovered oil condition, and compressor failure mode.
Inspect discharge lines and the condenser inlet for particle type and quantity.
Identify condenser construction and any integrated drier or subcool section.
Consult the vehicle and component procedures for mandatory replacement and permitted flushing.
Inspect downstream lines and the metering device for migrated debris.
Correct the root cause, including airflow, charge, oil quantity, control, or prior contamination.
Use the specified evacuation, charging, and post-repair verification procedure.
This sequence prevents the common mistake of replacing the compressor while leaving its cause or contamination reservoir in the system. Related pressure behavior should be interpreted with the correct A/C pressure switch or sensor logic rather than bypassing a protection device.
High discharge pressure does not identify a restricted condenser by itself. Overcharge, non-condensables, weak fan airflow, high ambient load, blocked fins, compressor overcapacity, or an incorrect refrigerant can create similar readings. Low high-side pressure also does not clear the condenser; a weak compressor or low charge can mask restriction.
Record ambient temperature, cabin load, engine speed, fan command, actual fan operation, high- and low-side pressure, vent temperature, and condenser surface temperatures under a controlled condition. Compare inlet and outlet line temperatures and scan the face in a repeatable pattern. Interpret the expected phase-change and subcool zones for that system.
A cold stripe may be a designed pass boundary, an inactive tube group, or a restriction. Reflections, wind, wet surfaces, paint, and camera angle can distort readings. Confirm suspicious zones with contact temperature measurements and circuit knowledge. Do not condemn a condenser because an infrared image “looks uneven” without supporting pressure and flow evidence.
Fan electrical condition matters during this test. A motor can spin but fail to produce specified airflow under load. If needed, inspect the radiator fan motor, voltage drop, current, blade pitch, and shroud sealing before attributing the pressure pattern to internal condenser blockage.
A condenser is an application-engineered heat exchanger. The safest matching hierarchy starts with a reliable OE or supplier reference, then verifies the vehicle configuration and physical details. Photographs support identification but do not replace the reference and application data.
Matching group | Information to confirm | Why it matters |
|---|---|---|
Vehicle | Make, model, year, market, VIN where appropriate, engine, body, drivetrain | Regional and powertrain versions can use different cooling packages |
Core | Active width/height, overall size, thickness, fin and header arrangement | Determines packaging, airflow, and circuit family |
Connections | Inlet/outlet position, thread or flange type, sealing method, tube angle | Prevents line stress, leakage, and installation interference |
Integrated features | Receiver-drier, cartridge access, sensor port, brackets, seals | Changes service scope and supplied content |
Mounting | Tabs, holes, cushions, fan/shroud interfaces, stack spacing | Controls alignment and airflow sealing |
System | Refrigerant, compressor/control type, specified charge, rear A/C if fitted | Connects the condenser to the intended thermal load and control strategy |
Port geometry, integrated components, core dimensions, and mounting points must be checked together.
Replacing a serpentine unit with a parallel-flow design can work only when the replacement has been engineered and validated for that application. A more efficient-looking core may alter pressure drop, refrigerant volume, subcooling, and charge sensitivity. Adapter hoses or modified brackets do not demonstrate thermal or control compatibility.
Use the vehicle-approved refrigerant and charge procedure. The replacement condenser's internal volume may differ, but that does not authorize an improvised charge quantity. Diagnose by the specified process and confirm stable operation across idle, raised speed, fan stages, and normal load.
For related controls, Elecduraparts also organizes wholesale automotive A/C pressure controls and the broader compressor product category. These pages help separate the condenser request from a pressure-sensor or compressor request during quotation.
Bulk purchasing adds risks that a single workshop replacement may not reveal. A sample can fit while a later production batch shifts a bracket, port angle, drier plug, or protective packaging. Inspection criteria should be agreed before volume shipment.
Compare carton label, product label, reference, and application record.
Measure core and overall dimensions against the approved drawing or sample.
Inspect connection faces, threads, sealing seats, plugs, and cleanliness.
Verify bracket location, weld/braze condition, and handling damage.
Confirm supplied drier parts, caps, seals, and accessories.
Check fins for crushing and ensure the core is isolated from carton pressure.
Apply the agreed leak-test and traceability requirements.
Thin fins and projecting ports can be damaged without obvious carton failure. End caps should remain secure and clean; brackets and connections need clearance from the outer box; cores should not rub each other in multi-unit packaging. Moisture and open-port contamination can undermine an otherwise sound condenser before installation.
Distributors planning mixed cooling programs can use the oil cooler category and engine thermostat range to map adjacent thermal products, while keeping each item's matching data separate. For general sourcing terms, consult the Elecduraparts wholesale program.
Many modern applications use parallel-flow or microchannel designs, but construction varies. Examine the header, tube arrangement, service information, and part specification before deciding how the unit can be serviced.
Follow the vehicle and component procedure. When metal or severe degraded-oil contamination has entered narrow multiport passages, replacement is often the controlled decision because hidden restriction and retained debris cannot be verified reliably.
A continuous tube may be more accessible than divided microchannels, but it can still retain debris or be structurally unsuitable for flushing. Reuse requires an approved process and evidence of acceptable condition.
A new component does not correct a weak fan, blocked stack, overcharge, incorrect evacuation, restricted hose, or control fault. Reproduce the complaint under controlled conditions and diagnose the entire circuit.
Send the OE or cross-reference number, vehicle and market, refrigerant, clear front/back and port photos, core and overall dimensions, fitting details, drier configuration, mounting points, required quantity, and evidence of any compressor contamination. For application-specific review, use the Elecduraparts contact page.
Parallel-flow condensers package high heat-transfer area into a compact core, but their divided microchannels make contamination and restriction difficult to verify. Serpentine condensers offer a continuous route, yet they are not automatically flushable or reusable. Diagnose airflow before blaming the core, interpret pressure and temperature together, and follow the application-specific contamination procedure.
Condenser-specific wholesale request: Send the OE reference, vehicle/engine/market, refrigerant, core and port measurements, receiver-drier configuration, mounting photos, compressor-failure evidence, required quantity, and packaging or inspection requirements. Elecduraparts can then evaluate an application-matched aftermarket condenser rather than guessing from external dimensions.
