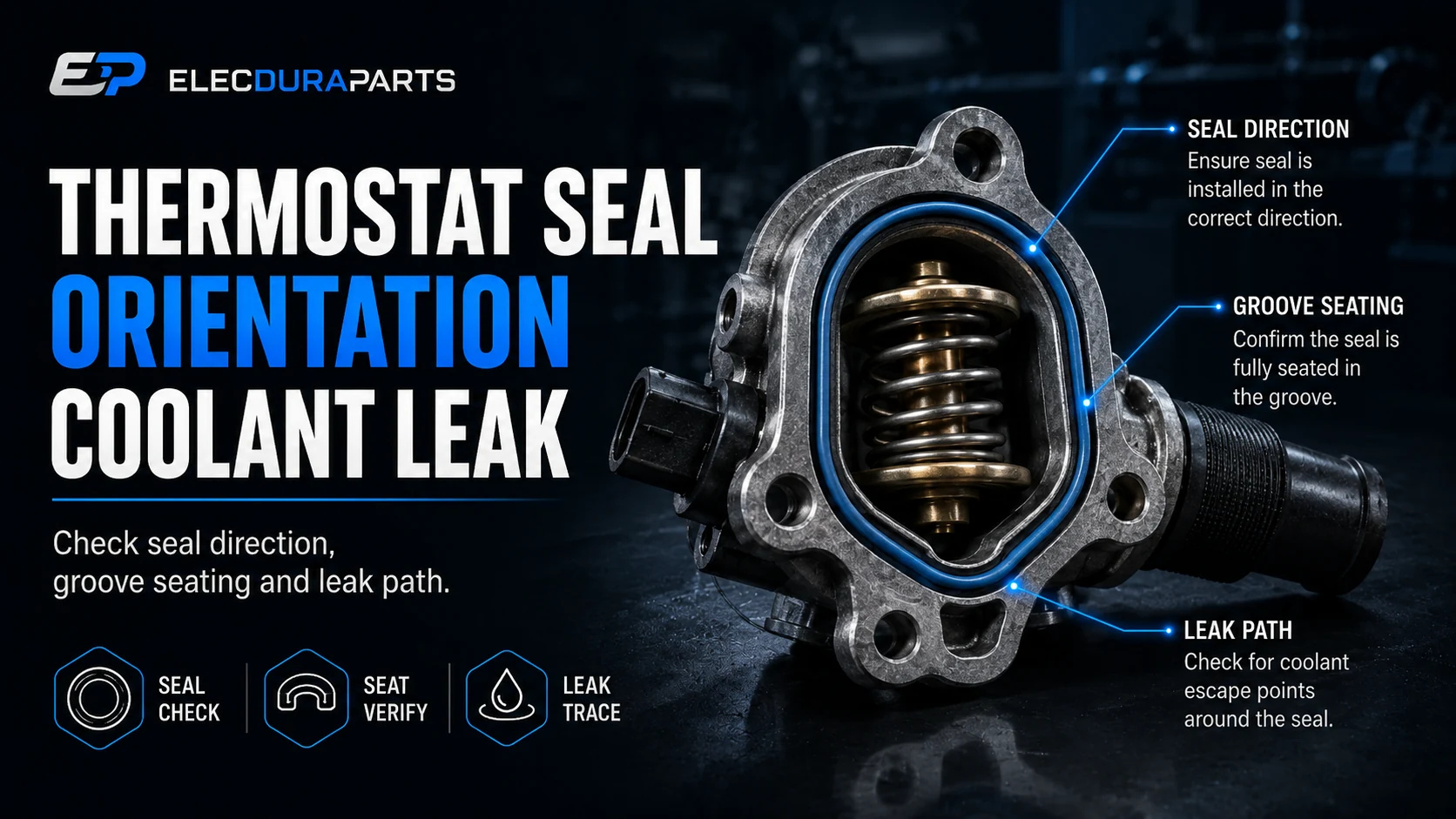

Thermostat seal orientation determines more than whether coolant appears outside the housing. A seal can look installed and still sit on the wrong side of the thermostat flange, twist inside its groove, face a pressure lip backward, bridge a locating step or leave an internal bypass path. The result may be an external drip, slow pressure loss, delayed warm-up, unstable temperature or reduced radiator control.
There is no universal “flat side up” or “lip toward the engine” rule. Thermostat joints use round O-rings, molded profile seals, radial lips, face gaskets, bonded carriers and seals retained directly on the thermostat flange. Correct placement follows the exact housing groove, pressure boundary, part design and service drawing.
Identify the complete application through Elecdura’s engine coolant thermostat range. Compare the removed seal, new kit, housing and thermostat before applying lubricant or sealant.
A symmetrical O-ring normally seals by controlled squeeze and has no directional face, but it still requires the correct groove and freedom from twist. A molded lip or stepped seal may be directional. A flat gasket may have coating, tabs, port windows or asymmetric beads. Install only according to valid application data and confirm that the housing reaches its mating surface without using bolts to crush a misplaced seal.
Seal type | Orientation concern | Primary inspection |
|---|---|---|
Round O-ring | Usually non-directional, but can twist or roll | Correct cross-section, groove and uniform seating |
Molded profile ring | Step, rib or lip may face a defined side | Match cross-section to groove and drawing |
Radial lip seal | Lip pressure direction can matter | Identify pressure side and supporting shoulder |
Flat gasket | Ports, beads, coatings or tabs may be asymmetric | Align all passages and printed direction marks |
Seal bonded to carrier | Carrier position controls seal path | Verify locator pins, bolt holes and coolant windows |
The housing-to-engine or housing-to-cover seal prevents coolant escaping to the outside. A pinched O-ring, damaged face or uneven clamp load creates visible wetness, dried residue or pressure loss.
Coolant travels along castings, hoses and wiring. Clean only after documenting the original trace, then pressure-test safely to isolate the first active source.
Some thermostat seals also block coolant from passing around the closed valve. If the seal is placed above instead of below the flange, or does not engage the bore, coolant can bypass the thermostat internally. No external leak may be visible.
The thermostat product category includes multiple flange and seal architectures, so external fit does not prove internal flow control.
Determine whether the seal belongs in the housing, cover, engine recess or around the thermostat flange. A groove has controlled width, depth and corner radii. A visually convenient recess may instead be a locator or coolant passage.
An old O-ring can remain flattened in a deep groove and look like part of the housing. Installing a new ring above it holds the cover off the surface and creates excessive compression.
Some thermostats seat first and the seal surrounds the flange; others place the seal beneath the flange or integrate it over the edge. Photograph the original arrangement before removal and compare with service information.
Molded tabs, notches and flat sections prevent rotation and align bypass windows. Do not cut them off. If the tab has no matching pocket, the seal or housing may be wrong.
An O-ring must have correct inside diameter, cross-section and coolant-compatible material. A ring that stretches excessively becomes thinner; an oversized ring bunches in the groove. Visual similarity is insufficient.
An unsuitable elastomer can swell, harden or lose compression. Do not identify material by color alone because colors are not universal specifications.
A small amount of approved coolant or assembly lubricant may prevent tearing, but the product must be compatible. Petroleum grease, silicone, sealant or excessive lubricant can alter swelling, let the ring roll or contaminate the circuit.
A twisted O-ring stores torsion and can roll as the cover approaches. Seat it progressively around the groove without stretching one section. The surface should remain uniform and fully below the retaining edges.
A lip seal may use system pressure to increase contact against a bore or face. Reversing it can reduce this self-energizing effect or expose the lip to an unsupported gap. Determine the pressure side from the drawing, not from a generic photograph.
One side may contain a taller rib, relief channel, chamfer or hard carrier. Compare a clean cross-section and locator marks. Do not flatten the seal to make both sides appear equal.
A lip or stepped ring needs the correct housing shoulder. Using the seal with a similar but differently machined housing can leave an extrusion gap. Match the complete thermostat configuration.
A flat gasket can be rotated into a position where bolts fit but a bypass or bleed passage is partly blocked. Compare every opening, tab and bead. Never enlarge a port by hand.
“Top,” “engine side” or part-number printing can guide installation when it belongs to the correct gasket. Printing direction alone is not proof if the part identity is uncertain.
Coated or elastomer-beaded gaskets are often designed for clean dry assembly. Extra sealant changes thickness, can squeeze into passages and may prevent the bead from working. Apply only where the manufacturer specifies.
If the seal does not engage the thermostat perimeter, pump pressure may route coolant around the main valve. The engine can warm slowly, heater behavior may change and radiator-side temperature can rise earlier than expected.
Absence of a drip does not prove correct sealing. Use cold-start temperature timing, flow-path knowledge and installed evidence. Do not diagnose internal bypass from slow warm-up alone.
An incorrectly clocked carrier or oversized gasket can cover a designed passage. This may reduce warm-up circulation or trap air near the wax element, producing local overheating before the main valve opens.
Leak evidence | Seal-related possibility | Other causes to exclude |
|---|---|---|
Immediate leak during fill | Missing, displaced or grossly pinched seal | Cracked housing, open drain or disconnected hose |
Leak only under pressure | Insufficient squeeze, cut ring or wrong profile | Porous casting, cap pressure or hose connection |
Leak from one bolt-side corner | Seal rolled or flange unevenly seated | Torque sequence, warped surface or crack |
Leak after heat cycles | Material incompatibility or compression loss | Polymer creep, hose load or thermal crack |
Residue below housing but joint dry | Not proven as thermostat seal leak | Sensor, pipe, hose or higher coolant source |
Use the approved cooling-system pressure and adapter on a cold engine. Observe the highest active wet point. Never exceed system rating, and protect against hot coolant.
Breakaway friction changes with corrosion, heat and sealant. Use removal observations as context, not as a reconstruction of original clamp load.
A new seal cannot correct a cracked neck, warped flange, pulled insert, pitted engine surface or damaged groove. Related housing and clamp-load diagnosis belongs in Elecdura’s cooling-system technical library.
A thermostat with similar diameter can place its flange higher or lower, over-compressing the seal or leaving it loose. Compare flange thickness, outside diameter, element depth and bypass features against the approved part.
A supplied O-ring that fits the housing does not prove the valve has correct calibration, stroke or bypass geometry. Verify both components independently.
Warehouse or workshop bins may contain similar loose rings. Keep seal, thermostat, label and packaging together. For matching, use Elecdura’s aftermarket application support.
If the housing is tightened from one corner, the seal may contact unevenly. Correct fasteners, clean threads, natural seating, staged sequence and specified torque are prerequisites.
Extra torque may bow plastic, extrude the seal or pull an insert. Do not tighten beyond specification in an attempt to stop a leak.
Uniform imprint supports even squeeze. A flattened section beside an untouched section indicates cocking, groove mismatch or local flange gap. Photograph before cleaning.
Place the removed seal on a clean labeled surface in the same orientation in which it was found. Photograph both faces, its relationship to the thermostat flange and any rolled, cut, flattened or polished areas. Do not stretch it for a photograph. A permanent set on one side can show where compression occurred, while an unmarked segment may identify loss of contact. Link the evidence to the exact thermostat application rather than comparing it with a visually similar loose ring.
A sharp tool mark created during removal is not proof that the seal was cut in service. Record the seal before and after extraction and note where a pick was used. Heat hardening, chemical swelling and long-term compression have different evidence from a fresh mechanical nick, although material analysis may be required for definitive attribution.
The correct squeeze depends on groove depth, seal cross-section, housing tolerance and material. A cover that feels tight may be compressing a seal correctly, pinching it, or contacting an obstruction. Conversely, easy closure does not prove insufficient squeeze. Use the part drawing, valid service procedure and application-matching evidence; never add a second ring to create more resistance.
Do not scrape, deepen, fill or machine a thermostat-seal groove without an approved repair specification. Removing material changes squeeze and lip support; filling corrosion with an unsuitable compound can release debris or alter coolant compatibility. A cracked, deeply pitted or dimensionally incorrect housing may require replacement rather than repeated seal experiments. Separate housing repair belongs in the cooling-component technical resources.
Match OE number, engine, housing, thermostat, seal profile, locator features and coolant passages. Label engine side, radiator side and top where relevant.
With the procedure allowing, verify thermostat and seal sit in their intended recess and the housing approaches evenly. Remove and correct any rocking or unexplained gap.
Remove old material without scratching. Check for corrosion, molding flash, sharp edges, embedded debris and remnants of the prior seal. Protect open coolant passages.
Seat it progressively, align lips or tabs, and recheck the complete circumference. Keep hands and tools clean. Never use a sharp pick to force the final section.
Start all bolts by hand, seat the housing naturally and use staged passes, specified sequence and calibrated tool. Confirm hoses and wiring do not pull the flange sideways.
Use the specified coolant, vacuum-fill or bleed sequence, heater setting and auxiliary-pump activation. An air pocket can imitate internal bypass or thermostat delay.
Check the joint during fill and controlled pressure testing. Then warm the engine while monitoring temperature and coolant level. Stop if unsafe conditions develop.
A dry joint proves only the external boundary. Confirm normal warm-up, radiator transition, heater output and stable operating temperature to show internal flow control.
Inspect residue, reservoir level and hose connections. Thermal cycling may reveal a pinched seal or marginal flange that was dry during initial fill.
Provide OE number, vehicle and engine, production date, thermostat and housing labels, seal location, clean cross-section photos, inside/outside diameter, thickness, lip or step direction, groove dimensions, coolant specification and quantity.
Color does not reliably identify elastomer, hardness or coolant compatibility. Dimensions and application documentation are required.
Inspect profile, flash, cuts, contamination, deformation, packaging and lot identification. Keep seals with their matched thermostat or housing kit. Elecdura’s wholesale parts program, thermostat catalog and quality support can coordinate batch evidence.
Loose elastomer seals should remain protected from sunlight, heat, ozone, dust, sharp hardware and deformation. Do not hang a small ring under continuous stretch or compress a profile seal beneath heavier parts. For a wholesale thermostat kit, retain supplier lot, receiving date, storage condition and the exact kit from which any failed sample came. Traceability is necessary before comparing a field-return seal with unused inventory.
Some flat gaskets are symmetrical; others have directional coatings, beads or ports. There is no universal side.
It must sit in the correct groove without twist and have the specified size and material. Molded profile rings may be directional.
Confirm with flow-path and temperature-timeline evidence because a stuck-open or wrong thermostat can produce the same result.
Unspecified sealant can displace the ring, alter compression and contaminate the cooling circuit.
Provide OE number, engine, thermostat/housing labels, seal and groove photos, measured dimensions, directional features, coolant type and order quantity.
Correct thermostat seal orientation begins by identifying the seal architecture and the boundary it controls. Seat the seal in its specified groove, keep it untwisted, align every lip, step, tab and coolant window, and close the housing without force. Then verify both external pressure integrity and internal thermal control.
For replacement or bulk matching, send the OE reference, engine application, thermostat and housing labels, seal cross-section and groove photos, dimensions, material or coolant requirement, orientation features and quantity through the Elecdura contact page, the thermostat seal inquiry, or Elecdura’s cooling-system resources.
