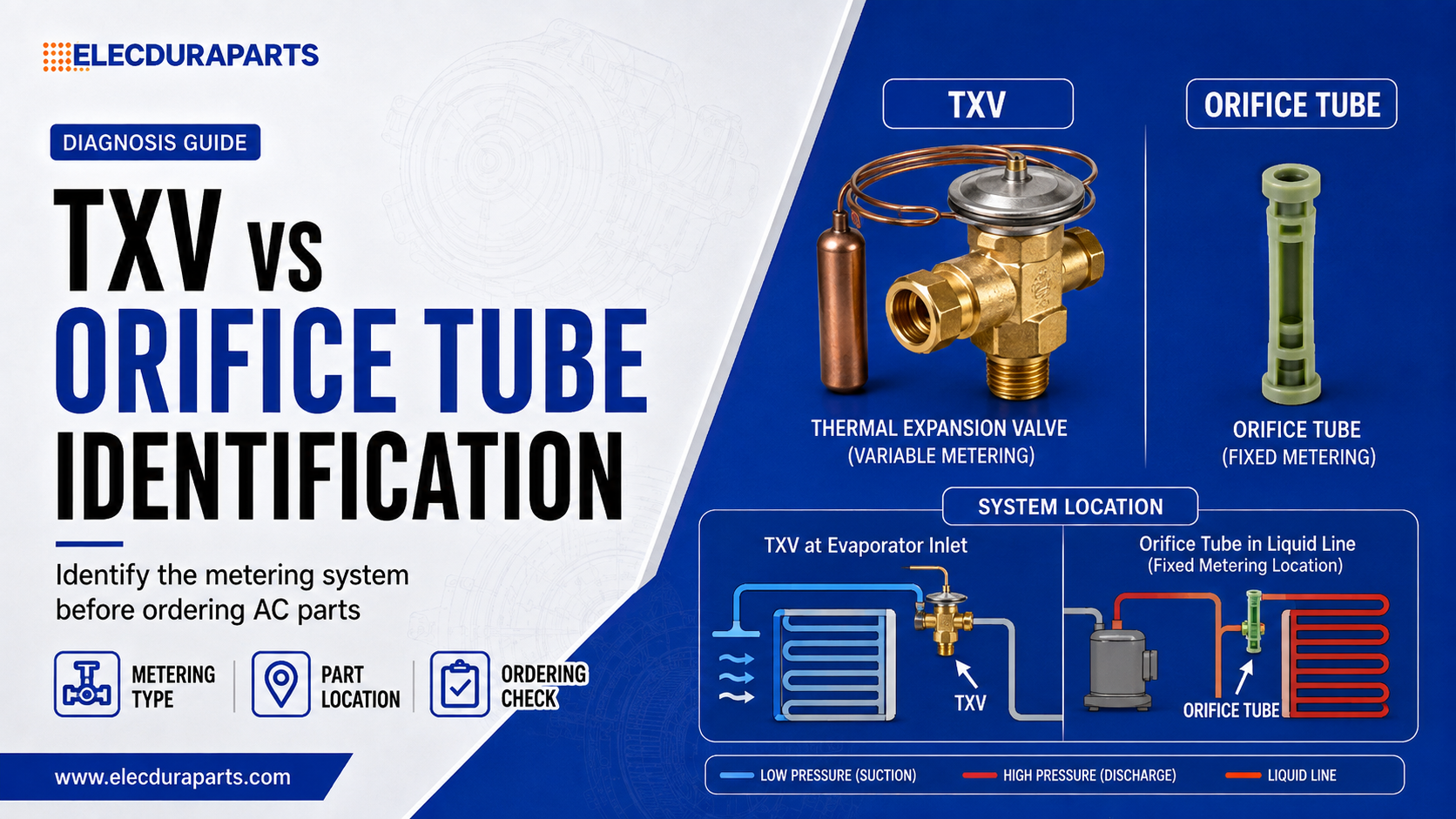

A thermal expansion valve (TXV) and a fixed orifice tube both meter liquid refrigerant into an automotive evaporator, but they control flow differently and belong to different system layouts. A TXV adjusts flow in response to evaporator outlet conditions. A fixed orifice presents a calibrated restriction while compressor cycling or displacement control manages capacity. Mixing the companion parts or diagnostic rules can cause poor cooling, liquid return and repeat compressor failure.
Feature | TXV System | Fixed-Orifice System |
|---|---|---|
Metering action | Variable opening responds to thermal/pressure inputs | Calibrated fixed opening |
Low-side storage | Usually receiver-drier on high side | Usually accumulator after evaporator |
Typical control | Valve regulates superheat; compressor capacity also controlled | Cycling/displacement manages evaporator condition |
Debris evidence | May collect at valve inlet screen | Visible on removable orifice screen |
Matching risk | Equalizer, tonnage, fitting and sensor geometry | Diameter, length, screen and application |
These are common architectures, not a substitute for the vehicle diagram. Confirm the actual plumbing and service information. Some systems integrate the TXV at the firewall or evaporator, while others use an electronic expansion valve. Hybrid and EV systems may coordinate the valve with a high-voltage electric AC compressor.
A TXV balances opening and closing forces from a sensing element, evaporator pressure and an internal spring. Its purpose is to feed the evaporator while limiting liquid refrigerant leaving the core. The valve does not simply “make pressure low”; it changes flow as load changes.
On externally sensed designs, bulb contact, position and insulation affect response. An external equalizer communicates outlet pressure. A loose bulb or blocked equalizer can imitate an incorrect valve. Block-style automotive valves may integrate these functions differently, so follow the design at hand.
Superheat is the difference between refrigerant vapor temperature and saturation temperature at the same pressure location. Use correct refrigerant data and stable load. A single pressure reading cannot prove a TXV is stuck.
The orifice tube has a calibrated bore and screens. Flow changes with pressure difference and refrigerant state, not an active sensing element. An accumulator downstream of the evaporator stores excess refrigerant, separates liquid from vapor and returns oil in a controlled manner.
Metal, black residue, desiccant or seal fragments on the screen indicate a system-wide problem. Photograph and classify debris before cleaning. A new tube can clog immediately if a failing AC compressor or damaged drier remains.
In a common TXV system, liquid flows from the AC condenser through a receiver-drier and toward the valve. Some condensers integrate the drier, as covered in the integrated receiver-drier matching guide.
A large canister between the evaporator outlet and compressor inlet is commonly an accumulator, supporting fixed-orifice architecture. Do not identify a canister by shape alone; port size, location and flow direction matter.
Orifice tubes are often installed inside a liquid line at a joint. The line may have a crimp or dimple that positions it. Do not probe an unknown line with tools; consult the application diagram.
Complaint | TXV Checks | Orifice-Tube Checks |
|---|---|---|
Starved evaporator | Bulb/equalizer, inlet screen, valve command | Charge mass, tube restriction, pressure differential |
Flooding/liquid return | Valve control and sensing | Accumulator/oil-return and compressor control |
Debris | Inspect valve inlet and upstream drier | Read orifice screens and accumulator risk |
Freeze-up | Valve response plus temperature sensor | Charge/orifice plus cycling control |
The AC short-cycling diagnosis treats compressor control as a time-based pressure and temperature problem. Do not condemn either metering device before verifying airflow and charge by weight.
Opening the refrigerant circuit requires moisture control, evacuation and correct oil handling. Replace the receiver-drier or accumulator according to repair scope and manufacturer requirements. The receiver-drier replacement guide explains why exposure and compressor failure change the decision.
Orifice-tube colors can correlate with calibration within a catalog system, but color is not a universal cross-brand specification. Match OE reference, dimensions and application. TXVs likewise require correct capacity, fitting geometry, equalization and refrigerant compatibility.
Provide vehicle, year, engine or powertrain, refrigerant, OE number, metering-device photos, line fitting measurements, receiver-drier or accumulator arrangement, compressor model and required quantity. For TXVs, include bulb/equalizer or block-port geometry. For orifice tubes, include length, screen arrangement and removal location.
Inspect port cleanliness, sealing surfaces, screens, dimensional consistency, cap protection and traceability. Valves must remain dry and sealed. Use Elecdura’s air-conditioning parts range and wholesale service to submit a defined application list.
Low suction pressure and high superheat can indicate insufficient feed, but the causes include low charge, liquid-line restriction, moisture freezing at the valve, lost bulb charge or poor equalization. Confirm liquid supply to the valve and compare temperature across every upstream component before replacing it.
Low superheat can result from an overfeeding valve, incorrect bulb contact, excessive charge or inadequate evaporator airflow. Verify air-side heat load and sensor placement. Liquid return can damage the compressor, so do not hold the system at that condition for an extended test.
A sharp temperature change at the tube location, starved evaporator and debris screen support restriction. Recover refrigerant before removal. The debris composition determines whether the compressor, hoses, condenser and accumulator need a wider service scope.
A receiver-drier stores high-side liquid and removes moisture before a TXV. An accumulator protects the compressor from liquid leaving a fixed-orifice evaporator and meters oil return. Installing the wrong-looking canister is not possible without major plumbing changes, but confusing their names during ordering can deliver the wrong part.
Escaped desiccant beads or powder can travel into a valve or orifice. If contamination is confirmed, replace affected storage and metering components and evaluate the condenser. A new valve alone may become the next filter.
Vans, SUVs and buses may use separate metering devices for front and rear evaporators. One branch can cool normally while the other is restricted. Trace each liquid line and identify every valve, solenoid and storage component. Total refrigerant charge and oil distribution differ from single-evaporator systems.
Cab systems may use externally equalized valves, serviceable driers and long hoses. Hose pressure drop and vertical routing affect diagnosis. The AC hose crimping guide explains why internal liner restriction can imitate a metering fault.
Cap every open line, minimize exposure and replace seals with refrigerant-compatible parts. Lubricate O-rings only with the specified oil. Torque fittings with a counter-hold so thin evaporator tubes are not twisted.
Where used, mount the bulb on the clean tube at the specified clock position, secure it firmly and reinstall insulation. A bulb hanging in case air does not represent refrigerant outlet temperature.
Many valves and driers are directional. Compare arrows, port sizes and system routing before tightening. An externally similar reverse-installed component may restrict flow or place the sensing path incorrectly.
Evacuate, leak-test and charge by mass. Stabilize cabin and ambient load, then record high/low pressure, line temperatures, vent temperature, compressor control and evaporator distribution. Confirm that the storage component is not frosting abnormally and that the core does not freeze during an extended run.
If compressor debris was present, review AC compressor black-death contamination and document what could or could not be flushed. Modern microchannel condensers may require replacement rather than an assumed clean passage.
Search by VIN, model year, engine and HVAC option. The diagram should show the metering device and whether the high-side canister is separate or integrated. Treat catalog illustrations as orientation aids, not dimensional proof.
Trace the compressor discharge to condenser, liquid storage, metering point, evaporator and suction storage. Mark each line before disassembly. Rear-air and heat-pump circuits can add branches that make a simple front-system assumption wrong.
Record markings, arrows, port diameters, screen condition and debris. For a block TXV, photograph both sides and the evaporator interface. For an orifice tube, measure overall length and note which end faced the condenser.
High head pressure more commonly directs attention to condenser airflow, overcharge, non-condensables or discharge restriction. A valve restriction may reduce evaporator feed, but must be demonstrated with line temperatures and low-side behavior.
Temperature normally falls across the metering device. The question is whether the change occurs at the intended point and whether downstream distribution matches load. Frost at an unintended line joint is stronger restriction evidence.
Different refrigerants have different pressure-temperature relationships. Contaminated refrigerant invalidates chart interpretation and can damage service equipment. Identify and recover it through approved processes.
A valve order may require O-rings, a receiver-drier and application-specific mounting hardware. An orifice-tube repair may require an accumulator, line repair and contamination work. Define which items are included and which are separately packed. A low-cost valve without seals or caps can create installation delay and moisture risk.
Measure a sample of critical port geometry, screen retention, orifice diameter by approved gauges, valve actuation characteristics where supported, marking and leak integrity. Verify packaging caps remain tight after vibration testing. These controls are product-specific and should not be replaced by an appearance-only inspection.
For commercial condenser matching around the same system, the heavy-duty AC condenser sizing guide explains why port and core data must accompany the metering-device selection.
A single evaporator circuit normally uses one primary metering architecture, but multi-evaporator and specialized systems must be confirmed from the diagram.
No. They occupy different typical locations and manage refrigerant state differently.
No. The system architecture, controls and companion components are designed around the specified device.
No. Charge, airflow, sensor control and compressor behavior can produce similar frost.
Send the OE number, refrigerant, system diagram or component-location photos, compressor model, metering-device dimensions, receiver-drier/accumulator layout and quantity through Elecdura’s contact page. This prevents a visually similar but architecturally wrong part from entering the order.
Measure condenser outlet and liquid-line temperatures, inspect the receiver-drier for an unintended restriction and verify charge by mass. A starved valve cannot feed correctly if flash gas reaches its inlet. High-side pressure alone cannot show liquid quality.
Measure pressure and temperature at comparable evaporator-outlet locations. Inspect bulb attachment or block-valve thermal contact. If external equalizer pressure is blocked or connected to the wrong point, the valve responds to false information.
Change blower speed or cabin load while monitoring superheat and valve response. A healthy system should react rather than remain fixed at an extreme. Do not use ice, heat guns or unapproved bulb manipulation that can damage the charge element.
Recover/weigh if necessary and monitor cycling switch or variable-compressor control. The fixed tube cannot compensate for missing refrigerant or a compressor that never reduces capacity.
The designed large temperature change should occur at the orifice. An upstream cold point suggests an unintended restriction. Insulate test sensors from engine heat and compare under stable load.
Check inlet/outlet routing, oil-return function and evidence of desiccant breakdown. A blocked outlet or missing internal tube can starve the compressor and distort the apparent orifice diagnosis.
A system may cool, restrict, warm and repeat as moisture freezes and melts. Replace the moisture-control component, evacuate correctly and correct exposure; replacing only the valve leaves the water source.
Nominal capacity and fitting compatibility do not prove the superheat setting, equalizer configuration or response curve. Use application-specific data. A universal substitution can create hunting, starvation or floodback.
Screen and body geometry are directional. Backward installation can alter debris capture and flow. Record removal direction and follow line arrows or service information.
Review the condenser leak-test methods, high low-side pressure diagnosis, compressor short-cycling guide and wholesale compressor range only after the metering architecture is known.
Neither architecture is universally superior. Performance depends on the complete design, controls, heat exchangers, charge and operating condition.
Its screen is diagnostic evidence and the calibrated part is generally replaced according to the service procedure, especially when contaminated.
Specialized tests can assess response, but in-system liquid supply, sensing contact and pressure remain important. Follow manufacturer methods.
Label every removed O-ring by exact location and never mix materials. Confirm service-port caps, line clips and insulation after final commissioning. A mechanically correct valve can still fail if moisture, debris or line vibration was left unresolved.
Do not use a catalog picture to decide between the systems. Trace the liquid and suction lines physically, identify the storage component, and confirm the OE diagram. During teardown, cap lines immediately and preserve the removed metering device. Its screen and flow direction can explain the failure better than post-repair pressure readings. If front and rear circuits exist, label each branch, valve and seal so parts do not cross during assembly. The final invoice should state the metering architecture, refrigerant, storage component and contamination actions explicitly.
Identify the entire refrigerant path before interpreting one cold component. A TXV belongs to a system that actively meters superheat; a fixed orifice belongs to a system that manages capacity elsewhere and protects the compressor with an accumulator. Companion parts, control logic and contamination decisions follow that architecture.
When catalog data conflicts, prioritize VIN/OE data, the installed line routing and measured geometry. Request a technical drawing for ports and equalizer arrangements. Do not accept “same refrigerant” as proof of metering compatibility.
Record recovered mass, vacuum result, added oil, charged mass, ambient, pressures, line temperatures, vent temperature and control command. Inspect the full evaporator temperature distribution and confirm no hunting, floodback or freeze-up during load changes. Retain the removed screen as evidence.
Use the wholesale AC condenser range when a contaminated or restricted condenser expands the repair, but verify its construction and flushing limits first.
Label every removed metering device so its architecture and application remain traceable throughout inspection and quotation.
