An AC compressor control valve can make a working compressor look dead. The system may have refrigerant, the clutch may engage or the variable compressor may spin, but cabin cooling remains weak. Pressures may look confusing. The low side may stay too high, the high side may stay too low, or the compressor may not change displacement when the control signal changes. In many repair shops, that situation leads to a complete compressor replacement even when the fault may be the control valve, wiring, refrigerant charge, sensor input, or contamination.
This article explains common AC compressor control valve symptoms and how distributors, technicians, and repair networks can decide whether the compressor is truly failed. In many cases, the better commercial outcome is not to sell the largest part every time. The better outcome is to identify the failure correctly, supply the parts that solve it, and reduce returns from misdiagnosis across AC compressors, valves, sensors, and related system parts.

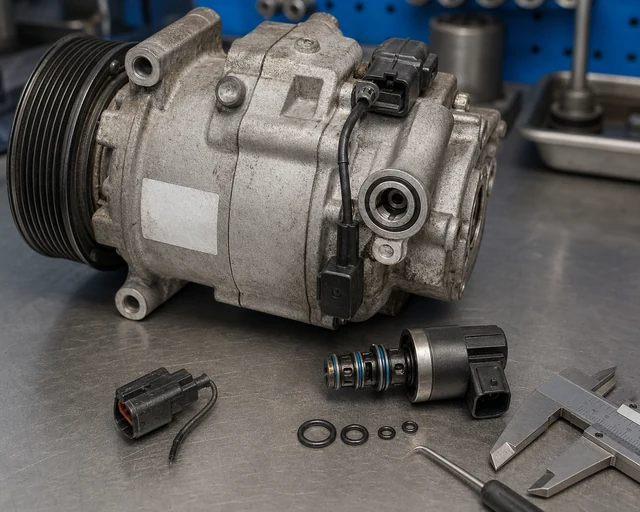

Control valve symptoms should be diagnosed with pressure readings, command signal, refrigerant charge, and contamination evidence.
Many modern compressors are variable-displacement units. Instead of simply switching full output on and off, the compressor changes displacement to match cooling demand. The control valve helps regulate internal pressure and swash plate behavior so the compressor can pump more or less refrigerant. Some valves are mechanically regulated. Others are electronically controlled by the vehicle through a solenoid command.
When the control valve sticks, leaks internally, receives the wrong signal, or becomes contaminated, the compressor may not build normal pressure difference. The result can look like a weak compressor, low refrigerant, expansion valve issue, or condenser airflow problem. That is why symptoms must be interpreted with pressure readings and system context rather than by vent temperature alone.
The most common symptom is weak cooling at idle or low speed while the compressor appears to be operating. The compressor may spin, but the system does not create enough pressure difference to move heat effectively. Another symptom is abnormal gauge behavior: low-side pressure may remain higher than expected, high-side pressure may remain lower than expected, or both sides may move slowly when cooling demand changes.
Some vehicles show intermittent cooling. The AC may cool after start-up, then fade. It may cool on the highway but not in traffic. It may respond briefly after the system is restarted. Electronically controlled valves can also create diagnostic trouble codes or live-data readings showing requested compressor output that does not match actual pressure response. However, not every vehicle stores a clear code, so gauge readings and basic system checks remain important.
Symptom | Possible Control Valve Link | Other Causes to Rule Out |
|---|---|---|
Weak cooling with compressor turning | Valve stuck at low displacement | Low charge, expansion valve, condenser airflow, blend door |
Low side high and high side low | Poor pumping command or internal regulation issue | Compressor wear, incorrect charge, slipping clutch |
Cooling fades after warm-up | Valve sticking when hot or signal issue | Fan failure, overcharge, condenser restriction |
Command signal changes but pressures do not | Electronic valve or compressor response fault | Wiring, ECU command, pressure sensor data |
A compressor is not truly dead simply because the cabin is warm. A compressor with a control valve problem may still rotate, may not be noisy, may not leak, and may not contain metal debris. If the valve is serviceable separately, replacing the valve can sometimes restore function. If the compressor has internal wear, debris, clutch damage, shaft seal leakage, or seizure, replacing the valve alone will not solve the problem.
The decision should follow evidence. If the system has clean oil, no abnormal noise, correct charge, functioning fans, and pressure behavior consistent with a stuck valve, control valve replacement may be considered. If there is metal contamination, burned oil, seized pulley, damaged clutch, or repeated valve failure, the compressor and related components should be evaluated as a package.
Gauge readings are useful, but they must be read under the right conditions. Ambient temperature, engine speed, fan operation, refrigerant type, humidity, and vehicle control strategy affect pressures. A variable-displacement compressor may not behave like an older fixed-displacement compressor. Low-side and high-side values should be compared with service data and live command information when available.
A common pattern for a weak or inactive compressor is a low pressure difference between high and low sides. But this pattern can also appear with very low refrigerant charge or severe internal compressor wear. If the low side is high and high side is low, the control valve is one possibility, not the only answer. If high-side pressure is excessive, look at condenser airflow, fan operation, overcharge, air in the system, or restriction before blaming the valve.

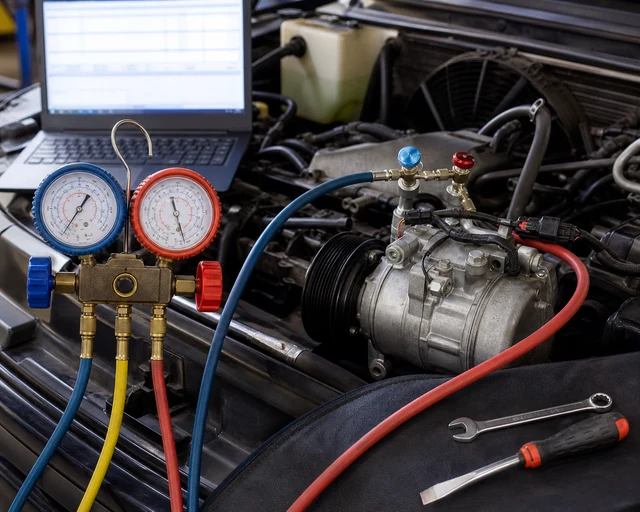

Pressure readings and sensor inputs help separate control valve faults from switch, sensor, charge, or airflow problems.
Electronically controlled compressor valves need wiring and command checks. The technician should inspect connector condition, pin corrosion, wire damage, supply voltage, ground, and control signal according to the vehicle design. Some systems use pulse-width modulation. Others use different control logic. Applying power without understanding the valve type can damage the component or mislead the diagnosis.
For distributors, this matters because customers may return a valve or compressor after installing it into a vehicle with wiring faults. Ask whether the shop checked command signal and connector condition before condemning the part. If the old valve was contaminated or the connector melted, the replacement quote should include repair notes, not only a new component.
Many control valve complaints are actually charge or airflow problems. Low refrigerant can prevent normal cooling and pressure response. Overcharge can raise high-side pressure and reduce performance. Air in the system can create unstable readings. Poor condenser airflow from a weak fan, blocked condenser, missing shroud, or dirty cooling stack can make the compressor appear unable to control pressure.
Before replacing a control valve, recover and charge the refrigerant by weight according to vehicle specification where possible. Verify condenser fan operation and inspect the AC condenser for external blockage or damage. If the system uses a pressure switch or sensor, confirm it is reporting correctly. A related AC pressure switch symptoms reference can help separate protection-circuit faults from compressor control faults.
Control valves have small passages and moving parts. Debris, degraded oil, seal material, and metal particles can make the valve stick. If a previous compressor failure contaminated the system, installing a new valve into the old compressor may fail quickly. Even a new compressor can be damaged if the condenser, drier, expansion device, and lines still contain debris.
For warranty control, contamination evidence should be documented with photos, oil condition, filter screen debris, and expansion valve or orifice inspection. If metal is present, the repair should shift from control valve replacement to system cleaning and compressor package replacement. This protects both the buyer and supplier from a predictable repeat failure.
Do not confuse control valve symptoms with clutch engagement problems. A clutch that does not engage, slips, or has an open coil will prevent the compressor from operating on clutch-style systems. A control valve problem may occur while the compressor is rotating. The diagnostic path is different. If the clutch never engages, start with fuse, relay, pressure switch, coil resistance, air gap, and control command; a compressor clutch not engaging diagnostic path is more relevant for that situation.
Some modern compressors have no traditional clutch and rotate whenever the engine runs. On those systems, weak cooling may be more likely to involve displacement control, valve command, refrigerant charge, or internal compressor wear. Sales teams should ask what compressor type the vehicle uses before recommending a clutch, valve, or complete compressor.

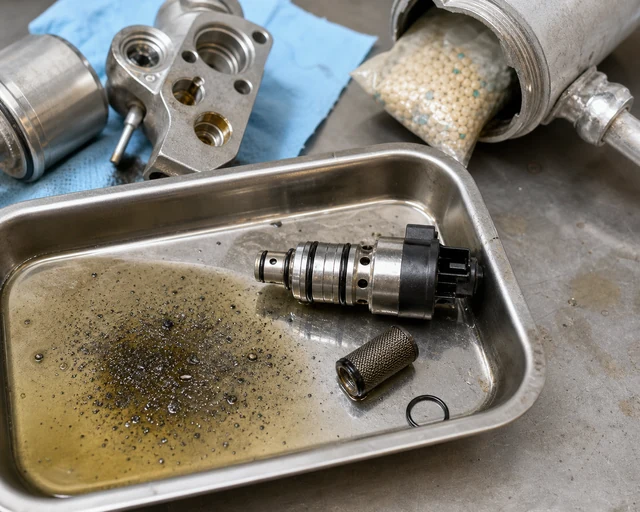

Metal debris, degraded oil, and blocked valve screens can turn a small control-valve repair into a full system-cleanliness decision.
Control valve replacement may be reasonable when the compressor is otherwise clean and mechanically sound, the system charge is correct, condenser airflow is confirmed, the electrical command is present, and pressure behavior points to a regulation problem. The valve must match the compressor model, connector, length, seal arrangement, and control type. A similar-looking valve may not fit or respond correctly.
For B2B sourcing, buyers should provide the compressor label, OE number, vehicle application, valve photo, connector photo, and symptoms. If the vehicle uses a compressor family with several valve variants, the supplier should not quote from vehicle model alone. The safest order uses compressor identification and old-valve evidence.
Complete compressor replacement is usually the better choice when there is noise, seizure, shaft seal leakage, metal debris, burned oil, damaged pulley, clutch failure combined with internal damage, or an unavailable control valve. It may also be better for commercial repair when labor cost and comeback risk are higher than the savings from valve replacement. A fleet may prefer a complete compressor package to reduce downtime if the diagnostic evidence is uncertain.
When replacing the compressor, the repair scope should include drier or accumulator, expansion valve or orifice tube inspection, flushing where appropriate, correct oil quantity, seals, vacuum, and charge by weight. A new compressor installed into a contaminated system can fail quickly, and that failure is not solved by choosing a different brand.
Control valves can be profitable but require careful catalog management. Keep valve listings tied to compressor model numbers, not only vehicle applications. Include connector photos, dimensions, seal locations, and notes about compatible compressor families. Stocking complete compressors and valves together can serve both repair approaches, but sales teams must ask enough questions to avoid selling a valve for a compressor that is already damaged.
For high-return SKUs, review why customers return parts. If many returns show contamination, wrong connector, or no pressure diagnosis, improve the product page and sales checklist. A better listing may reduce order volume from uncertain buyers, but it increases successful repairs and trust from professional customers.
Confirm compressor type: fixed, clutch-style variable, or clutchless variable displacement.
Recover and recharge refrigerant by weight before interpreting difficult pressure readings.
Check condenser airflow, fan operation, exterior blockage, and cooling stack condition.
Inspect pressure switch or sensor data, wiring, connector condition, and control command.
Look for compressor noise, shaft seal leak, clutch damage, burned oil, or metal contamination.
Match the control valve by compressor number, connector, length, seals, and control type.
A vehicle arrives with weak cooling. The shop sees the compressor turning and assumes it is internally weak. A complete compressor is installed, but the system still does not cool correctly. Later checks show that the condenser fan is not reaching full speed and the pressure sensor data is unstable. The original compressor may not have been the main failure. The new compressor did not solve the system control problem because the diagnostic path skipped airflow and sensor checks.
This scenario is common enough that distributors should treat compressor complaints carefully. A customer asking for a compressor may already have made the correct diagnosis, but they may also be guessing from symptoms. Asking for pressure readings, fan operation, charge weight, and control signal is not a delay tactic. It is how the supplier helps the customer avoid buying a large part for a small control fault.
Sales teams do not need to perform the repair, but they should know which questions separate a control valve inquiry from a full compressor inquiry. Does the compressor rotate? Is there a clutch? Was refrigerant charged by weight? What are the low-side and high-side pressures at idle and at raised RPM? Does the vehicle command variable compressor output? Are there codes for pressure sensor, compressor regulation, or climate control? Is the oil clean?
These questions help classify the order. If the compressor is noisy, seized, leaking, or contaminated, sell the complete compressor and related service parts. If the compressor is clean and the issue is poor displacement response with correct charge and airflow, a control valve may be relevant. If the clutch does not engage, send the customer down the clutch, relay, fuse, pressure switch, and command path first.
A useful control valve listing should show valve length, connector type, O-ring positions, compressor family, compatible OE references, and installation notes. Generic photos create mistakes because many valves look similar. Include close-up images and make it clear whether the valve is mechanical or electronically controlled. If the valve requires calibration, scan-tool command, or careful cleanliness during installation, mention that in customer-facing language.
For wholesale buyers, packaging should protect the valve from dust and seal damage. Small parts can create large warranty disputes if they arrive with damaged O-rings or contaminated passages. Use sealed bags, labels, and cross-reference notes. If the buyer orders complete compressors and valves together, keep the SKU relationship clear so the correct valve is not paired with the wrong compressor family.
Misdiagnosis returns usually happen when the vehicle has several possible causes and only one part was replaced. The supplier can reduce this risk by adding a short checklist to quotations and product pages. Confirm charge by weight. Confirm fan operation. Confirm pressure sensor data. Confirm clutch or command signal. Confirm oil cleanliness. Confirm no metal debris. Confirm the valve matches the compressor number. This checklist is not internal analysis; it is practical repair protection for the customer.
When a part is returned, ask for the same evidence. What changed after installation? Did pressures respond? Was the system flushed? Were drier and expansion device checked? Was the old valve contaminated? These return notes help distinguish part mismatch, incomplete diagnosis, and another system fault, which is more useful than treating every comeback as a simple warranty claim.
A control valve may be physically small, but the repair decision can involve the whole AC system. If the valve is contaminated, the buyer should ask where the contamination came from. If the system has been open for a long time, moisture control and drier replacement matter. If the condenser airflow is poor, a new valve may still leave high-pressure complaints. If the expansion valve is restricted, compressor control can look abnormal even when the valve is responding.
For commercial customers, it is better to explain this before the order is placed. A quote can offer the valve as the requested item while recommending evidence checks for charge, airflow, contamination, and compressor condition. That keeps the tone helpful and prevents the customer from feeling that the supplier is only trying to increase the order value.
AC compressor control valve symptoms can imitate a failed compressor, but they can also imitate low refrigerant, condenser airflow problems, pressure sensor faults, expansion device issues, or internal compressor wear. The right repair depends on evidence. A valve can be a smart replacement when the compressor is clean, mechanically sound, and correctly commanded. A complete compressor is safer when contamination, noise, leakage, or mechanical damage is present.
When buyers request AC compressor control valves or complete compressor sourcing, the most useful inquiry includes vehicle data, compressor label, old-part photos, connector details, pressure behavior, and failure evidence. That information turns a vague cooling complaint into a repairable parts decision and helps distributors reduce unnecessary returns.
