A condenser is not proven more efficient by having more fins, thinner tubes, or a larger face alone. Buyers should compare heat rejection and refrigerant-side pressure drop at matched refrigerant conditions, mass flow, air inlet temperature, airflow or face velocity, humidity where relevant, and fan or tunnel setup. They should also compare air-side resistance, refrigerant charge effect, durability, fouling, and the installed cooling-pack operating point.
This guide is for workshops, distributors, quality teams, and wholesale buyers. The decision affects the reliability of related parts such as the A/C condenser, wholesale condenser, and cooling fan. It explains how to turn a marketing or chart claim into a repeatable technical decision without inventing universal limits.
Useful primary references for the method include SAE J1994 heat-exchanger laboratory testing. They should be read in their stated scope; the exact vehicle, component, or customer specification remains controlling.
Start with component identity and the exact system specification.
The word efficiency may refer to heat rejection per frontal area, outlet subcooling, lower condensing pressure, low refrigerant pressure drop, low air resistance, mass, or cost. These objectives can conflict. A dense core may reject more heat in a clean tunnel but demand more fan power and clog faster in service.
Write the application objective and constraints first. Include allowable envelope, airflow, ambient range, refrigerant, flow, target outlet condition, pressure-drop limits, vehicle speed, fan power, and neighboring heat exchangers.
More fins per inch increase surface area but narrow air passages. Louver angle and fin depth influence boundary-layer renewal and resistance. Bent fins, insects, salt, chaff, and dust reduce the usable area. A lower-density core can outperform a dense one after field contamination.
Ask for fin pitch, louver geometry, material thickness, coating, and test data. Evaluate clean and representative fouled states when the application is severe. Do not compare fin counts from photographs taken at different scale.
Microchannels, ports, webs, tube height, wall thickness, pass arrangement, and internal enhancements affect refrigerant distribution, heat transfer, strength, and pressure drop. Smaller passages can improve surface-to-volume ratio yet become sensitive to debris and manufacturing variation.
A catalog description such as parallel flow does not reveal pass design. Buyers may not receive proprietary detail, but they can require dimensional controls, cleanliness, pressure-drop results, thermal performance, and change notification.
Condenser performance depends on inlet pressure, temperature, superheat or quality, mass flow, and outlet condition. A test at a favorable high temperature difference can produce an impressive kilowatt value that another data sheet cannot match. Refrigerant type also matters.
Request a test matrix or defined rating point. If suppliers use different rigs or boundary conditions, ask each to test a reference unit under the same method rather than normalizing incomplete marketing data.
Air mass flow or face velocity should be measured, not assumed from fan free-air rating. The condenser creates pressure loss, and installed radiators, charge-air coolers, grilles, shutters, shrouds, and seals change the fan operating point.
Record air inlet temperature, distribution, velocity, static pressure, tunnel dimensions, and whether flow passes through one core or a complete stack. Nonuniform flow can hide weak zones and refrigerant maldistribution.
Measurements are useful only when the method and conditions are recorded.
Refrigerant pressure drop changes saturation conditions and compressor work. Air-side pressure drop changes fan power and idle airflow. A design that rejects slightly more heat with much higher resistance may reduce total vehicle-system efficiency.
Compare thermal and pressure-drop results together. Do not approve an improvement based on outlet temperature alone if mass flow or inlet condition changed.
Outlet subcooling can indicate liquid reserve and heat rejection, especially in condensers designed with a subcooling section. It is influenced by charge, receiver-drier design, mass flow, airflow, and test controls. More subcooling is not automatically better if achieved through excessive charge or restriction.
Use the vehicle or system target and observe the full pressure-temperature relationship. Verify that instrumentation and refrigerant property calculations are consistent.

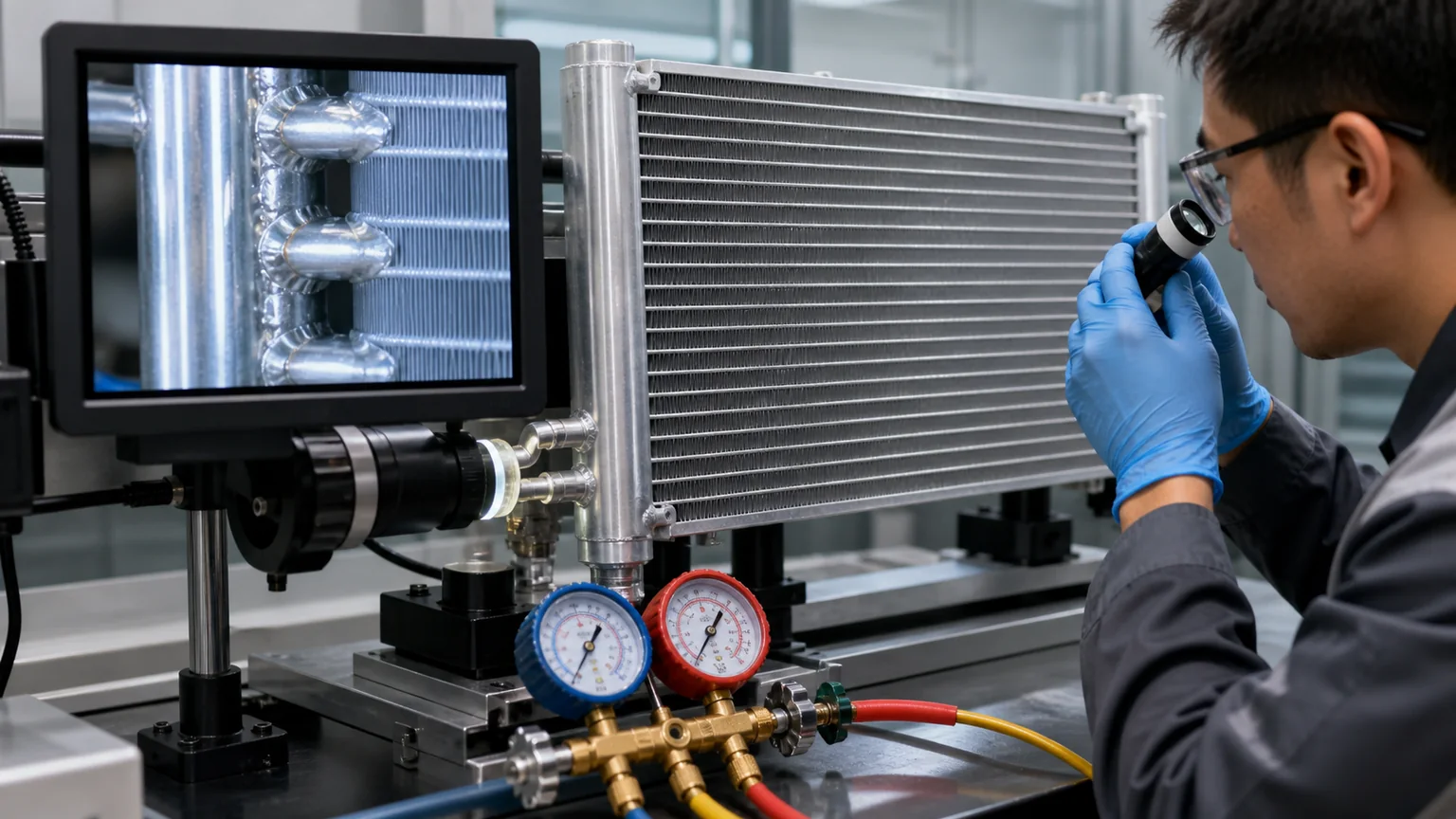

Brazing voids, blocked microchannels, distorted tubes, fin disengagement, manifold contamination, and inconsistent pass partitions can make two nominally identical cores perform differently. Sample averages may hide outliers.
Require process controls, leak testing, critical dimensions, cleanliness, and periodic performance audits. Link records to production lots and retain comparison samples.
Thinner walls and lighter structures may improve mass and initial heat transfer but reduce resistance to vibration, stone impact, pressure cycling, corrosion, or hose loads. Brackets and port blocks also carry stress.
Use application-specific vibration, pressure-cycle, corrosion, and installation-load requirements. Inspect failures by location and mode instead of labeling every leak a brazing problem.
A tunnel result isolates the heat exchanger; a vehicle test includes fan controls, seals, stack spacing, grille restriction, under-hood recirculation, compressor control, and real ambient load. Both are needed for high-risk changes.
At high ambient and low vehicle speed, record pressures, temperatures, refrigerant mass, fan command and speed, voltage, current, airflow proxies, and stabilization time. Avoid spraying water, which can temporarily disguise insufficient airflow.
Evidence group | Record | Why it matters |
|---|---|---|
Identity | Vehicle or machine, component numbers, revision, batch, labels | Prevents evidence from one configuration being applied to another |
Source | Publisher, document, date, revision, page or table | Makes the decision auditable when data changes |
Method | Fixture, instruments, calibration, conditioning, procedure | Separates real comparison from an uncontrolled demonstration |
Conditions | Temperatures, flows, voltage, pressure, time, fluid, control command | Allows results to be reproduced and compared |
Result | Raw readings, calculated values, observations, uncertainty | Shows what was measured rather than only pass or fail |
Acceptance | Requirement source, limit, disposition, approver | Stops limits being invented after a result is known |
Change control | Material, process, plant, tooling, firmware, packaging | Protects repeat orders after initial approval |
Define the system objective and constraints before requesting samples.
Collect a reference condenser and record its exact configuration and condition.
Agree a laboratory method, rating points, instruments, and uncertainty.
Test heat rejection and both refrigerant- and air-side pressure drop together.
Inspect geometry, distribution, joints, cleanliness, and dimensional variation.
Run durability evidence appropriate to vibration, pressure cycles, corrosion, and impact.
Repeat performance testing after durability where required.
Install the candidate with correct seals, shrouds, fans, refrigerant mass, and controls.
Validate high-ambient idle, road load, fan stages, and transient recovery.
Approve production controls, periodic audits, packaging, and change notification.
The workflow deliberately separates identification, bench evidence, and installed-system confirmation. A component can pass one layer and fail another. Record deviations instead of quietly adjusting the setup until a sample passes. If the product or application changes, decide which approvals must be repeated.
Retain labels, test records, and batch evidence for approval and warranty review.
State the approved component identity, application scope, controlled technical properties, test methods, sampling, records, packaging, shelf or storage controls where relevant, labeling, warranty evidence, and change notification. Classify requirements as mandatory, informational, or subject to sample approval. This prevents a supplier from treating every data request as an acceptance limit.
For private-label programs, link the sales part number to the actual manufacturer and revision. Require written notice before changes to critical material, geometry, formulation, motor or controller, tooling, plant, sub-supplier, test method, or packaging. Keep a retained sample or complete golden-sample record and periodically compare production data.
Price should be evaluated after technical alignment. Include failure investigation, returns handling, documentation, lead time, packaging damage, and field labor in total cost. An apparently cheaper product is not cheaper when its identity or evidence is ambiguous.
Calling a denser fin pack automatically more efficient
Comparing kilowatts at different inlet conditions
Using free-air fan CFM as installed condenser airflow
Ignoring refrigerant and air pressure drop
Testing a clean core for a severe dust application only
Accepting one golden sample without production controls
Changing refrigerant charge to make a candidate look better
Ignoring shroud seals and air recirculation in vehicle tests
Most of these mistakes share one cause: a convenient proxy is substituted for the real requirement. A label, one reading, or a physical resemblance can narrow the search, but it cannot prove the complete application. Use stop rules when information conflicts or when a safety-critical condition is not understood.
Do not immediately adjust the approved specification or replace the same component again. Reconfirm identity, installation, fluid or electrical preparation, airflow, contamination, connectors, hoses, sensors, controls, and the original failure cause. Compare the observed symptom with the pre-installation and commissioning records. A system-level fault can make a correct new component appear defective.
Preserve evidence before disassembly: labels, fault codes, operating conditions, pressures, temperatures, voltage, current, sound or vibration, leakage location, recovered fluid, and photographs. Stop operation when continuing could create damage or safety risk. Follow the vehicle or equipment maker's procedure and the supplier's warranty instructions.
There is no universal best value. It depends on face area, airflow, fan margin, louver design, cooling-pack resistance, contamination, cleaning, and performance targets.
No. Thickness affects area and resistance, but tube design, air distribution, refrigerant routing, temperature difference, and fan operating point determine the result.
Request a matched set: heat rejection, refrigerant pressure drop, air pressure drop, outlet condition or subcooling, and complete test conditions. One number is easy to misuse.
No. A road test proves installed behavior but has less control and repeatability. Laboratory and vehicle tests answer different questions and work best together.
Possible causes include weak airflow, blocked stack, fan or shroud problems, overcharge, non-condensables, restriction, incorrect condenser, or control faults. Diagnose the system before condemning the core.
Supplier A offers a dense, thin microchannel core and reports higher heat rejection than the buyer's reference. Supplier B offers a slightly deeper core with lower fin density and reports lower air pressure drop. The headline numbers cannot be ranked because the first test used greater face velocity and a hotter refrigerant inlet, while the second used a complete radiator-condenser stack. The buyer first creates one rating matrix and asks both suppliers to test the reference and candidate at identical points.
The matrix fixes refrigerant, mass flow, inlet pressure and temperature or defined thermodynamic state, target outlet condition, air inlet temperature, air mass flow or face velocity, tunnel geometry, and measurement locations. It records refrigerant-side and air-side pressure drop, heat rejection, outlet state, surface temperatures, and uncertainty. Several points represent idle, road speed, and high load. A clean reference is tested beside the candidates so rig-to-rig differences can be seen.
Supplier A may retain an advantage at high airflow but demand more fan power at idle. Supplier B may maintain useful flow after representative dust loading. The correct selection depends on the vehicle fan curve, package depth, contamination environment, and thermal requirement. The test replaces “Which condenser is more efficient?” with “Which design gives the best system result across our duty cycle?”
One nominal point is rarely enough. Vary refrigerant flow or compressor load and air flow across the intended operating region. Include repeat points to detect drift and assess repeatability. Specify stabilization criteria so data is not captured while metal temperatures and refrigerant inventory are still changing. Record charge or receiver condition because liquid inventory can affect results.
Instrument selection should match the uncertainty needed to distinguish products. Place pressure and temperature sensors so line losses and heat gain are understood. Calibrate flow meters, differential-pressure devices, thermocouples, and data acquisition. Check tunnel leakage and air-temperature uniformity. When calculated heat balance between refrigerant and air sides disagrees beyond the method's allowed range, investigate instead of reporting the more favorable side.
After the clean-core matrix, repeat selected points following pressure cycling, vibration, corrosion exposure, or controlled fouling when those risks are material. Inspect for fin separation, tube deformation, leaks, bracket cracks, coating change, and blocked passages. Performance retention can be more valuable than the highest initial figure.

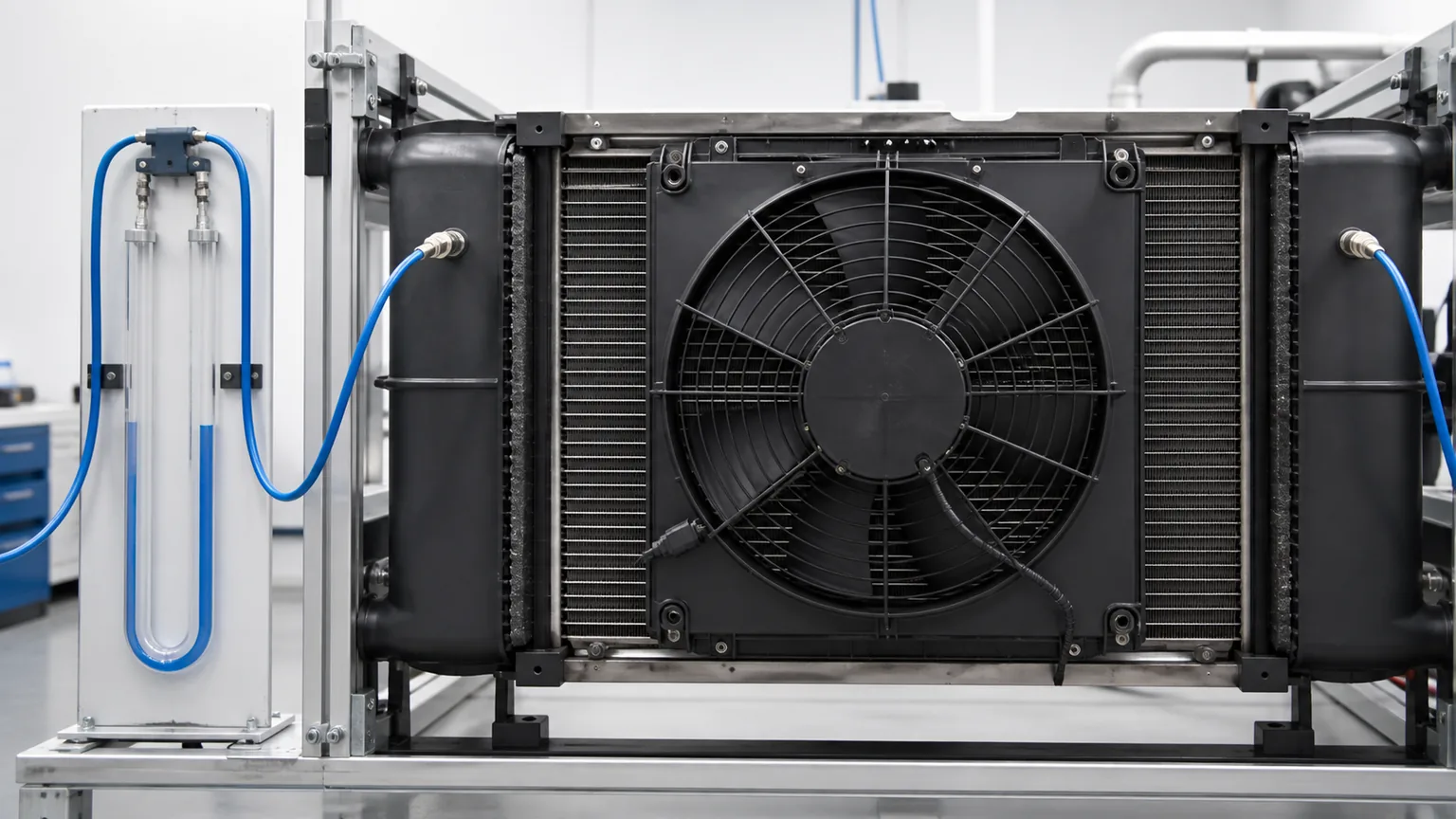

Measure the installed pressure difference across the stack and fan electrical operating point. Seal gaps around the condenser and between heat exchangers as designed. Confirm shutters, grille, undertray, recirculation barriers, and shroud. If a replacement changes core depth or fin resistance, the fan may move to another point on its curve. Free-air fan data and standalone condenser data cannot be simply added.

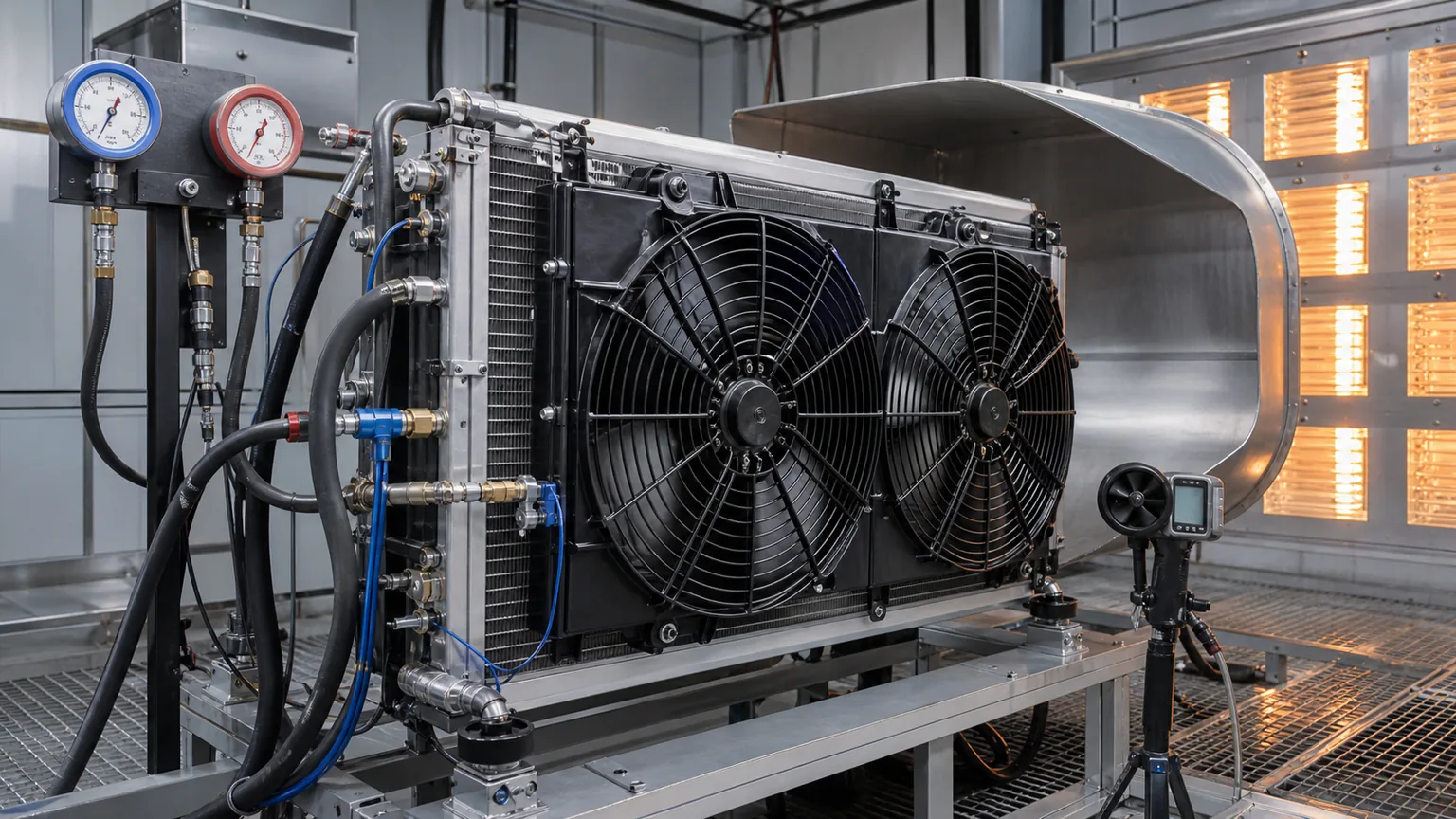

High-ambient idle is often critical for trucks, buses, and slow equipment. Record ambient temperature and humidity, refrigerant mass, engine or compressor speed, condenser inlet and outlet state, high and low pressures, fan command and measured speed, voltage, current, vent temperature, cabin load, and stabilization time. Road testing should add speed, grade, engine load, and heat-soak recovery.
Do not compensate for a weak candidate by increasing charge, forcing the fan, removing a grille, opening the hood, or spraying water unless the same action is an explicitly separate diagnostic test. The production vehicle configuration must pass on its approved controls.
Define variables that could alter performance: tube and fin material, wall thickness, fin pitch, louver geometry, pass partition, header, brazing cycle, coating, brackets, and cleanliness. Require notice before change. Periodically audit dimensions, leakage, pressure drop, and selected thermal points using samples from ordinary production.
Packaging validation belongs in the plan. Crushed fins, bent brackets, loose drier caps, and manifold impacts change a good design before installation. Inspect different pallet positions after representative transport and connect damage records to carton revision and supplier batch.
Ask what the percentage compares, which metric improved, and whether size, mass, airflow, fan power, refrigerant charge, inlet conditions, and test method stayed constant. Request raw reference and candidate results with uncertainty. Determine whether the figure is one favorable point, an average across the duty map, or an installed energy result. Ask whether samples came from ordinary production and whether durability or fouling was completed before the comparison.
If the supplier cannot disclose proprietary geometry, it can still disclose conditions and normalized performance. A careful answer may narrow a claim to one validated operating region. That qualified result is more useful than a larger unsupported percentage because it tells the vehicle team where the benefit exists and what tradeoffs were accepted.
