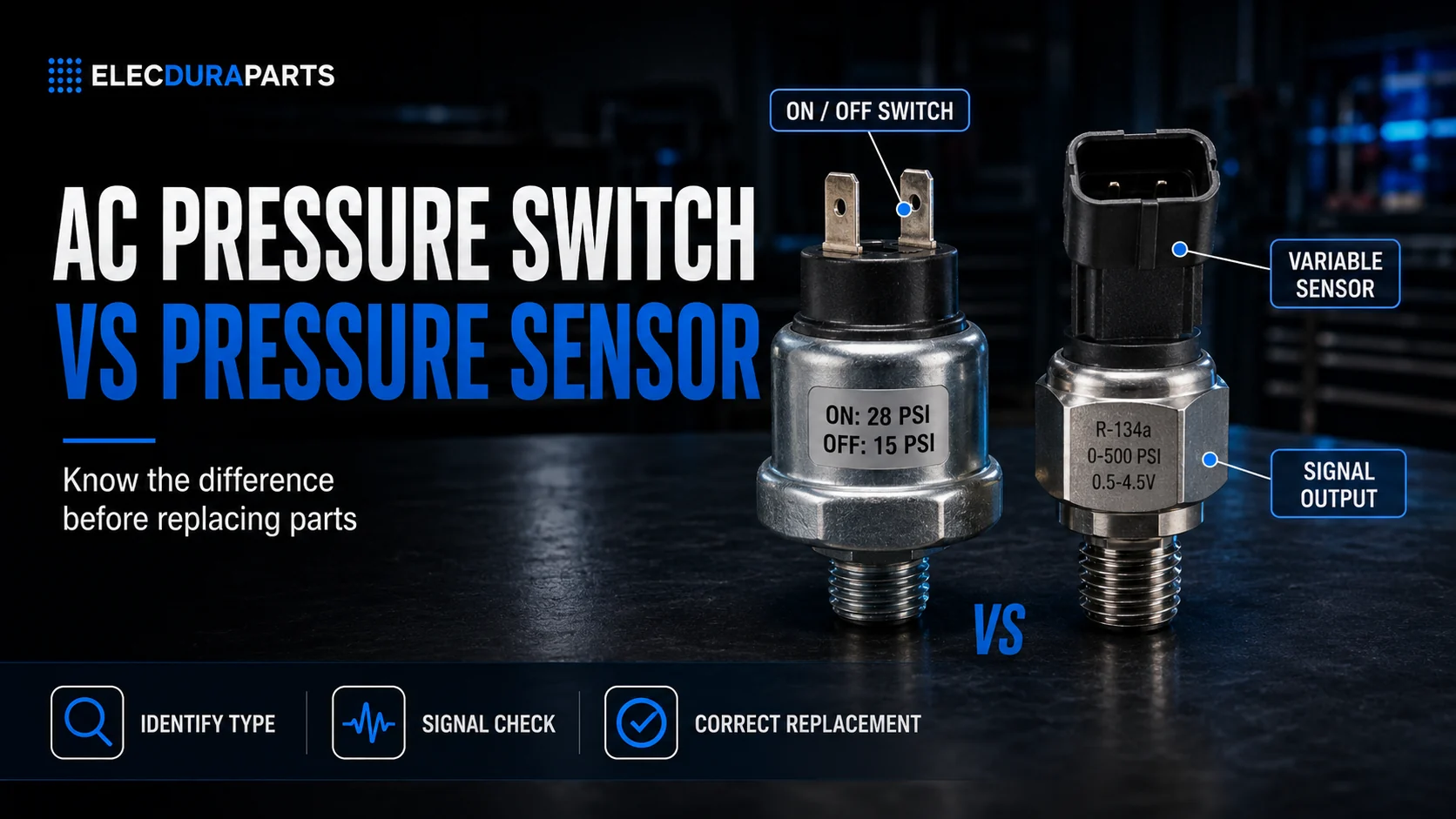

AC Pressure Switch vs Pressure Sensor: Identify Output, Wiring, and Scan Data

An AC pressure switch and an AC pressure sensor both inform the vehicle about refrigerant pressure, but they do not communicate in the same way. A switch changes contact state at one or more calibrated thresholds. A sensor converts pressure into a variable electrical signal that the control module interprets across a range. Confusing them leads to incorrect continuity tests, damaged circuits, false scan-data conclusions, and wrong replacement parts.

The fastest identification method combines wiring count, circuit diagram, scan data, and output behavior. Elecdura's AC pressure switch and sensor range includes multiple contact, signal, connector, thread, and seal configurations; the product name or exterior shape alone cannot establish interchangeability.

Direct Comparison: Switch or Sensor?

A three-wire connector strongly suggests a sensor, but it is not proof. Some switches contain several contact circuits, and some smart devices use unconventional wiring. Use the schematic and measured behavior before selecting a test.

How a Pressure Switch Works

Pressure moves a mechanical element

A diaphragm, bellows, or similar element reacts to refrigerant pressure. At a calibrated force, an internal mechanism opens or closes electrical contacts. The contacts may interrupt compressor permission at low pressure, protect against excessive high-side pressure, or request fan operation.

Hysteresis prevents rapid contact chatter

The pressure at which a switch changes state may differ from the pressure at which it resets. This difference is intentional hysteresis. Testing only one direction can miss a switch that opens correctly but resets at the wrong pressure.

Binary and trinary switches contain multiple decisions

A binary pressure switch commonly provides low- and high-pressure compressor protection in one contact path. A trinary design adds another circuit, often for condenser-fan control. Terminology varies by application, so identify pin functions and state transitions rather than assuming a universal pinout.

The switch operates within the larger automotive air-conditioning circuit. Compressor command, fan operation, refrigerant temperature, module logic, and ambient conditions affect the pressure that reaches each threshold.

How a Pressure Sensor Works

The sensing element creates a proportional signal

Many sensors use a strain-sensitive silicon element and internal electronics. The module supplies a regulated reference and ground; the sensor returns a voltage proportional to pressure. Other designs use frequency, duty cycle, SENT, LIN, or another digital method. The wiring diagram and service information define the actual output.

Ratiometric output depends on reference voltage

In a ratiometric circuit, signal voltage changes relative to the supplied reference. A low reference can make the signal appear low even when the sensor element is healthy. Measure reference, ground voltage drop, and signal together.

The control module makes the pressure decisions

Unlike a mechanical switch that changes state internally, a sensor reports a value and software decides whether to allow compressor operation, command a condenser fan, reduce load, store a code, or enter failsafe mode. Thresholds may vary with temperature, engine load, vehicle speed, or refrigerant strategy.

This architecture can provide smoother fan and compressor control through a fan control module, but it also means that a plausible pressure signal can be wrong without being electrically open or shorted.

Identify the Device Without Guessing

Start with the circuit diagram

Locate the device symbol, pin numbers, wire colors, module connections, splice points, and shared reference circuits. A switch is usually represented as contacts with a stated normal condition. A sensor shows supply, ground, and signal or communication lines.

Inspect wire count and terminal size

Two similar-size wires often indicate a contact circuit. Three small wires often indicate reference, signal, and ground. Multiple terminals can represent two switch circuits, an integrated temperature element, or communication. Wire count narrows possibilities but cannot replace the diagram.

Do not infer pin function from position

Connector cavity one is not universally ground, reference, or signal. Applying battery voltage to an assumed signal pin can damage the sensor or control module. Back-probe only with the correct equipment and avoid spreading sealed terminals.

Use scan data as supporting evidence

A live pressure value generally supports a sensor architecture. A parameter such as “A/C pressure switch: ON/OFF” supports a contact input. Some modules calculate or translate data, however, so confirm the physical circuit before testing.

Elecdura's automotive technical guides emphasize comparing command, input, and physical measurement. That approach is essential when a scan value looks reasonable but disagrees with gauge pressure.

Testing an AC Pressure Switch

Verify system pressure independently

Use approved refrigerant service equipment and follow all safety and recovery requirements. Connect gauges or a calibrated pressure source only where the service procedure permits. Never vent refrigerant or apply shop air to a refrigerant component.

Measure contact state through the full pressure cycle

Disconnect the switch when the procedure calls for isolated testing. Monitor continuity or voltage across the correct contact pair while pressure rises and falls in a controlled manner. Record opening and closing pressures, hysteresis, temperature, and repeatability.

Loaded testing finds resistive contacts

A continuity meter may show a closed switch even when oxidized contacts create excessive resistance under circuit current. Measure voltage drop across the closed contacts under the intended load or an approved simulated load. Do not exceed the contact rating.

Interpret a switch that never changes state

The system may never reach the calibrated threshold, the wrong pins may be tested, the pressure may not reach the sensing cavity, or the switch may be stuck. A blocked port, closed service valve, incorrect adapter, or seal problem can isolate the device from real system pressure.

If compressor operation is the complaint, verify the related automotive AC compressor relay, clutch or electronic command, and module permission rather than treating the pressure device as the only series condition.

Testing an AC Pressure Sensor

Check reference and ground before signal

Key on, measure the reference at the sensor and compare it with specification. Measure ground voltage drop while the sensor is connected. A shared-reference short in another sensor can pull the supply low and create several unrelated codes.

Compare signal with actual pressure

Record signal voltage or digital data and gauge pressure at several stable points. Use the manufacturer's transfer function or scan-tool specification. One plausible point does not confirm calibration; offset, slope, and nonlinearity require multiple points.

Static pressure is a useful initial plausibility check

After sufficient equalization and with temperatures known, high- and low-side pressure should converge. Compare scan pressure with an accurate gauge, but do not use a generic pressure-temperature assumption without confirming refrigerant type and temperature conditions.

Capture intermittent signal loss

Monitor reference, ground, and signal while gently moving the connector and harness and while temperature changes. An oscilloscope can reveal dropouts or noise that a slow scan display averages. If the device uses a digital protocol, use equipment capable of observing that communication without loading it.

Loaded circuit-testing principles also appear in Elecdura's fan voltage-drop diagnosis. For a pressure sensor, keep test current low and use high-impedance instruments unless the service procedure specifies otherwise.

Do Not Use a Jumper as a Universal Test

Jumping a switch can defeat protection

A brief, service-approved simulation may help verify downstream control logic, but a permanent jumper can command a compressor during low charge or high pressure. This risks compressor damage, hose failure, refrigerant release, and personal injury.

Jumping a sensor can damage electronics

Connecting a reference pin to ground, signal, or battery voltage can short the module's regulated supply. Sensor simulation requires an approved tool or specified resistance, voltage, or signal source. Never bridge unknown terminals.

Use scan-tool bidirectional control carefully

A commanded fan or compressor test proves that an output path can respond; it does not prove the pressure input is accurate. Record module permissions and inhibit reasons before and during the command.

Follow the Control Sequence, Not Just the Component

Observe pressure input before compressor engagement

With the system stabilized, record actual gauge pressure, switch state or sensor value, ambient temperature, and module permission. A sensor value that is already implausible before compressor engagement points toward the input circuit, calibration, or pressure access. A correct static value that diverges only as pressure rises may indicate slope error, wiring noise, port restriction, or real system behavior.

Watch the transition when compressor load begins

Time-align compressor command, clutch or inverter response, low- and high-side pressure, pressure-device output, and condenser-fan command. A healthy input should change in a physically credible direction and at a rate consistent with the measured system. If the module removes compressor permission, identify the exact input or threshold that caused the decision.

Fan response can validate the information path

Many systems use rising high-side pressure to request staged or variable fan operation. If gauge pressure and sensor data rise together but fan command does not, investigate control strategy and output logic. If command is present but airflow is absent, inspect the relay, controller, wiring, motor, and complete cooling fan assembly. If scan pressure rises while gauge pressure does not, return to the sensor circuit.

Record the recovery after command is removed

When the compressor switches off, observe whether pressure, signal, switch state, and fan operation recover normally. A mechanical switch should reset at its specified pressure rather than at the exact opening point. A sensor should track the pressure decay smoothly without sticking at a fixed value. This recovery phase often exposes hysteresis, intermittent terminals, slow ports, or software substitution that a single operating snapshot misses.

Repeat the sequence at more than one ambient condition when the complaint is temperature dependent. Do not force pressure beyond safe service limits merely to trigger a device. Use controlled equipment and manufacturer procedures whenever natural system operation cannot reach a test point safely.

Failure Patterns and Misdiagnoses

Low refrigerant is not automatically a switch fault

A low-pressure switch may correctly open because charge is insufficient. Replacing it will not repair a leak. Recover and measure refrigerant according to procedure and inspect the system before overriding protection.

High pressure is not automatically a sensor fault

Restricted condenser airflow, overcharge, non-condensable gas, internal restriction, or cooling-fan failure can create real high pressure. Compare gauge and scan data. A related electric cooling fan motor may share airflow responsibility depending on vehicle architecture.

Connector fit is not calibration compatibility

A replacement may thread in and plug in yet use different switching points, signal slope, communication, or seal depth. Functional matching is as important as physical fit.

Replacement Matching: Electrical and Mechanical Layers

Electrical data to confirm

• Switch contact logic or sensor output type

• Normal contact state and switching/reset thresholds

• Reference voltage, ground strategy, signal range, or protocol

• Pin count, terminal assignment, connector keying, and latch

• Module and refrigerant-system application

• Temperature range and any integrated functions

Mechanical data to confirm

• Thread diameter, pitch, length, and seating design

• O-ring, bonded seal, taper, or gasket requirement

• Port depth and whether a Schrader valve is actuated

• Connector orientation and tool clearance

• Pressure range, refrigerant compatibility, and mounting location

Do not transfer a seal from the old part without inspection

Use the specified new seal and compatible lubricant where required. Check the port for corrosion, damaged threads, contamination, and a displaced valve core. Excess torque can distort the sensing body or port.

Replacement programs within Elecdura's aftermarket parts portfolio should validate both output calibration and sealing interface. A leak-free installation with the wrong signal remains an incorrect part.

Quality Checks for Wholesale Orders

Switch validation

Sample testing should record contact resistance under an appropriate load, switching and reset pressures, repeatability, leakage, terminal retention, connector fit, thread gauge, seal dimensions, and temperature behavior. Apply pressure using a compatible, controlled medium and validated fixture.

Sensor validation

Check reference current, output at multiple pressure points, offset, slope, linearity, repeatability, response time, leakage, pin retention, connector fit, and thermal behavior. Digital sensors require protocol and message validation, not only a voltage reading.

Packaging protects the pressure interface

Cap the port against contamination, protect threads and seals, and prevent connector impact. Labels should preserve application and batch traceability without placing adhesive on sealing surfaces.

For wholesale AC pressure-device orders, buyers should approve a golden sample with its test report and retain the exact connector, pinout, port, and calibration definition. On-highway applications and off-highway equipment may use different vibration, sealing, duty, and connector requirements even at similar pressure ranges.

FAQ

Is a three-wire AC pressure device always a sensor?

No. Three wires commonly indicate reference, signal, and ground, but multi-contact switches and digital devices exist. Confirm with the wiring diagram and output behavior.

Can an AC pressure switch be tested with an ohmmeter?

An ohmmeter can show contact state, but the switch must be tested against verified pressure in both directions. Loaded voltage drop may be required to find resistive contacts.

Can an AC pressure sensor be tested by checking resistance?

Usually not as a decisive test. Powered signal output, reference, ground, actual pressure, and the specified transfer function provide meaningful evidence. Follow the exact service method.

Why does the scan tool show pressure with the sensor unplugged?

The module may substitute a default value, retain a previous value, or receive pressure data from another source. Check codes, parameter status, wiring, and direct signal before assuming the sensor remains connected.

Can a pressure switch and pressure sensor be interchanged?

Not unless the vehicle and part documentation explicitly confirms interchangeability. Their circuits, control logic, calibration, pins, threads, seals, and module expectations can differ.

What information should a buyer submit?

Send the OE number, vehicle and HVAC application, refrigerant type, connector-face and port photographs, pin count, thread and seal dimensions, circuit diagram or measured output, required quantity, and sample-validation needs through Elecdura's technical matching contact page.

Choose the Test from the Signal Type

The practical difference between an AC pressure switch and pressure sensor is not the label on the catalog page. It is how the device converts pressure into electrical information. Contacts require state and threshold testing; sensors require supply, ground, signal, calibration, and plausibility testing.

Before replacement, prove physical pressure, identify the circuit, compare output with specification, and confirm the mechanical port. That sequence protects the AC compressor system, prevents unsafe jumpers, and gives distributors the exact data needed to supply a compatible pressure-control component.
