An electric A/C compressor can remain completely silent even when refrigerant charge, mechanical fitment and high-voltage insulation are acceptable. The vehicle may withhold high voltage because an interlock loop is open, the compressor’s low-voltage supply is missing, a communication message is absent, or the thermal controller has not authorized operation. Replacing the compressor before reconstructing that enable sequence can reproduce the same no-start condition.
Electric AC compressor HV interlock diagnosis is therefore a signal-path investigation, not a direct-power test. The technician must identify the high-voltage connector, HVIL contacts, low-voltage power and ground, wake-up circuit, communication pair and control prerequisites for the exact vehicle. Elecdura’s electric A/C compressor range includes different integrated inverter and communication architectures; terminal assumptions cannot be transferred from another model.
Quick answer: save DTCs, freeze-frame data and command status before disconnecting anything. Follow the manufacturer high-voltage shutdown and absence-of-voltage procedure. Inspect and test the HV interlock loop at approved breakout points, then verify the compressor’s low-voltage power, ground and wake-up under load. Check network health and the required CAN or LIN messages before condemning the compressor. An open HVIL proves an interrupted safety loop, not an internally failed motor; valid power and communication with a rejected run authorization redirects diagnosis to prerequisites, inverter logic or compressor-specific DTCs.
The compressor does not simply receive battery voltage when cooling is requested. A climate controller calculates demand, other modules approve thermal operation, the battery or power-distribution unit closes contactors, and the compressor inverter receives low-voltage power plus communication. The interlock loop confirms that high-voltage connectors and covers are seated.
The HVAC module may request cooling, yet the vehicle controller can inhibit the compressor for low battery state, excessive cell temperature, crash status, isolation fault, missing coolant flow or another thermal-management priority. Read requested speed, allowed speed, inhibition reason and actual compressor status where data is available.
Use the application network and wiring diagrams. Do not assume that the HVAC panel talks directly to the compressor. A gateway, vehicle control module, battery controller or thermal controller may translate or authorize messages.
High-voltage service requires trained personnel, rated PPE, insulated tools, a controlled work area and the exact shutdown sequence. Remove or secure the service disconnect where specified, observe discharge time and verify absence of voltage using approved equipment and a live-dead-live method.
A communication connector may sit beside an energized orange connector. Testing a 12 V wake-up circuit does not make the inverter or DC link safe. Maintain high-voltage barriers unless the service procedure explicitly requires an isolated connector test.
Confirm connector designation, terminal function, required breakout lead and permitted test method. An ordinary multimeter or pin can damage HV terminals and create a future hot spot.
Run a complete vehicle scan, not only an HVAC scan. Save codes, status, occurrence count and freeze-frame information. Note whether faults are current or history and whether several modules report loss of communication with the compressor or one module reports an implausible message.
Multiple controllers losing one node supports a power, ground, wake-up, wiring or node fault. One controller alone may have a gateway or software path issue. A network-wide set of communication codes points toward shared bus power, termination or gateway failure rather than the compressor.
A code present at key-on differs from one that appears only when compressor torque rises. A key-on loss suggests initialization or wake-up. A heat-related dropout can indicate terminal tension, inverter protection or internal temperature. A fault immediately after collision work directs attention to harness routing and interlock connectors.
Clearing codes can remove the condition that distinguishes an intermittent terminal from a permanent open circuit. Save a scan report and vehicle state before reset.
HVIL is commonly a low-voltage safety circuit routed through high-voltage connectors, covers and service disconnects. When a connector is unseated or an interlock contact opens, the supervising controller can prevent contactor closure or disable the affected branch. Loop topology varies: series circuits, coded states and module-monitored segments all exist.
The HVIL contacts and the high-voltage power terminals are different test boundaries.
Look for incomplete secondary locks, bent shells, backed-out terminals, debris, seal displacement, latch wear and harness tension. A connector can appear flush while its interlock shorting contact remains open. Compare lock position with service illustrations.

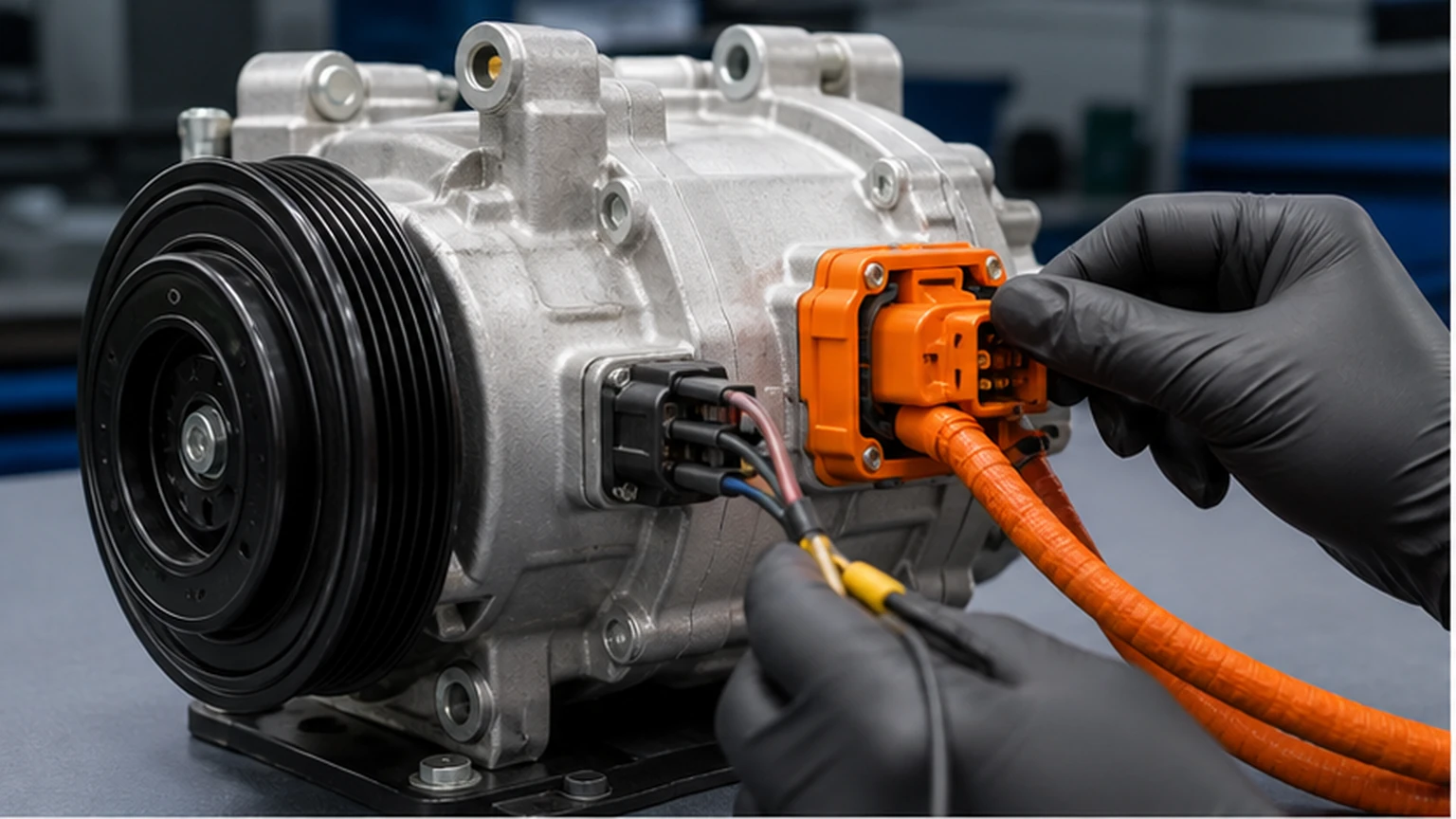

With the vehicle safe, measure only at the specified low-voltage HVIL terminals or scan-data segments. Divide the loop connector by connector. A continuity reading across the complete loop does not show which terminal has weak contact under vibration.
A nearly broken conductor can pass an unloaded ohmmeter test. Where the manufacturer provides a safe loaded or voltage-drop method, use it and flex the harness gently while observing. Never apply an unapproved load to a module input.
The inverter’s control electronics normally require low-voltage supply even though the motor uses high voltage. Identify constant power, ignition or wake-up, ground and any enable circuit. Measure at the compressor connector under the state when it should initialize.
A pin can show battery voltage with the connector open yet collapse when the inverter draws current. Measure feed-side and ground-side drop under the approved load. Inspect fuses, relays, junctions, splices and ground eyelets. Low-voltage terminal heat or corrosion can mimic a failed inverter.
Some nodes wake with ignition, network activity or a dedicated signal. Record wake-up transition and module response. A permanent voltage where a timed pulse is expected—or no pulse at all—directs diagnosis upstream.
A signal may be a digital input, PWM line or communication terminal. Direct voltage can damage the compressor controller or another network module. Use the wiring diagram and breakout method.
Follow the harness from compressor to the first junction. Look for contact with sharp brackets, undertray damage, water paths, incorrect clips, stretched bends and repairs near collision zones. Check connector seals and drain direction.
Terminal position, sealing and harness routing can interrupt both wake-up and communication.

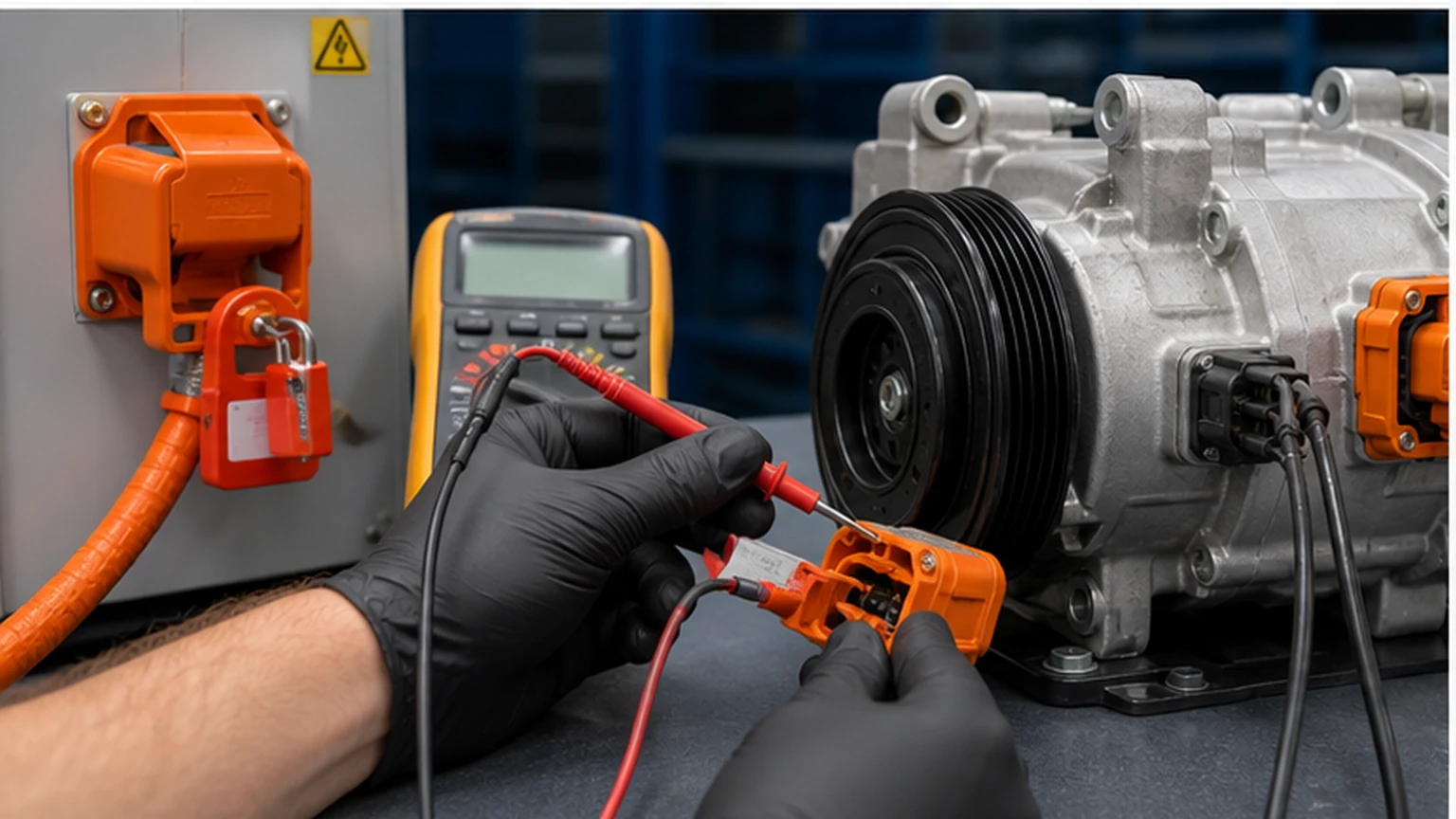

A visually straight terminal may no longer grip its mate. Use the approved terminal-drag gauge or test probe. Do not spread contacts with an oversized meter lead. Compare suspect positions with identical verified terminals only when the procedure permits.
Moisture, conductive residue and corrosion can affect HVIL, supply and communication simultaneously. Identify the entry path and replace damaged seals or housings. Cleaning a terminal without stopping water recurrence is incomplete.
Maintain conductor type, twist rate, shielding, splice position and repair length specified for the network. An electrically continuous but untwisted repair can introduce communication reflections and intermittent errors.
Identify whether the compressor is on high-speed CAN, another CAN segment, LIN or a proprietary link. For CAN, inspect both conductors, network bias, termination and waveform using the specified breakout point. Interpret measurements with the whole bus connected state understood.
Network waveform and message presence distinguish a silent node from a damaged communication path.
Follow the service procedure before measuring bus resistance. A value near an expected network termination does not prove message quality, and different architectures may switch termination electronically. Do not impose a universal resistance result on every vehicle.

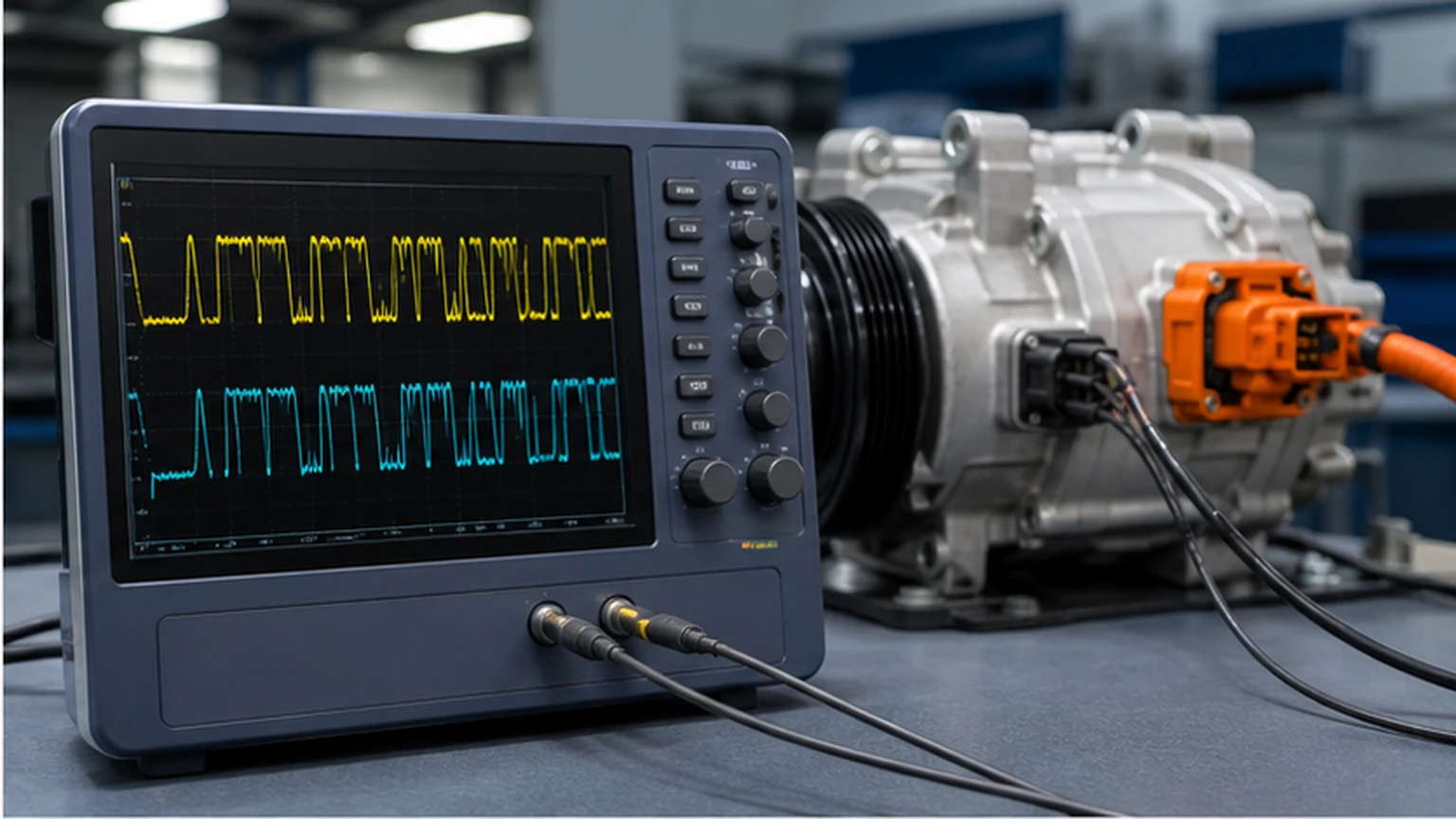

Compare CAN-high and CAN-low transitions, recessive bias and edge quality with application data. A short to power, ground or between lines produces different evidence from an open branch. Reflections may indicate impedance or splice problems.
The node may not be powered or awake, or a gateway may not forward the command. Confirm supply and wake-up before judging transceiver behavior. Network tools that decode identifiers are stronger than waveform alone when message authorization is the question.
LIN commonly uses a master-request/slave-response relationship on one wire. Verify supply, idle voltage, wake-up behavior and message activity against the circuit diagram. A pull-up fault, shorted slave or missing master command can keep the bus silent.
If several slaves share the line, one shorted node may suppress communication for all. Follow the approved isolation sequence and record when the waveform returns. Do not unplug high-voltage equipment while energized.
The signaling levels, topology and timing differ. Identify the protocol before interpreting a scope trace or choosing a breakout tool.
A compressor can communicate normally and still remain off because the controller rejects operation. Review commanded RPM, permitted RPM, internal temperature, high-voltage availability, refrigerant pressure, evaporator conditions, battery thermal demand and crash or service modes.
Compare the A/C pressure sensor or switch data with an approved reference. An implausible low or high value can block the command. That does not make the compressor a pressure-sensor failure; it shows why the controller withheld authorization.
Hybrid and EV systems may use the compressor for cabin and battery cooling. Battery temperature, coolant valves, pumps and heat exchangers can change speed request. Use the A/C system architecture and vehicle-specific thermal diagram rather than assuming a conventional cabin-only strategy.
Check applicable service information and calibration only after power, ground, network and hardware identity are correct. Reprogramming cannot repair a backed-out terminal or open HVIL contact.
Observed evidence | Likely diagnostic branch | What it does not prove |
|---|---|---|
HVIL open at compressor connector | Latch, interlock contacts, low-voltage loop or connector seating | Internal motor or refrigerant fault |
No low-voltage supply under load | Fuse, relay, splice, ground or upstream authorization | Failed inverter |
Valid supply but node absent from CAN | Wake-up, bus wiring, transceiver or node hardware | Mechanical compressor seizure |
Node communicates but RPM command is zero | Control prerequisites or inhibition | Communication failure |
Command and actual RPM disagree with internal DTC | Inverter, motor or compressor-specific protection | External harness is automatically good |
Several modules disappear together | Shared network, gateway or power fault | Several simultaneous failed components |
Compressor replacement is justified when correct part identity, low-voltage power and ground, wake-up, intact HVIL, healthy communication path, valid authorization and compressor-specific fault evidence converge. Internal inverter or transceiver failure may be integrated and nonserviceable.
Repair the connector, harness or upstream interlock component, then verify contactor and compressor operation. A replacement compressor connected to the same open loop will remain disabled.
An insulation-resistance fault needs a separate high-voltage isolation procedure. The already published electric compressor lubricant guide covers dielectric contamination context; this page does not repeat that search intent.
After repair, clear codes only as directed, cycle the system through initialization and confirm HVIL closed, node online, authorization granted, commanded RPM achieved and refrigerant pressures controlled.
Provide OE number, VIN or exact vehicle, model year, market, propulsion variant, refrigerant, voltage class and thermal-system option. Photograph high-voltage and low-voltage connectors, pin count, keying, label, ports, mounts and cable orientation.
Two compressors can share housing dimensions and voltage yet use different CAN identifiers, LIN strategy, wake-up logic or calibration. Elecdura’s wholesale A/C compressor program should receive verified OE/application data rather than only a photograph.
Confirm whether high-voltage cables, low-voltage pigtails, seals, brackets and protective caps are included. A connector repair pigtail is not interchangeable with the compressor assembly.
Some applications require software setup or learned values after replacement. State the verified requirement without promising universal plug-and-play operation.
Receiving inspection should verify label identity, HV and low-voltage connector keying, secondary locks, terminal position, seals, port caps, mounting geometry and transport damage. Protect connectors from conductive debris and moisture.
A fixture can verify control-current draw, wake-up and communication response only with the correct pinout, protocol and safe power sequence. Do not energize unknown samples by matching wire color.
Record inverter hardware/software identification where accessible, compressor serial and lot. A mixed revision can create application-specific communication complaints. Preserve raw message or diagnostic evidence for supplier corrective action.
A bent latch or compressed seal can prevent full connector seating. Use caps and rigid clearance around both connectors, and keep heavy brackets from striking them in transit.
A no-start compressor can coexist with a heat-rejection problem. Inspect the A/C condenser, condenser fan and fan module only when airflow, pressure and command evidence identifies them. They do not close an open compressor HVIL.
If the shared thermal controller also reports cooling-fan faults, verify the radiator fan motor boundary and the complete cooling fan configuration separately. A missing fan response can cause A/C inhibition, but it does not establish a communication failure inside the compressor.
For broader product navigation, the air-conditioning parts range and wholesale program can coordinate an order after each failure boundary is established. Keep communication diagnosis separate from generic fitment and refrigerant-service content.
If the original compressor label is damaged, use the compressor identification guide, but do not infer protocol or pinout from appearance alone. The Renault Zoe application example illustrates why OE-specific high-voltage matching remains necessary.
It means the monitored safety loop is open. Locate connector, latch, contact, cover or harness evidence before replacing the compressor.
Use the wiring diagram and scan data. Do not assume contactor state from communication alone.
Use an oscilloscope and network diagnostic tools when waveform and message presence are required.
Check permitted speed, inhibition reason, pressure, thermal demands, contactor status and compressor-specific DTCs.
Provide OE number, VIN/application, refrigerant, voltage class, label and connector photographs, low-voltage pin count, network architecture where known, measured HVIL/power/communication findings, quantity and packaging requirements through the Elecdura technical enquiry page.
A reliable no-start diagnosis follows the compressor enable chain: safe high-voltage state, closed HVIL, loaded low-voltage power and ground, correct wake-up, healthy network, valid messages, run authorization and compressor response. Each link answers a different question.
For wholesale matching, send Elecdura the OE reference, exact vehicle and thermal configuration, voltage class, HV and low-voltage connector details, network/control evidence, included cables and seals, initialization requirement, quantity and packaging needs. That information allows the supplied compressor to match both the refrigerant circuit and the vehicle’s electronic conversation.
