An EV heat pump and a PTC heater solve the same customer problem—delivering cabin heat—but they are not interchangeable parts, and many vehicles use both. For an aftermarket buyer, the decisive question is not “which technology is better?” It is “which thermal architecture does this vehicle use, and what interfaces must the replacement part preserve?” A wrong electric A/C compressor, coolant PTC unit, valve block, or heat exchanger can leave the vehicle with no heat, poor defrosting, battery-temperature faults, isolation warnings, or a system that cannot be commissioned.
Heat pumps move heat through a refrigerant circuit. PTC heaters create heat by electrical resistance, usually in an air path or coolant loop. Both may be supervised by the vehicle’s thermal controller and may share loads with the battery, motor, inverter, cabin, and defrost system. That is why a catalogue description such as “EV heater” is not enough for a purchase decision. The buyer needs the OE reference, application, voltage class, connector details, fluid or refrigerant connections, control method, and destination-market specification before approving a part.

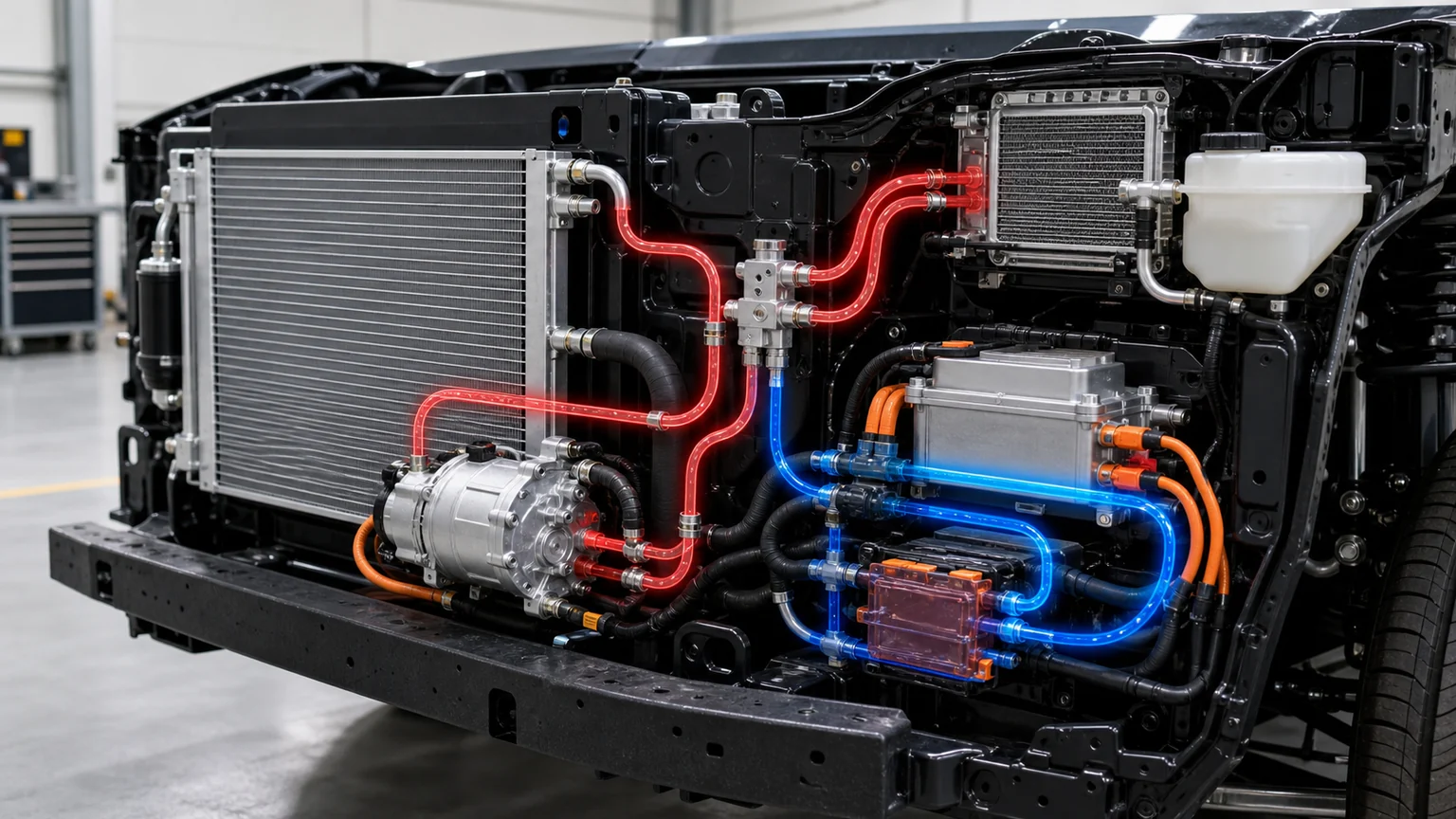

Heat-pump and PTC systems may share coolant hardware, but they create different sourcing boundaries.
Question | EV heat pump | PTC heating |
|---|---|---|
How heat is produced | Transfers heat through a vapor-compression refrigerant cycle. | Converts electrical energy directly into heat through a positive-temperature-coefficient element. |
Typical hardware | Electric compressor, heat exchangers, electronic expansion devices, valves, pressure/temperature sensors, hoses and controls. | HV or LV PTC element, air duct or coolant housing, power connector, control connector, protection and temperature sensing. |
What changes the fitment risk | Refrigerant, oil, ports, compressor speed/control, valve architecture, heat-exchanger routing, sensor and software compatibility. | Voltage, output class, air-side or coolant-side design, inlet/outlet layout, HV interlock, control signal, brackets and calibration. |
Cold-weather role | Often reduces electrical demand when usable ambient or recovered heat is available; performance depends on architecture and conditions. | Provides direct, predictable heat and may assist or take over when heat-pump capacity is limited. |
Can one replace the other? | No. A heat-pump vehicle may also contain PTC assistance. | No. A PTC unit does not recreate the refrigerant-side architecture of a heat pump. |
There is no universal EV heating layout. Some vehicles use an air-source heat pump for cabin heating. Others move heat through a coolant loop before it reaches a heater core. Some recover heat from the drive unit or power electronics. Some use a high-voltage PTC coolant heater for battery conditioning, cabin heating, or both. A supplier should therefore describe any schematic as a typical architecture unless the exact application has been verified.
Under suitable operating conditions, a heat pump can deliver a coefficient of performance above one—moving more heat into the target loop than the electrical power it consumes—because it transports energy from ambient air, a coolant loop, or recovered waste heat. A PTC heater is simpler in principle: electrical input becomes heat at the element. That does not mean the heat pump always carries the full heating load. In cold conditions, available source heat, refrigerant properties, compressor speed limits, frost-management strategy, and control calibration can all reduce heat-pump output. Vehicle makers often blend PTC assistance into the strategy to maintain cabin comfort, windshield clearing, battery conditioning, or a protected warm-up sequence.
For a buyer, the practical consequence is important. Do not infer the replacement part from a brochure statement that the vehicle “has a heat pump.” It may still require a specific PTC coolant heater, an electric compressor with a different displacement or inverter interface, a multi-port valve module, or a condenser/radiator package designed around a particular thermal loop. Conversely, a PTC-only configuration may have no reversing architecture at all. A part that looks physically similar can be wrong in controls, cooling capacity, voltage, or plumbing.
When sourcing an electric A/C compressor, treat heating performance as part of the system requirement rather than a reason to substitute a generic compressor. A heat-pump vehicle can command the compressor across heating and cooling modes; its operating envelope, oil, refrigerant, connector, speed command, and diagnostic logic must agree with the application. A compressor that starts and circulates refrigerant is not automatically a correct heat-pump replacement.
In a conventional belt-driven A/C system, the engine establishes compressor speed and a clutch or control valve influences capacity. In an EV, the compressor uses a high-voltage motor, while the location and integration of its inverter and control electronics remain application-dependent. Matching must include nominal high-voltage system class, connector keying, terminal arrangement, insulation design, communication or speed-command method, mounting, vibration isolation, suction and discharge ports, and the exact refrigerant and compressor-oil specification required by the application. A mismatch can create a no-start condition, an isolation fault, controller communication error, or lubrication risk.
Do not assume that a similar-looking three-phase connector proves compatibility. Connector housings, pin arrangement, seals, latch direction, HV interlock loop, shielding, and low-voltage/control plugs can vary. Ask for clear label photos, connector-face photos, vehicle application details, and the OE number before approving equivalence. If the compressor is supplied with oil, confirm the intended oil and refrigerant system. Oil handling for high-voltage compressors also matters because electrical properties can be part of the design requirement.
A heat-pump vehicle may use a front heat exchanger for more than one thermal job. Depending on the architecture, the module can interact with cabin refrigeration, cabin heating, battery cooling, power-electronics cooling, and heat rejection. This does not make every front exchanger interchangeable. Port positions, core dimensions, manifold arrangement, pressure rating, mounting points, sensor bosses, corrosion protection, and airflow relationship with the fan package remain application-specific.
When a buyer is reviewing an A/C condenser or related front module, they should capture the entire stack relationship: condenser location, radiator or coolant chiller location, fan depth, shroud geometry, upper and lower mounts, hoses, receiver-drier integration, and service-port layout. A core can match the outside dimensions and still fail the job because a pressure port, bracket, or manifold angle is wrong. In an EV, a small routing difference may also interfere with coolant quick-connects or a high-voltage harness path.
Heat-pump systems often use additional switching, expansion, and control components to move heat in different directions or between loops. The exact valve count and flow path are not universal. For that reason, never order an expansion valve, solenoid valve, sensor, or hose solely because another EV of the same vehicle class uses a heat pump. Match the OE reference, port geometry, electrical connector, pressure range, refrigerant rating, and controller strategy. If an assembly includes a valve block, request images of every port and connector rather than only the main housing.

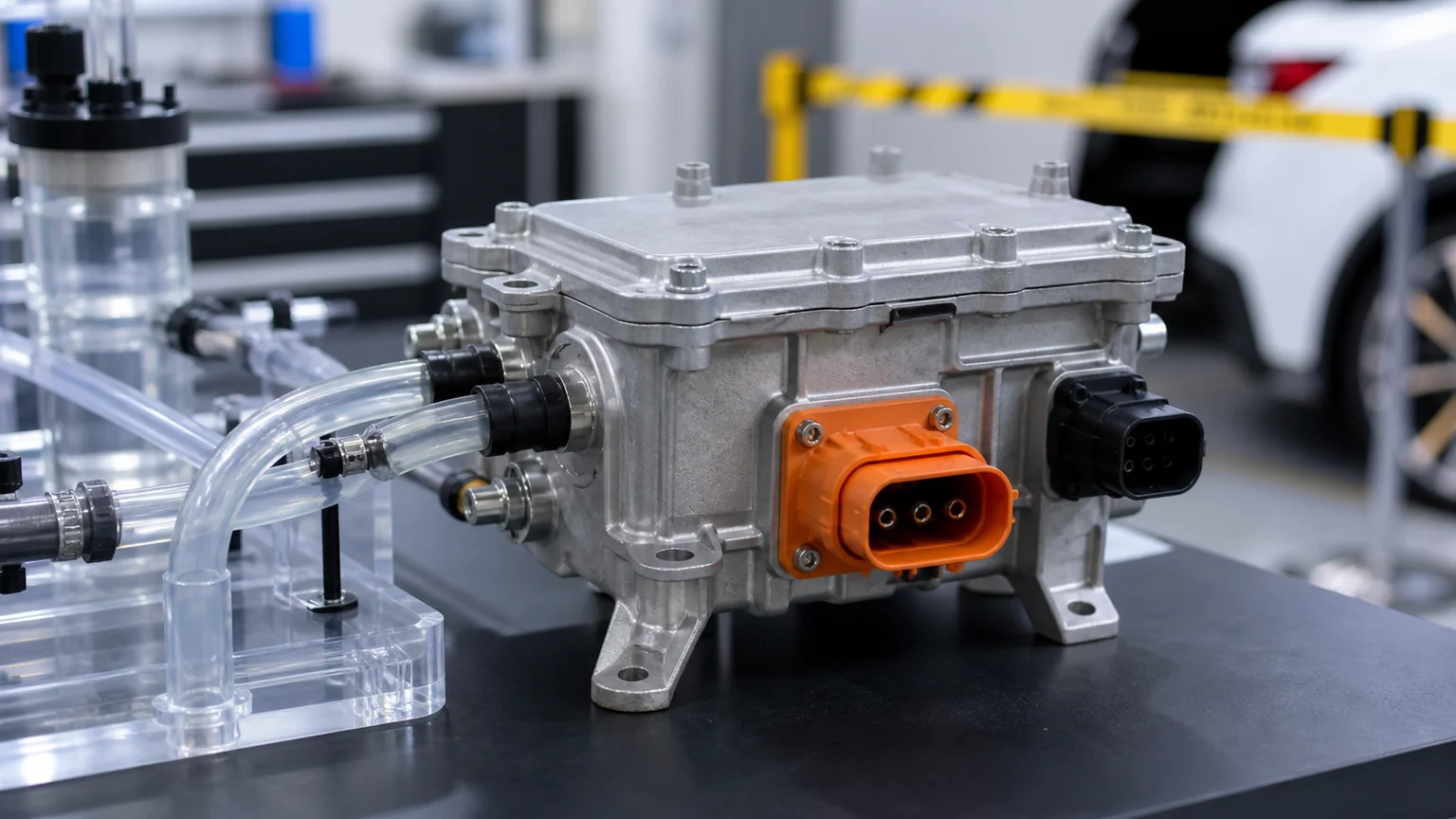

PTC heater matching depends on electrical, coolant and control interfaces—not heating capacity alone.
PTC describes a heating element whose electrical resistance changes with temperature. In EV systems it may appear as an air heater in an HVAC case or as a coolant heater feeding a cabin circuit, battery loop, or combined thermal network. The heater can be a compact metal housing with hose connections, or a duct-mounted module with high-voltage terminals. The presence of a PTC label therefore says little about physical or electrical interchangeability.
An air-side PTC module heats air in the HVAC case. A coolant PTC heater transfers heat to coolant, which can then be directed to a heater core, battery plate, drive-unit loop, or more than one branch under controller command. Replacing one with the other is not a reasonable conversion. The housings, connections, required flow, control logic, safety provisions, and thermal response are different.
For a coolant heater, document the inlet and outlet diameters, hose connection type, coolant direction where marked, bracket orientation, bleed or sensor ports, and any integrated pump or valve. For an air heater, document duct shape, mounting rail, airflow direction, temperature sensors, harness length, and connector position. In both cases, match the high-voltage plug, low-voltage plug, interlock arrangement, rated voltage, and diagnostic communication. A part may physically bolt in yet be rejected by the vehicle because the controller expects a different message set or current profile.
High-voltage PTC components involve electrical and isolation-safety requirements and should be handled accordingly. Procurement records should distinguish a housing photo from verification of the part number, voltage rating, insulation system, connector family, seals, terminals, and protective circuitry. Receiving inspection should look for shipping damage, cracked connector locks, moisture intrusion, bent pins, missing caps, damaged coolant ports, and label inconsistencies. If a returned heater shows a fault, the evidence package should include the vehicle fault code, supply-voltage measurement, insulation-test procedure result where appropriate, harness condition, coolant level and circulation evidence, connector photos, and the removed part label.
Identify the vehicle and market configuration. Record VIN/application, model year, drive configuration, destination market, factory HVAC option, and OE part number. Do not rely on model name alone.
Classify the component’s loop. Is it refrigerant-side, coolant-side, air-side, or a controller/sensor shared by several loops? This prevents ordering an HVAC part against a battery-loop requirement.
Capture physical interfaces. Photograph all ports, connector faces, brackets, label positions, hose angles, service points, and mounting depths. Measure only after the OE reference and images have been collected.
Confirm electrical and control compatibility. Record voltage class, terminal count, connector keying, HVIL presence, communication or control connector, and any diagnostic code. Never infer control compatibility from connector color.
Confirm refrigerant and fluid compatibility. For refrigerant-side parts, record the exact refrigerant designation and compressor-oil specification required by the application. For coolant-side parts, record coolant connection and any pump, valve, or bleed arrangement.
Review the surrounding failure. A failed compressor, heater, valve, fan, or condenser can be a symptom of contamination, low coolant flow, a harness issue, blocked airflow, a controller fault, or collision damage. Decide whether the quote should include adjacent parts and evidence requirements.
Keep the evidence with the order. Attach the OE reference, photos, measurements, and application record to the PO. This reduces repeat questions and makes a later warranty decision more defensible.
The checks below are intended to prevent a system fault from being attributed incorrectly to a replacement part. Workshop-level diagnosis and refrigerant or high-voltage service must remain with appropriately equipped and qualified personnel.
Observed complaint | Common wrong conclusion | What to confirm before replacing a part |
|---|---|---|
Cabin heat is weak in cold weather | “The heat pump has failed.” | Ambient condition, commanded mode, PTC-assist logic, refrigerant charge procedure, coolant circulation, sensors, fan airflow, and fault codes. |
Heat pump vehicle shows a heating-related fault | “Any EV compressor will fit.” | OE reference, refrigerant/oil, high-voltage connector, command method, ports, mounting, and diagnostic compatibility. |
PTC heater does not operate | “The element is open-circuit.” | Supply voltage, interlock, low-voltage control, coolant/airflow prerequisites, controller command, harness condition, and scanned codes. |
New part causes a warning after installation | “The part is defective.” | Connector pinout, coding, calibration, trapped air, coolant flow direction, refrigerant service procedure, and installation damage. |
A good RFQ separates known facts from assumptions. Start with the OE part number and vehicle application. Add high-resolution photos of the label, every connector, every refrigerant or coolant port, brackets, and the part installed in context. State whether the request is for an electric compressor, PTC coolant heater, air-side heater, condenser, valve block, hose, sensor, fan module, or another part. Include the customer’s market and whether the vehicle uses heat-pump HVAC, a PTC-only layout, or an unknown configuration that needs verification.
For compressors, add refrigerant, oil requirement if known, ports, pulley status if applicable, HV and control connector views, and the original fault evidence. For PTC heaters, add the voltage label, connector views, inlet/outlet measurements, loop location, and any relevant controller codes. For heat exchangers, add core dimensions, ports, mounting points, sensor locations, fan/shroud clearance, and damage photos. This level of evidence improves the first quotation and helps a distributor separate a true fitment issue from an installation or system fault.
Fast-moving service parts can justify planned inventory only when the distributor has reliable application mapping, regional demand, and a clear return process. High-complexity electric compressors, valve modules, PTC heater variants, and integrated heat-exchanger assemblies usually deserve tighter traceability. Stock records should preserve OE references, supplier batch data, voltage class, connector family, refrigerant or coolant-loop designation, and photographic acceptance evidence. If a part has several visually similar variants, do not merge them under one generic description simply to simplify inventory.
For less certain applications, an application-led sourcing route is safer than a broad “universal EV heater” offer. It protects the customer from a no-fit outcome and protects the distributor from handling a return that cannot be resold as new stock. A clear technical response also builds trust: explain which missing evidence prevents confirmation, then request the label, ports, connectors, and installed-context photos needed to move forward.

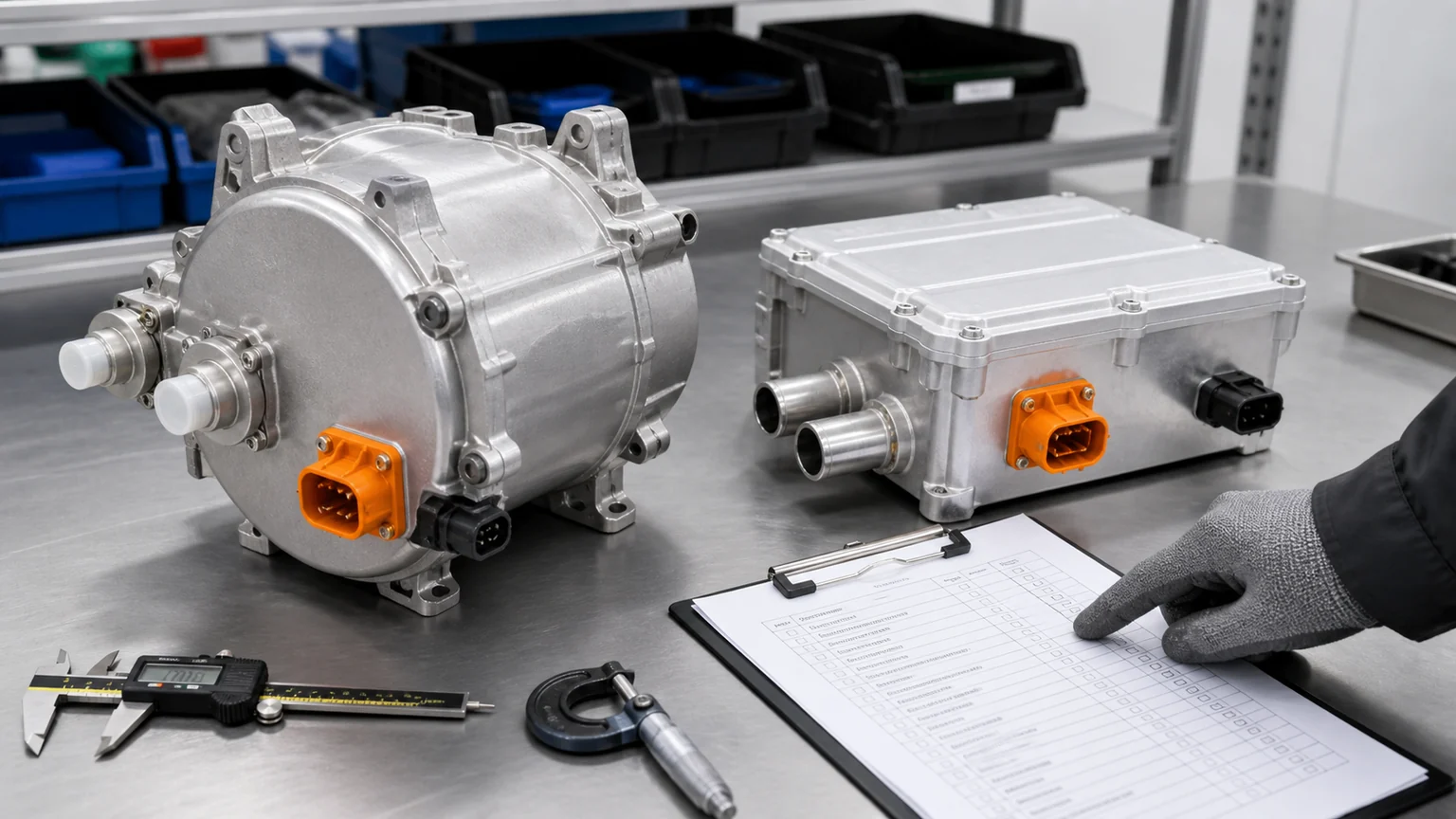

Receiving inspection should verify capped ports, connectors, mounts and traceable identity.
EV thermal parts can be damaged or misidentified before the carton is opened at the workshop. A receiving process should begin with the carton label and the purchase-order line, then move to the part label, connectors, ports, brackets, and protective caps. For an electric compressor, confirm that the high-voltage and control connectors are clean, dry, and undamaged; that the connector locks have not been distorted; that the ports are capped; and that the mounting ears are not cracked or bent. Do not remove caps or expose the component to moisture merely to make a visual comparison. Record the part and batch label before the item enters stock.
For a coolant PTC heater, verify the inlet and outlet orientation against the approved application record, inspect sealing surfaces and hose connections, and look for impact damage around the HV connector and molded housing. A damaged latch or moisture-contaminated terminal can become an installation dispute even if the heating element itself is intact. Air-side PTC modules need similar care: check duct flanges, mounting rails, thermal-sensor locations, and harness retention points. A crushed carton can deform a plastic air guide enough to create a rattle or air leak after installation.
Photographic receiving evidence is not bureaucracy; it is a practical way to distinguish transport damage, stock-control error, vehicle-side harness damage, and a genuine component claim. Keep one clear image of the unopened package, the part label, every connector face, ports or coolant connections, and any visible damage. Link that record to the batch or lot number and the original purchase order. If the customer later reports a no-heat, isolation, or communication fault, the distributor can compare the returned unit with the evidence captured before shipment instead of relying on memory.
This discipline also improves stock segregation. A heat-pump compressor variant with a different connector, a PTC heater for a different voltage class, or a condenser with a different port layout should be physically separated and accurately labelled even when the housings look nearly identical. The cost of a controlled receiving process is small compared with a high-voltage return, emergency freight, workshop downtime, and a customer’s loss of confidence in the replacement-parts programme.
Heat pumps and PTC heaters are complementary tools in EV thermal management, not interchangeable labels. The heat pump is a refrigerant-side system whose performance depends on architecture and operating conditions; the PTC heater is a direct electrical heat source whose form can be air-side or coolant-side. Both can be involved in a single customer complaint, but they require different product checks.
Before sourcing an EV heating or HVAC replacement, establish the original architecture, then verify the OE reference, loop function, fluid or refrigerant interface, voltage, connectors, controls, ports, mounting, and failure evidence. Elecdura can review that matching package for aftermarket supply requests involving electric compressors, condensers, heat-exchanger assemblies, and related cooling or A/C components.
