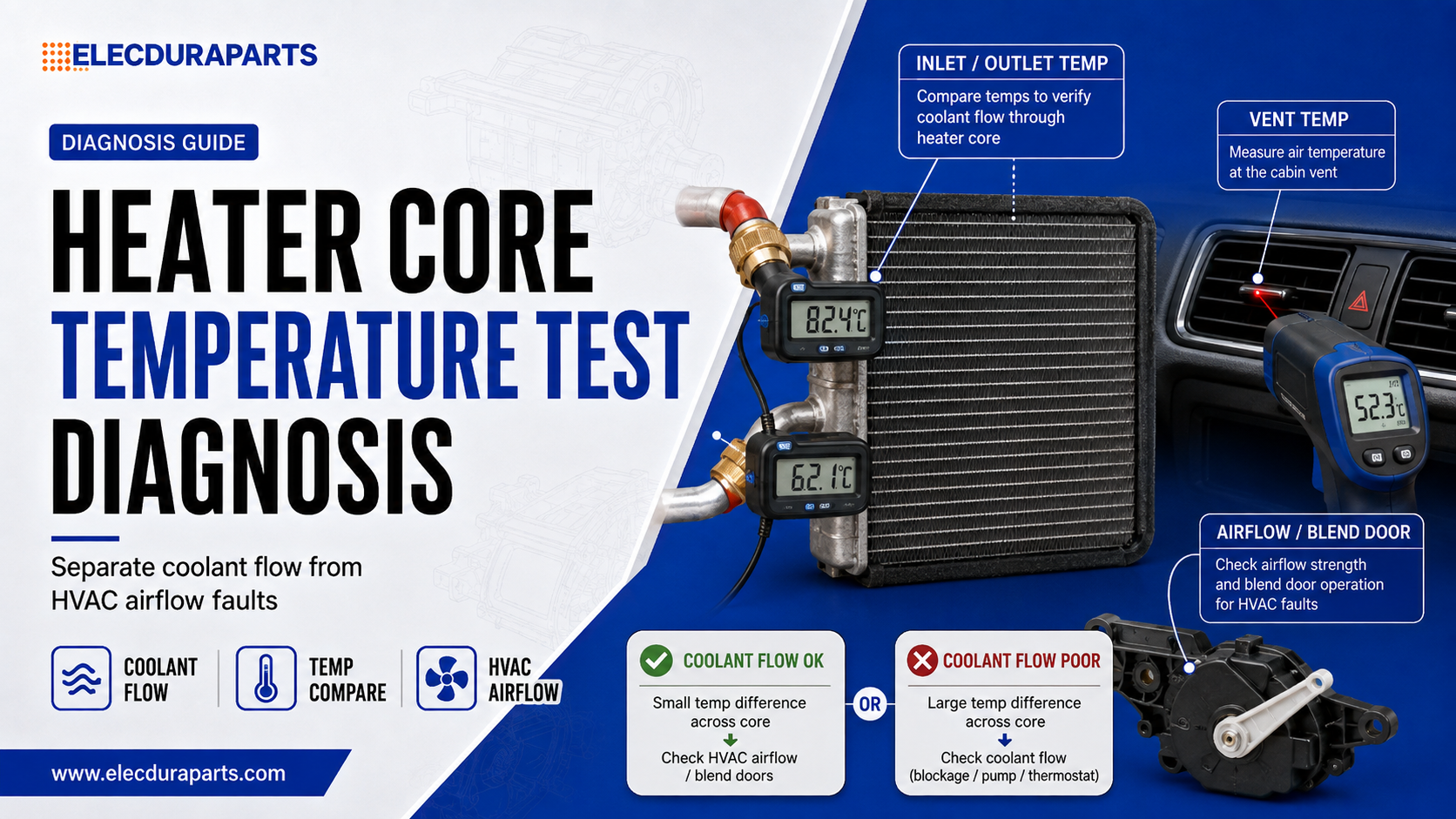

A heater core transfers heat from engine coolant to cabin air. When cabin heat is weak, measuring only vent temperature cannot show whether the problem is low coolant temperature, restricted coolant flow, insufficient air across the core or a blend-door fault. A useful heater core temperature test compares inlet hose, outlet hose and discharge-air temperatures under a controlled operating condition.
The temperature pattern must be interpreted with coolant level, engine warm-up, blower speed and HVAC command. A large hose temperature difference can indicate restricted flow, but it can also appear when airflow removes substantial heat at low coolant flow. Two hot hoses can indicate healthy flow, or a core that is hot while the blend door routes air around it. The test is therefore a decision sequence, not a single pass/fail number.
Warm the engine according to service information, set a repeatable engine speed, command full heat, choose a specified blower speed, and measure heater-core inlet, outlet and center-vent temperatures. Confirm that the engine thermostat has allowed normal operating temperature. Compare patterns rather than relying on touch.
Temperature Pattern | Likely Direction | Next Evidence |
|---|---|---|
Both heater hoses cooler than expected | Engine not warm, low level, valve closed or air pocket | Check coolant temperature and circuit routing |
Inlet hot, outlet much cooler | Restricted core or low coolant flow | Check valve, hose restriction and flow |
Both hoses hot, vent air cool | Blend door, air bypass or case-seal fault | Inspect actuator position and air path |
Heat improves with engine speed | Low flow, air pocket or pump/valve issue | Compare coolant movement and pressure |
Heat fades as blower speed rises | Marginal coolant heat or core transfer | Repeat at controlled flow and inspect restriction |
A dashboard gauge is intentionally damped on many vehicles and may remain near the center across a broad temperature range. Read scan-tool coolant temperature and, where needed, confirm it at a suitable metal coolant outlet. A thermostat stuck open can produce acceptable summer heat but weak winter heat; see the stuck-open versus stuck-closed thermostat comparison.
Inlet and outlet temperatures change rapidly before the engine and HVAC case stabilize. Record ambient temperature, coolant temperature, engine speed, blower setting, recirculation/fresh-air mode and test duration. These variables make repeat tests and post-repair comparison meaningful.
Low coolant often removes flow from the heater core before the main radiator appears empty because the core sits high in the circuit. Inspect the correct cold fill point and any pressurized expansion tank. A repeat low level needs leak diagnosis, not repeated topping up.
Some vehicles circulate hot coolant through the core continuously and regulate heat only with air doors. Others use a cable, vacuum or electrically controlled coolant valve. Test the valve command and physical movement before declaring the core restricted. A partially opening valve can create the same inlet/outlet split as debris inside the core.
Infrared tools read surface radiation, not internal coolant directly. Shiny metal tubes, black rubber hoses and reflective clamps have different emissivity. Measure comparable hose surfaces at similar distances, or apply identical approved matte targets where safe. A contact thermocouple clamped consistently can improve repeatability.
Heater hoses near an exhaust manifold or turbocharger may absorb radiant heat. Shield the sensor’s view and compare locations close to the firewall while avoiding fittings that conduct heat differently. Do not reach into moving belts or hot exhaust areas.
Increasing blower speed increases heat removal from the core. On a healthy system, outlet coolant and vent-air behavior should change predictably. If the coolant outlet becomes dramatically cooler while cabin heat remains weak, coolant flow may be marginal. If hose temperatures barely change but vent temperature collapses, inspect the air path and blend control.
This pattern says heat is being removed or coolant flow is restricted; it does not identify which one without airflow context. Check whether cabin heat output is strong. Strong heat with a controlled drop can be normal energy transfer. Weak heat with a steep drop, especially when it improves at higher engine speed, points toward insufficient coolant mass flow through the core.
Inspect pinched hoses, quick-connect inserts, heater valves and engine fittings. Sealant fragments and scale can collect at a small inlet before reaching the core. Replacing or flushing the core without inspecting these restrictions can leave the complaint unchanged.
Near-equal temperatures support coolant circulation, especially if they respond to blower load, but they do not prove air crosses the fins. A blend door can remain in the cold position, foam seals can deteriorate, or debris can block the HVAC case. Diagnose the blower motor assembly, cabin filter and case doors separately.
Check actual engine temperature, low coolant, air pockets, a closed control valve and circuit routing. If the engine itself warms slowly, the thermostat rating or operation deserves attention. The thermostat opening-temperature guide explains why appearance and fit do not confirm the calibrated rating.
Inspect the cabin filter, blower wheel, evaporator face and duct restrictions. A weak blower can make vent temperature appear hot at low speed while failing to warm the cabin. Use electrical and current evidence from the blower motor amperage test rather than replacing a resistor because airflow is low.
A failed stepped blower motor resistor or regulator may remove certain speeds, while an overloaded motor can damage its connector. Neither changes heater-hose temperature directly, but altered airflow changes the observed temperature drop.
Monitor the temperature-door command and actual position if available. Listen for gear movement without assuming it proves door travel. A stripped actuator can run while the door stays fixed. Dual-zone systems require left/right vent comparison because one door or core section may behave differently.
These symptoms raise concern for an external heater-core leak into the HVAC case. Confirm oily film, carpet moisture, pressure loss and drain discharge. Normal water from the evaporator drain is not engine coolant. A leaking core needs a pressure-boundary decision, not a flow flush.
After cooling-system service, trapped air can interrupt heater flow and cause gurgling, intermittent heat or rapid temperature changes. Follow the manufacturer’s filling and bleeding procedure, including vacuum filling where specified. Thermostat bleed features and hose routing differ, so do not invent a universal bleed method.
A sudden return of heat can indicate restored coolant flow, but it does not prove all air has left the engine. Continue the specified bleed cycle, verify stable cold level after cooldown and inspect for the leak that introduced air. Persistent bubbling requires a broader test, as described in the coolant bubbling guide.
Evidence | Preferred Decision | Risk to Control |
|---|---|---|
External core leak confirmed | Replace the core and seals | Coolant contamination inside HVAC case |
Restriction confirmed; core structurally sound | Use approved flush procedure if permitted | Pressure damage and debris migration |
Severe scale or repeated restriction | Replace and correct coolant/root cause | New core clogging again |
Both hoses hot; blend door not moving | Repair air-control fault | Unnecessary core replacement |
Engine coolant too cool | Diagnose thermostat/engine circuit | Misreading core as restriction |
Never apply unregulated shop-air pressure to a heater core. Its tubes and headers may tolerate less pressure than a hose or flushing tool. Use compatible fluid, capture discharge and avoid driving debris into other engine cooling components. If corrosion or mixed coolant caused the restriction, correct the complete system chemistry.
Repeat the original engine speed, coolant temperature, blower setting and measurement locations. Record the post-repair inlet/outlet and vent temperatures. Cabin comfort alone is subjective; comparable data shows whether coolant flow and heat transfer changed.
For a heater core, confirm OE number, vehicle, year, engine, HVAC option, core dimensions, tube direction and spacing, pipe diameter, mounting brackets, sealing foam and included O-rings. Similar cores can differ in header depth or pipe clocking enough to prevent installation. For a heater valve, also confirm actuation type, default position, port sizes and flow direction.
Batch inspection should cover overall dimensions, pipe geometry, bracket position, fin damage, cleanliness, seal kit content and leak-test records appropriate to the product. Packaging must support delicate tubes and fins without loading the inlet pipes. Use Elecdura’s wholesale sourcing page for application-based inquiries rather than relying on a generic core photograph.
This combination supports low coolant flow through the heater circuit. Before flushing, verify a fully open heater valve, hose integrity and correct coolant level. If the inlet fitting contains a calibrated restrictor, do not remove it. A reverse-flow test may expose debris, but pressure must remain within the heater-core limit.
A single coolant core can feed multiple air zones. A side-to-side temperature difference therefore points first toward dual-zone doors, case seals or duct distribution. Confirm actuator command and door travel before removing the dashboard for a core that already has hot coolant on both connections.
Look for trapped air, reversed hoses where flow direction matters, a pinched quick connector or a thermostat installed with the wrong bleed orientation. The thermostat fault after replacement guide covers that installation boundary. Repeat the bleed process and cold-level check before replacing the core.
Cabin heat depends on coolant mass flow, coolant heat capacity, temperature difference and airflow across the fins. A very hot inlet with almost no coolant movement contains little continuous heat energy. Conversely, high coolant flow with a low engine temperature cannot deliver strong heat. This explains why the same hose temperatures must be read with vent airflow and engine data.
The fins can be clean while narrow coolant tubes are restricted, or coolant passages can be clear while debris coats the air side. Inspect both boundaries. If removal is required, photograph the case and core so a returned part can be analyzed rather than simply labeled “clogged.”
Examine flushed material for rust, silicate gel, sealant or plastic fragments. Each points to a different root cause. Refill with the specified coolant and water quality, purge air and verify thermostat operation. A core that clogs again soon is evidence that the upstream contamination source was never corrected.
For fleets, establish a repeatable temperature-test sheet with ambient, engine coolant, hose and vent readings. Trend data can distinguish gradual restriction from a sudden actuator failure and supports more reliable parts warranty decisions.
Some heater circuits are on a bypass path and receive coolant before the main thermostat opens. Others depend on a pump or valve. Use the circuit diagram to understand whether a cold radiator and warm heater are expected during warm-up. Never clamp a hose unless the manufacturer authorizes the material and method.
Foamy coolant, noise and heat that varies sharply with speed can indicate aeration or pump performance. Inspect belt drive, electric-pump command and pressure behavior. A loose impeller may circulate enough coolant at idle testing yet fail under load; heater data should be compared with engine-temperature behavior.
Specialized adapters can compare pressure across a heater core, but opening a hot cooling circuit is hazardous. Follow approved service tools and pressure limits. Temperature evidence is generally safer for initial screening; pressure or flow measurement follows when the decision remains uncertain.
Not exactly under every condition. Some difference is expected when the core transfers heat. Interpret the amount with blower speed, coolant temperature and cabin heat output.
Touch is unsafe and too subjective for a reliable comparison. Use suitable contact or infrared measurement on comparable surfaces.
Higher speed may increase coolant flow through a restricted or air-bound circuit. It can also change water-pump output and valve pressure. Check level, air, valve operation and restriction before replacing the core.
No. Flushing cannot repair leaks, severe corrosion, deformed tubes or all deposit types. It must also remain within the approved pressure and chemical limits.
Hot hoses support coolant flow. Investigate blend-door position, foam seals, case bypass and whether air actually crosses the core.
For heater-core or related cooling-part matching, send the OE number, vehicle and engine, HVAC option, inlet/outlet pipe photos, core and tube measurements, measured hose/vent temperatures and required quantity through Elecdura’s contact page. The temperature pattern helps determine whether the inquiry should be for a core, valve, thermostat or air-control component.
If the engine overheats rather than running cool, inspect the radiator range and use the cap pressure test. If airflow changes by speed, review blower resistor options. A temperature difference across the heater core is not authority to order any of these parts; it only determines which branch should be tested next.
For sample approval, compare pipe clocking in a fixture, not by holding two cores by hand. Verify the case seals do not cover fin area and that condensate drainage remains open after installation. Repeat the same thermal baseline after the first complete cooldown.
Retain all original measurements carefully for review.
Use identical sensor locations and airflow settings so the before-and-after result can be audited by another technician.
A successful repair must restore stable cabin heat at idle and the relevant road load, maintain normal engine coolant temperature and preserve airflow across all HVAC modes. Record inlet, outlet and vent temperatures after the system stabilizes. Recheck cold coolant level the next day. If the temperature split returns, inspect recurring contamination or air entry instead of approving another core automatically.
For a wider product inquiry, the air-conditioning parts range helps separate air-side HVAC components from coolant-side engine parts.
Archive the stabilized inlet, outlet and vent temperatures with the repair record for future comparison.
