A refrigerant capacity chart is a selection table, not a license to use the first number beside a model name. Read it by matching the refrigerant, vehicle market, model years, engine, body or wheelbase, front-only or rear A/C, and VIN or production break. Treat refrigerant mass and compressor oil as separate specifications. When chart data conflicts with the vehicle label or current manufacturer service information, stop and resolve the conflict before charging.
This guide is for workshops, distributors, quality teams, and wholesale buyers. The decision affects the reliability of related parts such as the automotive A/C compressor, A/C condenser, and electric A/C compressor. It explains how to turn a marketing or chart claim into a repeatable technical decision without inventing universal limits.
Useful primary references for the method include Ford service information example and NRF A/C filling chart. They should be read in their stated scope; the exact vehicle, component, or customer specification remains controlling.
Start with component identity and the exact system specification.
A chart may come from a vehicle maker, component supplier, service-equipment database, refrigerant company, or workshop compilation. Record the publisher, publication date, revision, market, and any disclaimer. Current vehicle service information and the under-hood label normally carry more application authority than an undated secondary table. A professional chart can be an excellent lookup aid, but it should point the technician toward the exact variant rather than replace vehicle identification.
Keep a screenshot or page reference with the job record. Online tables can change, and printed wall charts become obsolete. If a database gives a value without a source or revision, treat it as a lead to verify. Do not average two conflicting values; a difference may indicate two legitimate system configurations.
R-134a, R-1234yf, R-744, and other refrigerants have different circuit, lubricant, pressure, service-fitting, and safety requirements. The same vehicle family may change refrigerant by market or production date. Read the label on the actual vehicle and compare the service ports and component markings. Never infer refrigerant only from model year.
A mass printed beside the wrong refrigerant is not a close alternative. Recovery equipment, cylinders, hoses, identifiers, and procedures must suit the refrigerant. If contamination or mixed refrigerant is suspected, follow the shop's legal and safe handling process instead of venting or charging over it.

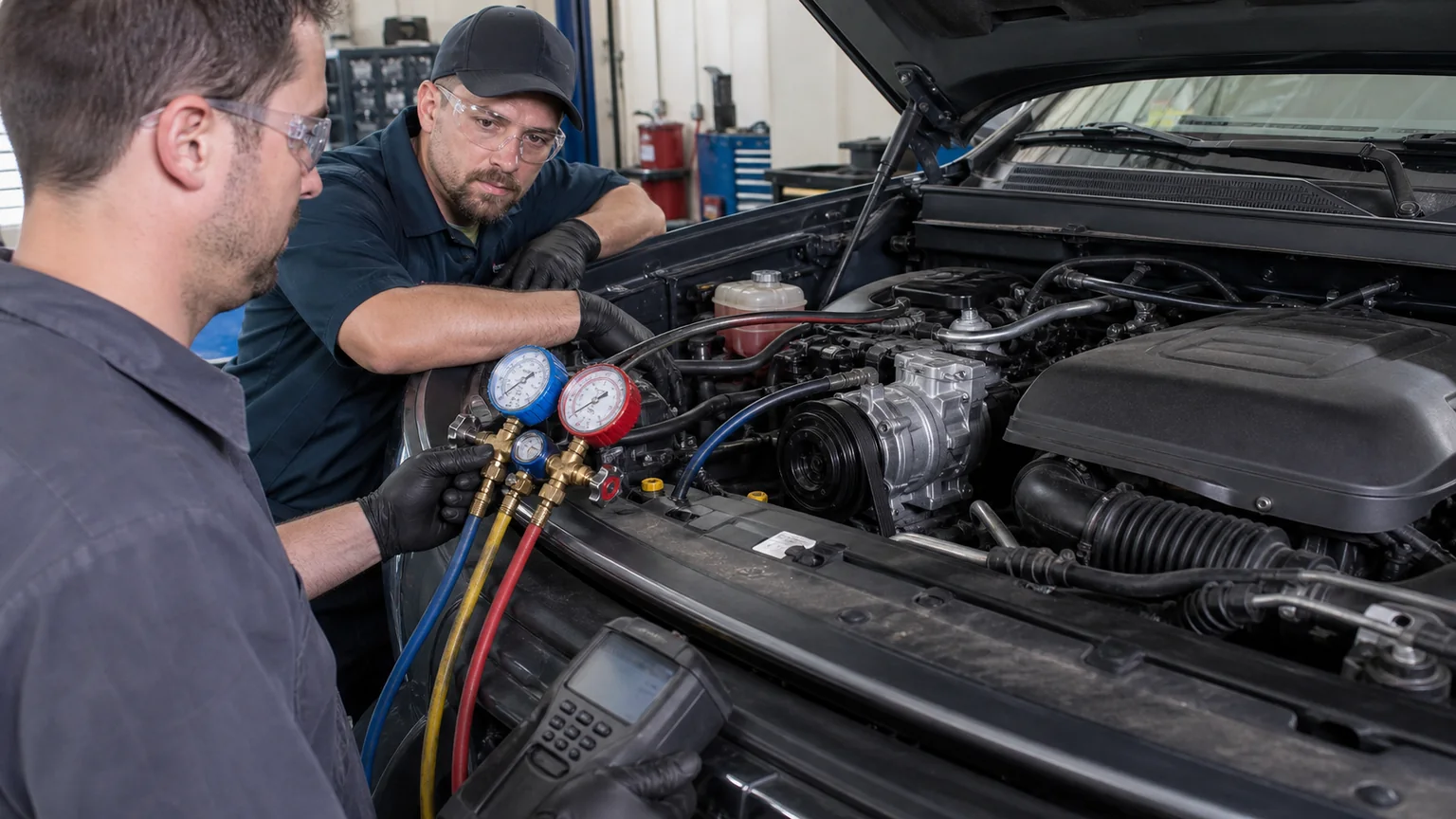

The capacity value is normally a mass such as grams, kilograms, or ounces. It is not a target high-side or low-side pressure. Charge with calibrated equipment by the specified mass after the required repair, leak test, and evacuation procedure. Operating pressure changes with ambient temperature, humidity, airflow, compressor command, cabin load, and vehicle speed.
Pressure remains important for diagnosis, but it cannot substitute for measured charge. A system can show superficially plausible pressures while undercharged, overcharged, restricted, poorly cooled, or incorrectly controlled. Record both the mass installed and the stabilized performance conditions.
Charts may use grams, kilograms, ounces, pounds, or a quantity followed by a plus/minus tolerance. Convert units once with a controlled calculator and retain the original value. A decimal-point or ounce-to-gram error can create a serious overcharge or undercharge. Do not mistake a two-zone entry, a footnote number, or an oil quantity for the refrigerant mass.
If the source specifies a tolerance, understand whether it is the vehicle's allowed charge range or only a service-machine display convention. Do not invent a generic percentage tolerance. The exact value and tolerance belong to the specific system.
Different engines can alter condenser size, hose routing, compressor family, and under-hood packaging. Vans, long-wheelbase vehicles, ambulances, buses, and vehicles with rear A/C may contain more refrigerant because of additional heat exchangers and lines. A chart row that combines these variants may use footnotes that carry the decisive information.
Write the full variant beside the selected number. If the workshop cannot establish whether rear A/C is factory installed, inspect the vehicle for rear evaporator lines, labels, and controls. Modified bodies require extra caution because the completed-vehicle manufacturer may specify the final system.
Measurements are useful only when the method and conditions are recorded.
Manufacturers introduce running changes during a model year. A table may say “to VIN,” “from VIN,” “before date,” “after date,” or use a chassis-number range. The visible registration year can differ from the production date. Decode and document the relevant VIN portion rather than choosing the newer or older value by appearance.
A replacement compressor or condenser does not automatically move the vehicle to another capacity row. If a sanctioned service conversion changes the charge, oil, or components, use the conversion bulletin and record the work. Otherwise retain the vehicle's specified system configuration.

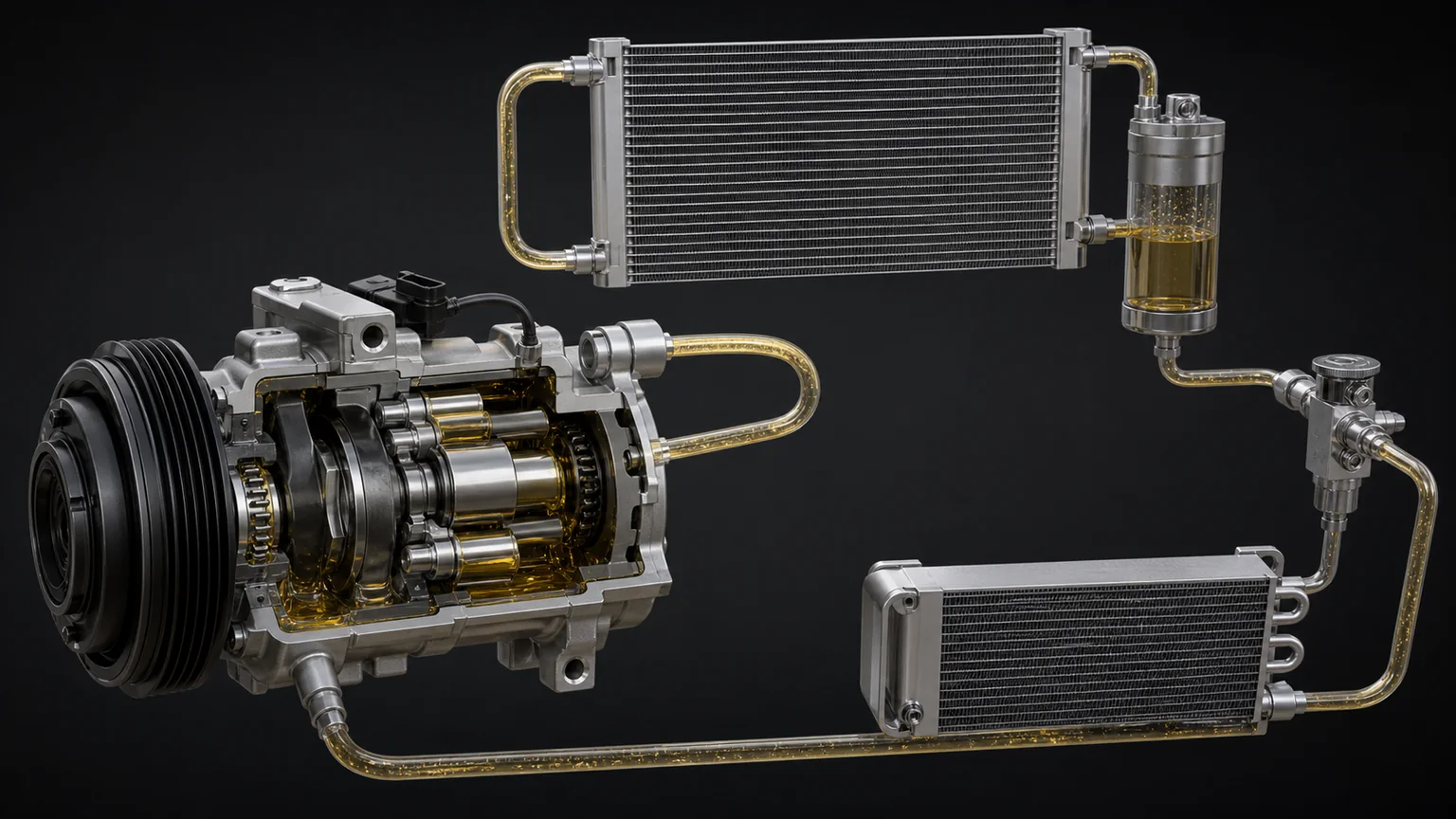

An oil column may identify type, viscosity family, total system quantity, compressor prefill, or only a service addition. Those are different facts. “PAG” alone is rarely enough; viscosity and additives can differ. Hybrid and electric compressors may require oil with controlled electrical properties. Use the compressor and vehicle instructions together.
When replacing components, the service procedure may call for an amount related to the part removed or oil recovered. Do not add the full system quantity on top of an already prefilled compressor. Do not drain a compressor merely to make it match a generic chart unless the supplier instructs that process.
Asterisks and reference letters often contain market, engine, rear-air, compressor, oil, or production information. They are not optional editorial details. Read the entire footnote block before transferring a value to a work order. If a chart spans many pages, ensure the heading and footnotes belong to the same table section.
When copying a row into internal software, copy the footnote and source reference too. A clean database field that drops the exception can be more dangerous than the original crowded chart.
If the vehicle label, manufacturer portal, compressor instruction, and third-party chart disagree, do not choose the most convenient value. Verify that all sources refer to the same refrigerant and variant, check revisions and service campaigns, and contact an authorized technical source when necessary.
Document the resolution. The reason may be a transcription error, a different market, a production break, rear A/C, or a service modification. A written resolution protects both the workshop and parts supplier.
After charging, operate the system under the maker's test conditions. Confirm condenser fan operation, compressor command, vent performance, line temperatures, leaks, abnormal noise, and diagnostic data. Do not add refrigerant because cooling seems weak until airflow, air-mix doors, sensors, and other causes are checked.
A correct mass is necessary but not sufficient. The purpose of the chart is to establish the intended inventory of refrigerant; it does not certify every component or control in the circuit.
Evidence group | Record | Why it matters |
|---|---|---|
Identity | Vehicle or machine, component numbers, revision, batch, labels | Prevents evidence from one configuration being applied to another |
Source | Publisher, document, date, revision, page or table | Makes the decision auditable when data changes |
Method | Fixture, instruments, calibration, conditioning, procedure | Separates real comparison from an uncontrolled demonstration |
Conditions | Temperatures, flows, voltage, pressure, time, fluid, control command | Allows results to be reproduced and compared |
Result | Raw readings, calculated values, observations, uncertainty | Shows what was measured rather than only pass or fail |
Acceptance | Requirement source, limit, disposition, approver | Stops limits being invented after a result is known |
Change control | Material, process, plant, tooling, firmware, packaging | Protects repeat orders after initial approval |
Record VIN, production date, market, engine, body, wheelbase, and rear-A/C status.
Read the vehicle refrigerant label and photograph it.
Open the current authoritative service source and record its revision.
Locate the exact row and read every footnote.
Verify refrigerant type and units before copying any number.
Separate refrigerant mass, oil specification, and oil quantity fields.
Resolve conflicts before connecting a charging cylinder.
Recover, repair, leak-test, evacuate, and charge with suitable calibrated equipment.
Run the manufacturer's performance check and record operating conditions.
Save the source, selected row, mass, oil action, machine ID, and final results.
The workflow deliberately separates identification, bench evidence, and installed-system confirmation. A component can pass one layer and fail another. Record deviations instead of quietly adjusting the setup until a sample passes. If the product or application changes, decide which approvals must be repeated.
Retain labels, test records, and batch evidence for approval and warranty review.
State the approved component identity, application scope, controlled technical properties, test methods, sampling, records, packaging, shelf or storage controls where relevant, labeling, warranty evidence, and change notification. Classify requirements as mandatory, informational, or subject to sample approval. This prevents a supplier from treating every data request as an acceptance limit.
For private-label programs, link the sales part number to the actual manufacturer and revision. Require written notice before changes to critical material, geometry, formulation, motor or controller, tooling, plant, sub-supplier, test method, or packaging. Keep a retained sample or complete golden-sample record and periodically compare production data.
Price should be evaluated after technical alignment. Include failure investigation, returns handling, documentation, lead time, packaging damage, and field labor in total cost. An apparently cheaper product is not cheaper when its identity or evidence is ambiguous.
Selecting by model name without engine or body variant
Reading the oil quantity as refrigerant mass
Using pressure to guess the charge
Ignoring rear A/C or a conversion
Dropping footnotes during data entry
Assuming model year equals production break
Adding the full oil capacity to a prefilled compressor
Using an undated chart when current service data is available
Most of these mistakes share one cause: a convenient proxy is substituted for the real requirement. A label, one reading, or a physical resemblance can narrow the search, but it cannot prove the complete application. Use stop rules when information conflicts or when a safety-critical condition is not understood.
Do not immediately adjust the approved specification or replace the same component again. Reconfirm identity, installation, fluid or electrical preparation, airflow, contamination, connectors, hoses, sensors, controls, and the original failure cause. Compare the observed symptom with the pre-installation and commissioning records. A system-level fault can make a correct new component appear defective.

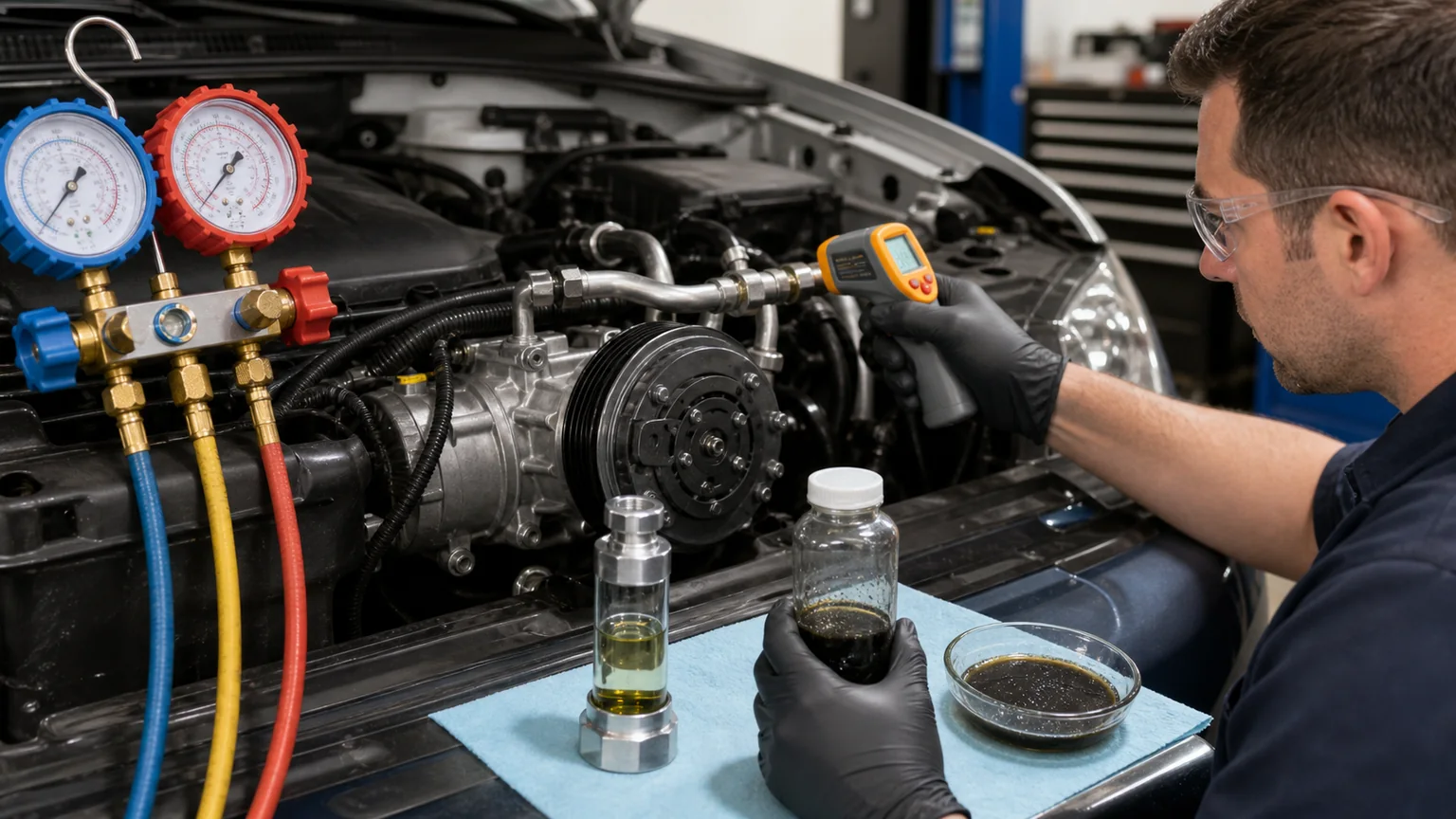

Preserve evidence before disassembly: labels, fault codes, operating conditions, pressures, temperatures, voltage, current, sound or vibration, leakage location, recovered fluid, and photographs. Stop operation when continuing could create damage or safety risk. Follow the vehicle or equipment maker's procedure and the supplier's warranty instructions.
The vehicle label is a primary clue, but a damaged, replaced, or outdated label can conflict with a later service bulletin or approved conversion. Verify the vehicle identity and current manufacturer information; do not silently override either source.
It indicates a nominal mass and stated range in that source. Confirm the row and unit, then use equipment capable of delivering the required accuracy. Do not apply that tolerance to another vehicle.
No. Pressure is influenced by temperature, load, airflow, and control strategy. Recover and weigh when charge accuracy is in doubt, then diagnose performance under controlled conditions.
Use the vehicle and compressor procedure. Component replacement amounts, total system capacity, recovered oil, and compressor prefill must be reconciled; there is no safe universal addition.
They may cover different markets, revisions, engines, body styles, rear-air systems, or VIN ranges, or one may contain an error. Compare source scope and resolve the exact vehicle variant.
Imagine a workshop receives three vans carrying the same model badge. The first is a short-wheelbase diesel with front A/C only. The second is a long-wheelbase passenger conversion with a factory rear evaporator. The third is an ambulance converted by a body builder with an auxiliary climate unit. A broad chart search can display one familiar model name and tempt the technician to copy a single charge. In reality, the length of refrigerant lines, number and type of evaporators, condenser arrangement, and final-stage conversion data can produce different approved configurations.
The correct process begins with three separate vehicle records. The technician photographs each refrigerant label, records VIN, production date, engine, wheelbase, body type, and every visible evaporator. For the ambulance, the completed-vehicle label and conversion documentation are collected. The service source is searched with the exact vehicle data, and each footnote is attached to the work order. If the ambulance documentation is missing, the vehicle is not charged from the ordinary van row merely because the dashboard looks identical.
Suppose the current manufacturer source gives a front-only mass, a front-and-rear mass, and a note directing converted vehicles to the body builder. That note is a decision boundary. The workshop can complete the first two vehicles with measured equipment and documented oil actions. The third requires authoritative conversion information or a qualified engineering route. Stopping prevents a plausible but unverified charge from being treated as fact.
Parts distributors often copy capacity information into catalog notes, call-center scripts, or customer emails. Every number should retain refrigerant, unit, market, engine, body, rear-air status, production range, source, revision, and footnote. A single free-text field is vulnerable because qualifiers are removed during later editing. Structured fields make contradictions visible and allow data teams to expire an old source when a revision arrives.
Separate verified data from customer-reported or web-scraped values. Give each record an owner and review date. When a customer reports a different under-hood label, open a discrepancy record rather than overwriting the database. Preserve both pieces of evidence until the variant is resolved. This approach also improves product matching because refrigerant and oil data can be linked to compressor, condenser, hose, and service-port differences.
Train sales staff not to answer a capacity question from model name alone. A useful reply requests the VIN, label photograph, engine, body, and rear-air configuration and explains that the workshop must follow current service information. That is the shortest route to a reliable answer.
A chart may be correct while the delivered mass is wrong. Scales drift, hoses retain refrigerant, cylinders change temperature, and service machines require maintenance. Follow the equipment maker's calibration and verification schedule. Check that the selected refrigerant and unit are displayed, zero the correct assembly, and record the machine identity. Verify a suspicious result before adding or removing refrigerant.
Recovered mass is useful evidence but is not automatically the original specified charge. Leakage, previous service, refrigerant retained in equipment, and contamination change the result. Use recovery quantity to inform diagnosis, not to rewrite the capacity. After repair, the specified measured charge and a controlled performance test provide the cleanest baseline for future service.
A refrigerant capacity chart is a selection table, not a license to use the first number beside a model name. Read it by matching the refrigerant, vehicle market, model years, engine, body or wheelbase, front-only or rear A/C, and VIN or production break. Treat refrigerant mass and compressor oil as separate specifications. When chart data conflicts with the vehicle label or current manufacturer service information, stop and resolve the conflict before charging. Build the decision around identifiable parts, comparable conditions, controlled methods, and retained evidence. That approach reduces wrong-part returns and gives suppliers a fair, reproducible target.
