Hydraulic Oil Cooler with Fan: When Buyers Need Fan-Cooled Oil Coolers

A hydraulic oil cooler with fan is needed when the hydraulic system cannot reject enough heat through the tank, hoses, machine frame, or passive airflow. In practical terms, buyers should consider a fan-cooled oil cooler when oil temperature keeps climbing during continuous work, when the machine works in hot or dusty environments, when the reservoir is small, when the hydraulic circuit runs high duty cycles, or when the cooler must be installed away from strong natural airflow. The fan is not a decoration; it is the component that makes heat rejection more predictable when machine speed, wind, and engine airflow are not enough.

For importers, distributors, and equipment repair networks, the buying question should be more precise than "do we need a bigger cooler?" The correct question is: what heat load must be removed, what oil flow will pass through the cooler, what pressure drop is acceptable, what ambient temperature will the machine see, what fan drive is available, and where can the cooler be mounted without choking airflow? This guide explains when fan-cooled hydraulic oil coolers make sense and how buyers should specify them before ordering.

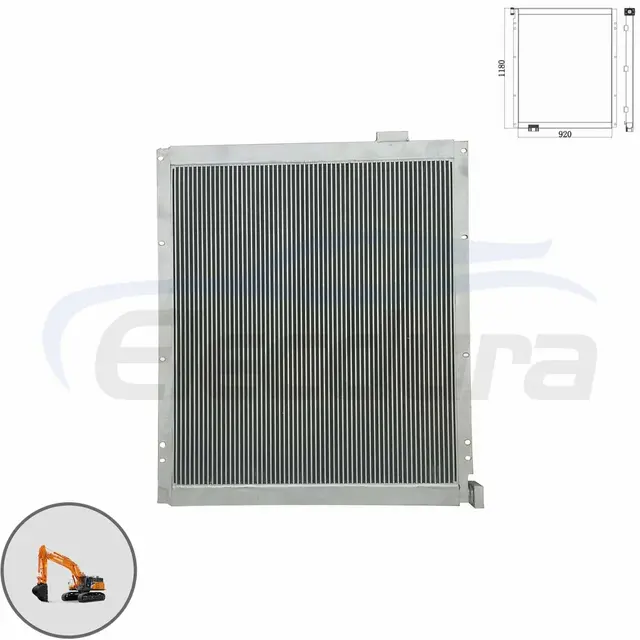

Fan-cooled hydraulic oil coolers are useful when the machine needs controlled airflow through the core, not only a larger heat exchanger body.

What the Fan Actually Solves

A hydraulic oil cooler removes heat by moving hot oil through a heat exchanger core while air passes across the fins. Without enough airflow, even a large cooler cannot perform well. A fan helps control that airflow. It can pull or push air through the cooler core when the machine is stationary, moving slowly, or working in a location where engine fan airflow does not reach the hydraulic cooler. This is common on excavators, skid steers, hydraulic power packs, cranes, agricultural machines, forestry equipment, presses, and mobile hydraulic systems.

The fan does not replace correct sizing. If the cooler core is too small for the heat load, the fan cannot overcome the missing surface area. If oil flow is too high and pressure drop becomes excessive, a larger fan will not fix the hydraulic restriction. If the cooler is mounted behind a blocked grille, packed with dust, or installed where hot engine air recirculates into the fan, performance will still be poor. Buyers should think of the fan as one part of a complete cooling decision: core size, oil flow, air path, fan drive, shroud, mounting, and service access all work together.

HYDAC air-cooler catalog material and oil/air cooler selection sheets commonly define cooler selection around desired oil temperature, ambient air temperature, heat load, and a safety margin for contamination. AKG oil-air cooler data also shows why pressure drop curves depend on oil viscosity and flow. These details matter in the real world because cold oil, high viscosity, dirty fins, and high flow can change how the cooler behaves after installation.

When a Passive Cooler Is Not Enough

Some hydraulic systems can run without a fan-cooled oil cooler because the reservoir, frame, hoses, and passive cooler surface reject enough heat. This is more likely when duty cycle is low, ambient temperature is moderate, the reservoir is large, and the machine has plenty of airflow. The problem appears when the machine works harder or the design leaves little natural cooling margin. In mobile equipment, reservoirs are often compact to save space and weight, so they cannot absorb heat for long continuous duty.

A fan-cooled cooler becomes more attractive when oil temperature keeps rising instead of stabilizing. The important sign is trend, not only one temperature reading. If the machine starts at a safe temperature and then climbs during digging, lifting, cutting, pressing, or continuous hydraulic motor operation, heat generation is higher than heat rejection. If temperature stabilizes only when the operator pauses work, the cooling system is near or over its limit. If the same machine overheats only in summer or only when the engine bay is dirty, airflow and ambient conditions should be investigated.

Before adding a fan-cooled cooler, check whether the original cooling system is simply dirty or damaged. Fecon's hydraulic cooler maintenance guidance emphasizes regular inspection and cleaning of cooler fins because debris blocks airflow and heat dissipation. A machine with packed fins may look like it needs a larger cooler when it really needs cleaning, airflow restoration, or replacement of a damaged core. If the complaint includes oil residue, wet fins, damaged seams, or mixed-fluid symptoms, Elecdura's oil cooler leak guide at /oil-cooler-leak-symptoms.html can help separate leakage from pure overheating. Elecdura's related guide at /excavator-hydraulic-oil-overheating-causes.html explains common overheating causes beyond the cooler itself.

How to Estimate the Heat Load

Hydraulic heat comes from energy losses. Pump inefficiency, pressure drops, throttling, relief valve flow, motor losses, valve losses, and friction all turn mechanical input power into heat. Cross Company's mobile hydraulic heat exchanger guidance gives a useful rule of thumb: about one-third of input horsepower may need to be removed as heat in a hydraulic system. This is not a final engineering calculation, but it helps buyers understand why a 75 HP hydraulic machine can produce a serious heat load even when the cooler looks physically small.

For replacement sourcing, buyers often do not have a full thermal calculation. In that case, collect real field data. Record oil temperature at cold start, after 15 minutes, after 30 minutes, during continuous operation, and after a work pause. Record ambient temperature at the jobsite, not only the weather forecast. Record whether the machine is idling, traveling, digging, lifting, driving a hydraulic motor, or running an attachment. If the system climbs from normal to too hot during a predictable work cycle, that trend helps estimate whether the existing cooler is undersized, blocked, or poorly supplied with airflow.

Some cooler selection sheets use a temperature-rise method on existing machines: measure how quickly oil temperature rises over a known time with a known tank volume, then estimate heat to be dissipated. HYDAC selection examples show this kind of approach and add a safety margin for cooler contamination. For distributors, the practical version is simple: do not quote a cooler from only length, width, and thickness if the customer is solving chronic overheating. Ask how fast the oil temperature rises and under what load.

Fan Type: DC Motor, AC Motor, Hydraulic Motor, or Engine Driven?

Fan drive must match the machine. Many mobile coolers use DC electric fans, commonly 12V or 24V, because those voltages are available on mobile equipment. Industrial units may use AC motors. Some heavy mobile applications use hydraulic fan drives. Parker and HYDAC product literature includes coolers with DC motors and hydraulic fan options, while industrial oil cooler catalogs also show AC, hydraulic, and engine-driven fan arrangements. The best fan choice depends on power availability, environment, duty cycle, noise limits, and installation space.

Electric fans are simple to control with a thermostat, relay, or controller. They can run only when oil temperature reaches a set point, which reduces noise and power draw. However, they need correct voltage, current capacity, wiring protection, motor sealing, and airflow direction. A 12V fan installed on a 24V machine is an obvious failure. A fan with insufficient current supply may run slowly and underperform. A fan motor exposed to water, dust, or vibration without proper protection may fail early.

Hydraulic fan drives can be suitable when electrical power is limited or when heavy-duty airflow is required. They add their own hydraulic flow and pressure requirements, so they should not be treated as free cooling. The fan motor must be supplied correctly, protected from pressure spikes, and matched to the cooler design. Engine-driven fans can move large airflow but depend on engine speed and mechanical layout. For replacement sourcing, always identify the original fan type before quoting a cooler assembly.

Airflow Direction, Shroud, and Mounting Location

Airflow direction can make or break a fan-cooled oil cooler. A fan may push air through the core or pull air through it, depending on design. The correct arrangement depends on installation location and shroud design. Puller fans can draw air more evenly through the core when shrouded correctly. Pusher fans can be useful when the fan must be installed in front of the core. Either design can fail if the cooler is mounted where hot air recirculates, where a panel blocks discharge air, or where debris constantly packs the fins.

Mounting location should provide clean intake air and a clear exit path. Avoid placing the cooler where it only receives hot engine exhaust air or where discharge air is pulled back into the fan. On excavators and loaders, the cooling package may include radiator, hydraulic oil cooler, intercooler, condenser, and other heat exchangers stacked together. If one core is blocked, the others suffer. Elecdura's guide comparing radiator, condenser, and intercooler functions at /radiator-vs-condenser-vs-intercooler.html can help teams understand how multiple coolers share airflow.

Service access should be part of the design. A cooler mounted in a location that cannot be cleaned will lose performance in dusty work. Forestry, demolition, mining, agriculture, and construction sites can pack fins with dust, seed, grass, mud, and fibers. If the fan guard or mounting bracket prevents cleaning, the cooler may perform well on day one and poorly after a few weeks. Buyers should ask for photos of the installed location, not only the old cooler on the bench.

On mobile equipment, the hydraulic oil cooler must be matched to the cooling package, airflow path, mounting space, and maintenance access.

Oil Flow and Pressure Drop: Why Bigger Is Not Always Better

Hydraulic oil coolers create pressure drop. A cooler that is too restrictive can raise return-line pressure, stress seals, increase heat generation, or cause bypass valves to open. A cooler that is physically larger may still be wrong if the port size, core passage, or flow path creates excessive restriction at the system's oil flow and viscosity. AKG oil-air cooler material shows pressure drop curves based on a defined oil viscosity and notes that correction factors are needed for different viscosities. This is important because cold oil is more viscous and can create much higher pressure drop than warm oil.

For buyers, the key is to match cooler flow capacity to the circuit. If the cooler is installed in the return line, confirm return flow and expected pressure. If it is installed in a separate cooling loop with a pump, confirm pump flow and pressure. If the machine has a bypass valve, confirm opening pressure and temperature logic. Some coolers include bypass relief options so cold oil or high pressure drop can bypass the core until conditions are safe. This can protect the cooler and system, but it must be specified correctly.

Port size and fitting type also matter. NPT, BSP, SAE O-ring, flange, and custom welded fittings are not interchangeable. A supplier may be able to modify ports, but buyers should not assume this after production. Send port photos, thread measurement, fitting type, and hose direction. If the old cooler has cracked ports or leak history, inspect whether vibration, hose stress, or overpressure contributed to failure. Replacing the cooler without fixing hose stress can repeat the problem.

Thermostat, Bypass, and Fan Control

A fan-cooled oil cooler does not always need to run at full speed from startup. In many systems, oil should reach a reasonable operating temperature before heavy cooling begins. Running the fan too early in cold climates can delay warm-up, increase viscosity, raise pressure drop, and reduce machine efficiency. A thermostat or temperature switch can turn the fan on when oil reaches the target range and off when temperature drops. Some systems use adjustable thermostats, while others use fixed temperature switches or controller logic.

Bypass valves serve a different function. They can protect the cooler when oil is cold, thick, or flowing at a condition that would create excessive pressure drop. Some oil-air cooler catalogs offer bypass relief settings such as 30 PSI or 65 PSI, depending on design and application. The correct bypass decision depends on circuit pressure, cooler location, oil viscosity, and startup conditions. A bypass that opens too easily may prevent cooling under load. A bypass that opens too late may expose the cooler to high pressure during cold start.

For procurement, ask whether the cooler assembly includes a temperature switch, thermostat, fan relay, bypass valve, guard, shroud, wiring harness, or mounting bracket. A bare cooler core may be cheaper but may not solve the installation problem. A complete fan-cooled assembly can reduce installation time if the fan, shroud, and controls match the machine. Elecdura can quote by sample, OE number, or dimensions, but the buyer should make clear whether the order is for a core, fan assembly, or full cooler package.

Maintenance: Cleaning Keeps Cooling Capacity Alive

Fan-cooled hydraulic oil coolers lose performance when fins are blocked. Fecon recommends regular inspection and cleaning of hydraulic oil cooler fins, using compressed air or a soft brush to maintain airflow and heat dissipation. Other maintenance guides for air-cooled coolers commonly recommend frequent air blowing in dusty service and deeper cleaning at longer intervals. The exact interval depends on the machine and site, but the principle is constant: an air cooler without clean airflow cannot reject heat.

Maintenance should include fan operation, wiring, hoses, fittings, and cooler core condition. FoamPro hydraulic cooler maintenance material recommends monthly inspection of wiring, hoses, connections, corrosion, leaks, and damage, plus checking hydraulic oil level. If the system needs oil refilling often, there may be an undetected leak. For a parts distributor, these checks matter because a customer may blame a replacement cooler when the actual issue is a failed fan relay, loose wire, clogged fins, or low oil level.

Cleaning also affects warranty. A cooler that fails from impact damage, packed debris, blocked airflow, or hose stress is different from a manufacturing defect. Good product documentation should explain cleaning direction, pressure limits for compressed air, fan power disconnection before cleaning, and avoiding water ingress into fan motors. If your customers work in agriculture, forestry, recycling, or demolition, include cleaning access and guard design in the buying decision.

Replacement Matching by Photo, Size, and Port Direction

Many aftermarket hydraulic oil cooler orders begin with photos rather than part numbers. That can work if the photo set is complete. A single front image is not enough. Buyers should provide overall width, height, thickness, core size, port center distance, port thread, port direction, mounting hole spacing, fan diameter, fan voltage, shroud depth, and bracket position. If the old cooler has a label or OE number, photograph it clearly. If the cooler was custom-made, include machine model, circuit position, and installation space.

Elecdura's photo-matching guide at /match-hydraulic-oil-cooler-by-photo-size-port-direction.html explains this process in detail. For fan-cooled coolers, add fan-specific data: voltage, connector, wire length, fan rotation direction, airflow direction, guard style, and whether the fan is pusher or puller. If the buyer wants to replace only the core and reuse the fan, confirm whether the old fan and shroud will fit the new core. If the fan has failed, it may be more efficient to replace the complete assembly.

Common Buying Mistakes

Buying only by outside dimensions. Two coolers can have similar size but different core density, port size, pressure drop, fan power, or mounting design. Outside dimensions are important, but they do not define performance alone.

Ignoring ambient temperature. A cooler that works in a mild climate may be too small in a hot region or enclosed machine bay. Cooler capacity depends on the temperature difference between hot oil and cooling air. High ambient temperature reduces margin.

Choosing a fan without checking power supply. A 12V, 24V, AC, or hydraulic fan system must match the machine. Wiring, fuse, relay, thermostat, and connector should be confirmed before shipment.

Forgetting pressure drop. A restrictive cooler can create hydraulic problems and extra heat. Always consider oil flow, viscosity, port size, and bypass requirements.

Mounting in a poor airflow location. A good cooler can underperform if it recirculates hot air, is blocked by panels, or is mounted where debris packs the fins quickly.

Replacing the cooler without diagnosing the heat source. Overheating can come from relief valve flow, pump wear, wrong oil viscosity, clogged filters, blocked radiator stack, low oil, or fan failure. The cooler may be part of the solution, but the heat source should be understood.

Final Buying Checklist

Before ordering a hydraulic oil cooler with fan, collect the machine model, old cooler photos, overall dimensions, core dimensions, port thread, port direction, mounting hole spacing, fan voltage or fan motor type, fan diameter, airflow direction, oil flow, target oil temperature, maximum ambient temperature, work cycle, and failure complaint. If the machine is overheating, record oil temperature trend and cooler condition before assuming the old cooler is undersized.

For replacement programs, keep approved photo sets and measurements by customer account. For retrofit projects, ask for more system data because the old cooler may not be the right reference. Elecdura supplies aftermarket hydraulic oil coolers for importers, wholesalers, distributors, and repair networks. Send OE number if available, old cooler photos, dimensions, port details, fan specification, machine application, and expected quantity so our team can help match a fan-cooled hydraulic oil cooler that fits the installation and the heat load.
