Radiator Tube-to-Header Joint Leaks: Vibration, Corrosion and Repair Scope

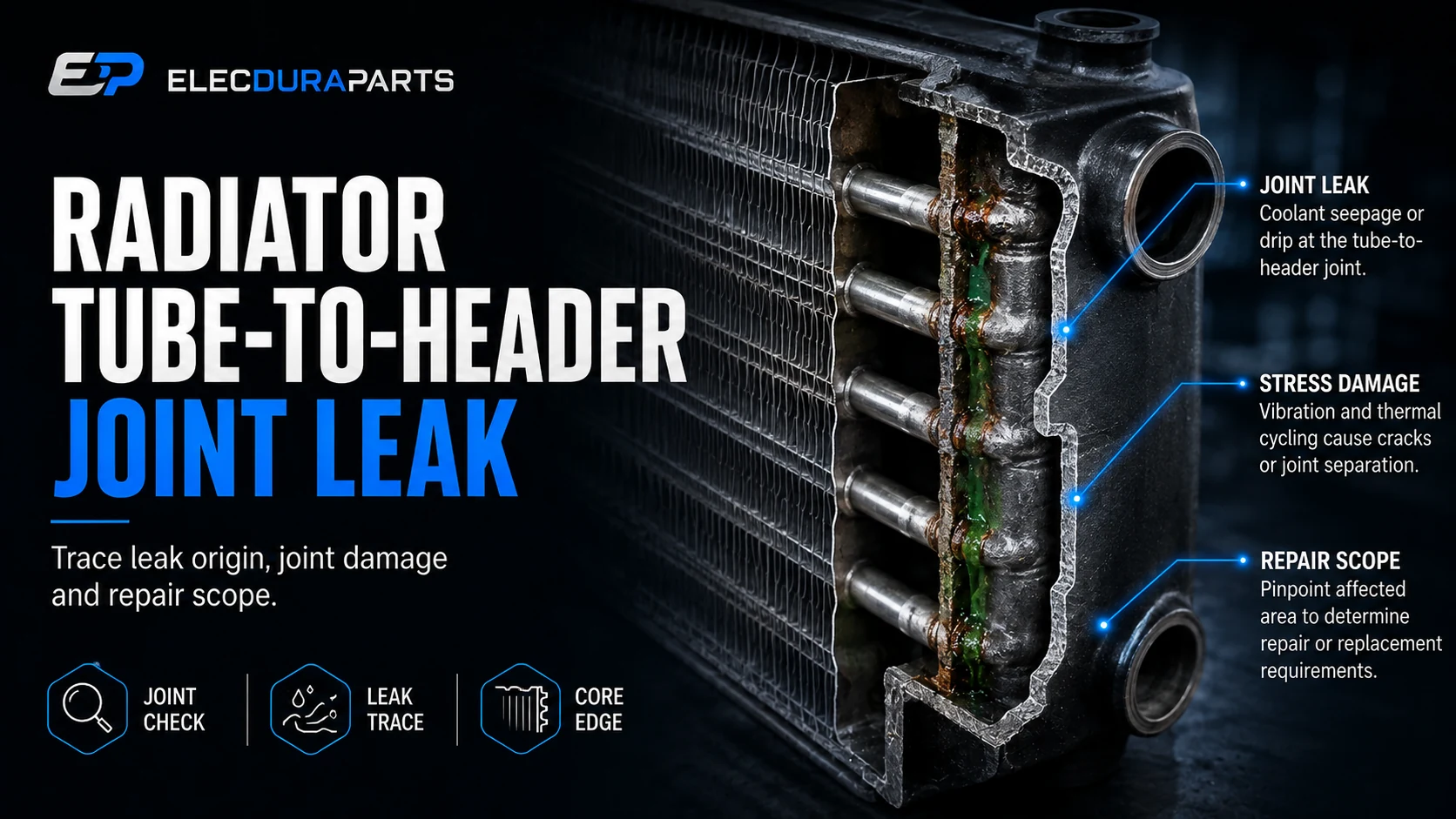

A radiator tube-to-header leak occurs where a coolant tube enters and is joined to the header plate. Depending on radiator construction, the joint may rely on brazing, soldering, mechanical expansion plus bonding, or another controlled manufacturing process. A small defect can release coolant into the fin pack, where airflow spreads it and makes the source appear to be a tank seam or damaged core face.

Failure at this joint can reflect incomplete bonding, local corrosion, tube-wall thinning, header distortion, thermal fatigue, vibration or mounting stress. The observed crack does not prove which mechanism acted first. A defensible investigation maps the first wet point, joint morphology, deposit distribution and vehicle mounting before deciding whether repair of the core is possible or a complete replacement radiator is required.

This article focuses on structural location and cause evidence. It does not repeat the separate tank-gasket decision and does not assign certainty from one photograph. Its goal is to define what must be inspected before authorizing repair, warranty or wholesale replacement.

Quick Answer: Confirm the Exact Joint Before Assigning Cause

Clean the radiator, preserve the original stain pattern and pressure-test within the component limit. Use magnification and approved dye or immersion methods where applicable to identify the first coolant release at one tube-to-header perimeter. Mark the tube row, header side and position. Then inspect neighboring joints, tube wall, braze or solder fillet, deposits, header flatness, mounts and support alignment. Replacement scope depends on whether the defect is isolated and repairable or represents distributed corrosion, fatigue or structural distortion.

Understand the Tube-to-Header Joint

The tube passes through a formed header opening

The header locates many tubes and connects them to the tank or manifold. Tube fit, hole geometry and joint material must create a continuous pressure boundary without excessively restricting the coolant passage.

Small local gaps matter

A discontinuity around only part of the tube perimeter can leak under pressure and thermal movement even when most of the fillet looks complete.

Joint construction varies by radiator type

Aluminum radiators commonly use controlled brazing, while other constructions may use soldered or mechanically expanded joints. Repair methods cannot be transferred across materials and processes.

Identify material before applying heat or filler

Unknown alloys, coatings and residual coolant affect repair. Heating the wrong assembly can damage nearby joints, fins, plastic seals or integrated coolers.

Fins do not normally form the coolant boundary

Wet fins often carry fluid from a tube or joint. Bent fins can hide the source, but moisture on a fin is not itself proof of a fin failure.

Trace against gravity and airflow

Fan discharge and road air can move coolant sideways or upward during operation. Begin at the earliest release under a controlled static test.

Preserve Evidence Before Cleaning

Photograph deposit density and direction

Record the complete radiator and close views with scale. Mark top/bottom, inlet/outlet, fan side and vehicle orientation. Deposit concentration may show repeated evaporation near the origin.

Capture neighboring joints as controls

An unaffected tube in the same region provides a useful comparison for fillet shape, surface color and deposits.

Collect loose corrosion products

Use clean tools and labeled containers if chemical or material analysis is planned. Do not mix road dirt, dried coolant and metal fragments from different locations.

Record every cleaning step

Solvents, brushes and pickling chemicals can change morphology. The radiator failure-analysis record should distinguish original evidence from prepared surfaces.

Mark the joint before disassembly or cutting

Use a durable external reference that remains visible after tanks or frames are removed. Number the tube and header position.

Plan destructive examination

A random cut may smear a fatigue surface or remove the leak path. Preserve one uncut side and an adjacent nonleaking comparison joint.

Locate the First Wet Point

Clean and dry the suspected area

Use compatible cleaning that does not block a pinhole with residue. Dry the joint and nearby tank seam, hose neck and core face.

Old coolant can wick through fins

Residual fluid may continue appearing after the source is no longer active. Confirm a new release during the controlled test.

Pressure-test within rated limits

Use the approved test medium, pressure, cap state, temperature and hold time. Observe with suitable lighting and magnification.

Never overpressure to expose a tiny leak

Excess pressure can open sound joints or crack tanks. It destroys the ability to distinguish the original defect.

Use dye, immersion or bubble methods only when appropriate

Compatible dye can clarify the release path. A removed radiator may be tested under a controlled immersion procedure if the design and equipment permit it.

Air testing requires shielding and low stored energy

Compressed gas stores energy and can eject caps or fragments. Follow the exact safety procedure and component limit.

Rule Out a Tank Crimp or Hose-Neck Leak

Tank-seam fluid can run into the tube row

A gasket leak above the header may track through fins and collect at a tube joint. Inspect the full seam while pressurized.

Use the separate seam decision

The radiator tank crimp-leak guidance evaluates gasket compression, plastic rail and tabs. Tightening the tank does not repair a true tube joint.

Hose and cap residue follow gravity

Neck cracks, clamp seepage, cap discharge and overflow fluid can wet the header. Clean the highest components first.

Check wind-driven patterns

A road-speed leak may leave a trail opposite the static gravity direction. Reproduce carefully and compare.

Core impact damage may split a tube away from the header

Stone impact, tool damage or fan contact can puncture the tube face. Fluid then travels to the joint area.

Inspect the complete tube length

Do not authorize joint repair until the same tube and adjacent fins are examined.

Vibration and Cyclic-Bending Evidence

Relative movement concentrates at rigid transitions

The tube is flexible compared with the header. Vibration or radiator movement can bend the tube repeatedly at the joint edge, initiating fatigue.

Look for fretting and polished contact

Dark fretting debris, polished tube edges or witness marks on supports can show motion. Their absence does not exclude fatigue, but their location strengthens the case.

Crack morphology can support fatigue

A progressive crack may show an initiation area, smoother propagation region and final overload section. Magnification or metallography may be needed.

Do not infer fatigue from a straight crack alone

Corrosion, residual stress and repair heat can also create linear cracks. Use multiple evidence sources.

Mounts and isolators control radiator movement

Missing rubber isolators, overtightened brackets, bent supports or incorrect locating pins can force the radiator to follow chassis distortion. Inspect the application mounting configuration.

Hoses can transmit load

Misaligned or too-short coolant hoses pull necks and tanks, transferring stress to headers and tube rows. Restore routing before replacing the core.

Corrosion and Deposit Evidence

Coolant-side corrosion begins inside the joint

Incorrect chemistry, depleted inhibitors, unsuitable water, mixed coolants or air entry can attack tube and header surfaces. External deposits may appear only after perforation.

Coolant color does not identify formulation

Use service records and chemical tests. Do not assign a brand or chemistry root cause from color alone.

External salts attack exposed header areas

Road salt, coastal exposure and retained moisture can corrode the air side. Fin packs and foam seals may trap deposits near the header.

Map internal versus external initiation

A section through the pit or crack can show which surface lost material first. Cleaning only the exterior cannot answer this.

Under-deposit attack can be highly localized

Dried coolant, flux residue, scale or environmental dirt creates differential chemistry beneath deposits. Small pits can penetrate a thin tube wall.

Preserve deposits for identification

Elemental or chemical analysis may distinguish coolant residue, chloride-rich dirt, braze flux and corrosion product.

Header Distortion and Thermal Stress

Uneven temperature creates differential expansion

Blocked tubes, uneven airflow, hot spots or rapid thermal transitions make portions of the core expand differently. The header restrains many tubes, concentrating stress at joints.

Inspect more than the leaking tube

Neighboring tube joints may show incipient cracks or distorted fillets. A single repaired point may be followed by another leak.

Header flatness reveals structural change

Measure the header or frame using a suitable fixture after disassembly where appropriate. Bowing can result from manufacturing, mounting or thermal load.

Do not flatten a header blindly

Mechanical straightening can loosen multiple joints and alter tank sealing geometry. It requires a validated core-repair process.

Core restriction can create local hot zones

Internal deposits or blocked tubes reduce coolant distribution. External fin blockage similarly changes air-side temperature.

Use thermal imaging carefully

Temperature patterns support flow diagnosis but depend on thermostat state, fan operation, emissivity and load. They do not identify a crack cause by themselves.

Manufacturing and Prior-Repair Evidence

Incomplete braze or solder coverage may be localized

A void, poor wetting, contamination or insufficient filler can leave part of the perimeter unsupported. Compare with neighboring joints and production samples.

Surface appearance may hide internal voids

Metallographic cross-sections or nondestructive methods may be needed. A continuous exterior fillet does not always prove full bond depth.

Excess repair heat alters adjacent joints

Previous soldering, brazing or torch heating can anneal material, burn coatings, distort the header or remelt nearby joints.

Look for flux, oxidation and heat tint

Document prior repair before cleaning. It changes whether a localized second repair is credible.

Batch patterns strengthen manufacturing evidence

Multiple radiators failing at the same tube row and joint position under varied applications may indicate a fixture or process issue. One return cannot establish that conclusion.

Maintain traceability

Part number, production date, lot, vehicle, mileage/hours and installation evidence should accompany returned radiator cores.

Joint Evidence Versus Cause Matrix

Repair Scope Decision

Limits of Local Core Repair

Heat spreads beyond the target joint

Fins and headers conduct heat rapidly. Local brazing or soldering may affect nearby tube joints, coatings and plastic tank gaskets.

Tank removal may be required

Some repair processes cannot be performed safely with plastic tanks and seals assembled. Disassembly then adds a separate crimp-seam repair boundary.

Blocking a tube changes cooling capacity

Some specialists isolate a damaged tube in serviceable cores. The reduction in flow and heat-transfer area must be evaluated for the exact application.

No universal number of blocked tubes is acceptable

Core size, engine load, climate, duty cycle and remaining condition determine capacity. Use validated engineering criteria.

A leak-free bench test does not prove durability

Repaired joints must survive thermal expansion and vibration. Add cycle testing where the repair standard requires it.

Warranty should match evidence

Do not promise original-life performance when material fatigue or adjacent-joint condition is unknown.

Correct Vehicle Causes Before Installation

Restore mounts and isolation

Replace missing or damaged cushions, correct bent brackets and ensure locating pins seat naturally. The radiator should not be forced into the support.

Check fan and shroud clearance

Fan contact or shroud stress can transmit vibration. Verify engine movement and the cooling fan assembly.

Correct coolant chemistry and air entry

Use the specified coolant and refill water, restore concentration and bleed air according to procedure. Find suction leaks and cap faults.

Clean the system to a defined endpoint

Residual corrosion product, oil or sealant can contaminate the new core. Use compatible cleaning and verify the result.

Inspect hoses for alignment

Hoses should meet necks without pulling. Restore clamps, supports and engine-movement allowance.

Check pressure events

Combustion gas, boiling, wrong cap or frozen coolant can overstress any replacement radiator.

Replacement Matching and Wholesale Data

Provide complete application and core configuration

Submit OE number, vehicle/equipment, year, engine, transmission, core dimensions, tube/row construction, tank layout, hose necks, cap, sensors, integrated coolers and mounts.

External size alone is insufficient

Tube geometry, fin density, header layout and material affect capacity and durability. Use application-specific radiator matching.

Include failure-forensics evidence

Send marked leak location, uncleaned and cleaned photographs, pressure-test condition, mount/isolation state, coolant history, deposit results, prior repair and neighboring-joint condition.

State the required service boundary

Clarify core only, complete radiator, tanks, cap, mounts or integrated fittings. This prevents an incomplete quotation.

Define batch and inspection controls

For wholesale radiator orders, specify sample approval, dimensional inspection, leak/pressure testing, thermal cycling where required, cleanliness, marking and packaging.

Protect headers and tube joints in transit

Packaging should support the frame rather than fins, tanks or headers. Isolate ports and prevent twisting loads.

Wholesale Quality-Control Points

Inspect joint continuity by defined sampling

Visual inspection should use consistent lighting, magnification and acceptance examples. Where risk warrants, section or use qualified nondestructive methods on samples.

Measure header and frame geometry

Flatness, squareness and mounting positions influence joint stress. Elecdura’s wholesale radiator quality plan can link geometry to pressure-test records.

Pressure-test the full core

Use controlled media, pressure, temperature and hold time. Monitor tubes, header joints, tank seams, ports and integrated circuits.

Separate leak detection from durability

A static pressure test finds current leaks. Thermal and vibration tests address repeated-load risk when specified.

Analyze returns before repair attempts

Cleaning, soldering or recrimping can erase root-cause evidence. Quarantine and document the original state first.

Look for repeated location patterns

The radiator return record should code tube row, header side, joint position, morphology, vehicle and batch.

Frequently Asked Questions

Can a radiator tube-to-header leak be repaired?

Sometimes, by a qualified core-repair process

The joint must be isolated, surrounding material sound and the repair compatible with construction. Multiple corrosion or fatigue defects favor replacement.

How is a header-joint leak different from a tank-seam leak?

The pressure boundaries are different

A tube joint joins the core tube to the metal header; a tank seam seals the tank to the header with a gasket or joint process.

Does corrosion deposit prove coolant caused the leak?

No

Deposit location, chemistry, material section and coolant history are needed. External salt or leaked coolant can leave similar color.

Can vibration crack a radiator tube at the header?

Yes

Mounting movement and cyclic bending can contribute, but fatigue morphology and vehicle evidence should support the conclusion.

What should be sent for a replacement radiator quotation?

Send application, core construction and failure evidence

Provide references, dimensions, ports, mounts, integrated features, marked leak location, test conditions, photographs, coolant/mount history and quantity.

Authorize Repair Only After the Structural Location Is Proven

A radiator tube-to-header leak is a specific structural failure, not a generic wet core. Repair authorization should follow a reproduced first wet point, verified joint construction, inspection of neighboring tubes and header geometry, and evidence for corrosion, vibration, manufacturing discontinuity or prior repair. When the defect is distributed or the structure is distorted, replacing the assembly is more defensible than applying heat to one visible point.

For matching and failure review, send OE number, vehicle or equipment application, core/tank dimensions, tube and header construction, all ports and mounts, controlled pressure-test results, marked uncleaned/cleaned photographs, joint morphology, coolant history, mount/isolation condition, prior repair and order quantity through the Elecdura contact page. Elecdura can review a replacement radiator inquiry, application fitment, wholesale quality controls and related radiator failure-analysis resources without claiming unverified root-cause certainty.
