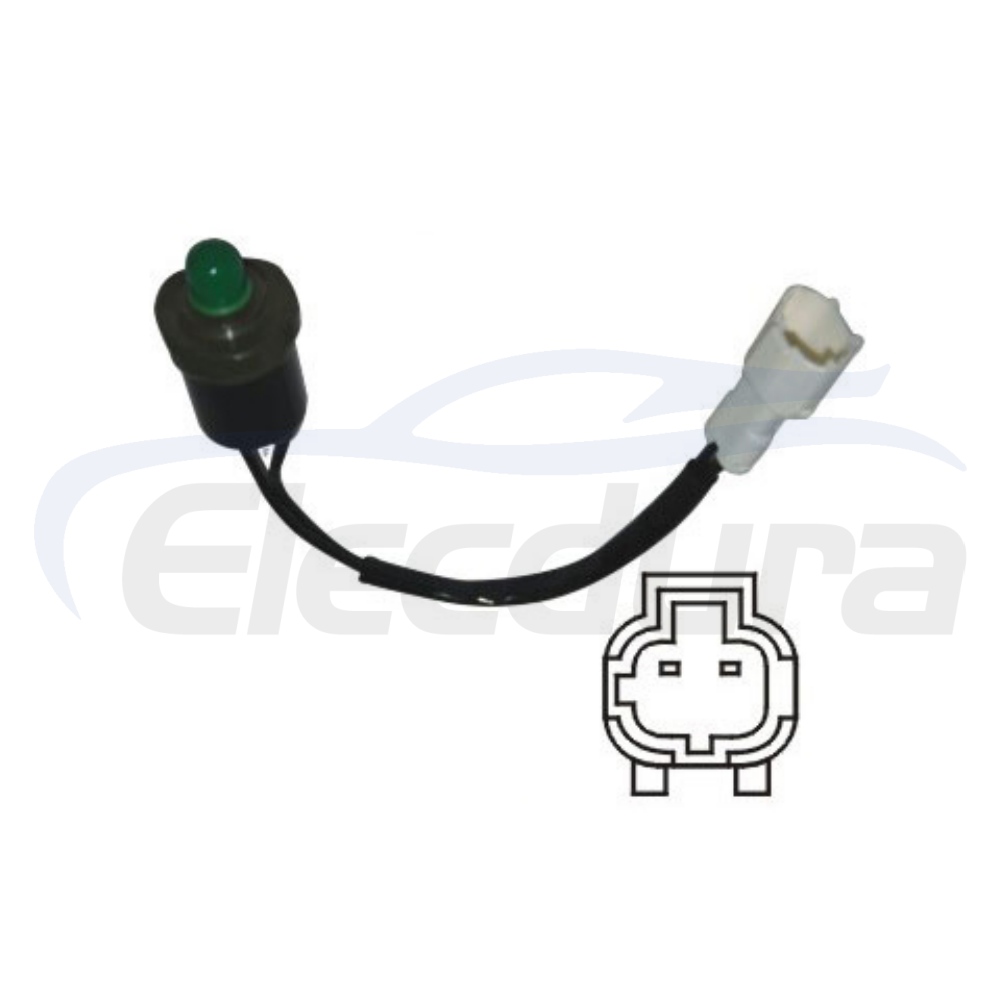

88645-14010 A/C Fan Pressure Switch Cross Reference
Brand Name | Reference Number |
Toyota OE | 88645-14010 |
Denso Style | 443440-0580 |
Santech | MT0625 |
Four Seasons | 35914 |
Omega | 29-30116 |
Global Air | SW 1000C |
Technical Specifications for 88645-14010 Wholesale
Technical Parameter | Specification Detail |
Thread Size | 3/8-24 UNF Male |
Pressure ON Point | 15.5 kg/cm² |
Pressure OFF Point | 12.5 kg/cm² |
Pressure Differential | 3.0 kg/cm² |
Body Material | High Performance Machined Aluminum |
Connector Design | OE Standard 2 Pin Connector |
Quality Standard | IATF 16949 |
88645-14010 Vehicle Application and Compatibility
Vehicle Make | Vehicle Model | Year Range |
Toyota | Supra | 1986 to 1992 |
Toyota | Cressida | 1989 to 1992 |
Toyota | Camry | 1987 to 1991 |
Toyota | Celica | 1986 to 1989 |
Toyota | 4Runner | 1989 to 1995 |
Toyota | Pickup | 1989 to 1995 |
Sourcing 88645-14010 from Professional Manufacturer FAQs
Why is the 15.5kg/cm² ON logic critical for Toyota engine bay management?
The 15.5kg/cm² threshold is designed to trigger the cooling fan precisely when the head pressure threatens system efficiency. By ensuring the fan engages at this specific point, our 88645-14010 switch prevents heat soak in the condenser and protects the compressor from high pressure fatigue. Every unit we manufacture undergoes automated pressure testing to ensure this threshold is met with 100 percent repeatability.
Can we implement private label laser marking for our 88645-14010 bulk orders?
Yes. For our professional importers and wholesale partners, we offer full private label services. We can laser etch your brand logo and the 88645-14010 OE number directly on the aluminum housing of the sensor. We also provide custom designed bulk packaging to help you build brand recognition and authority in your local automotive aftermarket.
What is the standard lead time for manufacturing a wholesale order of this switch?
Our fixed manufacturing lead time is 60 days. This duration is strictly necessary to fulfill our IATF 16949 quality protocols, which include precision diaphragm calibration and exhaustive vacuum leak testing for the 3/8-24 UNF threads. This ensures that every 88645-14010 unit you receive is of the highest professional grade.
Is this 88645-14010 switch compatible with modern R134a refrigerants?
Absolutely. While this OE number was common in the R12 era, our modern manufacturing uses internal seals and diaphragms that are fully compatible with both R12 and HFC R134a. This makes it a perfect choice for classic Toyota vehicles that have been retrofitted to modern refrigerant standards.
Do you support mixed wholesale orders for different Toyota fan switches?
Yes. We prioritize flexibility for our international distributors. You can combine the 88645-14010 with other Toyota or Honda electrical sensors to meet our 100 unit MOQ. This consolidation helps significantly reduce your per unit shipping and logistics costs for maritime or air freight.
How are the electrical terminals protected during international maritime shipping?
Each 88645-14010 switch is individually sealed in a moisture proof, anti static industrial bag. For bulk orders, we utilize reinforced export grade cartons with internal shock absorbing dividers and palletize all shipments. This protection ensures that the 2 pin terminals and the 3/8-24 UNF threads arrive in pristine condition at your warehouse.
