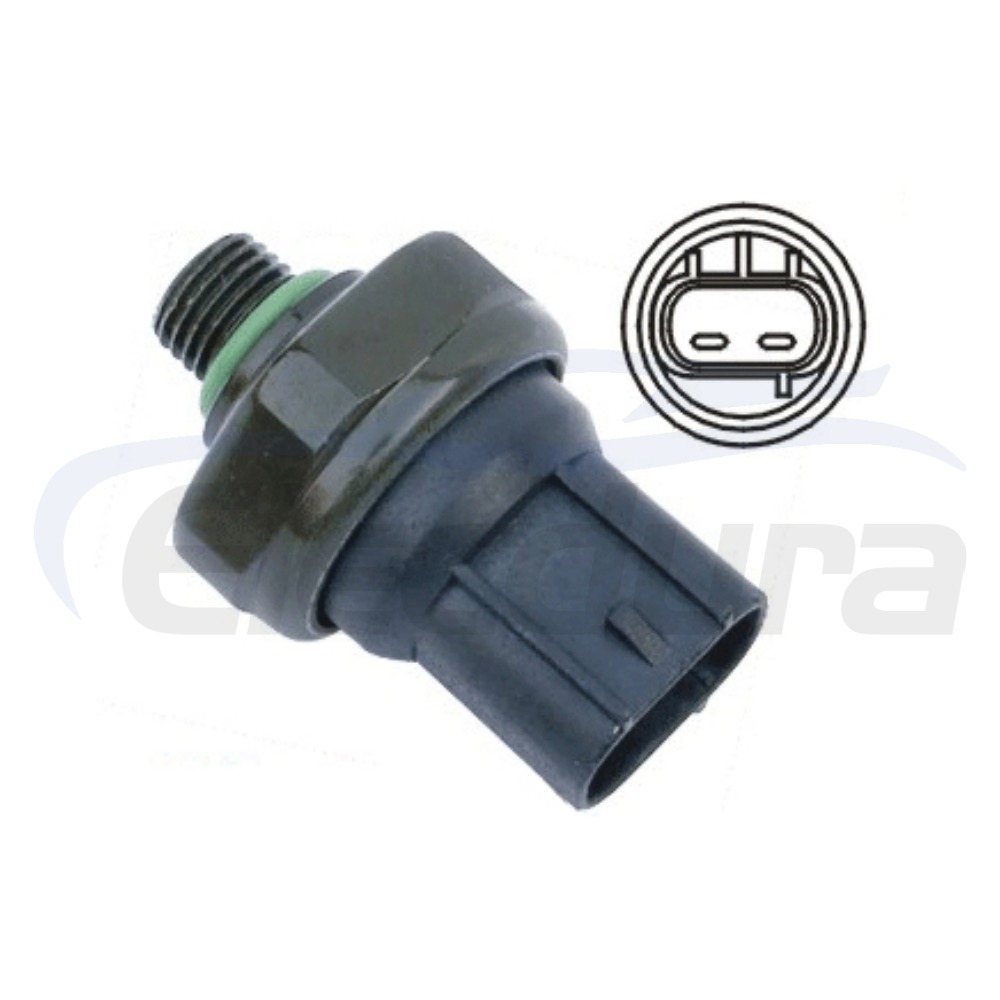

88645-10030 Toyota Pressure Switch Cross Reference & OE Numbers
Brand Name | Reference Number |
Toyota OE | 88645-10030 |
Denso Style | 443440-1660 |
Santech | MT0625 |
Four Seasons | 35914 |
Omega | 29-30116 |
Global Air | SW 1000C |
Technical Specifications for 88645-10030 Toyota Wholesale
Technical Parameter | Specification Detail |
Thread Size | 3/8-24 UNF Male |
Refrigerant Compatibility | R-12 and HFC R134a |
Standard Logic | OFF: 15.5kg/cm² / ON: 12.5kg/cm² |
Option A Logic | OFF: 14.0kg/cm² / ON: 11.5kg/cm² |
Connector Type | Denso 1660 Series Male |
Material Grade | High Performance Machined Aluminum |
Quality Standard | IATF 16949 |
88645-10030 Toyota Vehicle Application & Fitment
Vehicle Make | Vehicle Model | Year Range |
Toyota | Corona | 1992 to 1998 |
Toyota | Carina | 1992 to 1996 |
Toyota | Caldina | 1992 to 1997 |
Toyota | Camry | 1990 to 1994 |
Toyota | Celica | 1990 to 1993 |
Sourcing 88645-10030 Toyota from Professional Supplier FAQs
How does the fan control logic in the 88645-10030 prevent system overheating?
The 88645-10030 is a dedicated fan switch. When the head pressure reaches 15.5kg/cm², it closes the circuit to engage the cooling fan. Once the pressure drops to 12.5kg/cm² due to efficient heat dissipation, it opens the circuit to disengage the fan. This cycle prevents the system from reaching high pressure cut off points, ensuring continuous cabin cooling. We test every unit to ensure these differential points are maintained with 100 percent accuracy.
Can we implement private label laser marking for our 88645-10030 bulk orders?
Yes. For our top 100 global importers and professional brand owners, we offer full private label services. This includes high precision laser etching of your brand logo and the 88645-10030 OE number directly on the aluminum body of the switch. We also provide professional bulk packaging and custom box designs to help you strengthen your brand presence in the automotive HVAC aftermarket.
What is the standard lead time for wholesale manufacturing of this Toyota switch?
Our fixed manufacturing lead time is 60 days. This duration is essential to fulfill our IATF 16949 quality protocols, which include precision pressure bench calibration and vacuum leak testing for every batch. This rigorous process ensures that the 88645-10030 units you receive are ready for high volume distribution without the risk of failure.
Is this 88645-10030 switch fully compatible with modern PAG oils used in R134a?
Absolutely. We use high grade internal seals and diaphragms that are chemically resistant to both traditional mineral oils used in R12 systems and the PAG/Ester oils used in R134a systems. This prevents seal degradation and ensures a long service life, making it a reliable replacement for vehicles that have undergone refrigerant conversion.
Do you support mixed wholesale orders for different pressure options of this switch?
Yes. We offer flexibility for our international wholesale partners. You can combine the standard 15.5kg/cm² version and the 14.0kg/cm² Option A version in a single shipment to meet our 100 unit MOQ. This allows you to provide a comprehensive range of solutions for your local Toyota Corona customer base while optimizing shipping and logistics costs.
How do you ensure the electrical connectors remain pristine during international shipping?
Each 88645-10030 switch is individually sealed in a moisture proof, anti static industrial bag. For bulk orders, we utilize reinforced export grade cartons with internal shock absorbing dividers and palletize all shipments. This protection ensures that the Denso style connectors and the 3/8-24 UNF threads remain in perfect condition during long distance transport to your warehouse.
