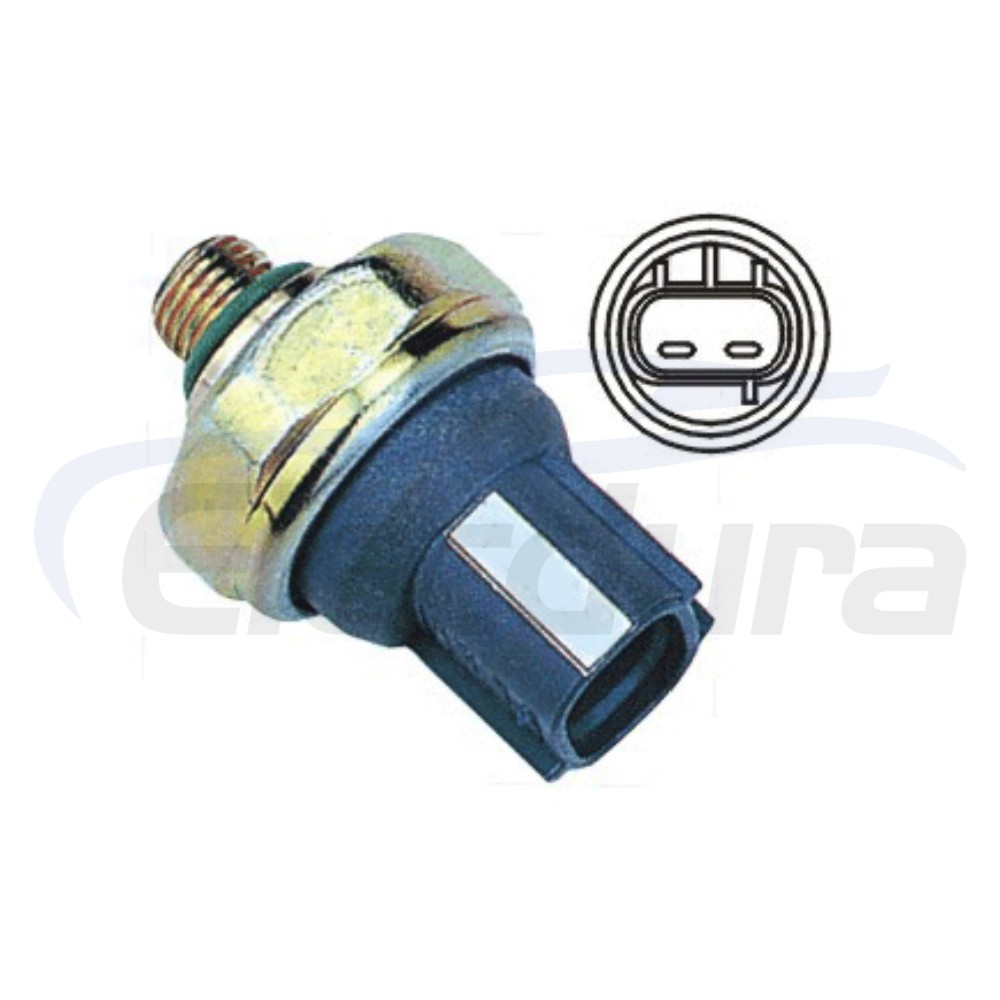

88645-22050 A/C Fan Pressure Switch Cross Reference
Brand Name | Reference Number |
Toyota OE | 88645-22050 |
Denso Style | 443440-1970 / D1970 |
Santech | MT0625 |
Four Seasons | 35914 |
Omega | 29-30116 |
Global Air | SW 1000C |
Technical Specifications for 88645-22050 Wholesale
Technical Parameter | Specification Detail |
Thread Size | 3/8-24 UNF Male |
Refrigerant Compatibility | HFC R134a Only |
Engagement Point (ON) | 15.5 kg/cm² |
Disengagement Point (OFF) | 12.5 kg/cm² |
Pressure Differential (DIFF) | 3.0 kg/cm² |
Connector Design | OE Standard 2 Pin Blade |
Quality Standard | IATF 16949 |
88645-22050 Vehicle Application and Compatibility List
Vehicle Make | Vehicle Model | Year Range |
Toyota | Camry | 1994 to 2001 |
Toyota | Corolla | 1995 to 2002 |
Toyota | RAV4 | 1996 to 2000 |
Toyota | Hilux / Surf | 1995 to 2002 |
Toyota | Land Cruiser | 1996 to 1998 |
Toyota | Avalon | 1995 to 1999 |
Sourcing 88645-22050 from Professional Manufacturer FAQs
How does the 3.0kg/cm² differential logic in the 88645-22050 benefit the vehicle?
The 3.0kg/cm² pressure differential is a critical safety buffer. It prevents the fan from rapidly cycling on and off when the system pressure is hovering near the threshold. By ensuring the fan stays engaged until the pressure drops safely to 12.5kg/cm², our 88645-22050 switch reduces wear on the fan motor and ensures stable cooling performance. We test 100 percent of our units to guarantee this differential is maintained according to OE specifications.
Can we have our company logo laser etched on these 88645-22050 switches?
Yes. For our strategic wholesale partners and professional brand owners, we offer full private label services. This includes high definition laser etching of your brand logo and the 88645-22050 part number directly on the aluminum sensor body. We also provide professional bulk packaging and custom box designs to help you strengthen your brand authority in the automotive HVAC aftermarket.
What is the standard lead time for a wholesale order of this Toyota switch?
Our fixed manufacturing lead time is 60 days. This cycle is essential to fulfill our IATF 16949 quality standards, allowing for multi stage pressure bench calibration and comprehensive vacuum leak testing for every batch. This rigorous process ensures that the 88645-22050 units delivered to your international warehouse are ready for immediate high volume distribution.
Is the internal diaphragm specifically optimized for R134a systems?
Absolutely. The 88645-22050 is a dedicated R134a component. We use high grade internal seals and diaphragms that are chemically resistant to HFC R134a refrigerant and common PAG oils. This ensures that the switch will not experience signal drift or seal degradation even under the high thermal loads common in modern Toyota engine bays.
Do you support mixed wholesale orders for the 88645-22050 and other Toyota sensors?
Yes. We encourage our wholesale partners to consolidate their orders. You can combine the 88645-22050 with other Honda or Toyota electrical sensors to meet our 100 unit MOQ. This consolidation helps significantly reduce your per unit shipping costs for international maritime or air freight.
How do you protect the 2 pin terminals and threads during international transit?
Each 88645-22050 switch is individually sealed in a moisture proof, anti static industrial bag. For bulk orders, we utilize reinforced export grade cartons with internal shock absorbing dividers and palletize all shipments. This protection ensures that the electrical terminals and the 3/8-24 UNF threads remain in pristine condition during long distance transport to your distribution center.
