A dual radiator fan is not automatically a higher-capacity replacement for a single fan. Fan count is only the most visible feature of an engineered airflow system. The radiator and A/C condenser load, shroud coverage, blade geometry, motor curve, electrical supply, control stages, noise target, and available depth all determine the original architecture. A conversion that physically bolts on can still move insufficient air, overload wiring, rotate incorrectly, or confuse the vehicle controller.
The correct decision begins with control logic. Before ordering a radiator cooling fan assembly, identify how the vehicle commands low, medium, and high airflow and which parts are integrated into the shroud.
Architecture | Typical control method | Diagnostic trap | Main matching risk |
|---|---|---|---|
Single two-speed brushed motor | Relays and resistor or separate windings | High speed works, so failed low-speed circuit is missed | Wrong resistor, terminal map, or motor winding |
Single variable-speed fan | PWM or data command to an integrated module | Direct battery test bypasses the required control electronics | Incompatible module, communication, or calibration |
Dual series/parallel brushed fans | Relay network changes two motors from series to parallel | One open motor disables low-speed operation of both | Wrong wiring topology or unequal motors |
Dual independently controlled fans | Separate relays, modules, or staged commands | An auxiliary fan may run only under specified loads | Left/right connector, blade, motor, or module mismatch |
This table describes diagnostic patterns, not a universal wiring rule. Vehicle diagrams and scan data remain authoritative. Similar-looking assemblies from the same model family can change with engine, transmission, towing package, climate option, build date, or market.
Fan count does not reveal whether speed is controlled by resistors, relay topology, PWM, or integrated modules.

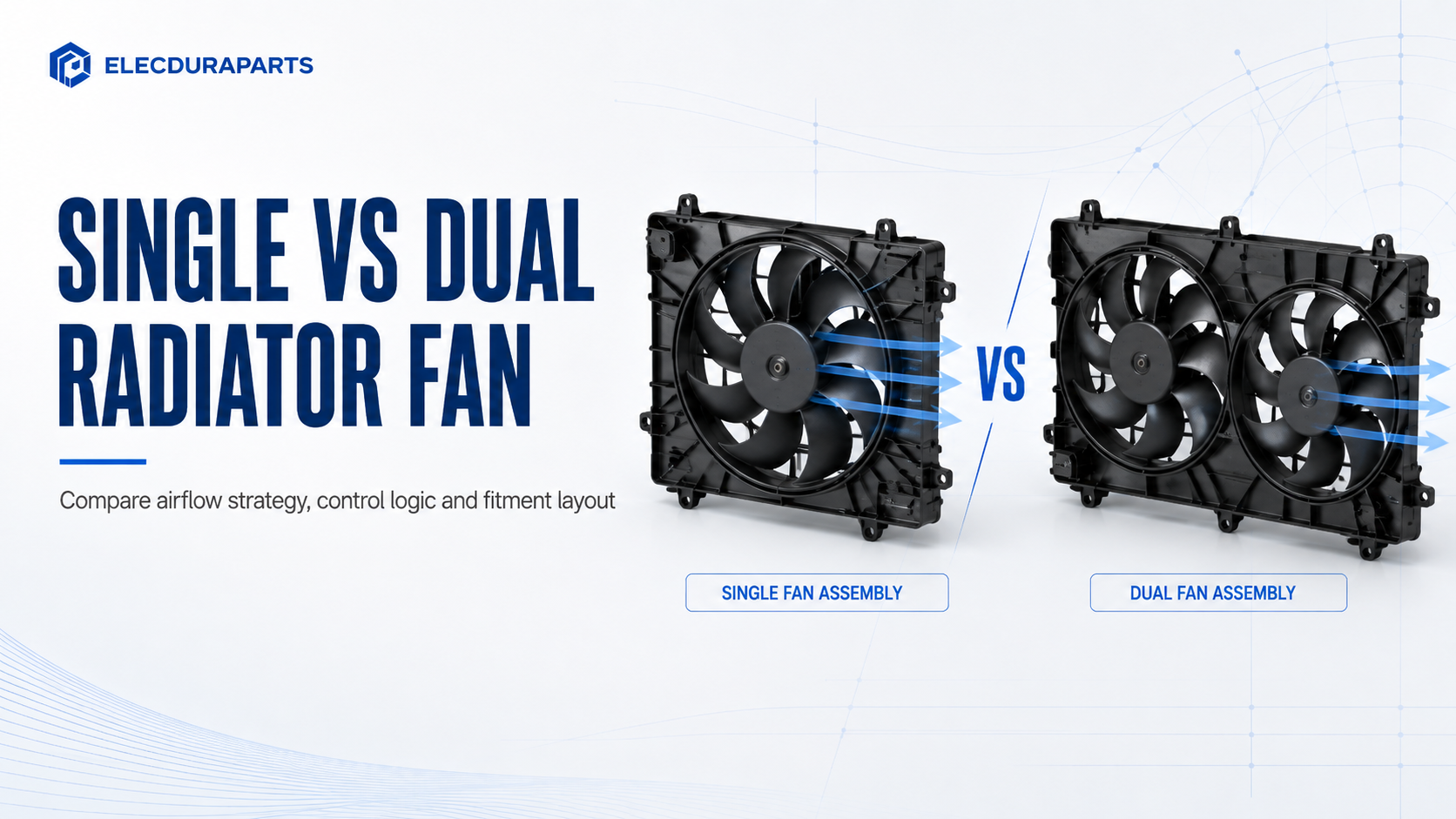

A single large fan can cover a broad circular area and provide efficient airflow through a well-sealed shroud. Two smaller fans can cover a wide, shallow cooling stack or avoid interference with engine accessories. The shroud converts the core face into a pressure chamber so air is pulled through fins rather than around the blades. Gaps, missing seals, or a cracked shroud reduce useful flow even when motor speed sounds normal.
Blade pitch, diameter, count, tip clearance, rotation, motor torque, and system resistance determine the operating point. A high free-air rating measured without a radiator does not establish installed performance. The relevant question is airflow against the resistance of the condenser, radiator, protective screens, and adjacent coolers.
The radiator core and front-end stack also affect the required pressure capability. Dense fins, stacked heat exchangers, or accumulated debris increase resistance. An assembly designed for one stack should not be transferred to another merely because its frame dimensions are close.
When the A/C compressor operates, condenser pressure can request fan airflow before engine coolant becomes hot. Some systems run one auxiliary fan first; others run two fans in series or command one variable-speed motor. A fan that appears idle during a brief cold-engine check may therefore be operating normally.
Weak cabin cooling at idle, rising high-side pressure, and normal cooling at road speed point toward inadequate stationary airflow, but not automatically toward a failed motor. Check the A/C condenser face, stack cleanliness, fan command, voltage supply, and actual direction. The A/C pressure sensor or switch may be the input that requests fan operation.
Blindly feeding battery voltage to every fan connector can damage a module or produce a misleading result. First identify whether the connector feeds a plain brushed motor, a resistor pack, an integrated controller, or a brushless motor with power, ground, and communication terminals.
In one common arrangement, both motors are connected in series for low speed, so each receives part of system voltage. Relays reconnect them in parallel for high speed. An open winding, high-resistance connector, failed relay contact, or weak ground can stop low speed or make both motors behave abnormally. Replacing the fan that does not turn may not repair the shared circuit.
Mark power sources, fuses, relay contacts, grounds, splice points, resistors, modules, and controller inputs. Command each available stage with the approved scan or test procedure. Observe which relays switch and which connectors carry load. This separates a control failure from a mechanical motor failure.
A modern fan module may receive a PWM or digital request and manage motor current internally. Full battery voltage at the main terminals does not prove that the command is present or understood. Likewise, a duty-cycle reading is not useful until its frequency, polarity, reference, and expected behavior are known.
Two modules can use a similar housing while containing different firmware, communication, current limits, or fail-safe logic. Match the complete application and reference. Elecduraparts lists the radiator fan motor range separately because motor-only and complete-assembly requests require different verification.
Record coolant temperature, A/C request, refrigerant pressure, vehicle speed, engine load, ambient temperature, and commanded fan stage. Determine whether the issue is engine overheating, weak A/C at idle, excessive noise, continuous fan operation, one inactive fan, or a stored control code. These complaints do not share one diagnostic path.
Many fans are intentionally off during cold start. Some continue after shutdown, while others run only when pressure or temperature crosses a calibrated threshold. Verify the trigger rather than waiting randomly for movement.
Look for cracked blades, rubbed tips, loose hubs, foreign material, missing seals, damaged shrouds, blocked fins, and an incorrect assembly orientation. Spin plain brushed motors only as permitted and feel for roughness or excess play. Inspect the downstream radiator and the space between heat exchangers.
If the vehicle uses a mechanical fan clutch plus an electric auxiliary fan, diagnose each device in its own load range. Guidance on fan clutch failure signs should not be transferred directly to an electric motor.
A digital meter may show near battery voltage through a corroded terminal when the motor is disconnected. Measure voltage drop while the circuit carries fan current. Test both positive and ground paths, inspect connector temperature and discoloration, and compare current behavior with service information or a known-good unit.
High current can result from bearing drag, blade contact, internal motor damage, or low voltage forcing abnormal operation. Low current may indicate worn brushes, high circuit resistance, an open winding, weak command, or a module limiting output. Current alone does not identify the failed part.
Fan circuits should be tested under load, with command, voltage drop, current, and actual speed considered together.
Confirm that the blade moves air through the cooling stack in the intended direction. A reversed motor or wrong blade can spin convincingly while working against vehicle airflow. Command each stage and watch both fans. On a dual system, note whether one starts first, both run slowly, or speed changes together.
Clearing a code or seeing a fan spin is not the endpoint. Repeat the condition that produced overheating or high condenser pressure. Confirm stable coolant temperature, expected A/C pressure, normal noise, no connector heating, and no blade contact.
Observed symptom | Possible explanations | Evidence to collect before ordering |
|---|---|---|
Only one of two fans runs with A/C | Normal staged strategy, failed motor, relay, wiring, or command | Wiring diagram, commanded stages, power/ground under load |
Both fans work only at high speed | Open low-speed resistor, series circuit, relay, or one motor path | Low-stage current path and voltage at each motor |
Fan runs continuously | Fail-safe strategy, pressure/temperature input, module or relay fault | Codes, sensor values, command, relay state |
New assembly is noisy | Wrong blade, shroud contact, poor mounting, reversed flow, imbalance | Part reference, clearance, rotation, mount alignment |
Cooling improves only at road speed | Low installed airflow, blocked stack, missing seals, weak control stage | Fan speed, air direction, stack inspection, pressure/temperature trend |
A motor-only repair can be appropriate when the exact motor is separately specified and the blade, shroud, wiring, resistor, module, and mounts remain serviceable. It requires controlled blade removal and installation, correct shaft interface, rotation, spacing, retention, and balance.
A complete unit is usually the safer scope when the shroud is cracked, blades are damaged, the control module is integrated, terminals have overheated, or the original design does not support separate service. It also reduces the risk of combining a motor and blade whose torque or rotation characteristics do not match.
Do not replace a sound module because a removable motor failed, and do not preserve a heat-damaged connector simply to reduce parts cost. Define which component failed, which interfaces were affected, and what can be validated after assembly.
OE or reliable cross-reference data should lead the match, supported by the vehicle configuration and physical inspection. Fan diameter alone is not enough.
Vehicle make, model, year, market, engine, transmission, and relevant cooling option;
OE and supersession references from the original assembly;
overall shroud width, height, depth, and mounting-hole coordinates;
single- or dual-fan layout and left/right designation;
motor type, voltage, label, separate resistor, and integrated module details;
connector housing, pin count, keying, wire positions, and harness length;
blade diameter, count, pitch, rotation, shaft interface, and installed depth;
interfaces to radiator, condenser, brackets, seals, and overflow components.
A correct fan match combines mounting geometry, connector logic, motor and blade details, and the cooling-package application.
Dual assemblies can use different blade pitches, rotations, motor outputs, connectors, or harness positions on each side. Mirroring a motor or blade can reverse airflow or alter clearance. Record both labels and photograph each connector in its installed orientation.
An assembly that sits too close can contact the radiator or engine under vibration. One that sits too far away may interfere with belts, hoses, or accessories. Shroud-to-core sealing and blade position within the venturi also affect performance.
Adjacent thermal products should be verified independently. The engine coolant thermostat range helps with thermostat sourcing, while the oil cooler category covers separate heat exchangers; neither should be used to infer the fan configuration.
Before approving a mixed fan program, separate passenger-car electric assemblies from heavy-duty mechanically driven solutions. The radiator cooling fan manufacturer overview can support supplier research, but the approved sample and application record must still define each SKU. Where coolant-control complaints overlap with fan complaints, verify the thermostat supply category independently rather than using fan replacement to compensate for poor coolant circulation.
For approved samples and production lots, confirm reference labels, dimensions, connector keying, wire routing, motor and module markings, blade clearance, rotation, and the agreed electrical/function test. A visual copy of the shroud does not prove equivalent airflow or control compatibility.
Fan blades and shroud corners need support without point loading. Harnesses should be retained away from blades and sharp edges. Modules and connectors require impact and moisture protection. Cartons should prevent stacking force from bending the shroud into the fan sweep.
Importers can discuss mixed-model quantities and inspection criteria through the Elecduraparts wholesale program. For A/C-linked applications, the automotive A/C parts category and condenser fan range help distinguish a radiator assembly from a dedicated condenser fan.
A retained sample is useful only when it is tied to a drawing, connector map, label record, and function test. Photograph wire routing and clips, measure mount coordinates and blade clearance, and record which motor occupies each side. For electrical sampling, define supply voltage, command method, test duration, rotation, abnormal noise criteria, and the current or speed information supplied by the approved specification. Do not create a generic amperage limit for unrelated motors.
A production assembly can change even while its outer shroud remains the same. Motor supplier, brush material, bearing, blade resin, module, connector terminal, wire gauge, resistor, and fastener changes may affect performance. Define which substitutions require notice and revalidation. This protects distributors from receiving a visually matching batch with different electrical or airflow behavior.
The shroud, airflow, motor load, wiring, fuses, relays, controller logic, mounting, and clearances must work together. Adding a second motor without engineering those interfaces is not a reliable upgrade.
Check the wiring diagram, fan requests, coolant temperature, and refrigerant pressure before condemning the inactive fan.
Direct power can damage or bypass integrated electronics. Identify terminals and control architecture first.
Check speed, current, direction, blade/shroud match, stack blockage, seals, radiator condition, coolant circulation, and the original load condition.
Send OE references, vehicle/engine/market, full shroud photos, dimensions and mounts, both motor labels, connector close-ups, blade diameters and rotation, resistor/module details, and quantity through the Elecduraparts contact page.
Single and dual fan assemblies can deliver the required cooling when they are correctly matched to the vehicle. The decisive differences are how airflow is produced, how speed is controlled, how the shroud seals the core, and how the electronics communicate. Diagnose every commanded stage under load, then match the OE reference, control system, connector, blades, shroud, and cooling package.
Fan-assembly-specific wholesale request: Send the OE reference, vehicle/engine/market, full shroud and connector photos, mount measurements, motor and module labels, blade diameters and rotation, control type, required quantity, and packaging or inspection requirements. Elecduraparts can evaluate the complete configuration instead of guessing from single-versus-dual appearance.
For final approval, compare the supplied unit with the original application under the specified electrical and thermal conditions. Record fit, clearance, stage response, air direction, noise, and connector temperature so later production lots have an objective release baseline.
