An A/C compressor can be sold as a bare compressor, a compressor with clutch, a compressor with oil, or as part of a repair kit that also includes the receiver drier or accumulator, expansion valve or orifice tube, seals, and sometimes other service parts. The right choice depends on why the old compressor failed. A compressor replaced after an external clutch problem is not the same repair as a compressor replaced after internal seizure and metal debris. Buying the wrong package can make a new compressor fail quickly and can also create a warranty dispute between the installer, distributor, and supplier.
This article compares an A/C compressor kit with a bare compressor for distributors, repair networks, fleet buyers, and importers. It explains which parts should usually be replaced together, when a bare compressor can be reasonable, when a kit is safer, and when the repair should become a full contamination package with condenser and flushing decisions. Elecdura supports A/C sourcing through categories such as wholesale A/C compressors, automotive air conditioning parts, A/C condensers, and electric A/C compressors when buyers provide vehicle application, failure evidence, and system details.

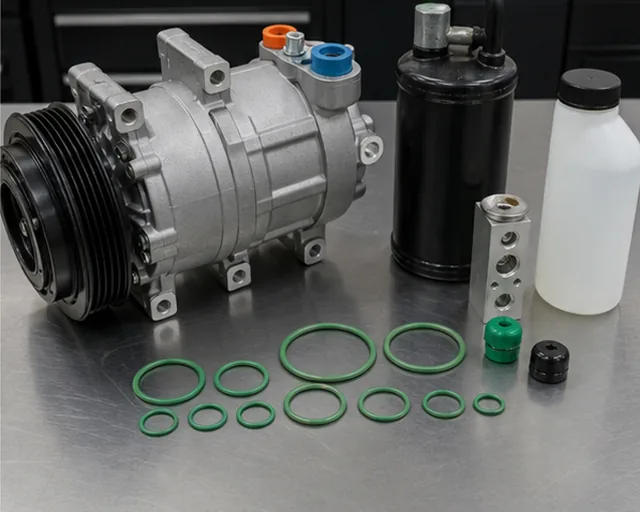

AC compressor replacement kit layout with receiver drier expansion valve O-rings and oil.
A bare compressor can be acceptable when the old compressor is being replaced for a limited, clean failure and the system has not been contaminated, opened for long, or filled with debris. An A/C compressor kit is safer when the system has been opened, the drier or accumulator is old, the expansion device may be contaminated, seals are disturbed, or the supplier warranty requires proof of related parts. A full repair package is needed when the old compressor failed internally, produced metal debris, burned oil, black sludge, or high-side contamination.
In practical terms, many professional repairs replace the compressor plus the receiver drier or accumulator, expansion valve or orifice tube, O-rings/seals, correct oil, and required flushing or cleaning. If a parallel-flow condenser is contaminated, it may need replacement because its small passages can trap debris. The decision is not "kit is always better" or "bare compressor is cheaper." The decision is whether the new compressor will be protected from moisture, debris, restriction, wrong oil charge, and old failure residue.
Buying option | Usually includes | Best use case | Main risk |
|---|---|---|---|
Bare compressor | Compressor body, sometimes clutch, sometimes oil depending on supplier | Clean replacement with no contamination and confirmed related parts | Installer reuses saturated drier, clogged metering device, old seals, or wrong oil amount |
Compressor service kit | Compressor plus drier/accumulator, expansion valve or orifice tube, O-rings, oil, caps, or seals depending on application | Standard professional replacement where the system is opened and warranty documentation matters | Kit content may not match the vehicle, rear A/C, integrated drier condenser, or oil specification |
Full contamination repair package | Compressor kit plus condenser, flush supplies, possibly hoses, evaporator decisions, and evidence record | Internal compressor failure, metal debris, black oil, restriction, or repeated compressor failure | Higher upfront cost, but skipping it can destroy the replacement compressor |
The A/C compressor depends on clean refrigerant flow, correct oil, correct charge, and a clean circuit. When a compressor fails internally, it can send metal particles, burned oil, and rubber or desiccant debris through the system. Those particles can collect in the receiver drier, accumulator, orifice tube, expansion valve, condenser, hoses, and sometimes the evaporator. Installing a new compressor into that system is like installing a clean pump into dirty plumbing.
Moisture is another problem. Receiver driers and accumulators contain desiccant to absorb moisture. When the system is opened, moisture enters. If the drier or accumulator is reused after a major repair, it may already be saturated or contaminated. Moisture can contribute to acid formation, corrosion, freezing at the metering device, poor lubrication, and premature compressor damage. That is why many service instructions and compressor warranty terms require the receiver drier or accumulator to be replaced during compressor replacement.
A bare compressor also leaves oil and sealing decisions to the installer. Some compressors ship dry, some contain oil, and some contain only shipping oil or a partial fill. The installer must know the total system oil capacity, how much oil remains in other components, what oil type is required, and whether the old compressor lost oil through leakage. Too little oil can starve the compressor. Too much oil can reduce cooling performance and raise pressures. The compressor package should make those responsibilities clear.

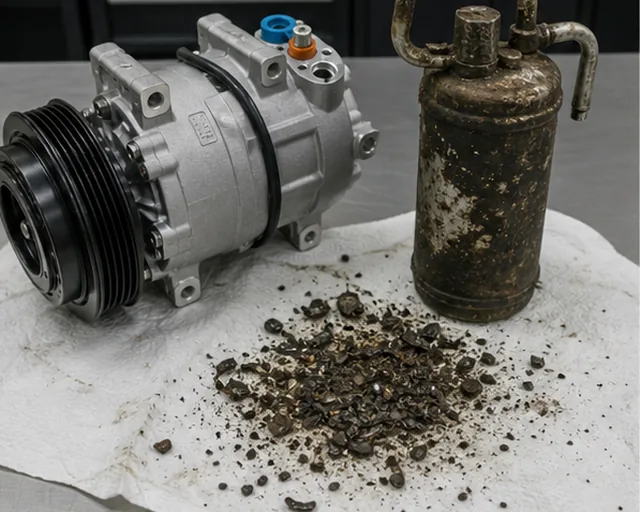

Bare AC compressor replacement risk shown with contaminated receiver drier and debris.
A bare compressor is not automatically wrong. It can be reasonable when the failure is clearly external, the rest of the system is recent and documented, and the installer will handle drier, seals, oil balance, vacuum, leak test, and recharge correctly. Examples include a compressor with a damaged mounting ear from an accident, a clutch-only issue where the compressor body is being replaced for parts availability, or a warranty replacement shortly after a complete system repair where the related parts are still new and uncontaminated.
Even in those cases, the buyer should confirm supplier warranty terms. Some compressor suppliers require proof that the drier or accumulator and expansion device were replaced, regardless of the installer’s judgment. If the customer wants warranty coverage, the buying package must satisfy the warranty documentation. A distributor who sells only the bare compressor may win the price comparison but lose the claim later if the required supporting parts are missing from the invoice.
For fleet buyers, a bare compressor can be part of a standardized repair program only if the workshop has a clear checklist. That checklist should include refrigerant recovery, contamination inspection, oil drain measurement, drier or accumulator decision, expansion device inspection or replacement, condenser flush or replacement decision, vacuum hold, leak test, charge amount, and final pressure/vent temperature readings. Without that checklist, a bare compressor becomes a gamble.
The receiver drier or accumulator is one of the most important companion parts. A receiver drier is normally used on systems with a thermal expansion valve and sits on the high-pressure side. An accumulator is normally used on orifice-tube systems and sits on the low-pressure side. Both manage moisture and debris in different system layouts. They are not interchangeable, and a kit must match the vehicle’s A/C design.
Replacement is usually recommended when the system is opened, when the compressor is replaced, when the condenser is replaced, when the old compressor failed internally, when the system was empty for a long time, or when contamination is suspected. The desiccant and filter function are there to protect the rest of the circuit. Reusing a saturated or contaminated drier can send the wrong message to the new compressor from the first start-up.
For purchasing, confirm whether the drier is separate, integrated into the condenser, built into a liquid line, or part of an accumulator assembly. Modern condensers may use a side canister with a replaceable desiccant bag or cartridge, while other designs require replacing the complete condenser. If the buyer orders a compressor kit that includes a separate receiver drier but the vehicle uses an integrated drier condenser, the kit may not solve the actual requirement.
The metering device controls refrigerant flow into the evaporator. If it is clogged, stuck, or contaminated, the compressor can run under abnormal pressure and lubrication conditions. Orifice tubes are especially useful diagnostic screens because debris on the old orifice tube can show whether the previous compressor shed metal or sludge. A thermal expansion valve can also clog or respond poorly if contamination, moisture, or debris is present.
Many compressor warranty policies require the expansion valve, orifice tube, or liquid line containing the metering device to be replaced. The reason is simple: a new compressor should not be forced to work against a restriction created by the old failure. If the metering device is not replaced and poor cooling or abnormal pressures remain, the installer may blame the compressor even though the compressor was not the root cause.
For buyers, the kit must match the metering device type. Some vehicles use a front and rear A/C system, which can require additional valves or orifice tubes. Some vehicles place the orifice tube in a liquid line that must be replaced as an assembly. Some expansion valves differ by rear A/C, engine option, or production date. The correct kit should specify what is included and what is not included.
The condenser is a key decision point. Older tube-and-fin condensers may be easier to flush in some cases, but many modern parallel-flow condensers have very small passages that trap metal debris and degraded oil. When a compressor fails catastrophically, replacing the compressor and drier while leaving a contaminated condenser can send debris into the new compressor. This is a common reason for repeat failure and denied warranty claims.
Condenser replacement is strongly considered when the old compressor seized, black oil or metal debris is present, the orifice tube shows heavy contamination, the system has repeated compressor failures, the condenser has an integrated drier that cannot be serviced properly, or flushing cannot prove a clean result. If the condenser is leaking or impact-damaged, replacement is already required. If it is clean and the failure was limited, flushing and inspection may be enough depending on the condenser design and service procedure.
From a distributor perspective, this is where a compressor kit can become a full repair package. A kit with compressor, drier, valve, and seals may not be enough for a debris failure. A package that adds a condenser, correct oil, and flush evidence may cost more, but it protects the repair. The buyer should ask the workshop for contamination photos before deciding.
A parts order cannot replace proper service procedure. Flushing is used to remove old oil, sludge, and debris from serviceable lines and components. The compressor itself is not flushed; it is replaced. Driers and accumulators are replaced, not flushed. Many parallel-flow condensers cannot be reliably cleaned after severe contamination. Evaporator flushing depends on access, design, and contamination level. Any flush solvent must be removed completely, often with dry air or nitrogen according to shop procedure, because leftover solvent can damage lubrication.
Vacuum is also essential. The system must be evacuated to remove air and moisture, and a vacuum hold helps detect leaks before charging. Charging must use the specified refrigerant type and mass. Guessing by pressure alone can overcharge or undercharge the system. After charging, the installer should record ambient temperature, vent temperature, low-side and high-side pressure, compressor operation, condenser fan operation, and any noise or cycling issue.
Oil is one of the easiest areas to mishandle. The compressor label, supplier instructions, and vehicle service data should be checked. PAG viscosity, POE use in hybrid/electric applications, and total oil quantity cannot be guessed from a generic compressor title. Electric A/C compressors require special attention to insulation and oil compatibility. If the vehicle is hybrid or EV, use the correct service procedure and do not mix oil types. A buyer sourcing electric compressor parts should treat electric A/C compressor oil and contamination requirements as a separate risk category.
Before buying an A/C compressor kit, confirm the following:
Compressor type, clutch or clutchless design, pulley grooves, voltage/control connector, mounting ears, and rear head or port layout.
Vehicle model, year, engine, market, rear A/C option, and production range.
Whether the kit includes receiver drier or accumulator, and whether the vehicle uses a separate or integrated drier.
Whether the kit includes expansion valve, orifice tube, liquid line, rear A/C valve, or only the front metering device.
Whether O-rings, sealing washers, caps, service valves, and gasket packs are included and application-specific.
Oil type, oil viscosity, oil amount supplied, and whether the compressor ships dry or pre-filled.
Whether condenser replacement is required for warranty after internal compressor failure.
What flush evidence, repair order, and related parts invoice are required for warranty.
Whether the old failure mode was leak, clutch, noise, seizure, black oil, debris, electrical control issue, or impact damage.
Whether the supplier can provide stable kit contents, labeling, carton protection, and repeat-batch consistency.
Scenario 1: Clean leak at compressor shaft seal. The compressor leaked refrigerant and oil, but there is no seizure, no metal debris, and no black sludge. A kit with compressor, drier or accumulator, O-rings, oil instructions, and possibly the expansion device can be enough. A bare compressor may be used only if the installer separately replaces required moisture-control and sealing parts.
Scenario 2: Compressor clutch failure, compressor body still clean. If the compressor internals did not fail and the system remained sealed, the repair may be narrower. However, if the system is opened to replace the compressor, many shops still replace the drier or accumulator. Warranty terms matter here. The distributor should not assume a clutch-type failure automatically allows a bare compressor.
Scenario 3: Seized compressor with metal debris. This is not a bare-compressor job. The buyer should expect drier or accumulator replacement, metering device replacement, condenser decision, flushing of serviceable parts, correct oil, vacuum, recharge, and documentation. If debris is visible at the orifice tube or in the oil, a full package is safer.
Scenario 4: Integrated receiver drier condenser. Some vehicles use a condenser with integrated drier cartridge, desiccant bag, or sealed canister. If the drier is not serviceable or the condenser is contaminated, the condenser may be part of the compressor repair package. A kit with a separate drier may be wrong for this vehicle.
Scenario 5: Hybrid or EV electric compressor. Electric compressors are sensitive to oil type, moisture, insulation, and contamination. A generic compressor kit mindset can be dangerous. Verify POE or other specified oil, high-voltage safety procedure, dedicated equipment, and service documentation. The kit should be chosen around the vehicle's high-voltage A/C requirements, not only around part shape.
For distributors, compressor kits help standardize the repair evidence. A kit can put the drier, expansion device, seals, and oil decision in the same sales conversation as the compressor. That reduces the chance that a repair shop buys only the pump and later asks why the new unit failed. It also makes warranty documentation easier because the invoice can show the required companion parts.
However, a poorly matched kit creates its own problem. If the kit includes the wrong drier, missing rear A/C valve, wrong O-ring pack, or incorrect oil, the installer loses trust. Wholesale product records should list every included part, not only "compressor kit." The record should state compressor number, drier or accumulator reference, expansion device reference, oil type, seal pack, refrigerant type, rear A/C notes, and warranty requirements. Photos of kit contents help warehouse staff and buyers avoid confusion.
Warranty policy should be presented before the sale. If the supplier requires drier, expansion device, flushing, condenser replacement in debris cases, vacuum, recharge evidence, and repair order, the buyer should know that before choosing bare compressor or kit. A low invoice price is not a bargain if the claim will be rejected later because the required companion parts were not installed.
Choose a bare compressor only when the failure is clean, the system condition is documented, the installer will replace or confirm all required companion parts separately, and warranty terms allow it. Choose an A/C compressor kit for most standard professional replacements because it keeps moisture-control, metering, sealing, oil, and warranty evidence in the same repair decision. Choose a full contamination repair package when the old compressor failed internally, sent debris through the system, blackened the oil, restricted the metering device, or contaminated a parallel-flow condenser.
Elecdura can help buyers source A/C compressors, condensers, driers, accumulators, valves, seals, and related A/C parts when the inquiry includes vehicle application, old part photos, failure mode, contamination evidence, oil requirement, and target repair standard. The right package protects the new compressor, reduces repeat claims, and gives distributors a clearer way to explain why the repair includes more than the compressor itself.
