AC Pressure Switch vs Pressure Sensor vs Trinary Switch: What Buyers Must Match Before Ordering

An A/C pressure switch, an A/C pressure sensor, and a trinary switch can sit in a similar area of the air-conditioning circuit, but they are not interchangeable parts. A pressure switch usually opens or closes a circuit at a defined pressure point. A pressure sensor sends a variable pressure signal to an ECU or HVAC control module. A trinary switch combines compressor protection with an additional fan-control function. For a buyer, the safest question is not "does it look like a pressure switch?" but "what signal does the vehicle expect, what pressure function does the part perform, and will the connector, thread, and installation position match the original system?"

This distinction matters because the wrong part can create three different failures. The compressor may not engage because the control module does not receive the expected signal. The compressor may engage without correct high-pressure protection. Or the condenser fan may fail to start at the right time, causing high head pressure, poor idle cooling, and repeated compressor claims. For distributors and repair networks sourcing automotive A/C pressure switches, the best ordering process combines OE number cross-checking, old-part photos, connector verification, pressure-function confirmation, and system-context review.

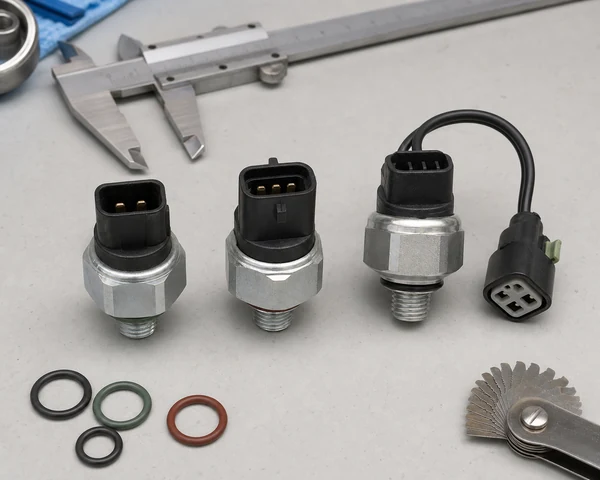

Binary switches, pressure sensors, and trinary switches can look similar, so buyers should compare connector pin count, thread, seal style, and circuit function.

The Short Difference Buyers Need First

A simple pressure switch is an on/off electrical device. It reacts when refrigerant pressure crosses a calibrated threshold. Some switches protect against low pressure only. Others protect against both low and high pressure. A pressure sensor is different: it does not simply open or close a circuit. It reports a pressure value, usually as a voltage signal, so the control module can decide when to engage the compressor, command cooling fans, reduce compressor displacement, or set a fault code. A trinary switch is normally a multi-function switch. It can protect the compressor from low pressure, protect the system from excessive high pressure, and provide a fan signal at a defined pressure range.

That means a two-pin switch cannot be assumed to replace a three-wire pressure sensor. A three-wire sensor cannot be assumed to replace a three-function mechanical trinary switch. A four-pin switch may look like a sensor to a nontechnical buyer, but the internal function can be completely different. Even when the thread and connector physically fit, the electrical logic may not match the vehicle.

Why the Same Name Causes Wrong Orders

In many aftermarket catalogs, these parts are all described with similar phrases: A/C pressure switch, refrigerant pressure switch, pressure transducer, high-pressure switch, low-pressure switch, pressure sensor, or compressor cut-off switch. The name may be useful for search, but it is not enough for ordering. A workshop may call every small threaded electrical device on the A/C line a pressure switch. A supplier catalog may group pressure sensors and switches under the same product family. A vehicle platform may change from a mechanical switch to an electronic sensor after a model-year update while the general A/C layout still looks similar.

For one-off retail sales, the mistake becomes a return. For wholesale supply, it becomes worse: mixed stock, repeated customer complaints, incorrect cross-reference tables, and slow-moving inventory. A distributor can also damage its reputation with repair shops if the shop installs a part that physically fits but does not communicate correctly with the HVAC module. For this reason, A/C pressure switch sourcing should be treated as a function-and-fitment matching task rather than a name-matching task.

The first decision is functional. Is the original part a switch or a sensor? If it is a switch, how many circuits does it control? If it is a sensor, what signal type and connector pinout does the control module expect? After that, the buyer should verify thread, sealing method, connector shape, pin count, body length, installation location, pressure range, and OE cross-reference.

How a Binary Switch Protects the Compressor

A binary pressure switch is often used to protect the compressor from unsafe operating conditions. The low-pressure side of its function prevents compressor engagement when refrigerant pressure is too low. This helps avoid running the compressor without enough refrigerant and oil circulation. The high-pressure side opens the circuit when discharge pressure becomes excessive, which may happen because of a blocked condenser, failed condenser fan, overcharge, airflow restriction, or line restriction.

For replacement sourcing, the key point is that "binary" describes function, not connector shape. A binary switch may have two terminals, but the buyer still needs to confirm the pressure settings and whether the switch is normally open or normally closed under static pressure. Some applications use a switch on the receiver drier, some on the condenser, some on the high-pressure line, and some on an accumulator or suction-side component. Installation location can affect what pressure condition the part is designed to monitor.

When a binary switch is ordered incorrectly, the compressor may never engage, may cycle too early, or may stay enabled when the system should be protected. Repair shops may assume the new switch is defective, but the real problem is often a mismatch in pressure function or wiring logic. For fleet buyers and distributors, the better process is to request OE number, old-part marking, connector photos, and system-side photos before stocking a replacement in volume.

How a Trinary Switch Adds Fan Control

A trinary switch normally performs three functions: low-pressure cut-out, high-pressure cut-out, and condenser fan control. The fan-control function is the part many buyers miss. In many retrofit, commercial vehicle, agricultural, and heavy-duty A/C systems, condenser fan operation is tied directly to refrigerant pressure. When high-side pressure rises to the fan engagement range, the trinary switch can signal the fan relay. When pressure falls, it can remove that signal.

If a trinary switch is replaced with a binary switch, the compressor protection may appear to work, but fan control may be lost. The vehicle may cool at road speed because airflow passes through the condenser while driving, but cooling can become poor at idle. High-side pressure may climb in traffic, and the system can cycle off or trigger protection. This is a common reason a repair seems correct during a quick test but fails during real operation.

Before ordering a trinary switch, buyers should confirm the number of terminals, wiring diagram, fan-control circuit, and pressure-port location. A four-terminal part is not automatically a trinary switch, and a trinary switch is not automatically compatible with every fan relay strategy. Some modern vehicles rely on an ECU, fan control module, or pulse-width-modulated fan command rather than a direct trinary switch fan circuit. When those systems are involved, an electronic pressure sensor may be required instead.

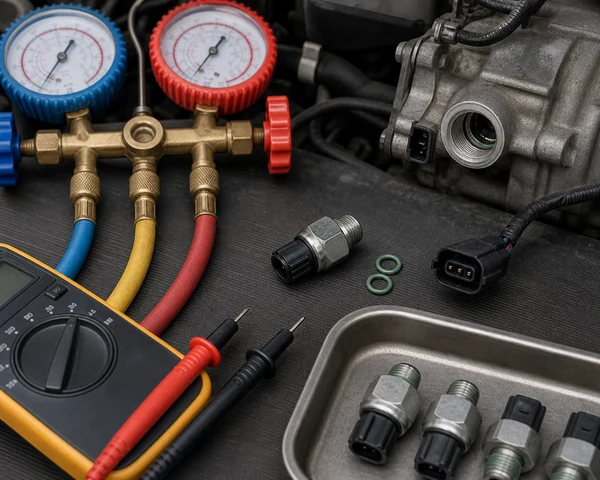

Pressure readings, connector condition, thread fit, and signal type should be checked before deciding whether a replacement switch or sensor is correct.

What Makes an Electronic Pressure Sensor Different

An electronic A/C pressure sensor is often a three-wire component. It may use a reference voltage, ground, and signal wire to send pressure information to the control module. Instead of simply opening or closing a circuit, it provides a pressure-related signal. The module then decides how to manage compressor engagement, compressor displacement, fan speed, idle compensation, and fault protection.

This is why a pressure sensor should not be replaced by a mechanical pressure switch unless the system was designed for that conversion. The connector may look similar, and the thread may install into the same service port, but the HVAC module may be waiting for a changing voltage value. If it sees no valid signal, it may disable compressor operation. On some vehicles, scan-tool data can show an implausible pressure reading even when static refrigerant pressure is physically normal.

Electronic sensors also create a different sourcing risk. A buyer may match the OE number but overlook calibration family, connector keying, or production-year variation. The same brand and model can have different sensors across engine, market, refrigerant, or control-system variants. When sourcing pressure sensors for mixed inventory, ask for the OE number, VIN or equipment model where possible, refrigerant type, connector photo, and original sensor markings.

Pressure Range Is Not Optional Information

Pressure range is one of the most important details in A/C pressure-control parts, yet it is often missing from informal buying requests. A switch designed to open at one pressure point may not protect the same way as another switch with a different setting. A fan-control point that works for one condenser and fan package may be wrong for another. A pressure sensor calibrated for one control strategy may not send the expected signal curve to another module.

For buyers, the practical rule is simple: if pressure function is unknown, do not approve bulk purchase based only on thread and connector. Ask for OE number or a verified cross-reference. If no OE number is available, collect the old part's printed markings, the vehicle or equipment model, the A/C line location, connector photos, and the wiring count. For universal systems, confirm the intended low cut-out, high cut-out, and fan engagement logic with the system builder.

Pressure range matters even more when the system has been modified. Retrofit A/C systems, engine swaps, aftermarket condenser installations, custom fans, and agricultural cab A/C conversions may use universal A/C pressure switches instead of direct OE replacements. In those cases, the buyer must match the intended circuit design rather than search for a vehicle OE number.

Thread, Port, and Seal Matching

A pressure switch or sensor can fail the job before the electrical system is even tested if the thread or seal is wrong. Common matching points include male or female thread, thread diameter, thread pitch, O-ring style, sealing shoulder, body length, and clearance around the connector. A switch installed on a receiver drier may need a shorter body than a switch installed on a high-pressure line with more clearance. A sensor installed near the condenser may need a connector angle that clears brackets and nearby hoses.

Never assume that two parts are interchangeable because both screw into an A/C line. A thread may start by hand but not seal correctly. A slightly different body length can bottom out early or leave the O-ring unsupported. A wrong sealing surface can leak after charging. For importers, these small differences become expensive when a container shipment reaches the customer and the defect is discovered only after installation.

The safest sourcing package includes a close-up photo of the thread and seal, an end view of the connector, a side view showing body height, and a photo of the original installation position. Those details, combined with OE references, help narrow the correct replacement and reduce the risk of mixing visually similar switches.

Connector and Pin Count Checks

Connector matching requires more than counting pins. Buyers should also verify the housing shape, locking tab position, terminal width, weather seal style, connector keying, and wire orientation. A two-pin connector may fit one family of switches but not another. A three-pin sensor may use a similar shell with different keying. A four-pin trinary switch may be confused with another four-terminal pressure-control part.

For repair chains, the connector issue often appears as "new part does not plug in" or "connector fits but system still does not work." For distributors, it appears as mixed returns across different vehicle applications. The fastest way to reduce that risk is to require connector photos before quotation. A single front-view connector photo can prevent many wrong shipments. When possible, include the vehicle-side connector too, especially on older vehicles where the harness may already have been repaired.

How These Parts Affect Compressor Diagnosis

A pressure-control part is often blamed when the compressor does not engage, but it is only one part of the diagnosis. Low refrigerant charge, a blown fuse, bad relay, failed clutch coil, poor ground, damaged harness, faulty HVAC module, blocked condenser, and excessive high-side pressure can create similar complaints. Replacing the switch without confirming system pressure can hide the original cause.

For example, a low-pressure switch may be open because the switch is defective, but it may also be open because the system is genuinely low on refrigerant. An electronic pressure sensor may show a low value because it is bad, but it may also be reporting the truth. A trinary switch may keep the compressor protected because the condenser fan is not moving enough air. In those cases, the pressure-control part is part of the evidence, not automatically the root cause.

That is why wholesale buyers should be cautious when customer feedback says only "compressor does not start." The next questions should be: What is the static pressure? Is the compressor commanded on? Is there voltage at the clutch or compressor control valve? Is the condenser fan operating? Does the scan tool show a plausible pressure value? Which pressure-control part is installed? These questions help decide whether the order should include a switch, sensor, compressor, condenser fan, or related A/C electrical parts.

What to Replace Together

In some jobs, replacing only the pressure switch or sensor is correct. In other jobs, the part should be quoted with related components. If the switch is mounted on a receiver drier and the drier is being replaced after the system has been open, the buyer may need both parts. If high pressure damaged the switch because the condenser was restricted, an A/C condenser or condenser fan issue should be checked. If compressor failure contaminated the system, the pressure switch is not the first priority; flushing, condenser replacement, expansion device inspection, and compressor replacement planning may be needed.

For large orders, stocking related parts can improve fill rate and reduce emergency sourcing. A distributor selling A/C pressure switches may also stock compressor kits, condenser assemblies, O-rings, receiver driers, and selected A/C compressors for high-demand applications. The exact mix depends on market, vehicle population, and repair habits. The pressure switch is a small component, but it sits at the junction of electrical control, refrigerant pressure, compressor protection, and condenser airflow.

Ordering Checklist for Importers and Distributors

Before approving a quote or production sample, collect the following details:

• OE number, aftermarket number, or original part marking.

• Vehicle model, equipment model, engine, production year, and market when available.

• Switch type: low-pressure, binary, trinary, high-pressure, or electronic pressure sensor.

• Pin count, connector shape, lock tab position, and terminal layout.

• Thread size, thread pitch, O-ring or sealing surface, and body length.

• Installation location: low side, high side, condenser, receiver drier, line, or accumulator.

• Pressure settings or signal type when available.

• Whether the part controls compressor clutch, compressor protection, fan relay, or ECU pressure reporting.

• Photos of the old part from front, side, thread, connector, and installed position.

• Expected packaging, label, cross-reference, and batch traceability requirements.

This checklist is especially important when buying for mixed markets. A European passenger vehicle, an American pickup, a Japanese truck, an agricultural tractor, and a retrofit A/C system may all use parts that are casually called pressure switches, but their control logic can differ sharply. Good matching discipline is more reliable than trusting a product name alone.

When a Universal Switch Makes Sense

A universal pressure switch can be a useful part when the system is a retrofit, custom build, aftermarket A/C kit, or older application where the original OE reference is not practical. It can also support repair networks that service multiple low-volume applications. However, universal does not mean function-free. The buyer still needs to know the thread, pressure range, number of circuits, and intended wiring logic.

For universal trinary switches, confirm how the fan circuit will be wired. The fan signal should normally control a relay or module, not carry a load beyond the switch's intended capacity. For universal binary switches, confirm whether the switch provides the desired low and high cut-out behavior. For electronic systems, a universal mechanical switch may not be appropriate at all unless the system has been designed around it.

If the buyer cannot confirm those details, the safer path is to send the old part and system photos for technical matching. OE-type and selected universal pressure-switch sourcing should be based on application evidence rather than a loose part name.

How to Prepare a Reliable Pressure Switch Inquiry

A useful pressure-switch inquiry includes OE number, product photos, connector details, thread information, and target application. When the order involves mixed A/C parts, the buyer should also review related compressor, condenser, receiver drier, and fan-control requirements so the shipment supports real repair demand rather than isolated part numbers.

For wholesale pressure-switch programs, organize parts by vehicle brand, connector family, thread type, and application category. That makes it easier to stock fast-moving items while avoiding look-alike parts that create high return rates. If you are comparing a pressure switch, pressure sensor, binary switch, or trinary switch for a new sourcing project, send old-part photos and OE references first. The right match starts with the circuit function, then the connector, thread, pressure logic, and installation context. Elecdura can review that evidence and quote the matching A/C pressure switch, pressure sensor, or related A/C repair parts for distributor orders.
