A useful incoming inspection does not simply apply power and listen. It confirms part identity and fit, secures the wheel in a guarded fixture, verifies rotation and airflow direction, measures supply voltage at the motor, current, speed, vibration, runout, noise, and connector temperature under a defined load, then records the result by batch. Acceptance limits must come from the approved sample, drawing, vehicle requirement, or supplier specification.
This guide is for workshops, distributors, quality teams, and wholesale buyers. The decision affects the reliability of related parts such as the wholesale blower motor assembly, vehicle fan systems, and A/C system. It explains how to turn a marketing or chart claim into a repeatable technical decision without inventing universal limits.
Start with component identity and the exact system specification.

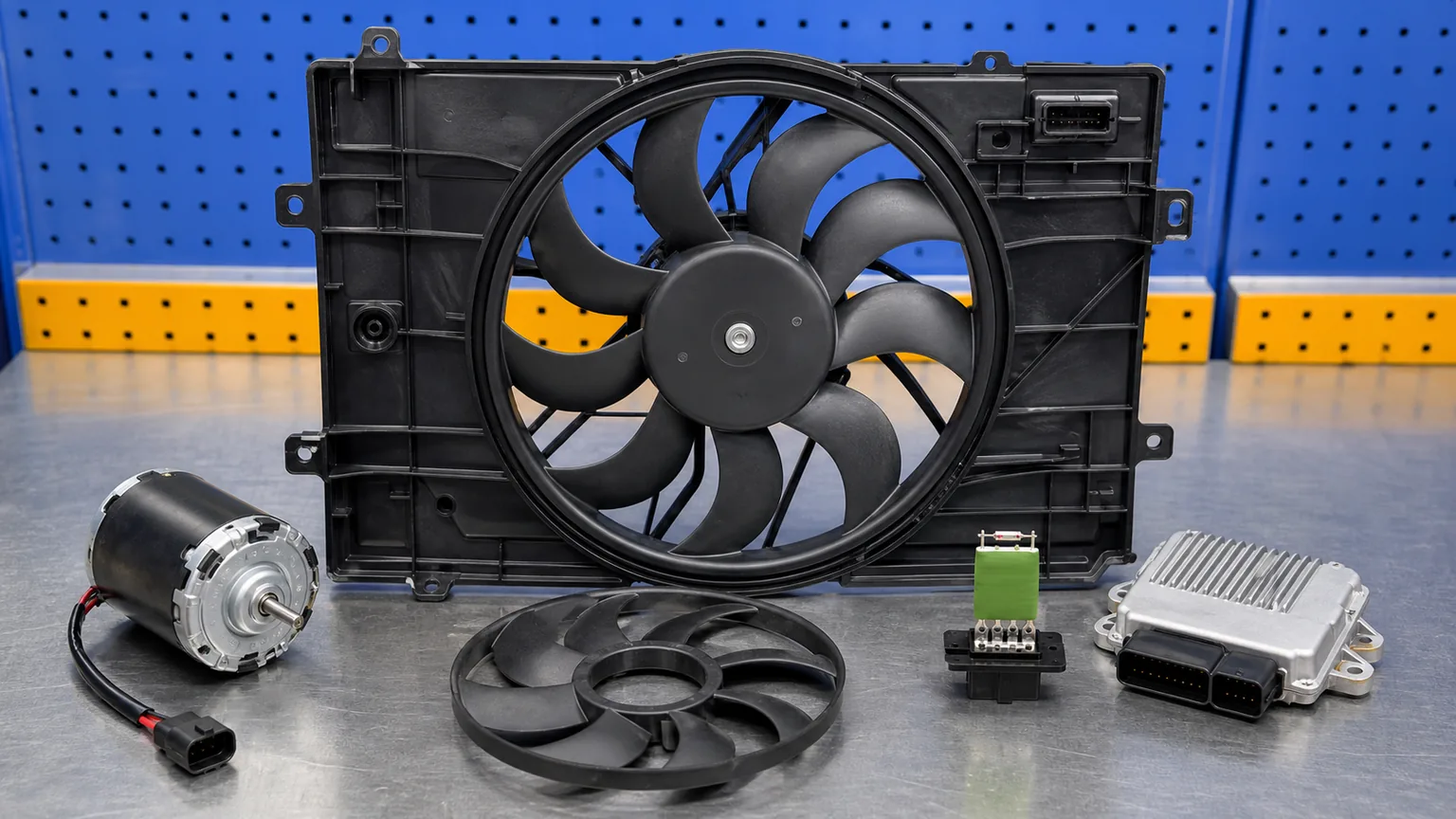

A blower listing may refer to motor only, motor with wheel, complete housing, resistor, electronic regulator, or climate-control module. Confirm the purchase-order scope before testing. Record label, manufacturer, part number, lot, date code, connector, wheel, flange, and included seals.
Compare the received unit with the approved sample and drawing. A motor can run correctly yet fail installation because the flange clocking, drain, wheel offset, connector key, or screw bosses changed.
A free blower wheel can injure people, pull in clothing, or shed a balance weight. Secure the assembly behind a guard and use a fixture that reproduces the approved mounting. For a motor-only test, use the specified wheel or controlled dynamometer; no-load current cannot represent installed duty.
The fixture should prevent air recirculation and allow repeatable restriction when airflow is part of acceptance. Record fixture ID and version so trend data remains comparable.
Mark the required rotation by viewing direction because clockwise is ambiguous from opposite sides. Briefly energize only under safe conditions, observe direction, and confirm that the wheel blade geometry moves air through the intended housing outlet.
A reversed motor may draw current and sound normal while delivering little air. Polarity reversal is not always permitted because electronic motors and controllers can be damaged.

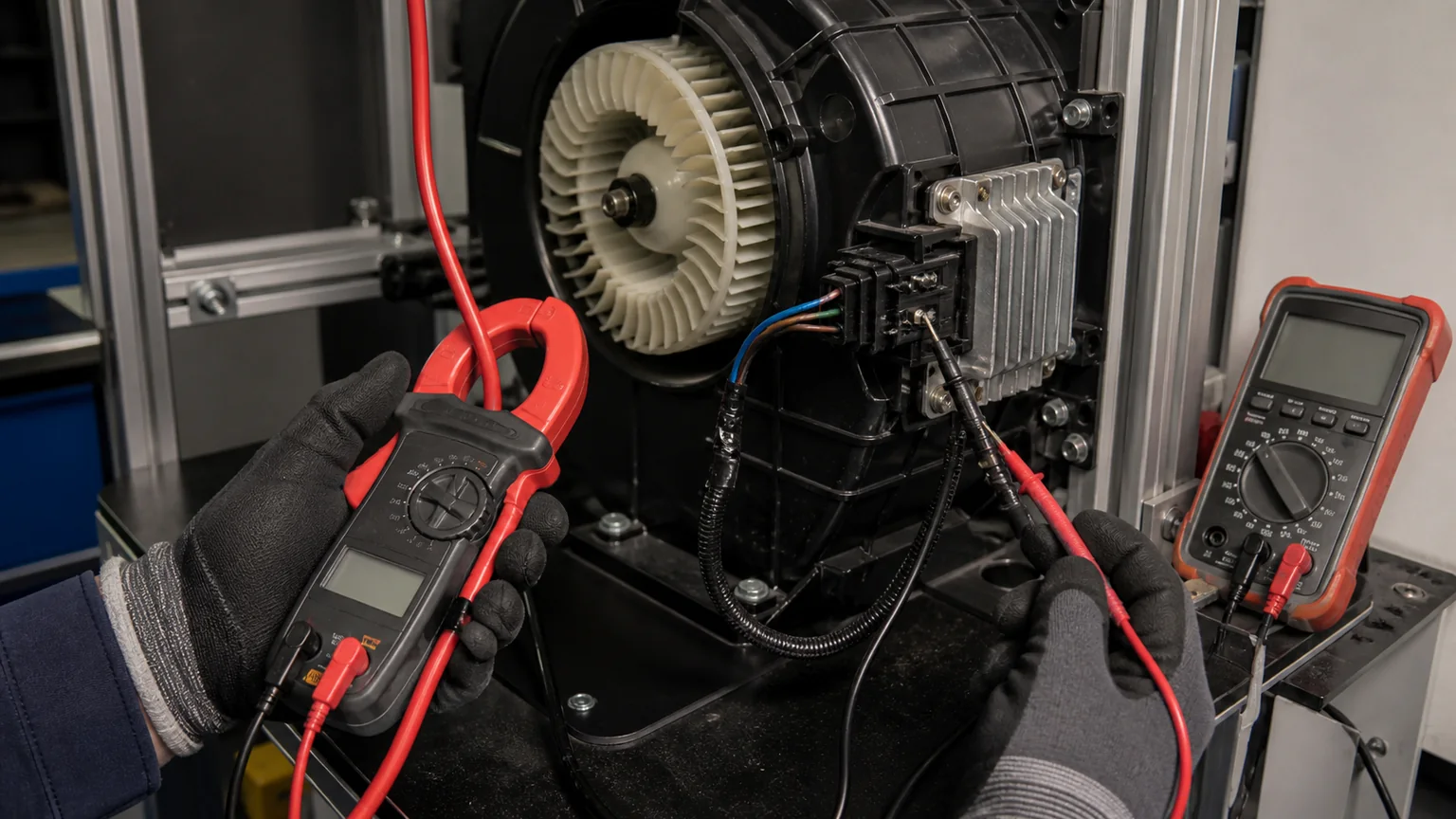

Battery or bench-supply display voltage is not the same as voltage at the connector. Measure across the motor terminals while it runs. Harness, relay, switch, resistor, controller, and connector losses can reduce speed and create heat.
Use a regulated supply and appropriately rated leads. Record voltage, ambient temperature, test duration, and control command. Without these conditions, current results cannot be compared between batches.
High current can indicate rubbing, tight bearings, wrong winding, excessive load, low voltage, or a wheel problem. Low current can indicate weak torque, wrong motor, missing load, poor connection, or electronic control behavior. Current alone is not a quality grade.
Compare current, speed, airflow or pressure, and sound at the same operating point. Establish limits from design requirements and statistically capable approved production, not one hand-picked sample.
Measurements are useful only when the method and conditions are recorded.
Inspect molded blades, hub seating, clips, balance weights, cracks, and foreign material. Measure radial and axial runout at defined datums. Imbalance can create dashboard buzz, bearing wear, and controller stress even when the motor passes a short spin.
Vibration measurement should use a fixed sensor location and bandwidth. Subjective noise checks are useful for scraping or clicking but should not replace controlled data for bulk approval.
Resistor packs create discrete speeds; electronic regulators may use PWM, LIN, or another command. Verify every intended mode, not only maximum. Confirm startup, minimum stable speed, ramp behavior, feedback where used, and fail-safe operation.
A connector that fits does not prove the pinout or protocol. Keep pin assignments, signal levels, frequency or messaging, and controller part numbers under configuration control.

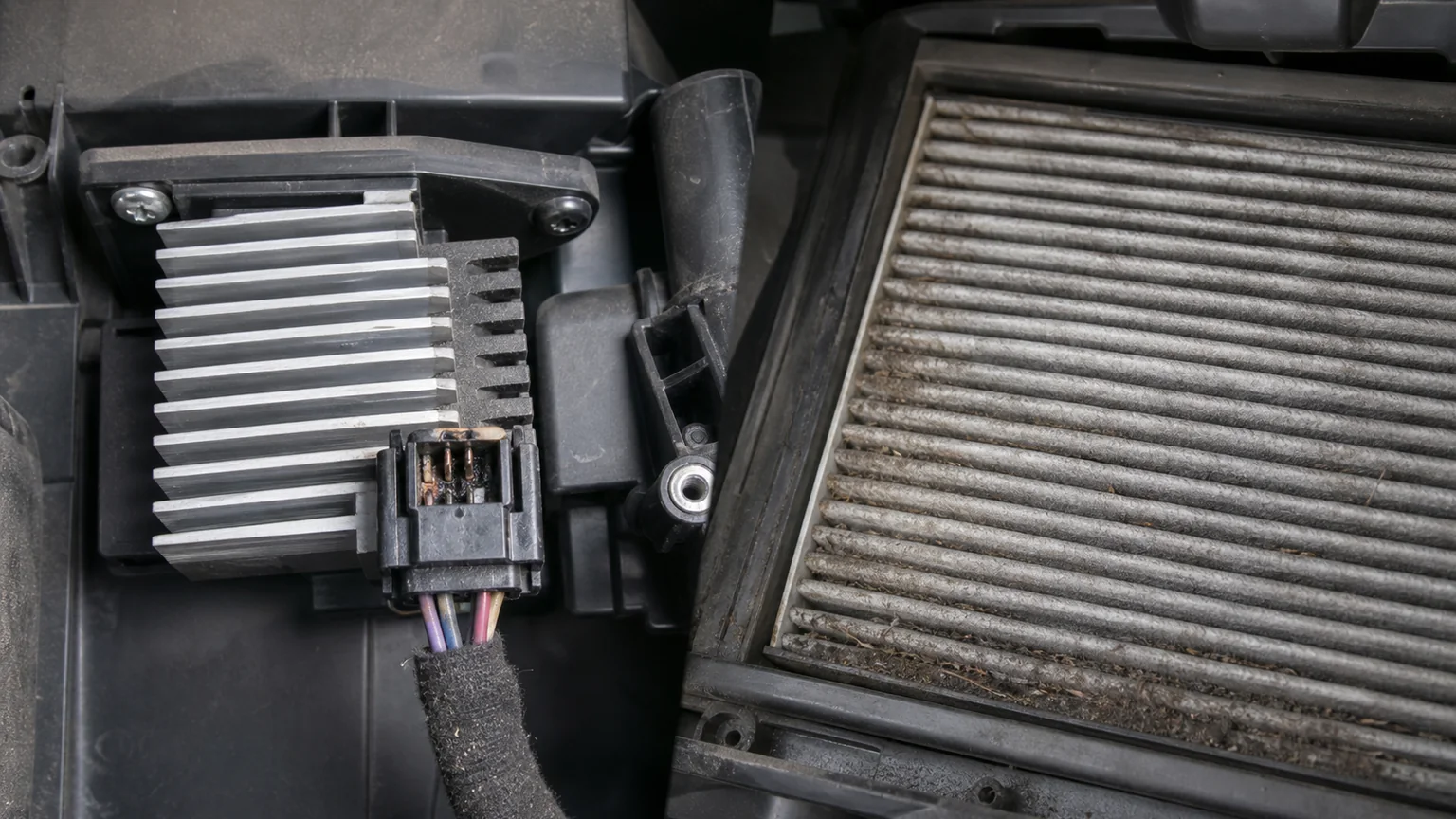

Heat can originate from high motor current, loose terminals, insufficient contact force, corrosion, poor crimping, undersized wiring, or a regulator that lacks cooling. Measure voltage drop and temperature at defined points after a controlled run.
Do not approve a new motor by connecting it to an already heat-damaged vehicle plug. Replace or repair the mating connector under the service procedure and diagnose the cause.
Many blower regulators are installed in the air stream so moving air removes heat. A blocked filter, dirty evaporator, incorrectly installed regulator, missing thermal compound, or weak motor airflow can overheat electronics.
Incoming inspection of a motor should therefore include the intended housing and controller where repeat failures are being investigated. Component tests and system tests answer different questions.
A balanced wheel can be damaged by carton pressure, dropped pallets, or an unprotected connector. Packaging should locate the flange or housing without loading blade tips. Inspect cartons from top, middle, and bottom pallet positions.
Run a post-transport sample test after packaging validation. Keep images and drop or vibration evidence for fragile assemblies.
Evidence group | Record | Why it matters |
|---|---|---|
Identity | Vehicle or machine, component numbers, revision, batch, labels | Prevents evidence from one configuration being applied to another |
Source | Publisher, document, date, revision, page or table | Makes the decision auditable when data changes |
Method | Fixture, instruments, calibration, conditioning, procedure | Separates real comparison from an uncontrolled demonstration |
Conditions | Temperatures, flows, voltage, pressure, time, fluid, control command | Allows results to be reproduced and compared |
Result | Raw readings, calculated values, observations, uncertainty | Shows what was measured rather than only pass or fail |
Acceptance | Requirement source, limit, disposition, approver | Stops limits being invented after a result is known |
Change control | Material, process, plant, tooling, firmware, packaging | Protects repeat orders after initial approval |
Confirm purchase-order scope, part number, application, lot, and approved revision.
Inspect label, housing, flange, connector, wheel, clips, seals, and packaging.
Measure critical dimensions, wheel offset, runout, and connector keying.
Mount the unit in the approved guarded fixture.
Set and record supply voltage, ambient conditions, restriction, and control command.
Verify rotation and airflow direction.
Measure startup and stabilized current, speed, airflow or pressure, vibration, and noise.
Run all required speed or communication modes.
Measure motor, terminal, connector, regulator, and nearby-air temperatures at the defined time.
Record results by batch, quarantine failures, and retain samples for root-cause analysis.
The workflow deliberately separates identification, bench evidence, and installed-system confirmation. A component can pass one layer and fail another. Record deviations instead of quietly adjusting the setup until a sample passes. If the product or application changes, decide which approvals must be repeated.
Retain labels, test records, and batch evidence for approval and warranty review.
State the approved component identity, application scope, controlled technical properties, test methods, sampling, records, packaging, shelf or storage controls where relevant, labeling, warranty evidence, and change notification. Classify requirements as mandatory, informational, or subject to sample approval. This prevents a supplier from treating every data request as an acceptance limit.
For private-label programs, link the sales part number to the actual manufacturer and revision. Require written notice before changes to critical material, geometry, formulation, motor or controller, tooling, plant, sub-supplier, test method, or packaging. Keep a retained sample or complete golden-sample record and periodically compare production data.
Price should be evaluated after technical alignment. Include failure investigation, returns handling, documentation, lead time, packaging damage, and field labor in total cost. An apparently cheaper product is not cheaper when its identity or evidence is ambiguous.
Running an unguarded loose blower wheel
Comparing current at different voltages
Calling clockwise without stating viewing direction
Testing a motor with no representative wheel or restriction
Ignoring connector voltage drop and terminal fit
Approving maximum speed while lower speeds fail
Using subjective noise as the only balance test
Allowing packaging to load the wheel blades
Most of these mistakes share one cause: a convenient proxy is substituted for the real requirement. A label, one reading, or a physical resemblance can narrow the search, but it cannot prove the complete application. Use stop rules when information conflicts or when a safety-critical condition is not understood.
Do not immediately adjust the approved specification or replace the same component again. Reconfirm identity, installation, fluid or electrical preparation, airflow, contamination, connectors, hoses, sensors, controls, and the original failure cause. Compare the observed symptom with the pre-installation and commissioning records. A system-level fault can make a correct new component appear defective.
Preserve evidence before disassembly: labels, fault codes, operating conditions, pressures, temperatures, voltage, current, sound or vibration, leakage location, recovered fluid, and photographs. Stop operation when continuing could create damage or safety risk. Follow the vehicle or equipment maker's procedure and the supplier's warranty instructions.
There is no universal value. It depends on voltage, motor, wheel, housing restriction, speed command, temperature, and design. Use the vehicle or supplier requirement and approved-sample data under defined conditions.
No. It may move very little air and overload the system. Verify viewed rotation, wheel geometry, polarity or control, and actual airflow direction.
Possible causes include high current, loose or corroded terminals, poor crimping, voltage drop, undersized wiring, or regulator heat. Inspect both halves and measure under load.
The production process should control balance; incoming inspection normally samples runout and vibration based on risk and supplier performance. New or changed suppliers deserve tighter sampling.
Yes when the assembly includes it or repeat failures involve control and heat. Verify airflow cooling, installation interface, current, commands, and connector temperature together.
Inspecting every characteristic on every blower is rarely economical, while testing one unit can miss mixed production. Segment checks by risk. Identity, label, connector, visible wheel damage, packaging, and obvious rotation marking may be checked broadly. Dimensional, electrical, vibration, airflow, temperature, and endurance tests can use justified samples tied to supplier history, lot size, change status, and failure consequence.
New suppliers, first production after tooling, design revisions, plant transfers, motor or controller substitutions, packaging changes, and recent field failures require tightened inspection. Stable suppliers with capable data may move to reduced sampling, but periodic verification remains necessary. Define escalation: one failure may trigger additional samples, quarantine, supplier review, or full-lot screening depending on the characteristic.
Select units from different cartons and pallet positions. Record selection before opening so damaged packaging cannot be quietly avoided. If a lot contains multiple date codes or factories, treat them as separate populations. Retain test units until release and mark them so they cannot be sold as untouched stock.
First inspect without power. Confirm the wheel turns without contact, the shaft has no abnormal play, fasteners and clips are present, and connector terminals are aligned. Measure flange and wheel datums with the part supported as installed. Do not press on blades to make a dimension pass. Photograph the unit and note balance weights.
Mount it in the guarded fixture and connect appropriately rated wiring, fuse protection, control, and instruments. Set the specified voltage at the motor terminals. Briefly verify rotation and airflow direction. Run defined operating points from low to high command while recording startup and stabilized current, speed, airflow or pressure, vibration, sound, and voltage. Allow stabilization before temperature readings.
Place thermal sensors consistently at the motor housing, power terminals, connector body, regulator heat sink if present, and inlet air. Measure voltage drop across each connection under load. Infrared images can locate hot spots, but emissivity and angle affect readings; validated contact measurements should govern acceptance. Stop if any temperature becomes unsafe.
After the run, inspect for odor, discoloration, melted plastic, loosened wheel, contact marks, bearing roughness, and terminal movement. Repeat startup while hot if required. Save raw data, not only pass/fail. Trend current, vibration, and connector temperature by lot; gradual drift can reveal process change before returns rise.
Check supply voltage, wheel rubbing, tight bearings, incorrect winding, wrong wheel or housing restriction, and controller operation. Report voltage at the motor during the event.
Verify rotation, blade orientation, wheel-to-housing clearance, recirculation, blocked filter or evaporator, and the measurement setup. An electrical pass does not prove useful airflow.
Inspect terminal retention, contact force, crimp, corrosion, wire size, controller joints, and voltage drop while moving the harness safely. Heat can worsen resistance and create a cycle that a short cold test misses.
Check installation preload, missing foam or seals, dashboard resonance, foreign material, housing contact, and fixture stiffness. The component may excite a vehicle resonance even when free-running sound seems acceptable.
For a failed lot, provide part and batch identity, sampling, fixture, conditions, instruments, raw readings, photographs, video or sound, failure location, and comparison with the approved sample. Preserve failed pieces. Ask for stock containment, root cause, corrective action, verification, and the first corrected lot.
Do not accept “tested okay” from a different voltage or unguarded free-spin demonstration. Repeat the buyer's defined operating point or agree a technically equivalent method. If the root cause is vehicle wiring or a mating connector, update application guidance instead of forcing the motor supplier to solve a separate defect.
A concise report should capture purchase order, supplier, manufacturer, part number, lot and date code, application, sample selection, fixture and revision, supply voltage at the motor, control mode, restriction, ambient and run time. Record direction by viewing side, startup and stable current, speed, airflow or pressure, runout, vibration, sound observation, connector voltage drop, component temperatures, dimensions, photographs, and disposition.
Add instrument identities and calibration status. When a result fails, record the moment and stop condition rather than retesting until it passes. The report should link to the approved sample and any supplier deviation. These fields allow a later warranty team to distinguish a motor defect from fixture, wiring, control, packaging, or vehicle-system causes.
A useful incoming inspection does not simply apply power and listen. It confirms part identity and fit, secures the wheel in a guarded fixture, verifies rotation and airflow direction, measures supply voltage at the motor, current, speed, vibration, runout, noise, and connector temperature under a defined load, then records the result by batch. Acceptance limits must come from the approved sample, drawing, vehicle requirement, or supplier specification. Build the decision around identifiable parts, comparable conditions, controlled methods, and retained evidence. That approach reduces wrong-part returns and gives suppliers a fair, reproducible target.
For wholesale matching, send Elecdura the part numbers, complete application, labels, photographs, required quantity, destination, and the technical evidence already available. Clear inputs shorten the route from candidate to approved sample and protect every repeat order.
Use the same discipline when inspecting replacement resistors or electronic regulators. Verify the approved motor load, cooling airflow, terminal condition, heat-sink contact, commands, and vehicle harness. A controller that overheats with a high-current motor may be the first visible failure, but replacing it alone will not remove the mechanical or electrical cause.
