Heavy-duty cooling stack problems can usually be narrowed by the symptom pattern. If the A/C is warm at idle but engine temperature is stable, inspect condenser airflow, fan operation, and condenser blockage first. If engine coolant temperature rises on climbs or under load, inspect the radiator, fan, shroud, and coolant-side heat rejection. If boost is low, black smoke appears, or exhaust temperature rises under load, inspect the charge air cooler and turbo piping. If several temperatures rise together at low speed, the fan, shroud, debris blockage, or stacked heat exchanger airflow path may be the shared cause.

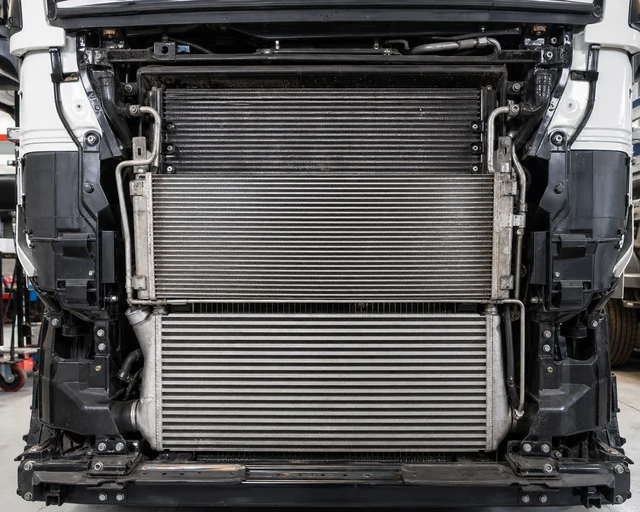

A heavy-duty cooling stack must be diagnosed as a system because radiator, condenser, charge air cooler, and fan airflow affect each other.
For fleet buyers, distributors, and repair networks, the goal is to avoid replacing the most visible heat exchanger before the failure pattern is understood. A heavy-duty front stack may include a radiator, A/C condenser, charge air cooler, fan assembly, shroud, grille, debris screen, and air seals. A blocked front layer can make the rear layer look weak. A poor fan can make several parts appear defective. A wrong replacement can fit the frame but change port angles, mounting height, airflow gap, or hose routing.
Symptom pattern | Most likely area | First checks |
|---|---|---|
A/C warm at idle, improves at road speed, engine temperature normal | A/C condenser airflow or fan control | Condenser face, fan speed, shroud, debris, condenser port/bracket damage |
Engine overheats under load or long climbs | Radiator heat rejection or fan airflow | Radiator face, coolant-side restriction, fan clutch/electric fan, shroud, grille blockage |
Low boost, black smoke, high exhaust temperature | Charge air cooler or turbo piping | CAC pressure test, boots, clamps, tank seams, tube joints, pipe alignment |
Several heat complaints happen together at low speed | Shared airflow problem | Fan, shroud, air seals, stacked debris, blocked layers, recirculated hot air |
Problem appears after front-end repair | Stack assembly or wrong replacement fit | Mounting height, port angle, bracket position, shroud gap, hose and pipe routing |
This first-screen separation is useful because each component fails in a different way. A condenser problem usually shows as poor cabin cooling and high-side pressure behavior. A radiator problem shows as engine heat control. A charge air cooler problem shows as boost-air performance. A fan or shroud problem can make all three worse.
The radiator controls engine coolant temperature. The A/C condenser rejects heat from the refrigerant circuit. They often sit near each other in the front stack, so airflow problems can affect both, but the symptoms are different. A radiator-side issue usually appears as rising engine temperature, coolant loss, pressure cap concerns, restricted coolant flow, or poor heat rejection under load. A condenser-side issue appears as weak A/C performance, especially at idle or in slow traffic, while the engine may still run at normal temperature.
Physical inspection should compare the front face and the rear face. A condenser can be blocked by insects, dirt, or bent fins before air reaches the radiator. A radiator can be restricted internally even when the condenser looks clean. If the A/C is warm but engine temperature is controlled, do not replace the radiator first. If engine temperature rises but the A/C symptom is secondary, do not stop at the condenser.
For category-specific matching, buyers can review AC Condenser specifications when the complaint points to condenser size, port direction, receiver/drier bracket layout, or mounting differences. When engine temperature is the main concern, Automotive Radiator matching should focus on core size, tank design, hose position, cap/neck layout, and mounting points.
A charge air cooler problem is usually tied to boost-air behavior rather than coolant temperature or cabin cooling. Low boost, black smoke, whistle noise under load, high exhaust temperature, or poor pulling power can point toward a CAC leak or restriction. A visual inspection may find oil staining around tank seams, split boots, loose clamps, rubbed pipes, or road-debris punctures.
Pressure testing is the practical confirmation method. Seal the CAC inlet and outlet with proper adapters, apply controlled pressure according to the shop procedure, and use bubble solution at tube joints, tank seams, core face, inlet/outlet necks, and boot connections. If the CAC leaks, replacement is justified. If only a boot or clamp leaks, replacing the cooler will not solve the issue.
Buyers can use the Charge Air Cooler category when the failure evidence points to boost-air leakage, core damage, tank cracks, or CAC fitment. The RFQ should include core size, inlet/outlet diameter, port direction, bracket layout, truck or engine application, and pressure-test evidence.

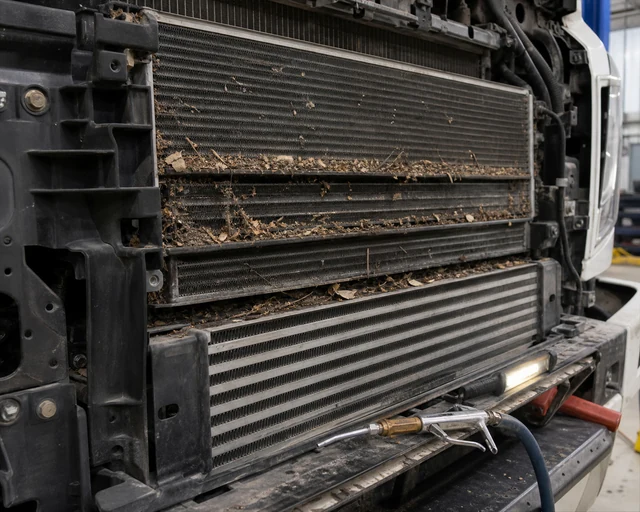

Debris between heat exchanger layers can cause overheating or weak A/C even when no individual core has failed.
A heavy-duty cooling stack works as an airflow system. Air may pass through the grille, condenser, charge air cooler, radiator, fan shroud, and engine bay. If one layer is packed with debris, the downstream layers receive less air. If air seals are missing, the fan can pull air around the stack instead of through it. If the stack spacing changes after repair, air may recirculate or bypass the core faces.
Inspect between layers, not only the front surface. Dirt can hide between heat exchangers. Fins can be folded on the rear side. A debris screen can look clean from outside while the stack behind it is blocked. A good inspection uses light, mirror or camera access, and before/after cleaning photos.
For fleet programs, cleaning intervals should match the operating environment. Construction, agriculture, mining, waste collection, and off-road service need more frequent stack checks than highway-only use. A correct replacement part will still underperform if the airflow path remains blocked.

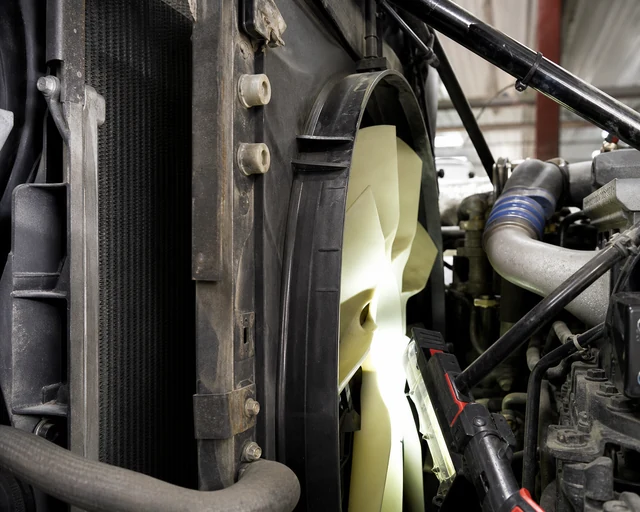

Fan clutch, blade clearance, and shroud condition should be checked before replacing expensive cooling stack components.
The fan and shroud decide how much air moves through the stack at idle, slow speed, and high-load low-road-speed operation. If the fan is weak, incorrectly controlled, damaged, or poorly shrouded, several components can look defective at the same time. A condenser may not reject heat. A radiator may run hotter. A charge air cooler may have higher outlet temperature.
Check fan speed, fan clutch engagement or electric fan command, blade condition, shroud position, air seals, and whether the fan is pulling through the correct area of the stack. A missing shroud gap or broken seal can reduce airflow even when the fan is spinning. A fan that works at road speed but not at idle can explain why symptoms disappear once the vehicle moves.
When diagnosis points to airflow hardware, Radiator Fan matching should verify voltage, connector, blade diameter, shroud fit, mounting points, and airflow direction. For mechanical fan systems, also confirm clutch engagement behavior and fan-to-shroud clearance.
Cleaning is appropriate when the problem is external debris and the heat exchanger is not leaking, cracked, or internally restricted. A controlled cleaning process should document the before condition, remove debris carefully, protect fins from damage, and retest the vehicle under the original complaint condition. If cleaning restores performance, replacement may not be needed immediately.
Replacement becomes more defensible when a component leaks, has crushed or corroded tubes, damaged tanks, broken mounts, wrong port layout, or repeated blockage that cannot be controlled by service. Replacement is also justified when a pressure test confirms CAC leakage or when condenser or radiator damage changes physical fit and airflow.
For B2B buyers, the cleaning-versus-replacement decision should include downtime cost. If the vehicle is part of a fleet route, a recurring stack problem may justify replacement sooner than a one-time dirty-core complaint. The repair file should state why cleaning, repair, or replacement was chosen.
Ordering should follow the diagnosed component. For a radiator, collect tank design, core size, hose positions, cap/neck layout, mounting points, and application data. For a condenser, collect core size, port angle, fitting type, drier or bracket layout, pressure switch ports where applicable, and mounting points. For a charge air cooler, collect inlet/outlet diameter, tank design, pressure-test evidence, and bracket layout. For a fan assembly, collect voltage, connector, blade diameter, shroud size, and mounting pattern.
Do not ask the supplier for a generic "cooling stack part" unless the old part has not been identified. A strong inquiry includes photos from the installed position, close-ups of ports and brackets, measured dimensions, failure evidence, and the vehicle or engine application. This reduces wrong shipments and helps the supplier choose the correct part family.
Heavy-duty stack parts must fit each other, not only the vehicle frame. A replacement condenser that sits too close to the radiator can reduce airflow or rub under vibration. A charge air cooler with a different tank shape can move pipes into a poor angle. A radiator with a changed mounting height can alter fan-to-shroud clearance. A fan shroud that is not centered can reduce airflow even when the fan is correct.
Before installation, compare the old and new part on the floor and in the frame. Check total height, width, thickness, mounting ears, bracket offset, port position, pipe clearance, and the air gap between stack layers. If one layer touches another, vibration can damage both. If the replacement changes stack spacing, the fan may pull air around the cores rather than through them.
For repair networks, these checks should happen before the front package is fully assembled. Finding a port-angle mismatch after hoses, pipes, shrouds, and brackets are installed wastes labor and may pressure the technician to force a part that should have been rejected.
A heavy-duty A/C condenser match should include core size, fitting type, port angle, mounting tabs, pressure switch ports where used, and drier or bracket arrangement where the design includes one. A small difference in port angle can force the line into tension. A changed bracket height can make the condenser sit against another layer. A different drier position can interfere with the grille or support panel.
If the complaint was only poor A/C performance, buyers should confirm that the condenser is actually restricted, leaking, blocked, or physically damaged before replacement. Weak fan airflow or a blocked front face can produce the same complaint. If the old condenser is replaced, line routing and sealing parts should be checked before charging and retesting.
Radiator replacement should confirm core size, tank design, hose neck position, cap or filler neck layout, drain position, sensor ports where applicable, mounting bushings, and shroud fit. A radiator that matches hose locations but changes shroud position can create an airflow problem. A radiator that changes core thickness may affect stack spacing and fan clearance.
Engine temperature complaints should be supported by data. Record coolant temperature trend, load condition, fan behavior, coolant level, pressure cap condition, visible blockage, and whether cleaning changed the result. If the radiator is internally restricted, external cleaning will not solve the issue. If the radiator is clean but the fan is weak, radiator replacement alone may fail.
Charge air cooler replacement should confirm inlet and outlet diameter, port direction, tank shape, bracket layout, core dimensions, pipe alignment, and pressure-test evidence. CAC pipes and boots must sit naturally. If a replacement changes outlet position, a boot may seal at idle but leak under boost and engine movement.
For CAC complaints, the evidence should include boost behavior, smoke condition, hissing or whistle noise, oil staining, and pressure-test result. A leaking boot should not be recorded as a failed CAC. A failed CAC should not be replaced without checking boot, clamp, and pipe alignment, because those parts can cause repeat leakage.
Fan matching depends on system type. Electric fan assemblies need voltage, connector, motor power, blade diameter, rotation, shroud dimensions, mounting points, and control compatibility. Mechanical systems need fan clutch behavior, pilot diameter, bolt pattern, blade clearance, shroud depth, and engagement condition. A wrong fan can make every heat exchanger look underperforming.
Airflow direction should be verified after installation. A fan spinning in the wrong direction or installed with the wrong blade/shroud combination may still move air, but not enough air through the stack. For idle and low-speed complaints, fan verification is often the deciding test.
Receiving inspection should check carton condition, fin damage, bent brackets, port protection, cracked tanks, loose shroud sections, and label accuracy. Condenser and CAC ports should be capped. Radiator necks and drains should be protected. Fan shrouds should not be warped. Photos before stocking help separate shipping damage from later installation claims.
For wholesale orders, pack large heat exchangers so fins and corners do not carry the load. If several stack parts ship together, they should not rub against each other. A bent bracket or crushed fin area may look minor in the warehouse but create fitment, airflow, or leakage problems in the repair bay.
A fleet inspection routine should separate front-face cleaning, between-layer inspection, fan/shroud testing, and component-specific leak checks. Weekly or monthly intervals depend on route and environment. Vehicles working in dust, insects, crop residue, cement, or landfill conditions need more frequent cleaning than clean-road vehicles.
Inspection records should include photos before cleaning, photos after cleaning, temperature or pressure symptoms, and any replaced component. When the same unit returns with a similar complaint, the record helps determine whether the problem is repeated debris, weak fan airflow, wrong previous replacement, or a new component failure.
The record should also note which layer was removed or separated during inspection. If only the front face was cleaned, the hidden area between layers may still be blocked. If the fan shroud was removed and reinstalled, fan clearance and air seals should be checked again before the vehicle leaves the shop.
Evidence found | Likely component | Action |
|---|---|---|
A/C weak at idle, condenser face blocked, engine temp normal | Condenser airflow | Clean/inspect condenser and fan before replacing radiator |
Engine temperature rises under load, radiator fins blocked | Radiator or airflow | Clean stack, inspect fan/shroud, then evaluate radiator |
Low boost and bubbles during CAC pressure test | Charge air cooler | Replace CAC and inspect boots/clamps |
All heat complaints worse at idle | Fan or shroud | Verify fan control, shroud, air seals, and airflow direction |
Problem starts after repair | Fitment or assembly error | Compare port angles, brackets, stack spacing, and hose routing |
Define the symptom: A/C performance, engine temperature, boost loss, or multiple heat complaints.
Record when it happens: idle, road speed, load, climb, hot weather, or after repair.
Photograph front face, rear face, and between-stack debris where possible.
Check fan operation, shroud position, air seals, and grille/debris screen condition.
Measure the suspected replacement part before ordering.
Photograph ports, brackets, hose or pipe routing, and labels.
Document pressure-test or temperature evidence when available.
Confirm packaging protection for fins, ports, brackets, and shrouds.
Heavy-duty cooling stack problems should be diagnosed by symptom pattern before replacement. Radiator faults usually affect engine temperature. Condenser faults usually affect A/C heat rejection. Charge air cooler faults affect boost-air performance. Fan and shroud problems can make several heat exchangers look weak at the same time. Inspect airflow, debris, stack spacing, and component-specific evidence before ordering.
