A plastic valve cover can leak without displaying an obvious crack. Repeated heat cycles, uneven bolt loading, pulled inserts and crankcase pressure can distort the sealing flange or gasket groove by a small but important amount. A fresh gasket may temporarily fill the gap, then relax and leak again because the cover no longer distributes compression evenly.
The most useful warped plastic valve cover symptoms are not simply “oil near the cylinder head.” They are a repeatable leak location, uneven gasket imprint, flange lift between fasteners, distorted bolt bosses or an integrated PCV fault that changes pressure across the cover. Elecdura’s engine valve cover range includes different composite designs, so flatness limits, tightening sequences and service boundaries must come from the exact application.
Quick answer: clean the upper engine, confirm the first point where oil appears, and test crankcase pressure or vacuum before removing parts. After removal, inspect the gasket imprint, groove, bolt bosses, metal inserts, threaded features and PCV chambers. Support the cover without forcing it flat and compare the sealing flange with a verified straightedge according to the service method. Replace the complete cover when distortion, cracking, insert movement or integrated PCV damage prevents uniform sealing; do not expect a thicker gasket or extra sealant to correct unstable geometry.
Composite valve covers reduce mass and can integrate oil separators, baffles, PCV valves, filler necks, ignition-coil seals and wiring supports. The material expands differently from the aluminum cylinder head and steel fasteners. During every warm-up and cool-down cycle, the cover slides, bends and relaxes against its gasket and bolt locations.
Temperature alone does not explain every warped cover. Incorrect tightening order, reused torque-to-yield hardware where prohibited, missing spacers, trapped harnesses or a gasket displaced from its groove can preload one area. Heat then allows the stressed plastic to creep. The final distortion often follows the bolt pattern rather than appearing as a uniform bow.
A long cover, a small cam cover and a structural ladder-style cover do not tolerate the same deviation. Some seals are designed to accommodate controlled movement; others depend on molded compression stops. Use the manufacturer inspection method and limit, or compare with a verified original while documenting the method. Do not invent a single millimeter value for all plastic covers.
Oil travels along casting ribs, harness channels and airflow paths. The wettest point after days of driving may be far below the origin. Degrease the area with an approved method, dry it, and reproduce the complaint while observing from the highest possible point. Use trace dye only where permitted and interpret powder or UV evidence cautiously.
Check the oil filler cap seal, cam sensors, vacuum pump, oil control solenoids, upper timing cover, breather hoses and spilled service oil. A leak from an adjacent component can collect at the valve-cover flange and imitate gasket failure. Elecdura’s article on valve cover leak symptoms describes the broader symptom set; the present inspection asks whether plastic geometry caused the leak.
Observe cold start, stabilized idle and a controlled rise in engine speed. Record when the first fresh oil line appears. Avoid prolonged operation if oil reaches a hot exhaust surface or ignition components. A smoke odor is a safety signal, not a reason to keep running until the source becomes obvious.
Water forced into coil wells, connectors or PCV passages creates new faults. Protect electrical components and use minimal, compatible cleaning material. Photograph the original deposit pattern before cleaning.
A geometrically sound cover and gasket can leak if crankcase pressure exceeds the sealing system’s capability. Restrictions, a stuck PCV valve, a torn diaphragm, incorrect hose routing, frozen condensate or excessive blow-by can raise pressure. Conversely, excessive vacuum can whistle, pull oil through seals or create mixture faults.
Many plastic covers contain molded separator passages and a diaphragm that is not serviced separately by the vehicle manufacturer. A cracked membrane or internal weld failure can require the complete cover even when the flange remains flat. The guide to valve cover PCV diaphragm symptoms helps separate whistling, rough idle and crankcase-pressure faults from a simple perimeter leak.
Use the approved manometer or pressure method at the specified port. Record idle, controlled speed and load conditions where applicable. Do not infer normal pressure from briefly loosening the filler cap; cap behavior varies with engine strategy and opening the system changes it.

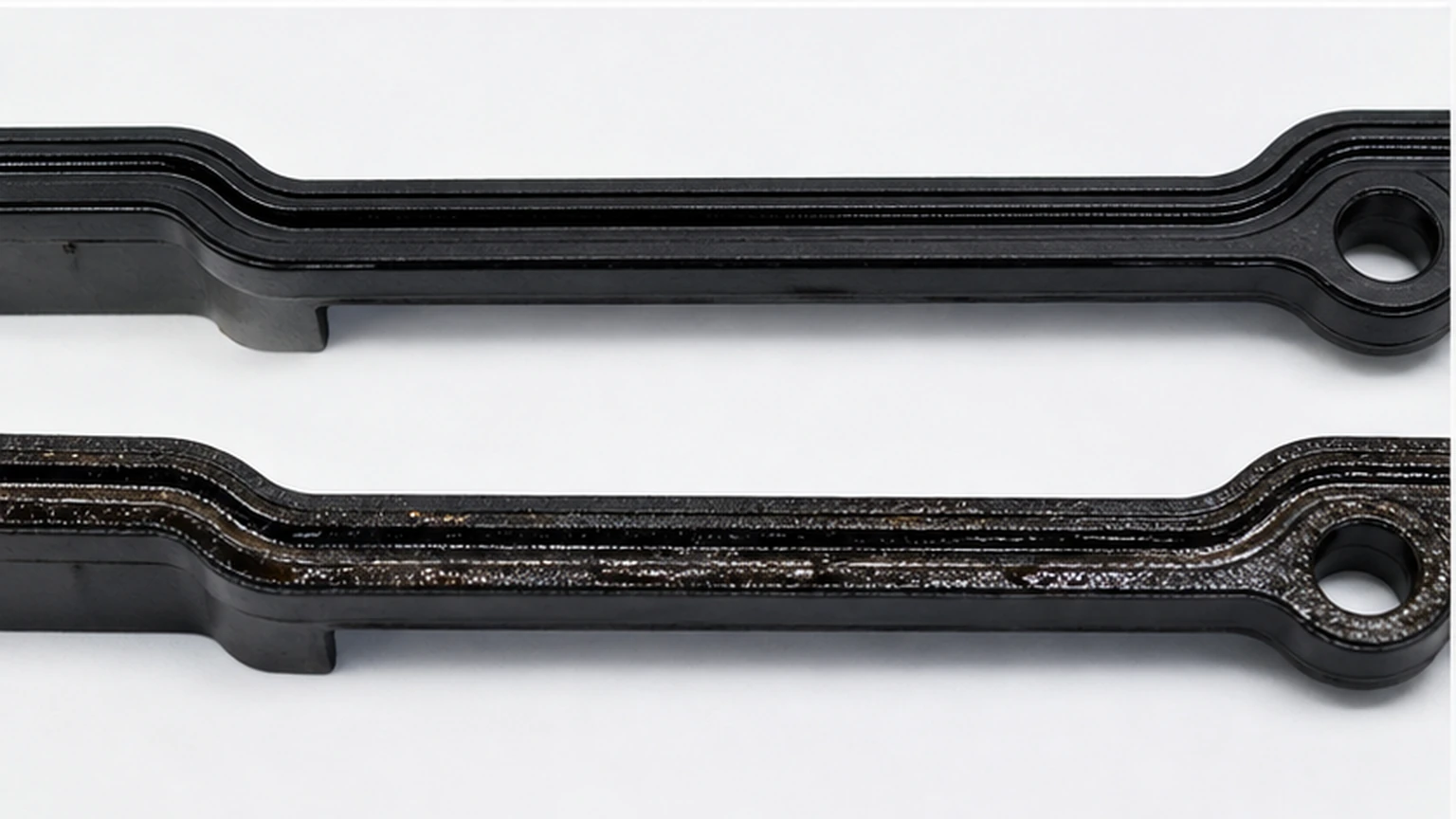

After removing the cover according to the service procedure, leave the old gasket in place long enough to photograph its seating pattern. A uniform compression band around the entire perimeter supports even contact. A locally untouched, polished, extruded, pinched or oil-wet area can identify where compression was lost.
The old gasket records where the cover applied—or failed to apply—consistent compression.
A hardened gasket can crack or shrink while the cover remains serviceable. But installing a new gasket without checking the groove and flange leaves a warped-cover recurrence unexplained. Compare the gasket pattern with bolt locations, cracks and measured gaps. A leak exactly between two fasteners with lifted flange evidence is more significant than age-hardening distributed around the whole perimeter.
Look for nicks, melted areas, broken retaining tabs, widened corners and contamination beneath the gasket. The groove establishes gasket location and squeeze. Plastic displaced into the groove can prevent seating even if the outer flange seems flat.
Excess sealant may hold the gasket high or tear away plastic during removal. Use sealant only at the manufacturer-specified joints and quantity. Do not apply a continuous bead merely because the old repair leaked.

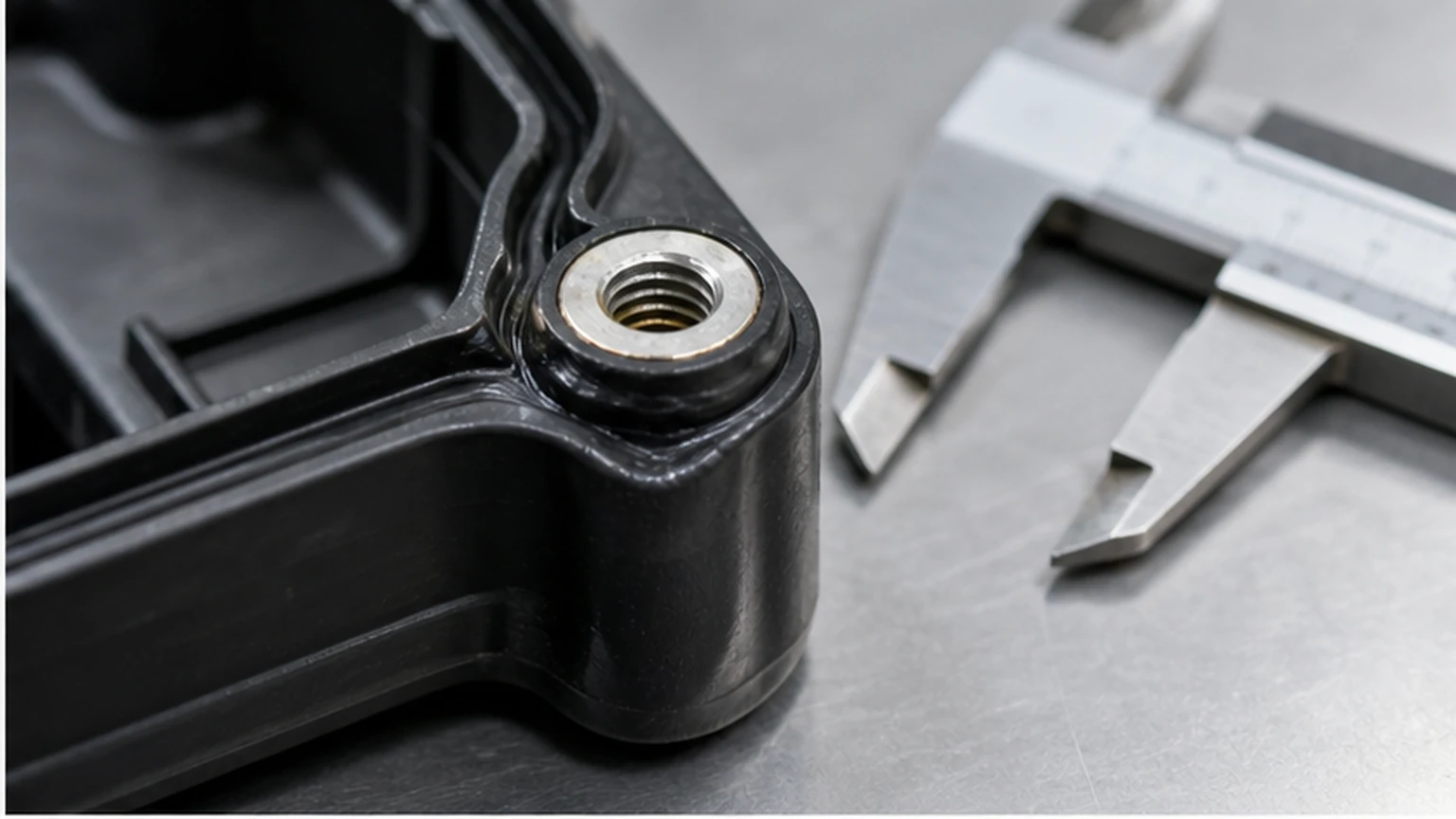

Fasteners do not press directly on every part of the perimeter. Load travels through bosses, sleeves and molded ribs. A boss pulled downward can make its local area appear tight while lifting the flange between fasteners. A loose metal insert can rotate during tightening and prevent repeatable clamping.
Bolt-boss deformation changes how clamp load reaches the sealing flange.
Shiny contact rings, crushed plastic, radial cracks and white stress marks show where load was concentrated. Compare all bosses rather than judging one in isolation. Confirm that sleeves and grommets match the application and have not been omitted or substituted.
Inspect captive hardware, cylinder-head threads and fastener length. A bolt bottoming in a blind hole can reach the torque value without clamping the cover. Contamination in threads changes torque-to-clamp relationship. Correct the thread problem before evaluating the replacement cover.
Additional torque can crush stops, pull inserts and permanently distort the cover. Follow the sequence, stages and tool accuracy specified for the engine. If the cover will not seal at the correct procedure, find the geometry or pressure fault.

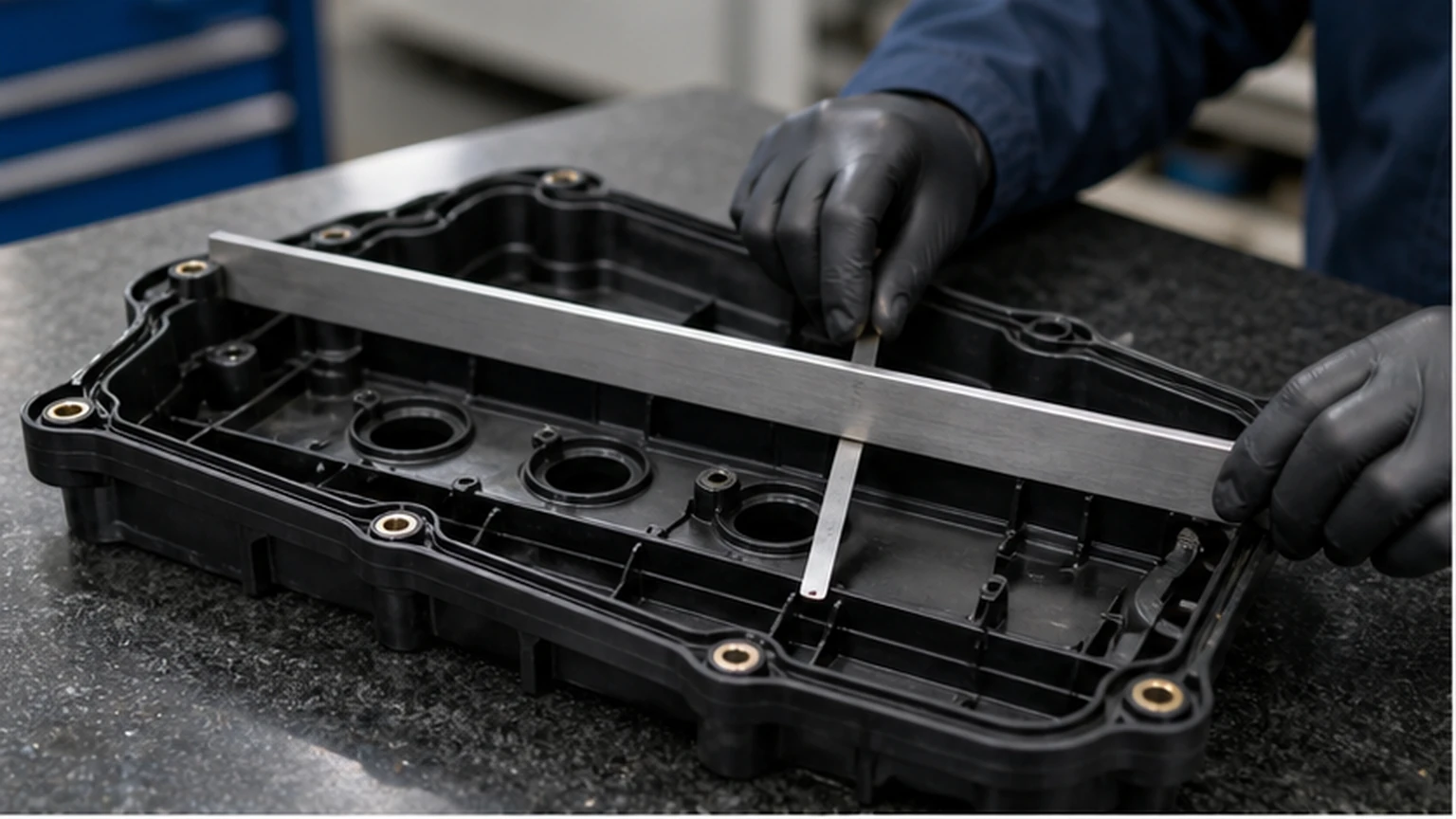

Clean the sealing surface without removing plastic. Support the cover at the points specified by the inspection method so its own weight does not create or hide a gap. Place a verified straightedge along required longitudinal, transverse and diagonal paths, then use an appropriate feeler gauge only where permitted.
Support and measurement method must be controlled so the inspection does not force flexible plastic into an artificial shape.
A single maximum gap does not show the distortion pattern. Photograph straightedge orientation, support points and gauge position. Relate the result to the leak map and gasket imprint. Repeat the measurement to confirm that the gap is not debris or operator pressure.
Plastic changes dimension with temperature. Unless the procedure states otherwise, allow the removed cover and reference equipment to stabilize at a similar workshop temperature. Do not compare a hot used cover with a cold sample and treat the difference as manufacturing error.
Inspect corners, filler neck, coil wells, PCV chambers, hose nipples and molded or welded seams under good lighting. Flex only where the procedure allows. Fine cracks can open with heat or crankcase pressure and close when the part is removed.
A low-pressure smoke test can help locate a PCV or sealing leak when performed with the correct limits and isolation points. Too much test pressure can damage diaphragms or create leaks. Smoke escaping from the flange confirms a path, but removed-part inspection still determines whether the gasket, cover or mating surface caused it.
Material identification, oil resistance, heat cycling and structural stress make an unvalidated surface patch unreliable. For a wholesale or warranty repair, replace a cracked structural cover unless an approved repair exists.
Clean and inspect the head rail, timing-cover joints and specified sealant junctions. Look for gouges, corrosion, old sealant, casting damage and raised burrs. A replacement cover cannot compensate for a damaged cylinder-head surface or a step at a multi-part joint beyond the permitted condition.
Dowels, locating sleeves and harness brackets must allow the cover to seat without lateral force. An incorrect bracket trapped beneath a boss can twist the whole assembly. Dry-position the cover only where permitted and confirm that it settles uniformly before tightening.
Evidence | Gasket-only repair | Complete-cover replacement |
|---|---|---|
Hardened gasket; flange and groove within specification | Appropriate if all other checks pass | Usually unnecessary |
Measured flange distortion or twisted groove | High recurrence risk | Preferred after mating-surface check |
Loose insert, pulled boss or cracked stop | Cannot restore clamp geometry | Required unless approved repair exists |
Failed integrated PCV diaphragm or separator seam | Does not repair internal function | Required when not separately serviceable |
External crankcase-pressure cause; sound cover | Replace only if gasket was damaged | Not justified by pressure fault alone |
Damaged cylinder-head rail | Likely to recur | New cover also cannot correct the rail |
Use measured evidence rather than age alone. A used cover can be geometrically sound, and a relatively new cover can be distorted by an installation error. For the broader distinction between perimeter leaks and other oil sources, review Elecdura’s engine valve cover leak guide.
Confirm that the replacement and gasket are clean, undamaged and at a stable temperature. Install the gasket fully into its groove. Apply the specified sealant only at designated transitions. Start fasteners by hand, seat the cover without using bolts to pull it over an obstruction, then tighten in the specified stages and sequence with a calibrated tool.
Determine whether spark-plug tube seals, fastener grommets, oil-cap seal, breather connectors and sensor seals are included or transferred. Reusing a hard tube seal can create a new leak inside the coil well even when the perimeter is repaired.
Repeat pressure or vacuum measurements, inspect for whistling and check fuel-trim or misfire evidence where relevant. Confirm the first heat cycle and a controlled road test without washing away a developing leak.
Provide the OE number, VIN or exact vehicle, model year, engine code, market and emission configuration. Photograph the complete top and underside, perimeter shape, bolt pattern, filler-neck location, breather ports, PCV chamber, sensor openings, coil wells and included harness brackets. Similar engines can use different internal ventilation routing.
Confirm whether the quotation includes the perimeter gasket, tube seals, bolts, grommets, oil cap, PCV valve or diaphragm, membrane cover and hose fittings. A bare cover and a complete service assembly should not share an ambiguous description. Elecdura’s wholesale valve cover range supports application matching, but the supplied scope must be stated line by line.
Underside baffles and PCV passages can differ while the exterior looks identical. Connector or nipple angle can interfere with installed hoses. Use OE cross-reference and verified application data together with photographs and dimensions.
Batch inspection should check molding flash, sealing-groove continuity, insert position, boss height, threads, cap fit, port geometry and flange condition. Use an agreed fixture and measurement plan rather than pressing flexible covers onto a table by hand. Record cavity or lot identification when available.
A long composite cover can distort if stacked on its sealing edge or clamped by packaging. Support noncritical structural areas and prevent accessories from striking the flange. Gaskets should remain clean and correctly retained without permanent compression during storage.
Visual inspection cannot validate a diaphragm’s opening behavior, leakage or welded passage integrity. Agree on an air-flow or pressure fixture appropriate to the design and retain sample data. Avoid claiming a universal PCV flow value across different engines.
For mixed engine orders, the Elecdura wholesale program can coordinate quantities, while the technical enquiry page should receive OE references, underside photographs and required assembly scope.
Oil around the upper engine may involve the oil filter housing assembly, an engine oil cooler or a vacuum-pump seal. Those parts should enter the order only after the cleaned leak map identifies them. A cooling-system complaint involving a coolant thermostat does not prove heat damage to the cover; record actual overtemperature history and geometry evidence.
Likewise, a rough idle may originate in the intake system rather than the cover. Inspect an intake manifold, injector seal or hose only when smoke, pressure or mixture evidence supports that branch. Clear boundaries prevent the keyword “vacuum leak” from turning one diagnosis into several unverified parts.
When oil-origin evidence remains uncertain, return to the valve cover leak symptom map before removal. When whistling, fuel-trim change or abnormal crankcase vacuum dominates, follow the PCV diaphragm diagnostic route. Once geometry proves that a complete assembly is needed, compare the exact application in the engine valve cover category and submit the supply boundary through the wholesale valve cover page. This sequence keeps education, diagnosis, product matching and quotation as four distinct steps.
A thicker seal may mask a small gap temporarily while increasing extrusion or uneven compression elsewhere. Follow the application limit and replace distorted structure.
A flexible cover can conform to an uneven bench or be forced flat by hand. Use the specified method and document temperature and orientation.
Flange warpage, pulled bosses, incorrect torque, crankcase pressure, damaged head rail or a neighboring leak can defeat the replacement gasket.
If the diaphragm is integrated and not separately serviceable, the complete cover is normally required. Do not install an unverified insert that changes calibrated flow.
Provide OE number, vehicle and engine details, top and underside images, bolt pattern, PCV and hose layout, gasket and hardware scope, measured failure evidence, packaging needs and order quantity.
A durable repair connects four kinds of evidence: the cleaned leak origin, crankcase pressure behavior, the old gasket’s compression record and the removed cover’s physical geometry. Any one can be misleading alone. Together they explain whether the failure is a gasket, a distorted cover, an integrated PCV system, an installation condition or a different upper-engine component.
For a wholesale quotation, send Elecdura the OE reference, engine application, cover and underside photographs, flange or boss findings, PCV configuration, included gasket and hardware requirements, required quantity and packaging expectations. That information allows the supplied assembly to address the measured sealing problem rather than merely resembling the removed cover.
