7042 CD4 W61503 Cross Reference for Global Wholesalers
Brand / Source | Reference Number | Identification Status |
Ford OE / Engineering | 7042 CD4 W61503 | Primary Reference |
Ford OE | 6L34-19D594-AA | Functional Equivalent |
Motorcraft | YH-1558 | Service Cross |
Four Seasons | 37233 | Aftermarket Benchmark |
Global Air | SW 11172C | Industry Reference |
Santech | MT1382 | Technical Standard |

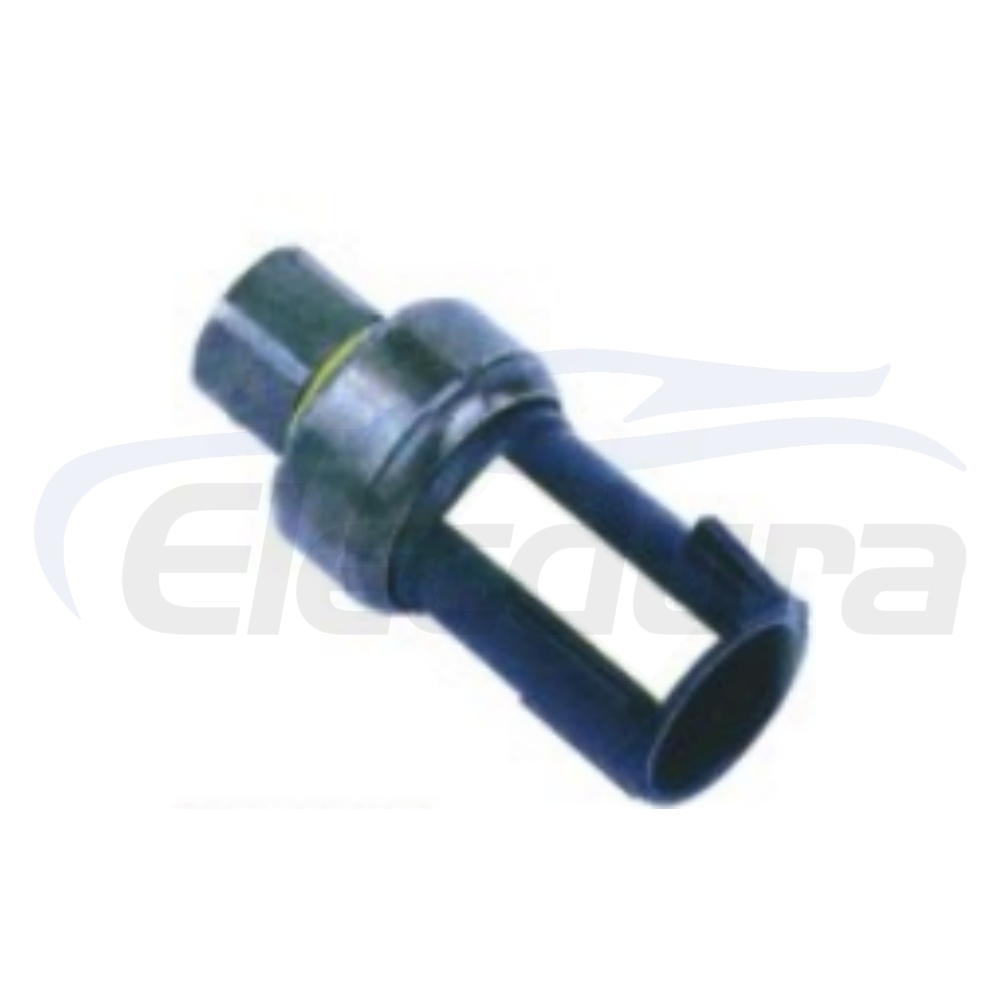

Technical Specifications for 7042 CD4 W61503 A/C Pressure Switch
Technical Parameter | Specification Detail |
Fitting Thread Type | M10-P1.25 Female |
Electrical Connector | 2-Pin Blade Interface |
High Pressure Cut-Off (OFF) | 35 kg/cm² (497 PSI) |
System Reset Point (ON) | 24.5 kg/cm² (348 PSI) |
Switch Function | High-Pressure Safety Cut-Out |
Refrigerant Compatibility | R134a / R1234yf |
Quality Standard | IATF 16949 Certified |
7042 CD4 W61503 A/C Pressure Switch Vehicle Application
Vehicle Make | Specific Model Range | Year Range |
Ford | Focus Mk2 / Mk3 | 2004 to 2015 |
Ford | Fiesta Mk6 / Mk7 | 2008 to 2017 |
Ford | Mondeo Mk4 | 2007 to 2014 |
Ford | C-Max / S-Max | 2007 to 2015 |
Ford | Transit Connect | 2009 to 2013 |
Sourcing 7042 CD4 W61503 A/C Pressure Switch FAQs
Why is the 35 kg/cm² cut-off logic essential for modern Ford global platforms?
Modern Ford vehicles use compact, high-efficiency condensers that operate at higher average pressures to achieve rapid cabin pull-down. The 35 kg/cm² limit on our 7042 CD4 W61503 allows the system to maximize cooling capacity in extreme heat while providing a definitive fail-safe. This precision prevents "ghost" compressor cut-outs while ensuring absolute protection for your clients' HVAC hardware.
How do you guarantee the reliability of the M10-P1.25 thread for repeat installations?
Service centers frequently replace pressure switches during system overhauls. We use high-grade, corrosion-resistant alloy for the M10 housing to ensure thread durability and prevent cross-threading. Every unit is tested with calibrated gauges and includes a pre-installed HNBR O-ring, ensuring a leak-free seal for professional technicians.
Does this switch support the latest R1234yf refrigerant requirements?
Yes. While many applications for this OE number started with R134a, our internal materials—including the diaphragm and seals—are chemically resistant to R1234yf and its specialized POE oils. This makes the 7042 CD4 W61503 a future-proof inventory item for distributors in markets with strict environmental regulations.
What private label and branding options do you offer for Top 100 importers?
We offer a full-service B2B branding package. This includes high-definition laser etching of your brand logo and the 7042 CD4 W61503 reference directly on the housing. We also provide customized industrial packaging with QR-coded batch tracking, helping you establish a professional brand presence in the Ford global aftermarket.
What is the lead time for bulk wholesale and containerized export?
Our fixed manufacturing lead time is 60 days. This allows for rigorous pressure calibration of the 35 kg/cm² threshold and IATF 16949 quality audits. By adhering to this consistent schedule, we ensure that our international wholesale partners maintain high fill rates and stable supply chains.
How are the electrical terminals protected for long-distance maritime shipping?
To prevent terminal oxidation during ocean transit, each 7042 CD4 W61503 switch is sealed in a moisture-barrier industrial bag. The pins are treated with an anti-corrosion coating and protected by a plastic cap. We use double-walled export cartons with internal dividers to ensure the product arrives at your warehouse in factory-perfect condition.
