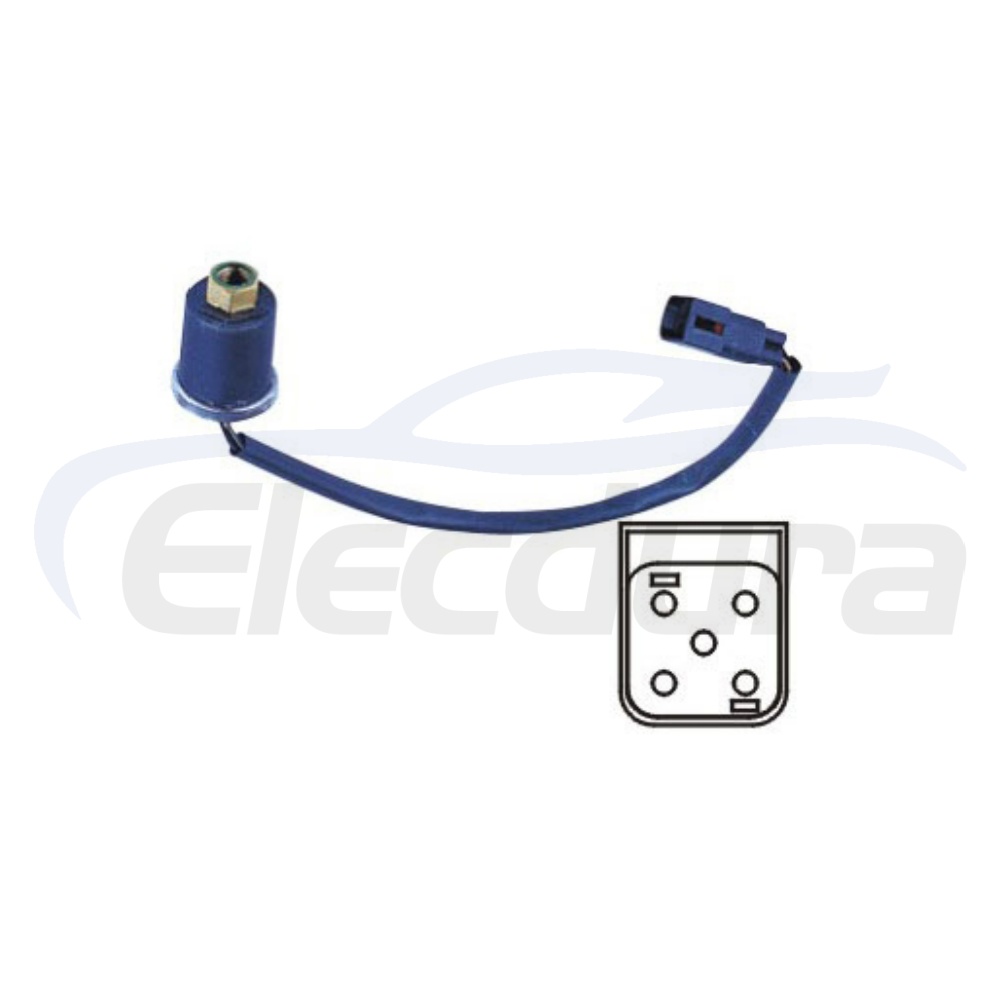

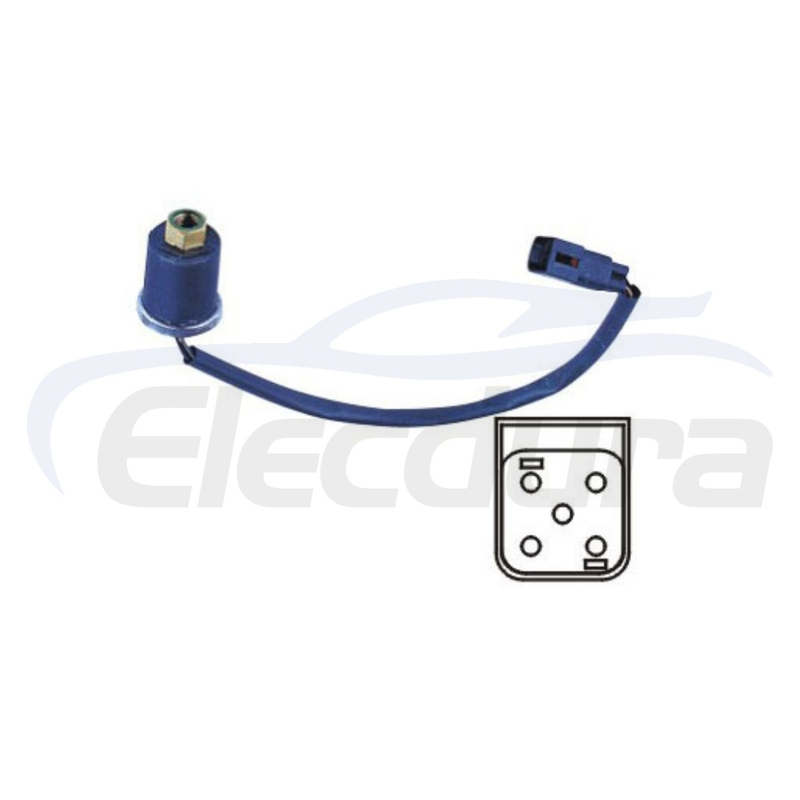

93GW19D566AA A/C Pressure Switch for 1994-2000 Ford Mondeo Transit Scorpio

High precision trinary pressure switch for post-1994 Ford HVAC systems and receiver driers. Features integrated 30.6 kg/cm² high pressure cut-off, 18.5 kg/cm² medium pressure fan control, and 1.2 kg/cm² low pressure safety protection. Machined 7/16-20 UNF female fitting with specialized internal seals for R134a and PAG oil environments. Engineered for professional automotive wholesale distribution.

Brands:
Ford
Lead Time:
60 days
Minimum Order:
100
Certification:
IATF 16949, CE
Warranty:
12 Months

Availability:



Inquiry

Product Description

Product Description

93GW19D566AA A/C Pressure Switch Cross Reference

Brand Name	Reference Number
Ford OE	93GW19D566AA
Ford OE	7009405
Ford OE	1000309
HELLA	6ZL 003 259-461
VEMO	V25-73-0002
Omega	29-30713

Technical Specifications for 93GW19D566AA A/C Pressure Switch

Technical Parameter	Specification Detail
Thread Size	7/16-20 UNF Female
High Pressure Cut-Off (HP)	30.6 kg/cm² OFF
Medium Pressure Logic (MP)	18.5 kg/cm² ON
Low Pressure Cut-Off (LP)	1.2 kg/cm² OFF
Function Type	Trinary Logic (Fan & Compressor Control)
Refrigerant Compatibility	R134a (Optimized Seals)
Quality Standard	IATF 16949

93GW19D566AA A/C Pressure Switch Vehicle Application

Vehicle Make	Vehicle Model	Year Range
Ford	Mondeo Mk1 / Mk2	1993 to 2000
Ford	Transit	1994 to 2000
Ford	Scorpio	1994 to 1998
Ford	Galaxy	1995 to 2000

Sourcing 93GW19D566AA A/C Pressure Switch FAQs

Why is the 18.5 kg/cm² Medium Pressure (MP) logic critical for Ford R134a systems?

In R134a systems, head pressure rises more rapidly than in older R12 systems. The 18.5 kg/cm² ON point triggers the cooling fan earlier to effectively manage heat rejection in the condenser. Every unit undergoes 100 percent automated pressure bench testing to ensure these specific R134a parameters are met with zero drift for long-term fleet service.

Can we implement private label laser marking for our bulk orders?

Yes. For our professional importers and Top 100 global wholesalers we provide high-definition laser etching. We can mark your brand logo and the 93GW19D566AA OE number directly on the sensor body to help you build brand authority in the Ford aftermarket.

What is the standard manufacturing lead time for wholesale orders?

Our fixed lead time is 60 days. This duration is required for the precision assembly of the trinary diaphragm stack and exhaustive IATF 16949 quality verification. This ensures the long-term reliability expected by international procurement networks.

How does this switch handle R134a and PAG oil environments?

This model is specifically engineered for the R134a era. We use specialized HNBR (Hydrogenated Nitrile Butadiene Rubber) internal seals that are highly resistant to PAG oils and HFC refrigerants, preventing the seal swelling or signal drift common in lower-quality aftermarket sensors.

Do you support mixed wholesale orders for Ford European and Global sensors?

Yes. We offer flexibility for our international distributors. You can combine the 92137-10Y00 with other Ford, Mazda, or Nissan pressure sensors to meet our 100-unit MOQ to effectively optimize your logistics and inventory turnover.

How do you protect the 7/16-20 UNF threads and terminals during shipping?

Each unit is individually sealed in a moisture-proof industrial bag with a protective internal plug for the threads. For bulk export we use reinforced export-grade cartons with internal shock-absorbing dividers to ensure the electrical terminals and precision threads arrive in perfect condition.
