A leaking charge air cooler on a diesel truck usually shows up as low boost, black smoke, poor acceleration, higher exhaust temperature, a whistling sound under load, oil staining around the tanks or pipes, or repeat boot and clamp failures. The charge air cooler, also called a CAC or intercooler, cools compressed intake air after the turbocharger. When it leaks, the engine may receive less dense air than the control system expects. The result can be incomplete combustion, higher fuel use, extra heat, and performance complaints that become worse during towing, climbing, heavy payload, or long highway operation.
For fleet buyers, distributors, and repair networks, the important question is not only "Is the CAC leaking?" It is "Where is the leak, why did it happen, and what specification must the replacement match?" A cracked end tank, loose boot, damaged tube-to-header joint, stone puncture, weak mounting bracket, or oil-contaminated core may all produce similar symptoms. This article explains how to recognize charge air cooler leak symptoms in diesel trucks, how to pressure test the system, what evidence to collect for warranty and sourcing, and how to prevent a wrong replacement from creating another downtime event.

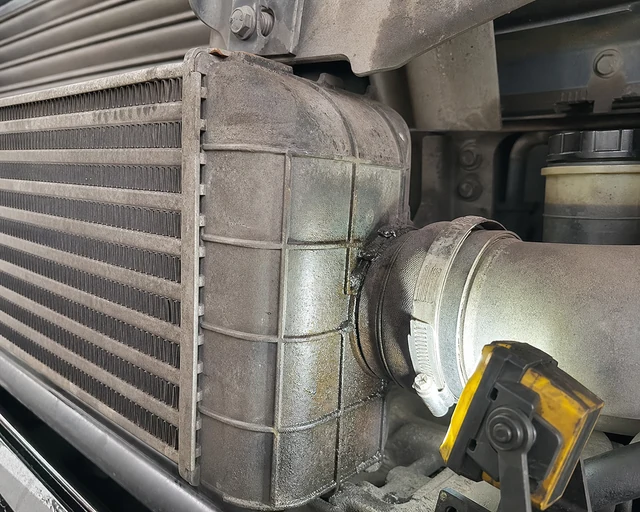

Oil residue and dust tracking near the end tank or pipe connection are common visual clues when a charge air cooler leaks under boost.
Symptom | Why it happens | What to inspect first |
|---|---|---|
Low boost or slow acceleration | Pressurized intake air escapes before reaching the engine | CAC tanks, tube joints, boots, clamps, pipes, and mounting points |
Black smoke under load | The engine receives less air than expected for the fuel command | Boost leak path, air filter restriction, turbo pipes, and intake boots |
High exhaust temperature | Reduced air density and poor combustion raise thermal load | Boost pressure, CAC temperature drop, core blockage, and leak points |
Whistling or hissing noise | Air escapes through a crack, pinhole, loose clamp, or split boot | Spray-test areas during controlled pressure testing |
Oil film around cooler or boots | Normal intake oil mist or turbo seal issues can collect at leak points | Oil quantity, turbo history, boot swelling, tank seams, and lower core area |
Repeat boot blow-off | Poor clamp grip, incorrect pipe alignment, excess oil, or pressure spikes | Bead roll, clamp type, boot hardness, pipe angle, and engine movement |
A charge air cooler should not be replaced only because a driver reports low power. The same complaint can come from a split boot, loose clamp, clogged air filter, damaged turbo pipe, sensor issue, or engine-management problem. Replacement becomes much more defensible when a pressure test confirms leakage at the CAC core, tube-to-header joint, end tank, or mounting-stressed area.
The turbocharger compresses intake air, and compressed air gets hot. Hotter air is less dense, so the charge air cooler removes heat before the air enters the engine. Better charge-air cooling helps power, combustion stability, fuel economy, and thermal control under load. In heavy-duty diesel trucks, the CAC often sits in the front cooling stack where it receives road debris, vibration, pressure pulses, and thermal cycling.
A CAC is not a simple empty box. It has tanks, tubes, fins, headers, mounting brackets, inlet and outlet necks, and sometimes specific features for a particular truck platform. The replacement must match core size, tank shape, port diameter, port angle, mounting location, and airflow package. A unit that appears close in photos can still create pipe stress, poor shroud clearance, or repeated boot leakage if the offset is wrong.
For B2B sourcing, this is why a model name alone is weak evidence. A distributor should request old-part photos, measured overall size, core size, inlet/outlet diameter, tank material, bracket location, truck model, engine, production year, and market region. These details allow the supplier to check whether the replacement is suitable before shipment.

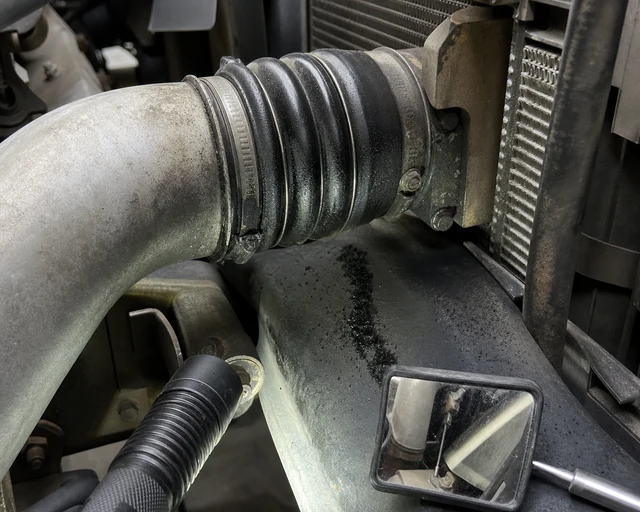

Boost leaks often leave oily dust, clamp witness marks, or soot-like tracking around boots and charge pipes before the cooler itself is condemned.
Boost loss is one of the strongest indicators of a charge air leak. The driver may report that the truck feels lazy, needs more throttle, loses speed on grades, or cannot pull the same load as before. If the engine control system commands fuel based on expected airflow but the actual air charge is reduced, combustion can become less efficient. Black smoke under load is a common visible clue because fuel is not being burned with enough clean air.
The leak may not be obvious at idle. Many CAC leaks become visible only when the system is pressurized. A small crack in a tube-to-header joint may stay quiet during a short shop inspection but open under boost. A loose boot may seal at rest but move under engine torque. A pinhole from road debris may only hiss when pressure rises. That is why a static visual check should be followed by a controlled pressure test when symptoms point toward boost loss.
Buyers should separate engine-performance evidence from parts-matching evidence. Performance evidence includes boost readings, smoke condition, route or load condition, fault codes if available, and driver notes. Parts-matching evidence includes photos, dimensions, port layout, bracket positions, and old-part markings. Both are needed. The first confirms the repair direction; the second prevents a wrong CAC from being shipped.
A leaking charge air cooler can raise exhaust temperature because the engine is working with reduced charge-air density. The driver may notice higher fuel consumption, hotter operation during climbs, or derate events on modern trucks. The repair shop may find that temperature-related complaints are worse when the truck is loaded, operating in hot weather, or climbing for a long period.
High EGT is not automatically a CAC failure. Air filter restriction, turbo control issues, exhaust restrictions, sensor faults, and engine calibration problems can also raise heat. The CAC should be evaluated as part of the intake-air path. Inspect the air filter, turbo outlet pipe, CAC inlet, CAC core, CAC outlet, intake manifold connection, and all boots and clamps. If the cooling stack is externally blocked by dirt or debris, the CAC may be unable to reject heat even if it does not leak.
For fleet programs, record the operating condition behind the complaint. "High EGT while towing at highway speed" is more useful than "truck runs hot." "Fuel economy dropped after turbo replacement and CAC contains heavy oil" is more useful than "intercooler suspect." Specific notes reduce unnecessary part returns and help determine whether the CAC should be cleaned, tested, or replaced.
Some oil mist inside the intake tract can be normal on many diesel engines, but heavy oil pooling is a warning sign. Oil can collect at the lowest part of the CAC and around leak points. It can soften boots, reduce clamp grip, attract dirt, and make a crack easier to see. If the turbo has recently failed, the CAC may hold oil and debris. In that case, the buyer should ask whether cleaning is safe or whether replacement is the better decision for protecting the next turbocharger.
Cracked tanks are common failure points, especially where plastic or aluminum tanks meet the core, near mounting stress, or at inlet and outlet necks. Tube-to-header joints can fatigue from vibration and pressure cycling. Road debris can create pinholes in exposed tubes. A loose or distorted mounting bracket can let the cooler move, turning a small fitment issue into repeated leakage.
Loose boots and clamps deserve separate attention. A boot that blows off repeatedly may indicate missing bead roll, wrong clamp style, oil contamination, pipe misalignment, engine movement, or an incorrect CAC neck diameter. Replacing the cooler without checking these causes can lead to another failure. For wholesale orders, the inquiry should include close-up photos of the inlet and outlet necks, clamp marks, boot condition, and the pipe angle into the cooler.
In many trucks, the charge air cooler shares the front package with the radiator and other heat exchangers. Dirt, insects, leaves, mud, and road debris can block the stack from the outside. If the face of the CAC is packed with debris, charge-air temperature can rise without a true pressure leak. If the radiator side is blocked, the driver may describe an overheating problem that is not caused by the CAC itself.
The cooling stack should be inspected from both sides when possible. Look for crushed fins, bent brackets, loose mounts, debris trapped between layers, cracked side supports, and signs that one cooler has been rubbing another. Trucks that operate in construction, agriculture, mining, waste collection, or off-road service often need more frequent stack cleaning and inspection than highway-only vehicles.
A strong diagnosis separates three questions. First, is there a pressure leak? Second, is the cooler externally blocked or physically damaged? Third, does the replacement match the stack layout and pipe routing? If a buyer only answers the first question, the replacement may still create poor fitment or repeat complaints after installation.

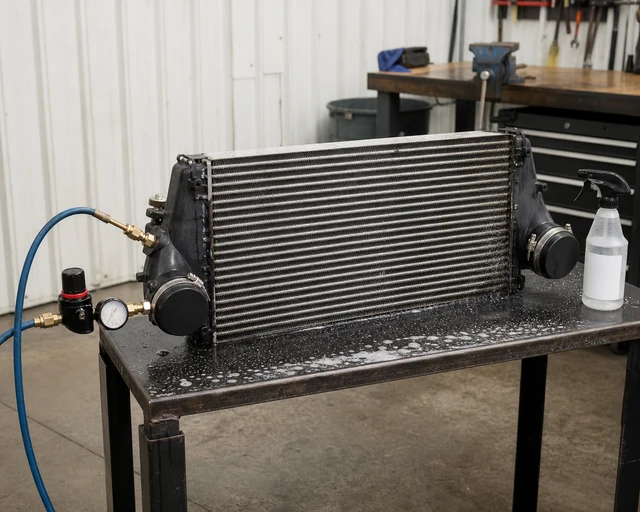

Pressure testing gives fleets better evidence than symptoms alone, especially when oil film, smoke, or poor fuel economy has several possible causes.
A CAC pressure test is the practical way to confirm leakage. The typical method is to remove or isolate the charge air cooler, seal the inlet and outlet with test adapters, add controlled compressed air, and watch for pressure decay. Many shops test within a moderate range such as 15 to 30 psi, but the correct pressure should follow the vehicle or shop procedure and the component's condition. Over-pressurizing an old cooler can create damage that was not part of the original complaint.
During the test, spray soapy water around the core face, tube-to-header joints, end tanks, inlet and outlet necks, welds, seams, and suspected impact points. Bubbles identify the leak location. A pressure gauge shows whether the assembly holds pressure over the chosen test period. Record the pressure, time, temperature condition, and leak location. A photo or short video of the bubble point is strong warranty evidence.
Do not confuse CAC pressure testing with other vehicle systems. The CAC handles intake air from the turbocharger path. The evidence should focus on boost pressure, air leakage, physical cracks, oil contamination, and pipe fitment. Water immersion can help find pinholes in some shop environments, but the cooler must be dried properly afterward and protected from corrosion or debris contamination.
Fleet buyers need a repeatable inspection rule because one truck complaint can turn into a batch replacement decision. A useful rule is to record the driver's symptom, confirm whether boost pressure is actually low, pressure-test the CAC and pipes, inspect boots and clamps, document oil quantity, and compare the old part with the replacement specification. The result should state whether the failure is a confirmed CAC leak, an intake-pipe leak, a boot/clamp issue, or an unresolved engine-performance complaint.
Warranty handling is cleaner when the file contains evidence. A supplier can evaluate a claim more fairly when the buyer provides part photos, installation photos, pressure-test result, leak location, truck application, mileage or operating hours, and any turbo repair history. Without this evidence, every low-power complaint looks like a product problem even when the root cause may be pipe alignment, mounting stress, external damage, or contamination.
For repair networks, standardizing this documentation reduces counter disputes. The shop knows what to capture. The distributor knows what to ask for. The supplier can confirm whether the return matches a manufacturing issue, shipping damage, wrong selection, or external installation problem.
Data field | Why it matters | Best evidence |
|---|---|---|
OE number or old part reference | Starts the cross-reference and supersession check | Clear label, stamping, catalog number, or packaging photo |
Core size and overall size | Controls cooling capacity and stack fit | Measured core height, width, thickness, and total dimensions |
Inlet and outlet diameter | Affects boot fit and clamp sealing | Caliper measurement and close-up pipe photos |
Port direction and offset | Prevents pipe stress and boot blow-off | Side photos, angle photos, and installed-position photos |
Mounting bracket layout | Prevents vibration, rubbing, and installation mismatch | Bracket spacing, hole diameter, and mounting ear photos |
Tank material and design | Helps compare plastic, aluminum, welded, and crimped versions | Tank photos and seam photos |
Operating condition | Explains whether the part needs heavy-duty durability | Towing, route, climate, idle time, payload, and duty notes |
This data prevents a common B2B problem: a visually similar CAC arrives, but the neck angle is slightly different, the bracket does not line up, or the boot no longer sits square on the pipe. Even if the core looks correct, the installation may fail under vibration and boost pressure. The buyer should stop and confirm any mismatch before forcing the part into place.
Record the driver complaint: low power, black smoke, whistle, high EGT, fuel economy change, or boot blow-off.
Inspect the intake-air path from turbo outlet to intake manifold.
Check boots, clamps, pipes, bead rolls, and bracket support before condemning the CAC.
Look for oil film, road-impact marks, cracked tanks, rubbed areas, and loose mounts.
Perform a controlled pressure test with sealed inlet and outlet adapters.
Use soapy water or an approved leak-finding method to identify the exact leak location.
Record pressure, hold time, leak location, photos, and vehicle application.
Compare replacement dimensions, inlet/outlet layout, brackets, and tank design before ordering.
After installation, retest under load or the same condition that produced the complaint.
Evidence found | Recommended decision | Risk if ignored |
|---|---|---|
Pressure test shows bubbles at tube-to-header joint or tank seam | Replace CAC after confirming exact fitment | Low boost, black smoke, high EGT, repeat downtime |
Loose boot or clamp leak only | Repair boot/clamp issue and verify pipe alignment | Unnecessary CAC replacement and repeated boot blow-off |
Road debris puncture on exposed core face | Replace CAC and inspect stack protection or debris screen | Repeat impact damage on same route or application |
Heavy oil inside CAC after turbo failure | Evaluate cleaning versus replacement based on contamination level | Oil/debris may damage the next turbo or create smoke complaints |
No leak found, but high EGT remains | Continue engine and airflow diagnosis before ordering | Good replacement may be blamed for unresolved root cause |
For distributors and importers, the RFQ should be specific enough for a technical match. Send vehicle make, truck model, engine, production year, market region, OE number, old-part photos, core dimensions, inlet/outlet diameter, port direction, bracket layout, tank material, and failure evidence. If the truck has a body conversion, severe-duty package, or regional cooling package, mention it because front-stack layouts can change.
Packaging also matters. Charge air coolers have wide cores, vulnerable fins, and inlet/outlet necks that can be damaged during transport. A wholesale buyer should confirm carton strength, edge protection, foam or molded support, pallet requirements, and whether the inlet/outlet areas are protected from impact. Shipping damage can look like a quality issue if it is not documented at receiving.
Elecdura's Charge Air Cooler category is the primary internal reference for CAC sourcing. If the complaint involves front-stack heat control or airflow blockage, buyers can also compare related cooling parts through Automotive Radiator and Oil Cooler. For broader front-package troubleshooting, Heavy Duty Cooling Stack Problems helps frame stack blockage, vibration, and service-access issues.
A fleet truck reports low power and black smoke on hills. The first visual inspection shows oil staining near the lower CAC tank, so the parts counter assumes the cooler is leaking. During pressure testing, bubbles appear not at the CAC seam but at a split boot near the outlet pipe. Replacing the CAC would not have solved the complaint. The correct repair is boot and clamp replacement, followed by a road test under load.
A second truck has the same driver complaint but a different test result. The CAC is sealed with adapters, pressurized, and bubbles form along a tube-to-header joint. The core also shows rubbed fins where a loose mount let the cooler move against another part of the stack. In this case, CAC replacement is justified, but the mounting issue must also be corrected. Without that correction, the new cooler may fail in the same area.
These examples show why a good supplier request should include the leak location and cause, not only the part name. The more accurate the evidence, the easier it is to choose the right replacement and avoid a warranty discussion that starts with incomplete facts.
Charge air cooler leak symptoms in diesel trucks should be handled with a documented boost-air inspection path. Low boost, black smoke, high EGT, whistling noise, oil staining, cracked tanks, tube-joint leaks, and repeat boot failures all point toward the intake-air system, but they do not always prove the CAC itself is bad. Confirm the leak with pressure testing, inspect boots and clamps, document oil contamination and mounting condition, then match the replacement by dimensions, port layout, bracket position, tank design, and application data.
