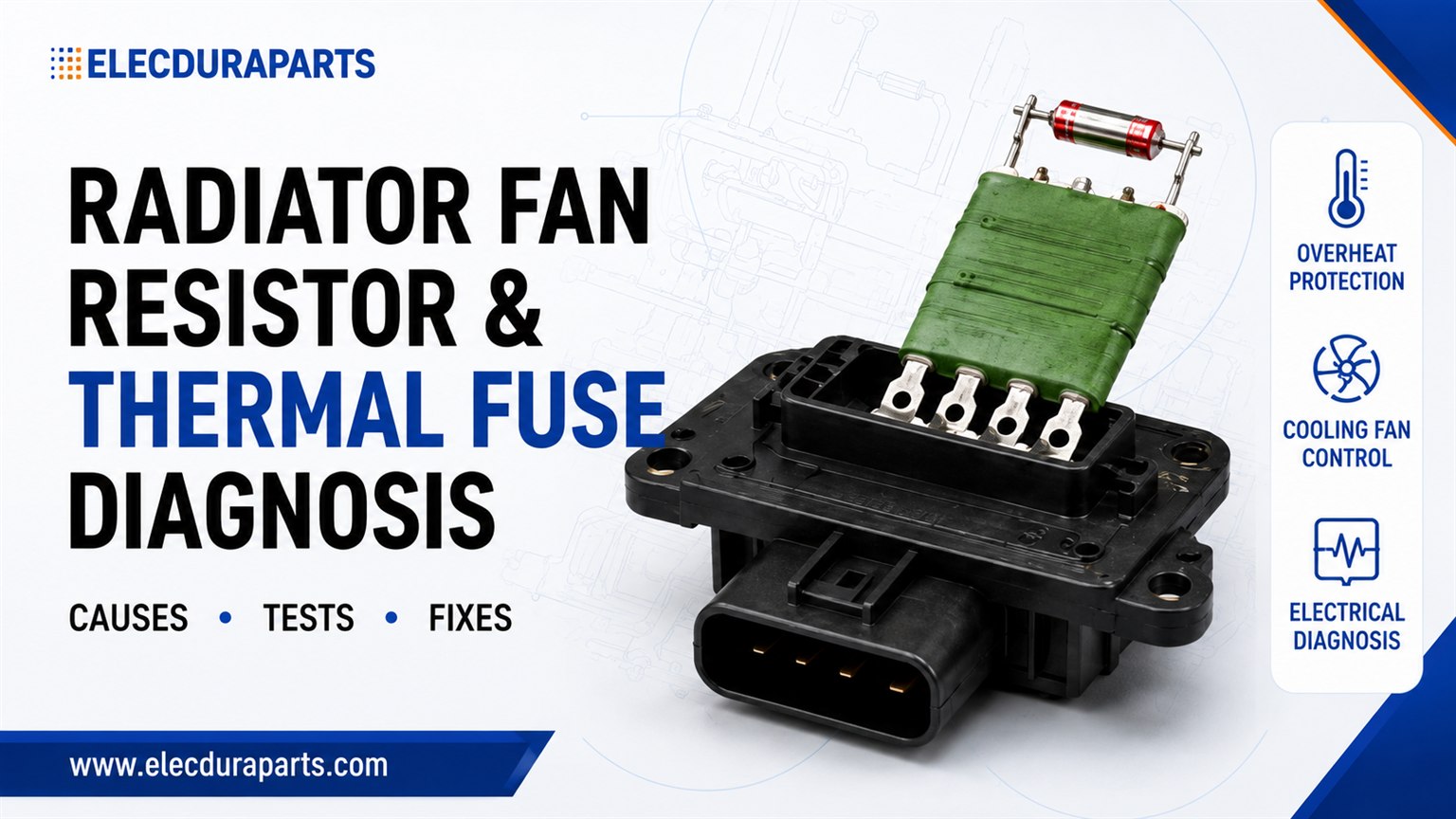

Radiator Fan Resistor Thermal Fuse: Find the Repeat Failure Cause

A radiator fan resistor thermal fuse opens because the resistor assembly has become too hot, but the fuse is rarely the complete cause. Low airflow across the resistor, excessive fan-motor current, a partially melted connector, incorrect mounting, or a control circuit that keeps the resistor energized longer than intended can all raise its temperature. Installing another resistor without measuring those conditions often creates a short repair interval and a second warranty claim.

The thermal fuse is a one-time protective device. It interrupts the circuit when local temperature passes its calibrated limit, helping prevent the resistor body, wiring, or nearby plastic from continuing to overheat. It does not regulate fan speed and should not be bypassed. Diagnosis begins by identifying the exact speed-control architecture, then separating electrical power from the airflow that cools the component.

Quick Answer: Why Does the Thermal Fuse Open?

Identify What the Resistor Controls

Distinguish a series resistor from an electronic module

A traditional fan resistor reduces motor voltage by dissipating electrical power as heat. It may provide one low-speed step or several resistance steps selected by relays. An electronic fan control module switches power rapidly and may look similar from outside, but its diagnosis involves control signals, semiconductor temperature, and sometimes network communication. The comparison between a fan control module and cooling fan resistor should be completed before applying resistance or jumper tests.

Read the wiring diagram before counting terminals

Two components with four pins can perform completely different functions. Identify battery feed, motor output, relay-selected taps, ground, and any low-current control terminal from the application diagram. A meter placed across an electronic module may show a value that has no relationship to a wire-wound resistor. Direct battery power can also damage a control input.

Determine when the resistor is in the current path

In many discrete circuits, low fan speed routes motor current through the resistor, while high speed bypasses it through another relay. A thermal fuse that fails removes only low speed; high speed may still operate. Other arrangements use two motors in series for low speed and parallel for high speed, with no separate resistor. Reproduce each commanded state and verify which conductors carry current instead of inferring the circuit from the symptom.

If the initial complaint is simply a cooling fan not working, test all available speeds. A missing low-speed stage can remain unnoticed until A/C pressure or coolant temperature becomes high enough to trigger high speed.

Understand the Heat Balance Inside the Resistor

Electrical power becomes heat

The resistor's heat generation depends on current and resistance. Small increases in current can produce a much larger increase in heat because power rises with the square of current. A motor that is only moderately overloaded by bearing drag, blade contact, or wrong fan geometry can therefore push the resistor beyond its thermal design even while the fan still turns.

Measure current during the speed that uses the resistor

Do not measure only high-speed current, because the resistor may be bypassed in that state. Use a suitable current clamp and record startup peak, stabilized current, and hot current during the low-speed command. Compare with service data for the exact motor and assembly. The radiator fan motor current-draw test explains why an inrush peak and sustained overload require different interpretations.

Airflow removes the heat

Many resistor assemblies are mounted in the fan shroud or an air duct so fan airflow cools their ceramic body or heat sink. A resistor tested loose on a bench may overheat rapidly even at normal current. Conversely, a resistor can pass a short bench continuity test but fail after installation because debris, a broken duct, incorrect orientation, or reduced fan speed prevents adequate cooling.

Mounting position is a functional specification

Confirm insertion depth, heat-sink exposure, seal position, fastener seating, and airflow direction. Do not relocate the resistor to a convenient bracket without validating cooling. Paint, sealant, or a foam pad placed over heat-transfer surfaces can change temperature. If a replacement has a different heat-sink shape, verify that it fits the original air stream rather than only the bolt holes.

Inspect the Failed Part Before Disconnecting Evidence

Map heat damage to its likely source

A uniformly discolored resistor body suggests general overheating; localized melting at one terminal points more strongly to contact resistance. Cracked ceramic can result from thermal cycling, impact, or water exposure. A darkened thermal fuse area confirms heat exposure but does not reveal whether the heat came from normal resistor dissipation without airflow or from abnormal current.

Photograph the connector in its installed position

Record harness strain, proximity to hot surfaces, water paths, and whether the lock is fully seated. Then photograph terminal faces straight on. Once a connector is removed, spring tension may shift and a heat-damaged terminal can look more aligned than it was under load. Preserve the old resistor for comparison rather than cleaning or opening it before warranty documentation.

Look for previous bypass repairs

A wire bridge across the thermal fuse, a non-original solder joint, oversized fuse, or altered connector changes the safety design. Restore the circuit to the approved configuration before evaluating temperatures. Soldering directly near a thermal fuse can activate or damage it during installation; a generic replacement with an unknown temperature, current, or mounting contact is not an equivalent repair.

Test the Motor as a Mechanical and Electrical Load

Check for drag before powering the circuit

With power isolated according to the service procedure, inspect blade-to-shroud clearance, debris, cracked blades, motor-bearing play, and evidence of rubbing. A fan can rotate by hand yet develop heavy drag as the bearing warms or the shroud distorts. Check mounting points and any signs that a recently replaced radiator, condenser, or radiator fan assembly has changed alignment.

Measure supply voltage and current together

Low motor voltage does not automatically mean low thermal stress. A poor connector can drop voltage and generate its own heat while the motor draws abnormal current. Record voltage at the motor, voltage drop across power and ground paths, and current in the same operating state. Repeat after the motor and connector become hot.

Compare waveform shape, not only the average

A current trace can show a high startup period, commutator irregularity, intermittent contact, or rising current as temperature increases. A stable average number may hide those events. Use the techniques in radiator fan motor testing, and do not apply direct power to a brushless motor with integrated electronics unless its pinout and test method are known.

Decide whether the motor and resistor should be replaced together

If the motor exceeds its specified current, has hot bearing drag, intermittent winding behavior, water intrusion, or a damaged connector, a resistor-only repair is unlikely to last. If motor current and airflow are valid and damage is limited to a resistor with correct mounting, resistor replacement may be appropriate. For a combined module or non-serviceable harness, the practical scope can be the full assembly.

Find Connector Heat With Loaded Voltage-Drop Tests

Terminal resistance may disappear in an ohmmeter check

A few tenths of an ohm can create substantial heat at fan current, yet test-lead contact and unloaded continuity can mask it. Command the affected speed and measure voltage across each connection: harness terminal to component terminal, ground joint, relay contact, and fuse connection. A voltage reading across a closed connection represents energy being lost there.

Terminal tension matters as much as visible corrosion

A clean terminal can have weakened spring force after repeated heating. Use the specified drag or pin-fit test and replace the approved terminal or pigtail when tension is inadequate. Do not squeeze a terminal indiscriminately; deformation can reduce contact area or prevent full insertion. Replace heat-damaged housings that no longer retain or seal terminals.

Inspect upstream relay contacts

A burned relay contact can lower motor voltage and add heat in the relay box. It may also chatter and repeatedly cycle the resistor. Test the radiator fan relay under load rather than relying on an audible click or bench continuity alone. Confirm that the correct relay type and terminal arrangement are installed.

Verify Control Duration and Cooling Demand

Confirm that the replacement motor belongs to a resistor-controlled circuit

A previous repair may have introduced a motor with a different winding, brush design, rated current, or integrated electronics. A two-wire brushed motor can be speed-controlled by a series resistor in many traditional circuits, but that does not mean every two-wire motor has the same load curve. Brushless assemblies normally depend on electronic commutation and may use a dedicated power module even when the external harness looks simple. Review the distinctions in brushless versus brushed radiator fan motors before pairing a substitute motor with the old resistor.

Compare the entire speed-current relationship

A motor that runs acceptably at direct battery voltage can still draw too much current at the resistor-controlled operating point. Its back electromotive force, winding resistance, brush timing, blade load, and startup behavior determine current at reduced voltage. Record current and speed at each original relay state. Do not approve a replacement because its no-load bench RPM appears close.

Check the motor after hot soak and restart

Winding resistance normally changes with temperature, while worn bearings, shifted magnets, brush problems, or distorted plastic can add mechanical load after heat soak. Run the fan long enough to reproduce the resistor duty, allow the assembly to soak, and command another start while monitoring current. A motor that passes a short cold test but produces a prolonged hot startup can repeatedly stress the thermal fuse.

Document modifications before assigning warranty responsibility

Record non-original motors, fan blades, relays, harness repairs, resistor relocation, and added switches. These changes alter current or cooling duty and must be evaluated before a resistor defect is concluded. Restoring the intended architecture may be required before either component can be tested fairly.

Long low-speed operation can be normal

A/C pressure control, hot ambient conditions, after-run cooling, or a high engine load may command the fan for extended periods. The resistor should survive its designed duty when motor current and airflow are correct. Do not diagnose the controller solely because the fan runs frequently. Confirm demand inputs and compare operation with the application strategy.

Incorrect signals can create excessive duty

A biased coolant-temperature sensor, incorrect A/C pressure signal, stuck relay command, or wiring short can hold the low-speed circuit active. Review scan data, fault codes, relay commands, and actual voltage at the resistor. If the vehicle uses a PWM or network-controlled fan control unit, a resistor-style diagnosis is no longer appropriate.

Do not use a lower-resistance part to increase fan speed

Changing resistance alters motor current, resistor power, relay load, and the intended speed separation. A part that appears to improve airflow can overheat the motor or wiring. Match resistance values, power capacity, thermal protection, connector, and mounting to the OE application.

Repair-or-Replace Decision Matrix

Replacement Matching for Wholesale Orders

Provide the data that determines electrical and thermal fit

Send the OE number, vehicle and engine application, model year or build range, system voltage, connector and terminal photographs, resistor values if specified, mounting dimensions, heat-sink orientation, fan motor number, and required quantity. State whether the resistor is supplied alone, with a harness, or as part of a complete radiator fan motor or shroud assembly.

Verify protection rather than copying appearance

Confirm the thermal fuse rating and its validated installation inside the resistor assembly. A supplier should not disclose unsupported generic values as proof of application equivalence; it should provide application mapping and relevant test evidence. Housing color, coil shape, and pin count are not enough.

Define receiving and batch checks

Inspect connector keying, terminal alignment and retention, resistance between specified terminals, insulation, ceramic or heat-sink damage, thermal-fuse continuity, mounting dimensions, labels, and traceability. Functional sampling should use a representative fan load and airflow path. A brief unloaded continuity check will not reveal whether the part can manage heat during extended low-speed operation.

Use the engine cooling parts range to coordinate the motor, resistor, module, fan, and shroud. For distribution programs, review Elecdura's aftermarket parts support, wholesale cooling fan range, and broader wholesale terms. Send the application, failed-part photographs, motor current evidence, connector condition, quantity, and destination through the contact page.

FAQ

Can I replace only the thermal fuse inside a radiator fan resistor?

Only if the manufacturer provides an approved service procedure

The fuse temperature, current capacity, physical contact, insulation, and installation heat all affect protection. Many automotive resistor assemblies are serviced as complete units. Never bridge the fuse or fit an unverified generic part.

Why does the replacement resistor fail after a few days?

Motor overload, connector heat, or lost airflow was probably not corrected

Measure motor current cold and hot, inspect blade drag and shroud airflow, and perform loaded voltage-drop tests at the connector and relays. Also confirm the replacement's resistance, thermal protection, and mounting orientation.

Can a bad fan motor open the thermal fuse without blowing the circuit fuse?

Yes, because the two devices protect against different conditions

The circuit fuse responds to current over time, while the resistor's thermal fuse responds to local temperature. A moderate motor-current increase or reduced cooling airflow can overheat the resistor without exceeding the main fuse threshold.

Why does high fan speed still work when the resistor fuse is open?

High speed often bypasses the resistor

A separate relay may feed the motor directly at high speed. Confirm the wiring diagram, because other vehicles use different architectures. Test each speed command before deciding which component is open.

Should I use a lower resistance to make the fan run faster?

No, unless the vehicle maker specifies that exact part

Changing resistance changes motor speed, current, relay load, and resistor heat. Match the OE application and correct the underlying airflow or motor problem rather than altering circuit design.
