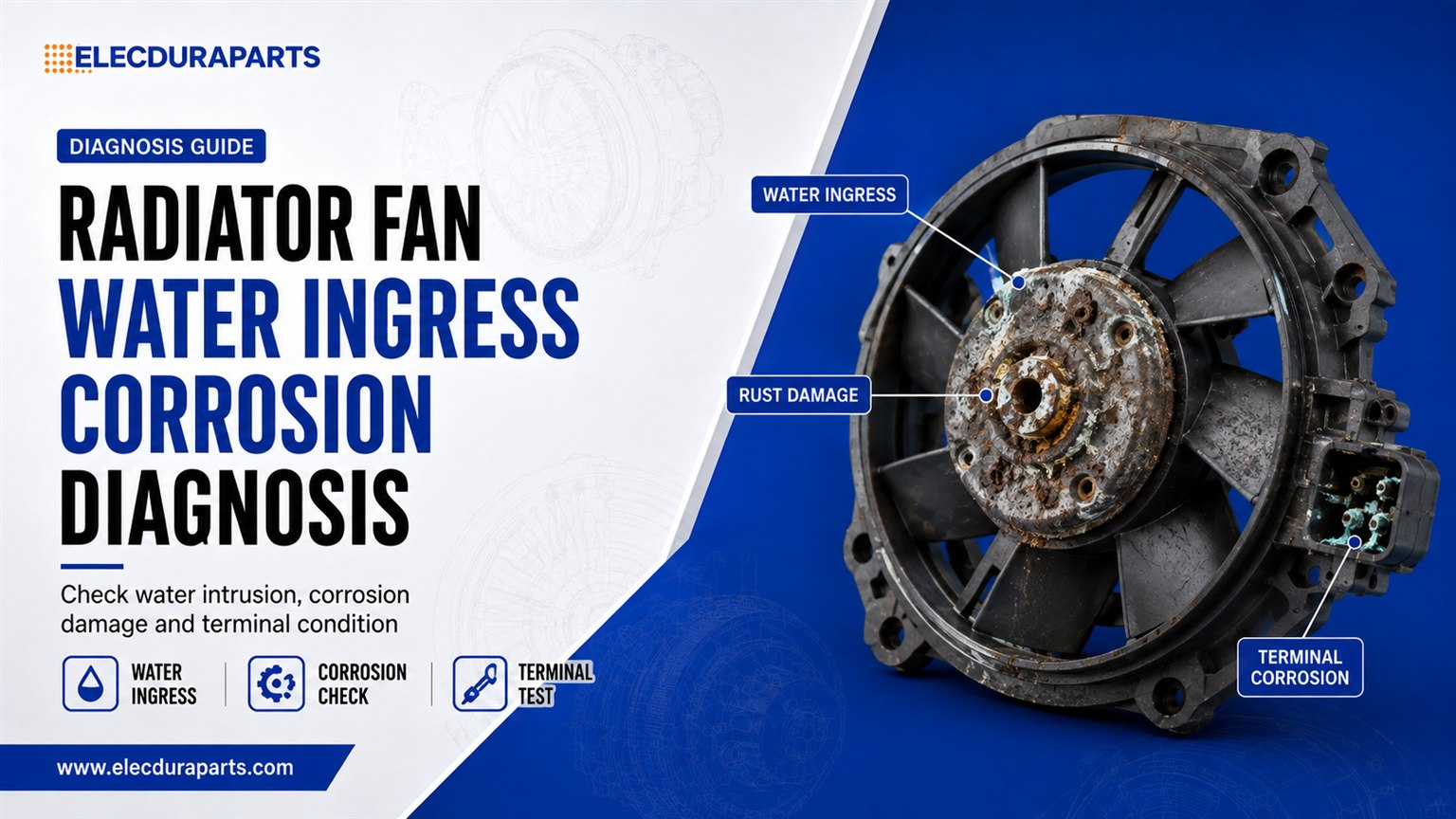

Radiator fan water ingress is rarely solved by drying a connector and installing another fuse. Water can travel along a harness, enter through a displaced seal, collect at a low point, penetrate motor bearings, or reach an integrated power module. The resulting fault may appear only after rain, washing, a hot soak, or freezing weather. By the time green corrosion is visible, terminal plating, conductor strands, insulation, and electronic components may already be affected.
A reliable diagnosis reconstructs the water path before deciding which part to replace. It also tests the circuit in both wet and dry states, because evaporation can temporarily restore continuity while corrosion continues to increase resistance. Treat the radiator fan assembly, connector, harness routing, shroud, and surrounding body seals as one exposure system.
Possible entry path | Typical evidence | Hidden risk |
|---|---|---|
Connector face or damaged perimeter seal | Wet terminals, displaced gasket, incomplete latch | Capillary movement into wire strands |
Wire-side seal or missing cavity plug | Loose seal, incorrect wire diameter, open unused cavity | Moisture reaches rear of terminals while face looks dry |
Harness positioned as a water channel | Drip marks, tape holding water, low-point pooling | Water migrates from a distant damaged branch |
Motor shaft or housing seam | Bearing noise, rust, water marks, intermittent current | Internal winding and commutator deterioration |
Integrated module potting or cover | Fault after washing or heat cycle, corrosion near power stage | Electrochemical damage beneath sealed surfaces |
Pressure washing or incorrect cleaning | Failure immediately after service | Water forced past seals designed for splash, not a direct jet |
Ask whether the fan stops during rain, after a car wash, after engine-bay cleaning, during snow, or only after overnight parking. Note ambient temperature and whether the fault disappears as the vehicle warms. A moisture-related open circuit can recover after evaporation, while a conductive water film can create a short or corrupt a low-current command signal.
Save freeze-frame data, fan command, feedback, coolant temperature, A/C pressure, supply voltage, and related network faults. A code created during a wet event may become historical by the time the workshop sees the vehicle. The sequence helps distinguish a fan that stopped first from a cooling-system overtemperature that commanded the fan afterward.
A replaced radiator, condenser, bumper, headlamp, undertray, or fan shroud can change splash paths and harness support. Missing clips allow a connector to hang with its cavity opening upward. Incorrect tape can create a funnel. A damaged radiator fan shroud may expose the motor and module to wheel spray while also changing airflow.
Begin above and ahead of the fan. Look for coolant or washer-fluid leaks, missing deflectors, open body seams, damaged grille seals, and hose routing that directs water toward the connector. Follow staining and dust-cleaned tracks. Water often enters at a high point and accumulates somewhere else, so replacing the wettest component may not stop recurrence.
Coolant residue, washer-fluid dye, road salt, and engine oil create different deposits and electrical effects. Identify the fluid safely instead of assuming every wet connector has rainwater. A radiator leak above the fan can expose the circuit to conductive coolant and requires heat-exchanger repair as well as electrical inspection.
Capture latch position, harness tension, wire bend, seal seating, and the direction from which water could arrive. After disconnection, photograph both terminal faces and the wire side. Do not wipe away deposits until their color and location are documented. A connector that was not fully seated can snap into place during handling and hide the original condition.
Unused connector cavities should have the specified plugs. A plug for the wrong cavity size can look installed while leaving a capillary path. Some motors or modules use intentional vents or membranes to equalize pressure; coating or sealing these openings can trap condensation. Confirm component design before adding sealant.
Green copper salts, blackened plating, white deposits, and heat discoloration support corrosion or overheating, but a visually clean terminal can have damaged plating or weak spring force. A corroded terminal may still pass an unloaded continuity test. The relevant question is whether it carries fan current or preserves a valid signal with the connector assembled.
Command the fan using the approved procedure and measure from the harness-side conductor to the component-side terminal. Repeat on power and ground. Voltage across a closed connection represents lost energy and local heat. For high-current paths, correlate voltage drop with current; for PWM or feedback terminals, scope amplitude and edges rather than loading the line with a test lamp.
Repeated heating and corrosion reduce contact force. Use the specified pin-fit or drag tool. Do not insert an oversized probe that spreads the terminal and creates the fault. If retention or plating is compromised, replace the approved terminal or pigtail and any housing that no longer locks or seals.
The same loaded approach used in radiator fan relay testing applies to connections: an audible click or continuity beep cannot prove current capacity.
Water can wick between conductor strands under insulation. Cutback is justified only within the approved repair process, but the inspection must reach clean, flexible conductor. A terminal replacement crimped onto blackened or green strands will have high resistance and poor mechanical strength. If corrosion extends through a long branch or splice, harness replacement may be more reliable than repeated local repairs.
The circuit must be cleaned and dried before sealing. Wrapping a wet branch slows evaporation and encourages further electrochemical damage. Use approved splice materials, adhesive-lined sealing where specified, correct overlap, and restored harness supports. A sealed repair at the connector is ineffective if water can continue entering upstream.
A wet ground splice can affect the fan, sensors, and other modules simultaneously. Compare fault timing across systems. Measure ground voltage drop while the fan runs and inspect ring terminals for corrosion between layers, not only on the visible surface. Shared ground problems can distort a fan control module signal before the motor stops completely.
Bearing noise, rough rotation, axial or radial play, rust trails, and water marks near a shaft seal indicate mechanical exposure. Do not open a sealed motor unless the manufacturer provides a service procedure; opening destroys evidence and may change ingress paths. Record fan current, speed, and noise cold and hot.
Corroded bearings or commutator surfaces can increase current and reduce speed. Winding damage can create intermittent or uneven current. Use the radiator fan motor current-draw test and compare the trace with independent RPM. High current and low speed indicate a different failure from low current caused by an open corroded terminal.
A wet motor may operate when cold, fail as corrosion heats, or recover when a brush moves. Carefully reproduce the original fan command after hot soak and, where safe, normal vehicle vibration. Do not spray water onto a powered component as an improvised test. Use controlled leak testing outside the energized state and follow ingress-test specifications.
Brushless and variable-speed fans contain switching electronics. Water can corrode low-current command and feedback paths, create leakage between terminals, or damage the power stage. A fan that spins freely by hand can still be electrically inoperative. Review brushless fan motor architecture before using direct battery tests.
Confirm power, ground, wake-up, command, and feedback while the assembly is connected. Water films can round signal edges or pull a line to an intermediate voltage. If the signal is valid at the controller but invalid at the fan, inspect the harness. If it remains valid at the fan and power is stable but current and RPM do not respond, internal electronics become a stronger suspect.
Potting compounds protect selected surfaces, but terminals, seams, pressure vents, and thermal interfaces remain possible paths. Heat cycling creates pressure changes that can draw moisture inward through a damaged seal. Replacement sealing must reproduce the designed venting and heat transfer; coating the entire housing can cause condensation or overheating.
Rapid temperature changes, humid air, and pressure cycling can produce moisture inside a housing. Repeated droplets without an obvious splash path may point to failed venting or a damaged membrane. Determine whether the component design allows drainage or breathing. Blocking drains with sealant can worsen the condition.
Road salt and coastal exposure leave conductive residue after water evaporates. A connector that appears dry can continue leaking current and corroding. Cleaning must follow the connector or module manufacturer's approved method; aggressive chemicals can remove plating, swell seals, or leave their own residue.
After de-energizing and protecting sensitive openings, inspect with controlled low-pressure water or approved dye only where the service process permits. Reproduce the suspected direction rather than flooding the entire assembly. Dry completely before electrical testing. The objective is to confirm a path, not to prove survival under an unrealistic pressure-washer jet.
Water-related faults sometimes arrive with an oversized fuse, repeated jumper-wire tests, or a bypassed relay because the original fuse opened intermittently. Restore the specified protection and identify which branch caused the event before commanding the fan. A fuse that opens immediately after rain suggests a different path from one that survives until a wet bearing heats and loads the motor. Use the general cooling fan fault-isolation sequence after the wet components have been made safe.
Insulation-resistance testing can be useful on an isolated winding or harness when the manufacturer specifies voltage and procedure. The same test voltage can damage an integrated module, sensor, or ECU. Disconnect and isolate only as directed, discharge circuits, and record temperature and humidity because surface moisture changes the result.
A motor-only repair requires a serviceable motor mounting, undamaged blade and shroud, correct module or resistor, dry and reusable connector, and confirmed fan geometry. If corrosion affects an integrated driver, feedback sensor, molded harness, or blade hub, a complete assembly may reduce repeat risk. The fan motor versus complete assembly decision must reflect the proven moisture path, not only part price.
For variable-speed assemblies, repeat low, medium, and high commands while scoping the control and feedback lines. Confirm that drying or pigtail replacement has not changed pull-up voltage, PWM edges, or network communication. Refer to the PWM and LIN fan-control tests before condemning electronics that entered fail-safe operation during the wet event.
Confirmed condition | Appropriate scope | Required verification |
|---|---|---|
Minor terminal issue; clean conductor; housing seals and locks correctly | Approved terminal repair | Pin fit, loaded drop, signal quality, leak-path correction |
Heat or corrosion damaged several terminals/housing | Approved sealed pigtail and affected component terminal side | Crimp, sealing, strain relief, current and waveform |
Corrosion wicks deep into harness | Longer branch repair or harness replacement | Clean-conductor endpoint and restored routing |
Water inside motor; bearing or winding evidence | Radiator fan motor or complete assembly | Hot current, RPM, airflow, sealing |
Integrated module damaged | Module if serviceable; otherwise complete assembly | Power, ground, command, feedback, current, RPM |
External body or cooling-system leak | Correct source plus electrical repair | Controlled water-path retest after reassembly |
Heat or compressed air can remove moisture but cannot restore terminal plating, spring tension, corroded copper, damaged bearings, or etched circuit boards. Use drying to enable inspection and safe measurement, then base replacement on material condition and electrical performance.
Restore shields, grommets, clips, undertrays, connector orientation, drains, and seals before installing a replacement. Check blade and shroud clearance and route the harness away from rotating parts and direct spray. Otherwise a correctly sealed new component can be exposed beyond its design limits.
Provide the OE number, vehicle and engine, build range, voltage, motor or module type, connector-face and wire-side photographs, terminal count, keying, seal color and geometry, mounting points, fan diameter, blade count, rotation, shroud dimensions, and required quantity. A connector that mates electrically can still use the wrong wire-seal range or omit a cavity plug.
Ask the supplier which component-level sealing or environmental test applies to the exact part number, including test orientation, pressure or spray method, duration, temperature cycling, acceptance criteria, and connector condition. Do not treat a generic “waterproof” claim as proof. A test performed with capped terminals may not represent the installed harness interface.
Protect connector faces, seals, vents, blades, and module heat sinks. Wet cartons, high humidity, missing protective caps, and compressed seals can create damage before installation. Receiving inspection should verify dry terminals, plug presence, seal seating, latch function, terminal retention, traceability, and blade/shroud integrity.
Use Elecdura's engine cooling parts range to coordinate fan, module, motor, shroud, and radiator fitment. Review the aftermarket parts program, wholesale cooling fan selection, and wholesale terms. Send the application, connector and water-path photographs, measured current or waveform, required assembly scope, quantity, packaging specification, and destination through the contact page.
Use only the specified product and amount. Grease does not restore plating, terminal force, conductor strands, housing locks, or a displaced seal. Excess material can prevent full seating on some connectors.
Follow vehicle cleaning instructions. Keep pressure, distance, temperature, and direction within the approved limits, and avoid driving water into connectors, vents, motor shafts, and module seams.
Corrosion and plating damage remain. Perform loaded voltage-drop, signal, terminal-tension, and conductor inspection, then correct the entry path even if operation returns.
Bearing rust, abnormal current, low RPM, winding leakage, internal corrosion, or a failed sealed housing supports replacement. External splash on an intact housing alone is not proof of internal damage.
Conductive water can create a short, while corroded bearings or winding damage can raise motor current. Inspect the fuse event timing, isolate branches, and measure current after the circuit is safely repaired.
