Thermostat Jiggle Pin Position: Bleed Air Without Installing the Thermostat Wrong

A thermostat jiggle pin is a small loose valve fitted in a bleed hole. During filling, it can let trapped air move past a closed thermostat; during normal flow it limits the opening more than a bare hole. Installers often repeat “put the jiggle pin at twelve o’clock,” but that is only correct when the service information, housing orientation and coolant high point support it.

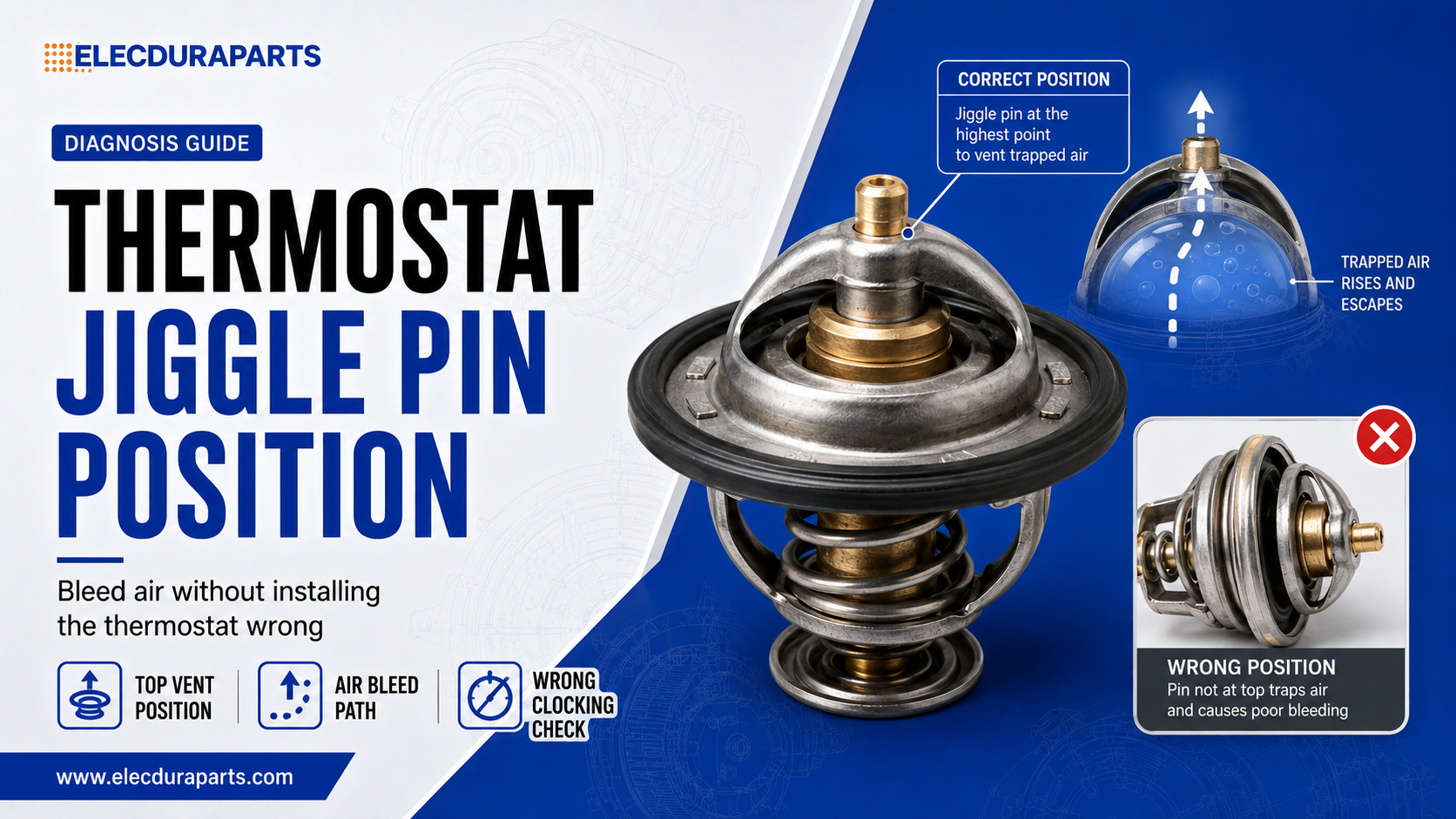

Quick Answer: Orient the Bleed Feature Toward the Actual Air Pocket

Identify the thermostat’s engine side, outlet side, locating tabs, seal and bleed feature. Install it in the exact housing orientation specified by the manufacturer. If the procedure gives no clock position, determine the installed housing’s uppermost internal point and verify whether the pin is intended to vent there. Never drill a hole or add a pin to a calibrated thermostat without approved instructions.

Why Air Becomes Trapped Behind a Closed Thermostat

During a cold fill, the main valve blocks one path between engine and radiator. Air rises to local high points and can remain near the sensing element or cylinder head. A small bleed path allows coolant to displace that air. Without it, the element may not be surrounded by liquid and local metal temperature can rise before the thermostat responds.

The Pin Is Not a Second Thermostat

The loose pellet lifts during filling or pressure difference and then seats enough to restrict normal bypass. Rattle is often normal. A missing, jammed or corroded pin changes the intended bleed behavior, but it does not determine the main opening temperature.

Why Twelve O'Clock Is Not Universal

Clock position must be referenced after the housing is installed, not while the loose part sits on a bench. An angled housing can put the casting’s apparent top away from the true internal high point. Some thermostats are keyed, use an offset bypass disc or place the bleed at a manufacturer-defined port.

Follow the Housing and Service Mark

Look for an alignment notch, “UP” mark, tab pocket or gasket feature. Photograph the old installation before removal, but do not assume it was correct. Compare the OE drawing and service procedure. The opening-temperature and matching guide explains other markings that should not be confused with orientation.

Horizontal thermostats require geometric thinking

When the valve plane is vertical or angled, “top” means the point where air collects in that cavity. Hose direction and bypass passages matter. If a factory pin sits somewhere else, preserve the factory orientation.

Confirm Which Side Faces the Engine

On many wax thermostats, the sensing element and spring face the hot engine coolant. Reversing the unit can delay opening or prevent proper seating. Integrated electronic thermostats, cartridge designs and complex modules may not resemble the common pattern; fit them only by keying and service information.

Do Not Ignore the Bypass Disc

Some thermostats close an internal bypass as the main valve opens. Disc diameter, stem length and installed depth determine flow balance. A thermostat that fits the recess but lacks the correct bypass geometry can cause long warm-up, hot spots or radiator-flow problems.

Seal and Housing Preparation

Clean the sealing surface without gouging plastic or aluminum. Replace specified O-rings and install them in the correct groove. Extra sealant can enter the bleed hole or cooling passages. Plastic housings require controlled torque; the plastic thermostat-housing guide covers distortion and mounting stress.

Fill and Bleed the Complete System

A correctly oriented pin cannot overcome an empty heater core, blocked degas hose or incorrect filling procedure. Use specified coolant, mixture and vacuum-fill equipment where required. Open service bleeders in the defined order and operate heater valves or electric pumps as instructed.

Watch for Stable Evidence After Cooldown

Verify heater output, hose temperatures, coolant circulation, fan operation and stable cold level after a full heat cycle. Temporary bubbles after service can be purge air; persistent cold-start pulsing belongs to the coolant bubbling diagnosis.

Symptoms of Wrong Orientation

Possible results include difficult filling, gurgling, unstable heater output, delayed warm-up response, local overheating or coolant expulsion. These symptoms are not exclusive. A wrong temperature rating, air leak, weak pump, blocked radiator or combustion gas can look similar. Recheck actual installation before replacing a second thermostat.

When the Thermostat Appears Stuck After Replacement

Confirm part number, temperature rating, wax-element side, bypass geometry and air purge. The stuck-open after replacement guide separates incorrect parts, debris and control faults.

Matching Checklist

Wholesale Quality and Packaging

Incoming inspection should verify marking, opening-temperature sample tests, dimensional consistency, jiggle-pin retention and motion, seal content, bypass geometry and cleanliness. Packaging must protect the frame and wax element. Elecdura’s wholesale thermostat range is matched by OE/application data.

Installation Failure Scenarios

Thermostat Fits but the Flange Will Not Sit Flat

The seal may be outside its groove, the locating tab may miss its recess, or the thermostat frame may be upside down. Do not draw the housing flat with bolts. Remove it, inspect witness marks and compare dimensions. Forcing a plastic housing can create a delayed crack.

Bleed Pin Is at the Top but Air Remains

The pin vents only its local cavity. A closed heater valve, blocked degas hose, empty rear heater or high-mounted radiator can retain air elsewhere. Follow the complete vacuum-fill or bleed procedure and confirm each branch receives coolant.

Engine Warms Too Slowly After Drilling a Hole

A continuous bypass transfers heat to the radiator before the main valve opens. Even a small added hole changes mass flow and emissions warm-up. Replace the modified thermostat with the correct calibration rather than attempting to plug it.

New Thermostat Opens but Engine Still Overheats

Opening in a bench bath does not prove installed flow. Check bypass closure, pump impeller, radiator restriction, hose collapse, combustion gas and fan airflow. The clogged radiator flow and heat test covers the heat-rejection branch.

Bench Test Boundaries

A controlled bath can compare start-to-open and full-open movement when the manufacturer permits. Suspend the thermostat so it does not touch the container, circulate water for uniform temperature and use a calibrated sensor near the element. Heating too quickly creates lag between water and wax.

The Jiggle Pin During a Bath Test

The pin may release bubbles but is not the measured main-valve opening. Record main valve lift and temperature. Corrosion, bent frames and sticky movement justify rejection even when the first opening temperature looks plausible.

Integrated and Map-Controlled Thermostats

Some assemblies combine thermostat, housing, sensors and electrical heater. The ECU can energize the element to alter effective opening under load. Connector pin count, resistance, housing ports and software strategy become fitment inputs. A loose insert with the same temperature stamp is not an acceptable substitute for the calibrated module.

Do Not Apply Battery Voltage Directly

The heater may require controlled current or pulse strategy. Follow the test specification. Direct power can overheat the element or wiring and says nothing about ECU command.

Post-Installation Proof

Log coolant temperature from cold start through main-valve opening, radiator-inlet warming and fan cycles. Verify stable heater output, no gurgling, correct cold level after cooldown and no housing seepage. If available, compare commanded map-thermostat operation and fault codes.

For batch sourcing, use the thermostat quality-test jig guide to define sample heating rate, lift and traceability rather than relying on stamped temperature alone.

Cooling-Circuit Geometry

Engine Outlet Thermostat

In a common outlet arrangement, hot coolant reaches the sensing element before entering the radiator. Air trapped near the outlet can insulate the element, making the bleed path important during filling.

Engine Inlet Thermostat

Some engines regulate coolant returning from the radiator. Bypass flow and mixed coolant determine element temperature. Orientation and bypass-disc geometry can differ significantly from an outlet design even when the thermostat diameter is similar.

Multiple Thermostat Systems

Heavy-duty engines may use paired thermostats or staged elements. Replace and test them according to the engine procedure, often as a matched set. One bleed feature cannot compensate for a second valve installed incorrectly.

How Bleed Flow Affects Warm-Up

Every open bleed path transfers some coolant around a closed main valve. Engineers balance purge capability against warm-up, emissions and heater performance. Removing a jiggle pin creates a larger continuous opening; blocking it can trap air. Preserve the calibrated feature.

Noise Is Not Always Air

Gurgling can come from trapped air, but pump cavitation, heater-valve movement and coolant boiling also make noise. Compare pressure, temperature and level. A quiet system can still contain an air pocket if no flow reaches that branch.

Inspection of the Removed Thermostat

Look for a polished off-center seat, bent frame, torn seal, deposit around the pin and witness marks from incorrect housing contact. Record its installed orientation before moving the pin. Deposits can reveal mixed coolant or sealant that also threatens the replacement.

Check the Housing Passage

A correctly clocked pin cannot vent through a blocked casting port. Inspect the mating recess and bypass passage without scratching sealing surfaces. Remove only approved debris; do not enlarge a calibrated channel.

Procurement Risk in Similar Thermostats

Suppliers may list the same outer diameter across several engines. Require drawings or measured height, valve diameter, bypass-disc position, bleed type and temperature calibration. For integrated housings, include sensor and connector data. A sample heat test should use controlled rate and traceable temperature equipment.

Related product families are visible in Elecdura’s product category index, but application confirmation must remain OE- and engine-specific.

Frequently Asked Questions

Does the jiggle pin always face up?

It usually needs to serve the trapped-air high point, but keyed housings and manufacturer instructions take priority over a universal clock rule.

Can I drill a bleed hole in a thermostat?

Only if an approved service procedure specifies it. Hole size changes bypass flow and warm-up.

Is a rattling jiggle pin defective?

Free movement can be normal. Check retention, corrosion and the product specification.

Can wrong orientation cause overheating?

It can contribute through trapped air or wrong bypass behavior, but the complete cooling system must be tested.

Product-Specific Ordering CTA

Send the OE number, engine code, old thermostat markings, bleed feature and bypass-disc photos, housing orientation, seal dimensions and quantity through Elecdura’s contact page. These details prevent a dimensionally similar thermostat with the wrong bleeding or bypass design from being ordered.

Step-by-Step Installation Checklist

Before Removal

Let the engine cool, document coolant level and scan data, and photograph housing, hoses and connectors. Note the old bleed position. Drain through the approved point so hot coolant cannot spill across belts or electronics.

On the Bench

Compare OE number, temperature marking, height, main valve, bypass disc, seal, locating tab and jiggle pin. Do not reuse a flattened seal. Shake the new unit only lightly to confirm specified pin motion; do not bend the retainer.

At the Housing

Clean and inspect the groove, bleed passage and mating surface. Place the thermostat by keying and required orientation, hold it while installing the housing, and confirm the flange sits naturally. Torque in sequence.

During Filling

Use correct coolant and the service bleed routine. Monitor electric pumps, valves and bleeders. Do not rev an air-bound engine to force circulation. Confirm heater output and return flow without opening the hot cap.

After Cooldown

Check cold level, residue, hose shape and stored codes. A stable first hot cycle is not enough when the system still contains purge air. Repeat the specified final check.

Related Diagnosis

A collapsed radiator hose, failed pressure cap, weak radiator fan assembly or restricted radiator can remain after correct thermostat installation. Use temperature and pressure evidence to select the next branch.

Additional FAQs

What if the replacement has no jiggle pin?

Verify whether it uses a calibrated bare hole, internal bleed path or is the wrong design. Do not add a pin.

Can the pin cause a coolant leak?

It normally opens inside the sealed system. External leakage points toward the housing, seal or casting, not the pin itself.

Should I replace the housing with the thermostat?

Replace it when cracked, warped, integral to the supported assembly or required by the service procedure; inspect rather than assume.

Final Installation Rule

Do not discard the old thermostat until the complete warm-up curve and housing seal pass. If the new unit behaves differently, the retained part provides dimensions, markings and orientation evidence. Keep the box label with the work order, because several calibrations may share the same casting shape. For fleet installations, carefully audit the first received sample completely before releasing the remaining quantity. This prevents a wrong bypass disc or bleed layout from being installed across multiple engines.

Before closing the job, compare the removed and installed parts one final time. Confirm the spring and wax element face the intended hot side, the seal stayed in its groove, the bleed feature reaches the designed air pocket, and the bypass disc enters its passage without contact. Photograph the seated thermostat before the housing is installed when workshop policy allows. During filling, record how much coolant was added versus system capacity; a large unexplained shortfall suggests retained air. After warm-up, check the heater core, upper and lower radiator hoses and expansion tank return for a coherent flow pattern. Do not approve the repair until the engine cools completely and the level remains stable.

The bleed feature is one part of a calibrated flow device. Correct installation must satisfy engine-side orientation, housing keying, bypass geometry, seal seating and trapped-air release at the same time. If those requirements conflict with a generic “pin up” rule, the OE service geometry wins.
