A plastic intake manifold can leak even when no crack is visible from above. Repeated heat cycles, fastener load, embedded inserts, engine movement and previous installation errors can distort a runner flange or gasket groove. A new gasket may seal briefly, then leak again because the manifold no longer compresses every port uniformly.
The most useful warped plastic intake manifold symptoms are a repeatable leak location, cylinder-specific mixture change, uneven gasket imprint, flange lift between bolt points or visible boss distortion. Rough idle and lean codes alone are not enough: injector seals, PCV hoses, throttle-body gaskets, brake-booster lines and cylinder-head sealing surfaces can create the same air path. Elecdura’s intake manifold range includes different runner, actuator and sensor configurations, so geometry limits and replacement scope remain application specific.
Quick answer: confirm the leak while the manifold is installed by correlating fuel trims, cylinder behavior and a controlled smoke or pressure test. Mark the exact escape point before removal. Then inspect the old gasket imprint, flange, groove, bolt bosses, inserts, welded seams, actuator shafts and cylinder-head rail. Measure flatness using the manufacturer method without forcing flexible plastic onto the reference surface. Replace the complete manifold when distortion, cracking, loose inserts or integrated mechanism damage prevents uniform sealing; do not expect extra sealant or a thicker gasket to restore unstable geometry.
The manifold is bolted to a hot cylinder head while carrying cooler intake air and sometimes hot EGR flow, crankcase vapor or coolant. Its molded material expands differently from the aluminum head and steel fasteners. During each heat cycle, ribs, bosses and sealing flanges move by different amounts.
Fasteners concentrate load at bosses. Compression stops and metal inserts are intended to control that load, but overtorque, wrong sequence, missing sleeves or uneven head-rail contact can pull local areas down and lift the flange between them. The resulting leak often follows geometry rather than a random crack.
Runner length, flange thickness, gasket profile, fastener spacing and material vary. Use the specified measurement method and limit or a documented comparison with a verified original. Do not transfer a flatness number from an aluminum manifold or another engine family.
Record DTCs, freeze-frame data, idle quality, misfire counters, short- and long-term fuel trims, manifold pressure and oxygen-sensor behavior. Compare cold start, warm idle and a controlled increase in engine speed. A flange leak often has its strongest mixture effect at high manifold vacuum, but control strategy can change the pattern.
Introduce smoke through an approved point with the intake isolated according to the service procedure. Use low regulated pressure suitable for the system. Observe flange edges, injector pockets, throttle-body joint, actuator shafts, PCV ports, brake-booster connection and molded seams.

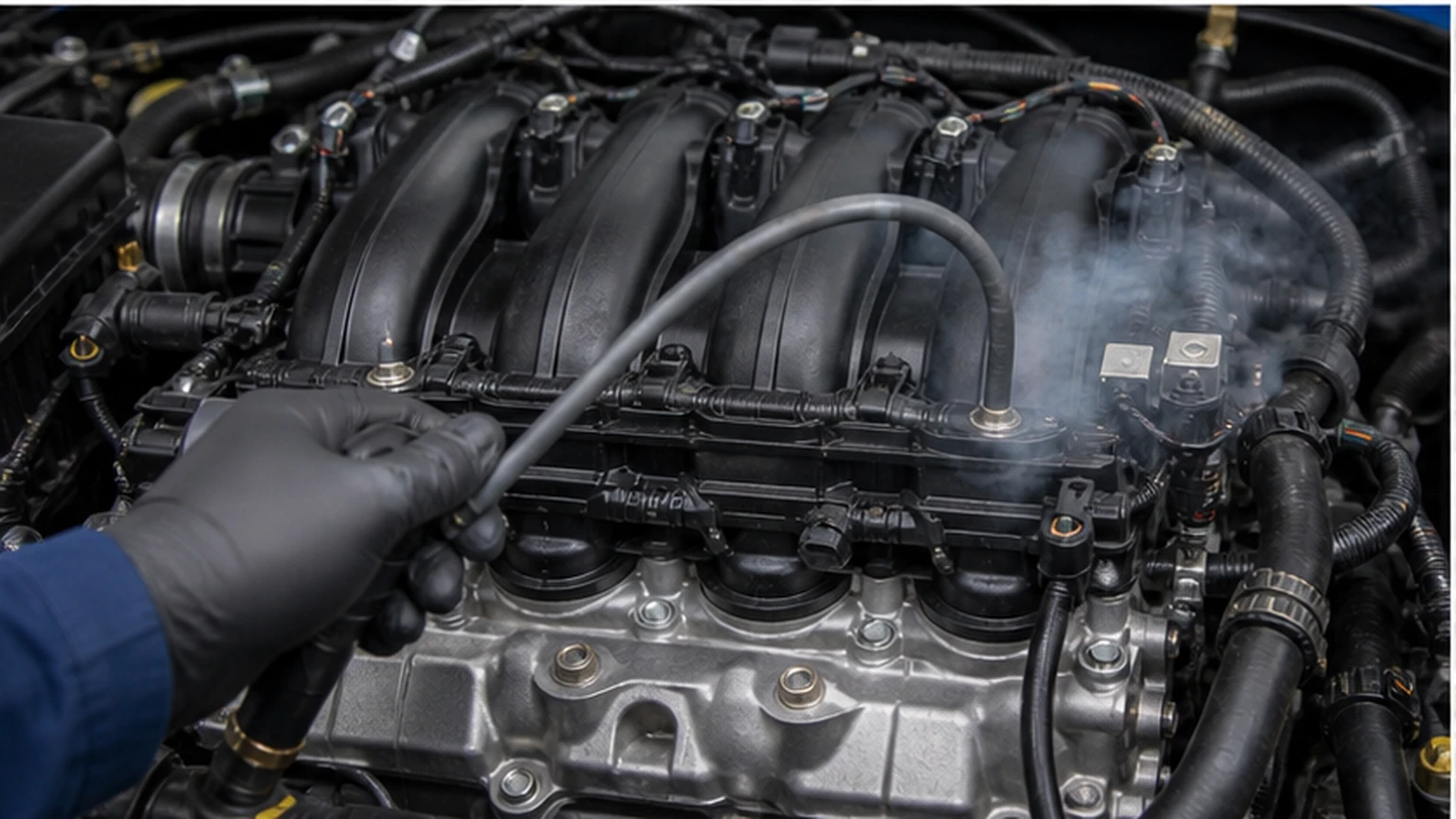

A controlled smoke test maps the escape point before removal changes the evidence.
Smoke at the flange can escape past a hardened gasket, warped plastic, damaged head rail or insufficient clamp load. Mark and photograph the location, then compare it with removed-part evidence.
A vacuum leak can drive positive trim at idle, with less relative effect at higher load. Cylinder-specific port leaks may influence misfire or individual mixture adaptation. Exhaust leaks, fuel-delivery faults and sensor bias can create similar data, so trim behavior should guide leak testing rather than replace it.
Inspect PCV hoses, valve-cover ports, injector seals, throttle-body gasket, vacuum reservoirs, brake-booster hose, EGR joints and sensor O-rings. A cracked hose can rest against the manifold flange and make the smoke source appear to be the plastic body.
Smoke or fuel-trim evidence concentrated near one port may come from the injector’s upper or lower seal. Observe the exact ring around the injector and inspect seal condition after rail removal. Do not order a manifold because the nearest visible surface carries residue.
A stuck PCV valve or torn diaphragm can create unmetered airflow, whistling and lean codes. The PCV diaphragm symptom guide belongs to that branch. Confirm crankcase pressure and hose routing before assigning an intake-manifold flange fault.
Combustible aerosol near ignition and hot surfaces creates fire and engine-damage risk, and RPM response can be ambiguous. Use an approved smoke, pressure or diagnostic method.
Follow the service sequence for fuel, electrical, coolant and vacuum connections. Support harnesses and pipes rather than forcing them aside. Loosen fasteners in the specified order. Photograph the manifold as it lifts so a displaced gasket is not mistaken for original seating.
Leave the old gasket positioned long enough to record its imprint. Uniform contact bands support even clamp load. A polished, untouched, extruded, cut or oil-dust-marked section can show where compression was lost. Compare the pattern with smoke location and bolt positions.

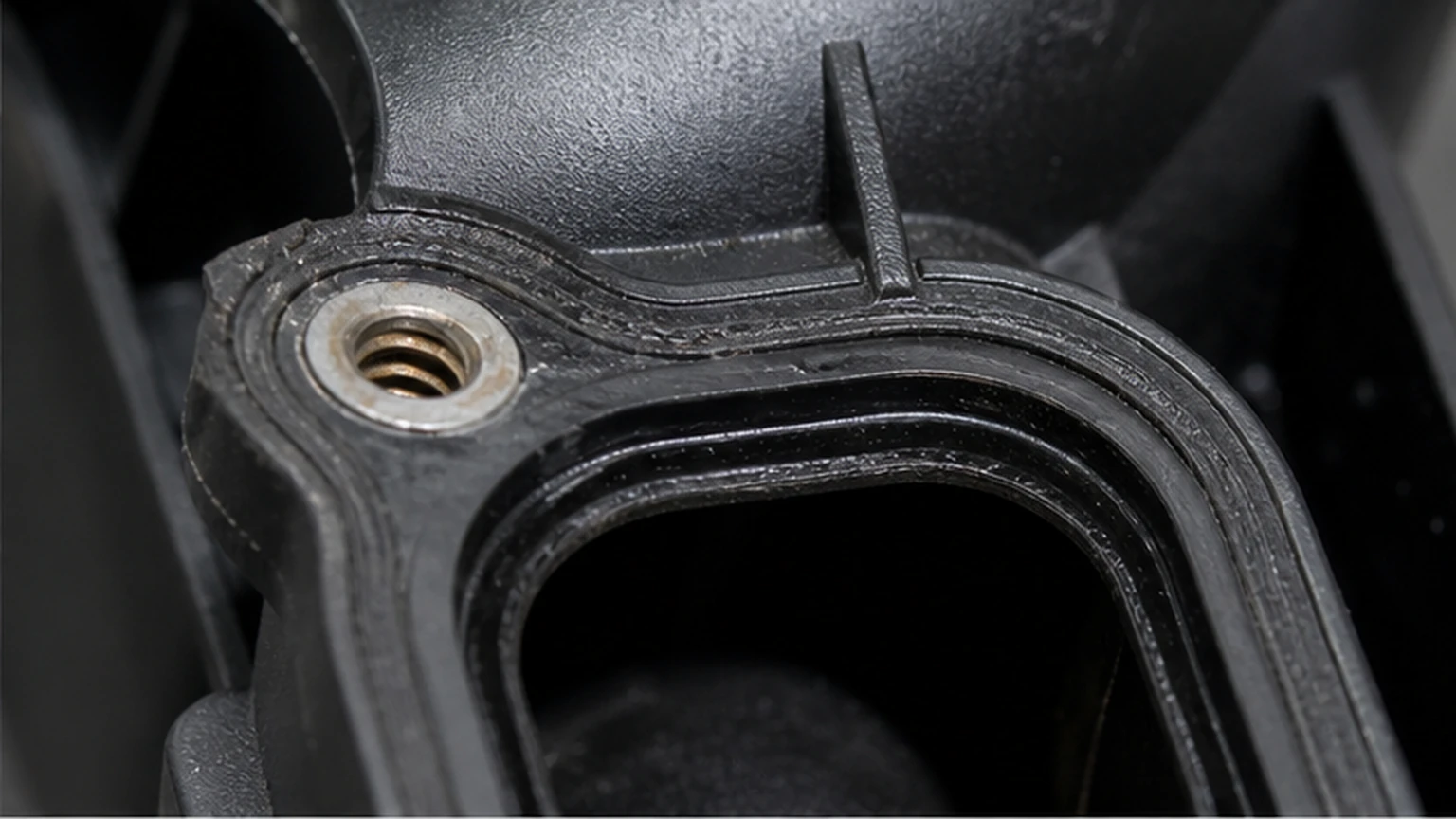

Bolt-boss and groove geometry explain why gasket compression can vary from port to port.
Elastomer aging can be the primary failure, but it may also mask slowly developing distortion. Measure the flange and inspect bosses before deciding that gasket-only replacement is sufficient.
Clean with a plastic-safe method that does not remove material. Inspect each groove for nicks, flash, heat damage, broken retaining features and residue. Check narrow bridges between ports, where plastic can bow or crack and where gasket compression may be least supported.
If several center ports show weak compression while outer bolts appear tight, the flange may be bowed. If only one corner is affected, examine its boss, insert, bracket and cylinder-head surface. A pattern is more useful than a single gap reading.
Excess sealant may hold the manifold away from the head, migrate into a runner or tear the groove during removal. Apply sealant only at specified joints and in the stated quantity. Do not coat a molded intake gasket to compensate for suspected warpage.
Compare boss height, insert position, compression sleeves and witness marks across the manifold. A pulled insert may sit deeper or rotate. Radial cracking, stress whitening and crushed ribs show concentrated load. Verify fastener length and shoulder design.
A bolt can reach the specified torque while bottoming in a dirty blind hole, binding on damaged threads or rotating a loose insert. Correct thread and hardware faults. Never increase torque beyond specification in an attempt to close a visible flange gap.
Support brackets, fuel rails, EGR pipes and charge pipes should align without pulling the manifold sideways. Tightening a misaligned bracket before the manifold sequence can preload the plastic. Follow the assembly order for the exact engine.
Allow the removed manifold to stabilize at the specified workshop temperature. Support it at defined points so weight and attached actuators do not twist the flange. Use a verified straightedge and feeler gauge or a surface plate and height-measurement method specified for the application.

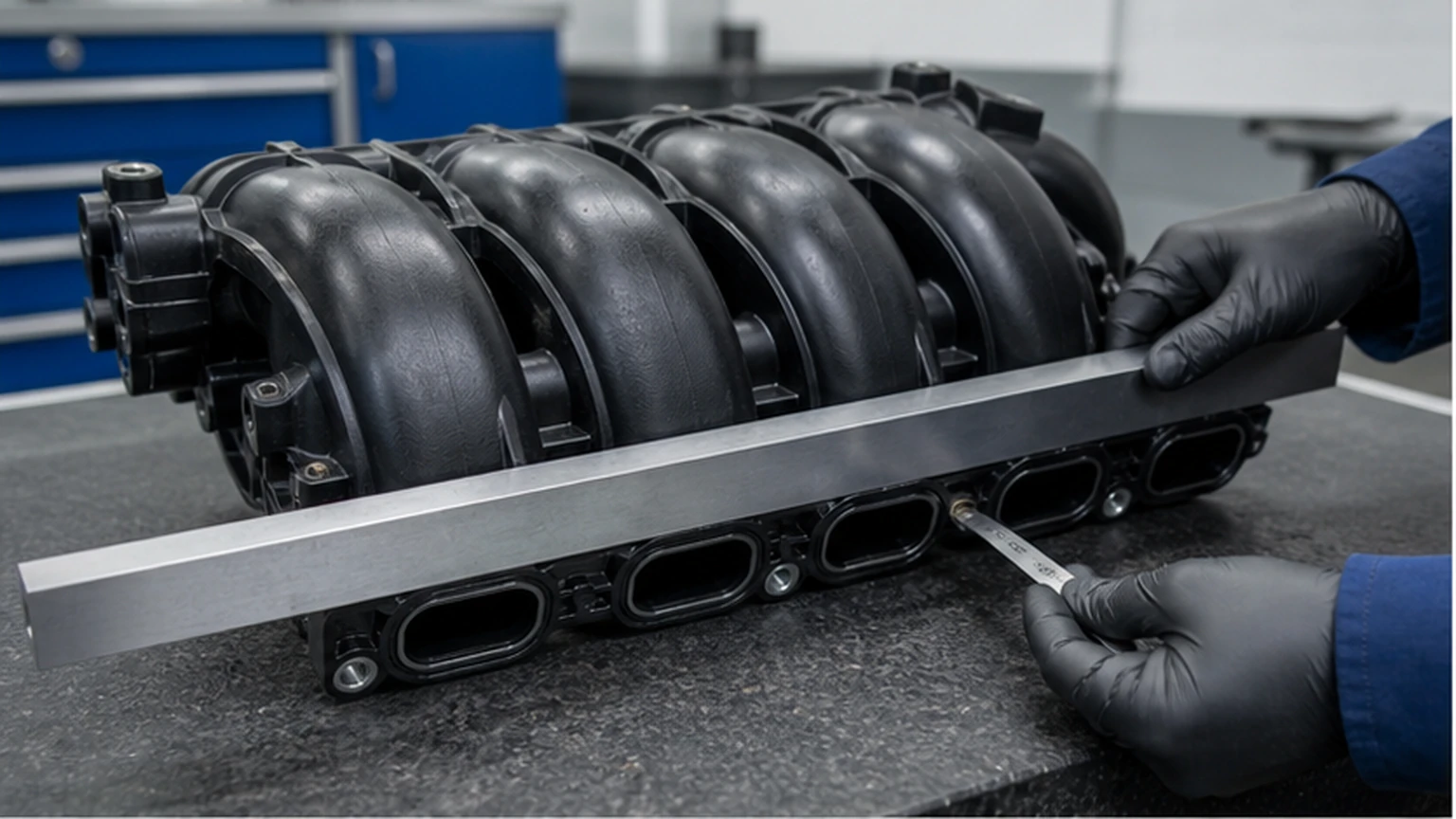

Controlled support and multiple measurement directions reveal flange bow without pressing flexible plastic flat.
Document straightedge direction, support points and gauge position. Inspect the complete flange and individual port lands. Repeat the reading without hand pressure. Correlate the largest gaps with gasket imprint and leak map.
A manifold can sit on two diagonal corners while the opposite corners lift. A single straight longitudinal measurement may miss that twist. Use the specified datum scheme and record all points needed to describe the plane.
Removing material can alter gasket groove depth, compression stops, port alignment and wall strength. It may expose voids or fibers. Replace the manifold when geometry is outside the permitted service condition unless the manufacturer provides a repair.
Composite manifolds may be vibration-welded from multiple shells and include tumble flaps, swirl valves, resonance valves, vacuum actuators, electric motors and position sensors. Inspect seams near high-stress mounts, hose nipples and actuator shafts. Fine cracks may close when cold.
A worn shaft seal or cracked actuator diaphragm introduces unmetered air without flange distortion. Apply the specified vacuum or command test and observe actual position. Do not assume that an actuator DTC proves the plastic housing is cracked.
Loose linkage, excessive shaft play, detached fasteners or damaged runner valves may require a complete manifold even when the flange is flat. Confirm whether the mechanism is separately serviceable and whether adaptation or coding is required after replacement.
Use low regulated pressure and the manufacturer method. Excess pressure can damage sensors, diaphragms and seams or turn a test plug into a projectile. A manifold designed mainly for vacuum should not be treated like a charge-air cooler.
Protect intake ports from debris. Inspect the head rail for old gasket material, corrosion, gouges, casting damage and raised burrs. Check alignment dowels and sleeves. A new manifold cannot seal against a damaged head surface outside specification.
Residue can look like a raised defect. Clean with approved nonabrasive tools, then recheck. Do not grind the cylinder head to make a replacement manifold fit.
Uneven carbon or gasket exposure may show that the old manifold sat laterally displaced. Verify dowels, fastener clearance and correct gasket part number before installation.
Evidence | Gasket-only repair | Complete-manifold replacement |
|---|---|---|
Hardened gasket; flange, groove and bosses within specification | Appropriate after adjacent leaks are excluded | Usually unnecessary |
Flange bow or twist beyond application limit | High recurrence risk | Appropriate after head surface check |
Loose insert, pulled boss or structural crack | Cannot restore clamp geometry | Required unless approved repair exists |
Actuator seal or linkage separately serviceable | Not a gasket repair | Depends on approved service boundary |
Broken nonserviceable internal flap or welded seam | Does not restore function | Normally required |
Damaged cylinder-head rail | Likely to leak again | New manifold alone also cannot correct it |
The existing article on intake manifold leak symptoms covers the broad vehicle diagnosis. This page narrows the decision to removed-part geometry and sealing evidence.
Verify that the replacement manifold, gasket and head rail are clean and undamaged. Seat every gasket in its groove, align dowels and lower the manifold without sliding across seals. Start fasteners by hand and follow the specified sequence and stages with a calibrated torque tool.
Do not use bolts to pull an EGR pipe, fuel rail or support bracket into alignment. Resolve interference first. Transfer sensors and actuators with new seals where specified, and prevent dropped hardware from entering ports.
Command runner controls through their full range where supported. Confirm position feedback and perform initialization or adaptation if required. A sealed manifold with an unlearned actuator can still produce performance codes.
Repeat smoke or pressure testing, cold and warm fuel trims, idle quality and controlled road operation. Inspect for coolant or fuel leaks if those circuits were opened. A repair is not complete when the engine merely starts.
Provide OE number, VIN or exact vehicle, model year, engine code, market, fuel system and emission configuration. Photograph the complete top and underside, runner count, flange, bolt pattern, throttle opening, injector seats, PCV/EGR/vacuum ports and actuator system.
Confirm whether the manifold includes gaskets, runner flaps, actuator, position sensor, vacuum diaphragm, fuel rail, injectors, throttle body, MAP sensor, fasteners and mounting brackets. Elecdura’s wholesale intake manifold range should state every included item rather than using “complete” without definition.
A revised engine may retain the same outer shell while changing internal baffles, EGR routing, sensor calibration or actuator connector. Use OE cross-reference, application data, connector photographs and mounting dimensions together.
If an electronic actuator or sensor is included, identify revision and any initialization procedure. Do not claim plug-and-play compatibility without application evidence.
Receiving inspection should check flange geometry, groove continuity, boss and insert position, port molding, seam quality, threads, connector protection and internal cleanliness. Use a defined fixture so flexible manifolds are not forced into a pass condition.
Where the design includes runner controls, verify movement, end stops, shaft leakage and position response according to an agreed method. Pressure or vacuum leak tests should define medium, limit, stabilization time and isolated boundaries.
Support structural areas without loading the sealing flange. Cap every port and keep loose hardware from entering runners. Packaging must prevent actuator levers, nipples and sensor connectors from carrying carton impact.
Record mold cavity or lot where available, actuator revision and included gasket batch. Mixed revisions can produce intermittent fitment and control complaints that are difficult to trace after distribution.
A rough-idle complaint can originate in the engine valve cover and PCV system, a throttle-body seal or injector hardware. Oil leakage near the upper engine should follow a valve cover leak diagnosis rather than being attributed to the intake manifold.
Boosted engines may also use a charge-air cooler and pressurized hoses. Their leak test boundary differs from a naturally aspirated manifold. For mixed orders, Elecdura’s wholesale service can coordinate categories only after each failure and application is documented.
Sensor-related complaints should retain their electrical evidence. A pressure switch belongs to the A/C system and is not interchangeable with an intake MAP sensor; similarity in the word “pressure” is not product relevance. Natural internal linking should preserve these system boundaries.
Begin with the intake leak diagnostic guide when the failed boundary is still uncertain. Use the intake manifold category only after physical geometry or integrated function justifies replacement, then confirm supply scope through the wholesale intake manifold page. If crankcase ventilation evidence redirects the fault, follow the PCV diaphragm route; if a boosted-air leak remains upstream, inspect the charge-air cooler system. This order prevents several plausible products from being quoted for one unverified symptom.
A thicker seal may compress unevenly, obstruct a port or extrude. Replace distorted structure unless an approved repair method exists.
Gasket condition, bolt load and cylinder-head damage can create the same path. Removed-part inspection establishes the cause.
Record cold and warm evidence. A crack or flange can seal differently as plastic and aluminum expand.
Sanding changes gasket groove depth, port alignment and compression stops and can leave abrasive debris inside the engine.
Provide OE number, vehicle and engine data, top/underside photographs, runner and port layout, actuator and connector details, gasket and sensor scope, measured failure evidence, quantity and packaging requirements through the Elecdura technical enquiry page.
A durable intake repair connects the installed smoke path and mixture behavior with the old gasket imprint, bolt-boss condition, measured flange geometry and cylinder-head rail. That chain shows whether the engine needs a gasket, complete manifold, actuator repair, adjacent hose or no manifold part at all.
For wholesale matching, send Elecdura the OE reference, engine and emission application, complete top and underside images, flange and boss findings, runner-control architecture, included gaskets/sensors/actuators, quantity and packaging expectations. Those details allow the quotation to address the proven sealing or structural fault instead of merely matching the manifold silhouette.
