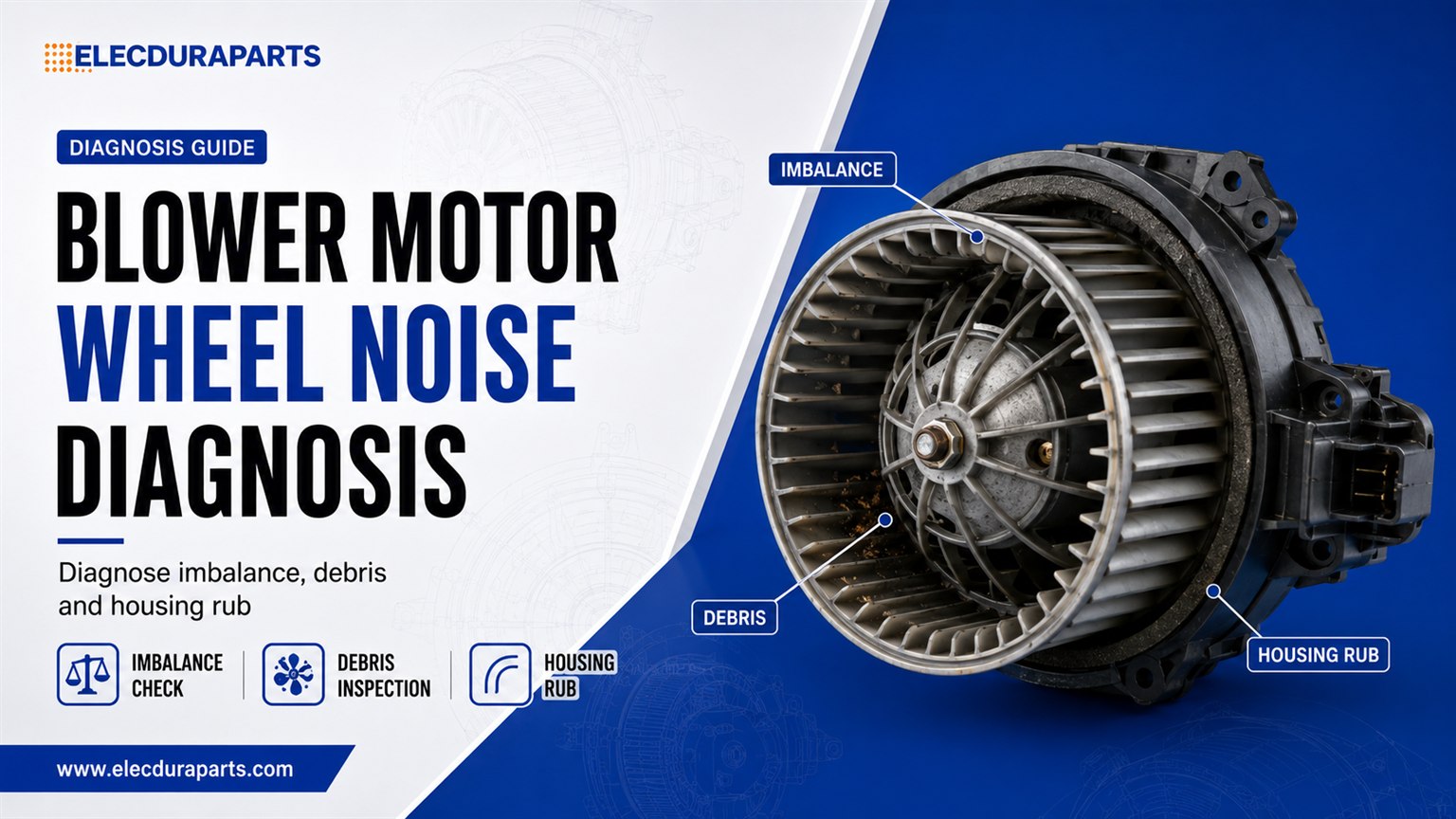

Blower Motor Wheel Noise: Diagnose Imbalance, Debris, and Housing Rub

A blower motor wheel can vibrate because debris is stuck to one side, a blade is broken, the hub is cracked, the wheel is installed at the wrong depth, the motor shaft or bearings are worn, or the HVAC housing is distorted. These faults often become louder as speed increases, but they do not all require the same replacement. A speed-control resistor or module changes motor speed; it does not normally create a once-per-revolution thump or a wheel that physically rubs the housing.

Diagnosis should connect sound, vibration, wheel condition, shaft movement, current draw and housing clearance. Removing leaves may restore balance, but a wheel that has run while rubbing can have hidden hub damage. Replacing only the motor while reusing a distorted wheel can transfer the complaint to the new shaft. Conversely, replacing a complete assembly for a loose foreign object wastes a serviceable motor. Inspect the rotating system before choosing the repair boundary.

Quick Answer: What Does Blower Wheel Imbalance Sound Like?

Imbalance often produces a vibration or droning that rises predictably with blower speed and can be felt in the housing or dashboard. A single broken blade or heavy debris patch may create a repeating pulse. Housing contact produces scraping or ticking that can change with vehicle movement, temperature or wheel position. Bearing wear more often adds roughness, growl or axial/radial play. Reproduce the noise at each speed, inspect the wheel and compare motor current before replacing parts.

How the Blower Wheel and Motor Work Together

The wheel converts rotation into airflow

Most cabin blowers use a centrifugal wheel with many curved blades. Air enters near the center and leaves around the outer circumference into a scroll-shaped housing. Wheel diameter, width, blade count, blade curve and rotation direction determine the airflow and pressure behavior. A wheel that fits the shaft and housing can still be wrong if its blade orientation or width differs.

The motor shaft locates the wheel

The hub may press onto a plain, splined, D-shaped or otherwise formed shaft. Axial installation depth positions the wheel between the inlet and housing. Too high or too low can reduce inlet clearance or make blades contact the scroll. A loose hub can move after installation even when it felt tight by hand.

Do not hammer a wheel onto the shaft

Impact can crack a plastic hub, shift the motor armature or damage bearings. Use the specified installation tool and support method. Mark original depth before removal when service information permits wheel transfer, and confirm the replacement dimension rather than copying a position from a distorted part.

The housing is part of the aerodynamic assembly

The motor flange, seal, wheel inlet and scroll clearance control airflow and noise. A missing seal can recirculate air. A warped cover, loose screw or incorrectly seated motor can shift the wheel relative to the housing. Do not test only the removed motor and ignore the installed geometry.

Common Causes of Blower Wheel Imbalance

Leaves and debris loading

Debris entering past the cowl or cabin filter can collect between blades. A small mass near the outer diameter creates more imbalance effect than the same mass near the hub. Damp organic material can stick to one sector, then move and change the complaint. Remove it with the assembly stopped and inspect the intake path that allowed entry.

Dust and evaporator residue

Fine dust can build unevenly when moisture or oil film is present. Cleaning must preserve blade shape and balance. Do not remove material from only one side or bend blades with a stiff tool. Check the evaporator and filter for broader restriction if the wheel is heavily coated.

Broken or deformed blades

A missing blade changes mass and airflow. Heat, impact and foreign objects can bend or crack neighboring blades. An adhesive repair changes mass and may detach at speed. Replace a structurally damaged wheel or complete assembly according to the service boundary.

Cracked or slipping hub

Fine hub cracks can open under centrifugal force. The wheel may run eccentrically or move axially. Mark shaft and hub position, rotate by hand and inspect under suitable light. A hub that can be rocked independently of a sound shaft is not reusable.

Manufacturing imbalance or wrong wheel

Replacement wheels can differ in molded mass, trim, blade count or hub concentricity. Balance clips or molded corrections must not be removed. Compare exact part number and geometry. A generic wheel with matching diameter may overload the motor or create noise.

Housing Rub Is Not Always Wheel Imbalance

Axial position error

If the wheel is pressed too far or not far enough onto the shaft, its inlet ring or blade edge can touch the housing. The noise may appear only at high speed when the wheel deflects. Measure shaft projection and wheel-to-flange position against the exact specification.

Motor flange not fully seated

A trapped seal, misaligned tab or uneven fastener can tilt the motor. The wheel then runs at an angle despite being balanced. Inspect flange contact, locating features and screw engagement. Do not use fasteners to pull a mislocated flange into place.

Housing distortion or foreign object

Heat, impact, previous repair or a loose door fragment can deform the scroll. A screw, label, foam piece or cable can touch the wheel. Rotate slowly by hand and use witness marks to locate contact. Protect fingers and ensure the electrical connector is disconnected under the specified safety procedure.

Motor bearing play

Radial or axial shaft movement allows a correct wheel to contact the housing. Measure play by the service method. A new wheel cannot correct a worn motor support. If the bearing is noisy or loose, replace the motor or complete assembly as specified.

Use Sound Frequency and Speed as Evidence

Once-per-revolution disturbances

A localized heavy spot, cracked hub or single contact point produces a force tied to rotational speed. As speed increases, the pulse frequency rises. Cabin panels may resonate at one range and make the noise suddenly louder even though the defect is present at every speed.

Blade-pass sound

Airflow interaction occurs each time a blade passes a housing feature. Wrong blade count, direction, inlet clearance or scroll geometry can change the tone. Do not confuse a normal aerodynamic whistle with bearing damage; compare to the exact healthy application and inspect fit.

Electrical switching noise

Electronic speed controllers can produce a high-frequency tone that changes with command. That sound may come from the motor or module rather than mechanical contact. Measure voltage, current and command while listening. A resistor or module diagnosis belongs to the control circuit, not automatically to the wheel.

The blower-only-works-on-high-speed guide separates resistor, module and wiring faults from a blower that runs at every speed but vibrates mechanically.

Current Draw Adds Mechanical Evidence

Imbalance does not always raise average current

A balanced and an imbalanced wheel can require similar average torque if neither rubs. Vibration can still damage bearings and mounts. Current must be interpreted with physical inspection rather than used as the only balance test.

Rubbing or bearing drag can raise current

Mechanical contact increases torque demand. Current may rise, fluctuate or trigger a module protection strategy. Measure at the specified voltage and operating state with suitable equipment. Compare against service data and include connector voltage drop.

The automotive blower motor amperage test explains how current, voltage, airflow and restriction should be read together. A low current can indicate a weak motor or low supply; a high current can indicate drag or an incorrect wheel load.

Voltage drop can imitate a weak motor

Corroded terminals, a heated connector, relay contact or poor ground reduces motor voltage. Speed and airflow fall, and the operator may notice an unusual tone. Test under load. The melted blower resistor connector guide shows how resistance and heat can damage the control path.

Never bypass protection for an uncontrolled test

Applying battery power directly to an unknown motor can exceed its intended control, create high current or spin an unsecured wheel. Use fused, current-limited and manufacturer-approved procedures. Secure the assembly and keep loose items away from the intake.

Step-by-Step Diagnostic Process

1. Record when the complaint occurs

Test each blower command, temperature mode, recirculation mode and vehicle condition. Note whether vibration changes on bumps or turns. A loose object can move with vehicle acceleration, while a bearing noise follows speed more consistently.

2. Inspect the air inlet and cabin filter

Check filter installation, cowl screen, leaves, foam and water entry. A collapsed filter can restrict airflow but does not itself prove imbalance. Correct the entry path so the cleaned wheel does not load with debris again.

3. Listen and feel at the housing

Use safe access. Compare vibration at the blower housing, dashboard and ducts. Avoid rotating components and electrical terminals. A panel buzz may be excited by the blower yet come from a loose trim piece; holding or isolating trim by the approved method can help distinguish it.

4. Measure voltage and current

Record motor voltage, ground drop and current at several commands. Compare with speed and noise. If the system uses a control module, use the correct meter and waveform method. Do not interpret pulsed control as a simple steady voltage without understanding the circuit.

5. Remove and inspect the assembly

Disconnect power and follow airbag, high-voltage or dashboard safety procedures for the vehicle. Mark connector and fastener positions. Inspect wheel debris, blade condition, hub, shaft play, motor flange, seals and housing. Photograph all contact marks before cleaning.

6. Rotate and measure

Turn the wheel slowly by hand. Look for eccentric motion, axial wobble and rubbing. Use a fixed reference or specified runout method. Do not judge by the outer blade edge if molding features vary; measure at the defined surface. Separate wheel runout from shaft runout where serviceability allows.

7. Test after correcting the proven fault

Reinstall with seals, fasteners and connector locks correctly seated. Run through every speed and mode. Compare current and vibration with the original record. Confirm the housing and dashboard no longer resonate under the complaint condition.

Motor, Wheel, or Complete Assembly?

Clean and reuse

Cleaning is appropriate when removable debris is the only cause; blades, hub, shaft and housing are sound; and balance, current and airflow return to normal. Clean evenly with a material-compatible method. Do not trim or add mass to balance the wheel without an approved process.

Wheel-only replacement

Replace the wheel alone when it is separately serviceable, the motor shaft and bearings pass inspection, the housing is sound, and the new wheel exactly matches diameter, width, blade direction, hub and installation depth. Use the specified removal and installation tools.

Motor-only replacement

Replace the motor alone when bearings, brushes, commutator or windings are proven faulty and the wheel can be transferred safely within specification. Inspect the hub after removal. A wheel cracked during transfer must not be installed on the new motor.

Complete blower assembly replacement

Choose the complete motor-and-wheel assembly when the wheel and motor are both damaged, the wheel is not serviceable separately, balance is factory-set as an assembly, shaft fit is uncertain or labor and warranty risk make transfer impractical. The public wholesale blower motor assembly range shows the variety of flange and wheel configurations.

Do Not Blame the Resistor for Mechanical Noise

A resistor or regulator changes motor speed and can fail electrically from heat, high motor current or connector resistance. It may make certain speeds unavailable, but it does not repair a cracked wheel. Use the blower resistor symptoms and matching guide to identify terminal, voltage, harness and regulator type. The public blower resistor and regulator category and wholesale blower resistor range cover that separate electrical service boundary.

If a resistor or module repeatedly overheats, inspect motor current and wheel drag before replacement. A rubbing wheel can overload the control path. Conversely, low voltage from a damaged connector can slow a mechanically sound motor. Repair all proven boundaries together.

Replacement Matching Checklist

Application identity

Provide vehicle, year, model, body or HVAC option, steering position where relevant and OE motor or assembly number. One model can use different manual and automatic climate-control blowers.

Electrical specification

Record voltage system, motor connector shape, keying, terminal count, polarity, integrated controller status and measured current. Do not infer polarity or control type from wire color alone.

Wheel geometry

Measure outside diameter, width, blade count and direction, inlet ring, hub type and shaft installation depth. Photograph from both sides. A mirrored wheel may fit but move air in the wrong direction.

Motor and mounting geometry

Record flange diameter and shape, screw or tab locations, seal, shaft length and diameter, rotation direction and housing clearance. Confirm whether the assembly includes the wheel, controller, seal and fasteners.

Failure evidence

Send current and voltage readings, noise-by-speed record, debris or broken blade photographs, hub/shaft play and contact marks. These details determine whether a motor, wheel or complete assembly is needed.

Wholesale Receiving Inspection

Protect balance during transport

Packaging must support the motor flange without loading blade tips. A small wheel deformation can cause vibration. Keep debris out of the open wheel and protect terminals. Do not stack parts so another unit rests on the hub or shaft.

Check rotation and runout

Rotate the wheel by the approved method and inspect for wobble, contact and loose hub. Check blade completeness, molded balance features and flange seating. Do not spin an unsecured assembly at full voltage during receiving inspection.

Verify exact contents and traceability

Record part number, batch, wheel design, connector and included controller or seal. Regional sourcing references include the Australia blower assembly supplier overview and UK blower assembly supplier overview. The aftermarket supplier audit guide and public aftermarket range provide broader sourcing context.

Related Control-Component Sourcing

When electrical diagnosis proves a separate resistor or regulator issue, market references include the Germany blower resistor supplier overview, USA blower resistor supplier overview and global resistor and regulator supplier overview. Do not use a supplier list to bypass electrical-load testing or exact connector matching.

FAQ

Can leaves make a blower motor vibrate?

Yes. Debris stuck to one side of the wheel creates imbalance. Remove it safely and correct the intake or filter path that allowed entry.

Can a bad resistor cause blower wheel noise?

It can change speed or create electrical switching noise, but it does not normally create physical imbalance, a cracked hub or housing rub.

Can I replace only the blower wheel?

Yes when it is a specified service part, the motor and housing pass inspection, and diameter, blade direction, hub and axial depth match exactly.

Why does vibration peak at one speed?

The rotating force may excite a resonance in the housing or dashboard at that speed. The underlying imbalance can still exist across the range.

Does normal motor current prove the wheel is balanced?

No. Imbalance can create vibration without much change in average torque. Current is supporting evidence for drag and electrical condition.

What should be sent for a blower assembly quote?

Send vehicle/HVAC data, OE number, connector and flange photographs, wheel dimensions and direction, shaft/hub details, current and voltage results, noise/contact evidence, required included parts and quantity through the Elecduraparts contact page.

Final Diagnostic Rule

Diagnose blower wheel noise as a rotating-system problem. Reproduce it by speed, inspect debris and blade condition, measure hub and shaft behavior, locate housing contact, and interpret motor current with voltage. Clean a sound assembly, replace a separately serviceable damaged wheel or motor when the other components pass, and choose a complete assembly when balance, hub fit or multiple parts are uncertain. A speed-control part cannot correct mechanical imbalance, and a new motor cannot remain quiet with a damaged wheel.
