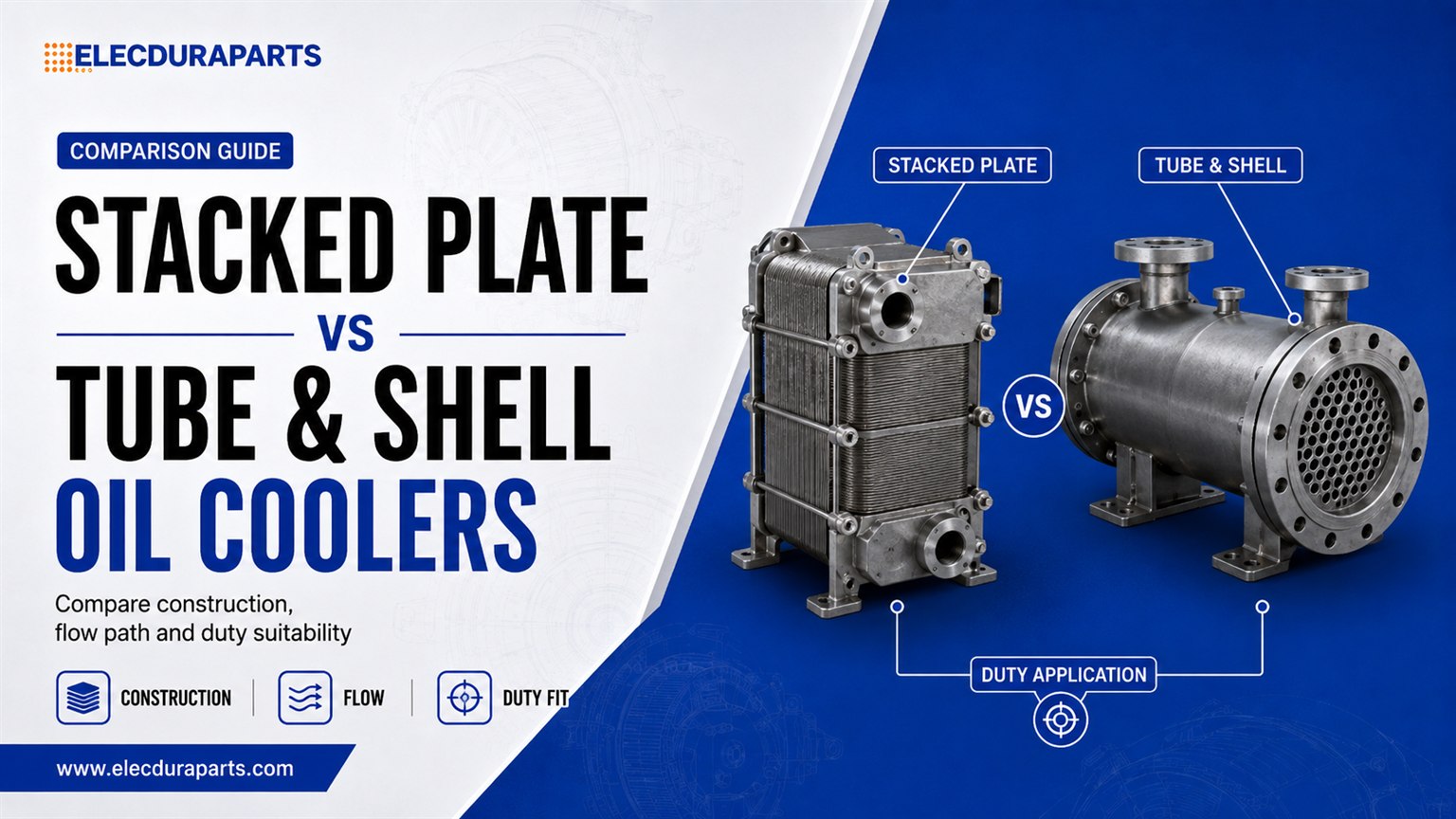

Stacked-Plate vs Tube-and-Shell Oil Coolers: Which Construction Fits the Duty?

Views: 0     Author: Elecdura     Publish Time: 2026-08-29      Origin: Elecdura

Stacked-Plate vs Tube-and-Shell Oil Coolers: Which Construction Fits the Duty?

A stacked-plate oil cooler and a tube-and-shell oil cooler can both transfer heat from oil to air or another liquid, but their internal geometry creates different pressure-drop, fouling, vibration, packaging and service characteristics. Neither construction is universally better. The correct choice depends on the oil viscosity and flow, heat load, cooling medium, allowable restriction, contamination burden, pressure cycles, installation space and maintenance strategy.

Exterior shape is an unreliable guide. A compact rectangular housing may contain brazed plates, while a cylindrical housing may use a removable bundle, fixed tubes or another internal arrangement. Replacement matching must start with the original circuit and construction evidence, not with a catalog photograph. This comparison explains what each architecture does well, where it becomes vulnerable and which information a supplier needs before quoting a replacement.

Quick Comparison

Decision factor

Stacked-plate cooler

Tube-and-shell cooler

Heat-transfer area per package

Usually high because thin plates create dense passages

Depends on tube count, length, diameter and baffle layout

Internal passage size

Often narrow, divided and turbulent

Often larger and more directly accessible, but not always

Pressure-drop sensitivity

Strongly affected by plate pattern, viscosity and blocked branches

Strongly affected by tube diameter, length, pass count and baffles

Fouling tolerance

Fine passages can retain debris

Larger tubes may tolerate contamination better

Serviceability

Brazed cores are normally non-openable

Some bundles or end covers can be removed

Packaging

Compact and adaptable to integrated modules

Longer shell may need more installation space

Vibration concerns

Port and plate-stack fatigue, mounting stress

Tube support, tube-sheet and shell-mount fatigue

How a Stacked-Plate Oil Cooler Works

Alternating fluid layers create a compact heat path

A stacked-plate core is built from formed plates joined around their edges and ports. Adjacent layers carry oil and coolant, or oil and air in a finned assembly, without allowing the fluids to mix. Heat crosses the thin metal wall between layers. Embossed patterns or internal turbulators disturb boundary layers and increase surface area, which improves heat transfer within a compact volume.

The same features also divide flow into many small paths. Oil viscosity, cold-start conditions and manufacturing tolerances therefore matter. The oil cooler pressure-drop guide explains why port diameter and core size alone cannot predict restriction. Two plate coolers with matching envelopes may use different corrugations, pass arrangements or bypass provisions.

Headers do more than connect the ports

Header regions distribute oil across the plate stack. Poor distribution can leave some plates underused while others carry excessive velocity. A blocked branch may not stop total flow because oil takes parallel routes, yet the effective cooling area falls. This is why a simple “liquid passes through” test does not establish thermal equivalence.

Where stacked plates fit well

Dense heat-transfer area makes plate construction useful where space and weight are limited. Engine filter modules, compact transmissions, mobile equipment and auxiliary circuits often use it. Brazed units can eliminate removable joints and reduce external leak points. Their form also allows direct attachment to a filter housing, engine block or adapter.

Integration brings a matching risk. A cooler can share oil and coolant windows with a specific gasket pattern, and a small shift in a port or divider can block a passage. Review the service-boundary examples in the oil filter housing versus cooler guide before treating an integrated element as a generic core.

Where stacked plates become vulnerable

Fine passages can retain bearing debris, degraded-oil deposits or casting residue. Brazed joints may crack after pressure pulsation, freezing, corrosion or imposed mounting stress. Once an internal pressure wall fails, oil and coolant can cross. External cleaning may restore airflow on an air-cooled face, but it does not make inaccessible internal passages inspectable.

After major engine contamination, first determine whether the event also created leakage using the oil cooler leak symptoms guide. A clear outlet does not prove every parallel plate is free of particles, and a dry exterior does not establish internal cleanliness.

How a Tube-and-Shell Oil Cooler Works

One fluid travels through tubes while the other crosses the shell

A tube-and-shell cooler contains a bundle of tubes secured to one or two tube sheets inside an outer shell. Oil may flow through the tubes and coolant around them, or the media may be reversed according to pressure, fouling and service requirements. Baffles guide shell-side flow across the bundle, support tubes and change velocity. End covers can create one or several tube passes.

Performance therefore depends on more than shell diameter. Tube count, inside diameter, length, wall thickness, material, pass count and baffle spacing determine heat-transfer area and hydraulic resistance. A larger shell with fewer or smaller tubes can have a different duty from a more compact unit. Buyers must compare construction data or validated application references rather than infer capacity from exterior volume.

Tube sheets define a critical pressure boundary

The tube-to-sheet joint separates the circuits. Expansion, brazing or welding quality, corrosion and thermal cycling influence its durability. Leakage at this interface can mix fluids even when each visible tube appears intact. An isolated cross-circuit pressure test is required when contamination suggests a boundary failure.

Serviceable does not mean indefinitely reusable

Some tube-and-shell coolers have removable covers or bundles that permit mechanical cleaning and direct inspection. That is an advantage in contaminated industrial or heavy-duty duties. Other units are permanently sealed and offer little more access than a brazed plate core. Even a removable bundle can suffer wall thinning, pitting, loose tubes, damaged baffles or distorted sealing faces.

The hydraulic oil cooler cleaning-versus-replacement guide provides related evidence for heavy-equipment circuits. Apply its cleanability principle to the exact medium and construction; do not transfer pressure or chemical assumptions between hydraulic and engine-oil systems.

Packaging and mounting tradeoffs

A cylindrical shell often needs axial room for its full length and, if serviceable, additional clearance to remove a cover or bundle. Support points must carry the fluid-filled mass without forcing connected pipes to act as brackets. In mobile equipment, tube vibration and unsupported shell mass require careful mounting. In stationary equipment, service access may justify the larger envelope.

Pressure Drop Must Be Read with Oil Viscosity

Cold oil changes the comparison

Oil viscosity rises sharply at low temperature. A cooler acceptable at stabilized operation may generate excessive differential pressure during cold start. Plate passages, multiple tube passes and small ports can all contribute. The circuit may use a thermostatic or pressure bypass so oil reaches bearings while cold. The presence, set point and location of that bypass are part of the application, not optional catalog details.

Use the oil cooler bypass valve symptoms guide to separate a control problem from core restriction. A cooler with low thermal performance may be sound while a valve remains open; a cooler blamed for high pressure may be downstream of a stuck or incorrect valve.

High flow can expose distribution limits

At higher flow, velocity and pressure loss increase. In a plate core, flow division among channels becomes important. In a tube bundle, pass count and tube diameter dominate. A replacement must satisfy the full operating range, including pump relief behavior and transient duty. Quoting only a nominal flow without oil grade, temperature and allowable pressure loss leaves the selection incomplete.

Observed pattern

Possible construction-related cause

Next evidence

High differential pressure only when cold

Viscosity, small passages, multi-pass path or bypass fault

Temperature-corrected pressure test and valve check

Normal total flow but weak cooling

Parallel plate blockage or shell-side bypassing

Temperature mapping, pressure loss and contamination inspection

Pressure rises after contamination event

Debris retained in plates or tubes

Filter analysis and construction-specific cleanability assessment

Unexpectedly low restriction

Internal bypass open, missing divider or wrong pass layout

Compare internal arrangement and application reference

Fouling and Contamination Behavior

Particle size is only part of the risk

Fine particles can enter either construction. Whether they remain depends on local velocity, turns, surface roughness, temperature and sticky deposits. Narrow plate channels can trap bearing material at distribution features. Larger tubes may pass more debris, but baffles and low-velocity shell regions can accumulate sludge. A blanket claim that tube-and-shell coolers never clog is technically unsound.

External fouling differs from internal fouling

Air-cooled plate units can collect dust, fibers and oil mist between external fins. Liquid-cooled shells may accumulate scale or coolant deposits on the water side. The remedy depends on which heat-transfer surface is affected. The off-highway cooling stack inspection addresses external airflow restrictions, while internal oil contamination requires circuit isolation and material-compatible procedures.

Cleaning evidence must match the internal layout

A removable straight tube can sometimes be inspected from end to end. A corrugated plate channel cannot. For inaccessible construction, rely only on a manufacturer-approved process with meaningful particle, flow and leakage criteria. Do not use compressed air passage or clean-looking solvent as the sole acceptance test.

Thermal Performance Without Guesswork

Heat rejection needs operating data

A cooler rating is meaningful only with oil flow, inlet oil temperature, cooling-medium inlet temperature and flow, permitted pressure loss and test method. Air-side ratings also require airflow and approach conditions. A claim based on surface area alone ignores distribution and film coefficients. Ask whether stated performance was tested or calculated, and whether the rating represents continuous or peak duty.

The normal engine oil temperature guide shows why a single temperature value does not diagnose cooler capacity. Engine load, coolant temperature, fan operation, airflow blockage and bypass position must be considered together.

Bigger can create a control or restriction problem

An oversized envelope does not guarantee a better system. Additional plates, tube passes or small ports may increase restriction. Excess cooling can also keep oil below the intended stabilized range when the thermostat or bypass strategy is not matched. The broader errors described in hydraulic oil cooler sizing mistakes illustrate why capacity, port layout and control logic need to be evaluated as one circuit.

Vibration, Pressure Cycles and Mechanical Life

Stacked-plate mounting loads

Compact cores are often mounted directly to a housing. Uneven flange flatness, wrong gasket thickness, over-torqued fasteners or unsupported hoses can apply bending to the plate stack or ports. Thermal expansion then repeats the stress. Inspect for cracks at port bases, edge brazes and mounting ears, and correct the alignment before fitting a replacement.

Tube bundle support

Tube-and-shell assemblies must control tube vibration and shell mass. Loose or eroded baffles allow tubes to move, while rigid pipe connections can load the shell nozzles. Mobile duty adds shock and changing orientation. Match mounting brackets, isolators and support spacing instead of allowing connected hoses or pipes to carry the assembly.

Pressure tests do not establish infinite fatigue life

A core can pass one static proof test and still fail under repeated thermal and pressure cycles. Receiving inspection should confirm workmanship and leakage, but application matching must address operating pressure, pulses, temperature range and vibration. Do not advertise life or pressure margins without validated data for the exact construction.

Serviceability and Repair Boundaries

Plate cores are usually replaced as sealed units

Brazed plate cores normally cannot be dismantled without destroying joints. External seals may be serviceable, but an internal cross-leak, blocked passage or cracked plate typically requires core replacement. Use the evidence in gasket leak versus core failure diagnosis to avoid replacing the pressure vessel for a sound external seal—or resealing a failed core.

Tube-and-shell repair depends on the specified design

Some industrial bundles permit tube plugging, re-expansion or bundle replacement under an approved repair standard. Many automotive and mobile-equipment shells do not. A shop’s physical ability to open or weld a unit does not prove that repaired heat-transfer area, strength and cleanliness remain acceptable. Follow the equipment and cooler manufacturer’s service boundary.

Choosing by Duty Cycle

Compact engine and transmission modules

Stacked plates often suit tight packaging and rapid heat exchange, especially when integrated with a filter or coolant module. The replacement must reproduce gasket windows, oil routing, coolant routing, bypass provisions and attachment thickness. Application-led examples such as the Deutz oil cooler matching guide show why engine family and port layout matter.

Industrial and continuously serviceable systems

A tube-and-shell unit may suit installations where space is available, contamination is expected and planned access to covers or bundles is valuable. Confirm which side carries the higher pressure and dirtier medium, how the bundle is supported, and whether maintenance clearance exists. Serviceability has little value if the unit cannot be withdrawn without dismantling adjacent equipment.

Heavy mobile equipment

Either construction may be used. Shock, dust, high oil flow, variable ambient temperature and long duty cycles make mount integrity and cleanability important. Use the excavator and loader oil cooler sizing guide for the data needed when the circuit is hydraulic rather than engine lubrication.

Replacement Matching Checklist

Identify the fluid circuit and construction

State whether the cooler handles engine oil, transmission oil, hydraulic oil or another lubricant, and whether the cooling medium is air, engine coolant or a separate water circuit. Record plate, tube-bundle or integrated-module construction when known. Never transfer a pressure or material assumption from one medium to another.

Provide application and geometry

Supply OE number, equipment or vehicle model, engine or transmission code, serial or production range where applicable, core and overall dimensions, mounting centers, port thread or flange standard, port direction and photographs from every side. The photo, size and port-direction matching guide provides a useful measurement framework for remote inquiries.

Define hydraulic and thermal conditions

Include oil type, viscosity, minimum start temperature, normal inlet temperature, flow range, maximum operating pressure, pressure pulses, allowable differential pressure, cooling-medium conditions and required heat rejection when available. If data are unknown, match by validated OE application rather than inventing a rating.

List included parts and service expectations

Confirm whether the order includes only the core or also housings, brackets, fan, bypass valve, thermostat, gaskets, O-rings, fittings and mounting hardware. For a serviceable shell, request bundle, cover-gasket and maintenance-clearance details. For a sealed plate core, define cleanliness, capped ports and pressure-test documentation.

Receiving check

Stacked-plate focus

Tube-and-shell focus

Identification

Plate count, port windows, gasket pattern

Shell, tube bundle, pass and cover arrangement

Geometry

Flatness, stack height, port angle

Tube-sheet faces, nozzle angle, support centers

Cleanliness

Capped narrow passages, no braze residue

Clean tubes and shell, protected openings

Integrity

Edge braze and cross-circuit test

Tube-to-sheet and shell pressure boundaries

Packaging

No load on plates or ports

Shell and nozzle support; cover protection

Wholesale Quality Questions

Ask the supplier to identify the exact construction and material, not merely the catalog category. Confirm pressure-test medium, pressure, duration and pass criterion for each circuit. Request cleanliness controls, port protection and traceability appropriate to the application. A generic claim that a cooler “fits many models” is insufficient when internal flow and bypass logic can differ.

Market references such as the engine oil cooler manufacturer overview can help build a sourcing list, while the loader oil cooler wholesale guide adds heavy-equipment inquiry details. Final approval should still be tied to an exact sample, application and inspection plan.

FAQ

Is a stacked-plate cooler more efficient?

It can provide high heat-transfer area in a compact package, but efficiency depends on fluid conditions, passage design, distribution and airflow or coolant flow. Construction name alone does not prove performance.

Does a tube-and-shell cooler always have lower pressure drop?

No. Tube diameter, length, pass count and baffles can create substantial restriction. Compare tested pressure loss at the relevant oil viscosity and flow.

Which design handles dirty oil better?

Larger accessible tubes may tolerate and release contamination better than fine plate passages, but shell-side pockets and baffles can also collect deposits. Evaluate the exact layout and maintenance process.

Can a plate cooler be repaired?

External seals may be replaceable, but a brazed internal core is usually a sealed replacement unit. Do not weld or reseal a pressure boundary without an approved repair method.

Can I replace one type with the other?

Only after engineering the complete hydraulic, thermal, mounting and control requirements. Matching ports and physical space does not establish equivalent restriction, cooling or durability.

What should I send for a quotation?

Send the OE reference, application, fluid and duty data, overall and core dimensions, port standards and directions, mounting centers, photographs, included-component list, test requirements and quantity through the Elecduraparts contact page.

Final Selection Rule

Choose a stacked-plate or tube-and-shell oil cooler by the circuit it must serve, not by a general ranking of architectures. Plate construction favors compact heat-transfer density but can limit internal access. Tube-and-shell construction may offer larger passages and service options but needs correct tube, pass, baffle and mounting design. Match the original pressure loss, heat duty, contamination strategy, pressure boundary and installation envelope before approving a replacement.
