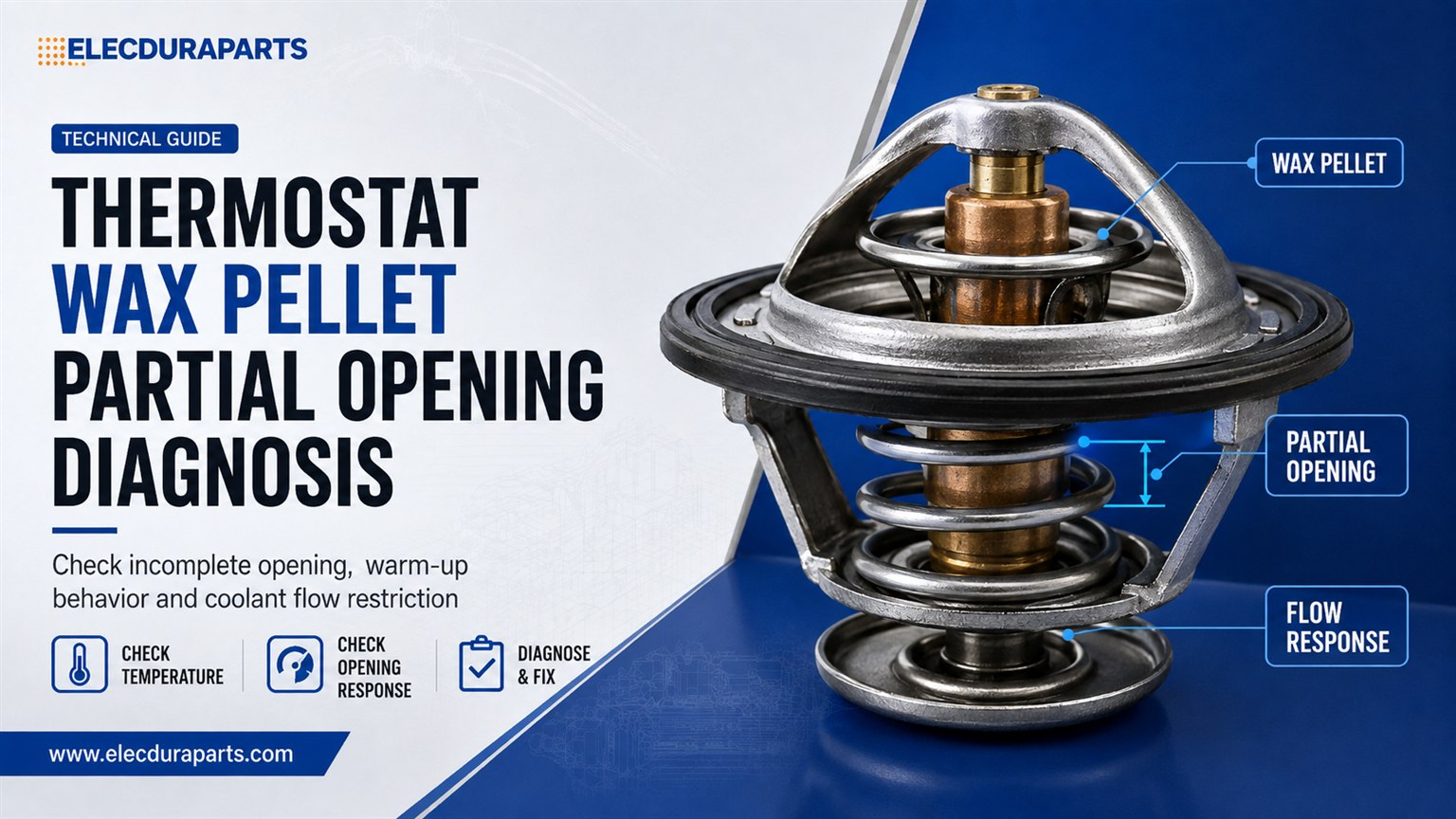

Thermostat Wax Pellet Partial Opening: Stroke, Flow, and Overheating Tests

A coolant thermostat can move and still be defective. The wax pellet may begin expanding near the expected temperature but produce too little stroke to uncover the main flow area. The engine can warm normally, the upper hose can become hot, and a simple pot test can show visible movement, yet the restricted opening cannot pass enough coolant during highway load, towing, climbing, high ambient temperature, or sustained equipment operation.

This partial-opening failure sits between the familiar “stuck open” and “stuck closed” categories. Diagnosis requires more than observing whether the valve moves. Measure start-to-open temperature, travel at specified temperatures, full-open stroke, return movement, cooling-system temperature pattern, and load response. Elecdura's guide to thermostat opening temperature explains rating definitions; this article focuses on insufficient movement after opening begins.

Quick Answer: Opening Is Not the Same as Opening Enough

A thermostat passes only when its movement and flow area meet the specification across the full temperature range. Visible separation of the valve from its seat proves initial movement, not adequate stroke. A partially opening thermostat commonly produces acceptable temperature at idle and overheating as engine heat generation and coolant demand rise. However, a blocked radiator, air pocket, weak pump, hose collapse, combustion-gas intrusion, incorrect fan operation, or sensor error can produce a similar pattern.

Why idle behavior can be misleading

At idle, engine heat rejection is relatively low. A small thermostat opening may pass enough coolant to hold temperature. Under high load, coolant and heat flow increase, and the same restricted area creates greater pressure loss. Temperature then rises even though the valve is technically off its seat.

Do not judge from one gauge position

Many instrument clusters buffer the displayed temperature. Scan data, calibrated probes, and time-based measurements are more useful than a dashboard needle that stays centered across a wide range.

How a Wax Pellet Creates Valve Stroke

The thermostat contains a temperature-responsive wax charge in a sealed capsule. As the wax melts and expands, it forces a piston outward. The reaction between the piston, frame, return spring, and valve disc converts expansion into axial movement. When coolant cools, the spring returns the valve and the wax contracts.

Stroke depends on the complete mechanism

Wax expansion is only one part of the motion. Piston friction, guide alignment, spring rate, frame stiffness, valve-disc geometry, seals, deposits, and housing interference all influence usable travel. A healthy capsule fitted in a distorted frame can still open inadequately.

Small travel changes can cause large flow changes

The effective opening area depends on valve circumference and lift, then is modified by nearby housing walls and flow direction. A few millimeters of missing stroke can remove a substantial portion of the available area. Flow does not scale simply with visible gap width.

Start temperature and full-stroke temperature are different

A rating stamped on the thermostat commonly refers to start-to-open, not the point of maximum travel. The valve should continue moving through a defined temperature interval. Procurement and diagnosis need both the start criterion and the required lift at one or more higher temperatures.

Hysteresis is expected within limits

The temperature at which the valve closes during cooling may differ from the opening path because of thermal lag, wax behavior, and friction. Excessive hysteresis, sticking, or failure to return can indicate a defect, but the acceptable range must come from the exact specification.

Failure Mechanisms That Reduce Travel

Wax loss or capsule damage

A compromised capsule can lose part of its charge or fail to contain the pressure produced during expansion. The element may still move slightly because some wax remains, creating the deceptive partial-opening result. Corrosion, manufacturing defects, fatigue, overheating, or mechanical damage can contribute.

External appearance may remain normal

Wax leakage is not always visible after coolant exposure and service. Stroke measurement is stronger evidence than searching only for residue around the capsule.

Guide friction and deposits

Silicate drop-out, rust, sealant, scale, mixed coolant deposits, or debris can increase sliding resistance. The element begins moving but stalls when spring and flow forces increase. A replacement without a cooling-system flush can repeat the fault if contamination remains.

Do not scrape and return a damaged thermostat to service

Removing visible deposits does not restore capsule calibration, guide finish, spring characteristics, or corrosion resistance. Use the observation to diagnose the system condition, then replace the thermostat where the service procedure requires it.

Frame or valve deformation

Improper installation, prying, dropped parts, housing misalignment, excessive clamping force, or thermal damage can bend the bridge or valve plate. The valve may rub the housing or open at an angle. Compare the removed unit with an exact reference, not a visually similar thermostat from another application.

Seal position can restrict movement

An incorrect perimeter seal, doubled gasket, misplaced O-ring, or distorted groove can hold the thermostat off-center. The associated risks are covered in Elecdura's plastic thermostat housing inspection.

Incorrect thermostat geometry

A thermostat with the same diameter and temperature marking can have different valve lift, bypass-disc position, seat depth, or jiggle-pin arrangement. It may move correctly on the bench but interact incorrectly with the housing. This is a fitment failure, not a wax-pellet failure.

Vehicle Symptoms and Their Limits

Overheating that appears with load

The classic pattern is stable temperature at idle or light cruise followed by a rise during long grades, towing, high-speed operation, or hot weather. Temperature may fall after reducing load. That pattern supports insufficient coolant or air-side capacity but does not identify the thermostat by itself.

Compare upper and lower radiator temperatures

A hot engine and upper tank with a much cooler lower tank can indicate heat rejection, restricted coolant flow, or both. A completely uniform cold radiator suggests no circulation, but measurement points, radiator design, and airflow must be considered. The function of the engine radiator should be evaluated as part of the same heat balance.

Rapid pressure rise near the thermostat

Restricted flow can increase local pressure and temperature differences, but combustion gases, pump cavitation, a blocked radiator, or a damaged hose can do the same. Use rated pressure instruments and follow the vehicle maker's safe test procedure.

Never open a hot pressurized system

Allow the engine to cool fully before removing a cap or component. Hot coolant and steam can cause severe burns, and electric fans may start unexpectedly.

Heater output changes

Cabin heat that becomes weak or fluctuates can indicate low coolant, air, pump problems, restricted heater flow, or unstable circulation. It is supporting context, not a direct thermostat-stroke measurement.

In-Vehicle Diagnostic Sequence

1. Verify the complaint and the measurement

Record coolant temperature from cold start through warm-up, fan command and speed, engine load, vehicle speed, ambient temperature, heater behavior, and any fault codes. Compare the engine sensor with an independent calibrated measurement at a safe accessible point. The distinction between a coolant temperature sensor and fan-control fault must be resolved before mechanical conclusions.

Use the same route or load

A repeatable hill, dynamometer procedure, or equipment work cycle makes before-and-after comparison credible. Do not intentionally overheat the engine; stop at the manufacturer's limit.

2. Observe the warm-up curve

From a true cold start, temperature should rise predictably until the thermostat begins opening. The radiator inlet then warms and temperature may briefly stabilize or dip. A smooth early radiator warm-up can indicate leakage past the thermostat; a delayed abrupt change can indicate late opening.

Partial opening often needs a load phase

The warm-up curve may look normal because initial movement occurs at the correct point. Insufficient full lift becomes visible only after heat generation increases.

3. Map hose and core temperatures

Measure thermostat outlet, radiator inlet, radiator outlet, bypass return, heater circuit, and relevant engine locations. A thermal camera can reveal distribution but must be used with emissivity control and safe access. Compare trends rather than treating a single surface reading as coolant temperature.

Check for hose collapse

A softened suction-side hose can flatten at higher pump speed and mimic a thermostat restriction. Inspect internal springs where specified, hose condition, routing, and vacuum behavior.

4. Confirm radiator and airflow capacity

Inspect external blockage, fin condition, internal cold spots, cap function, fan direction, shroud sealing, and condenser loading. A thermostat should not be replaced to compensate for an obstructed cooling stack. Use the broader engine cooling parts map to identify related components.

Separate coolant flow from air flow

Overheating at road speed can reflect restricted coolant flow, while overheating mainly at idle often points toward airflow. These are tendencies, not rules; log fan and pressure data before deciding.

5. Exclude combustion-gas and pump faults

Use approved tests for combustion gases, cap pressure, water-pump condition, belt drive, electric-pump command, and system bleeding. Repeated air pockets can prevent the thermostat element from sensing liquid correctly and create local hot spots.

Bench Test: Measure Temperature and Stroke

A proper bench test uses a controlled bath, calibrated thermometer, fixture that does not restrict movement, and a way to measure lift. Follow the thermostat or vehicle manufacturer's specified medium, heating rate, immersion depth, and acceptance values. Do not allow the thermostat to touch the container's heated surface.

Record the complete opening curve

Measure the valve at the specified start temperature and at one or more higher points. Record lift after temperature stabilizes. Continue only to the approved maximum; overheating the wax element during testing can alter it.

Define the measurement points

Measure between consistent reference surfaces with a depth gauge, dial indicator, or documented image method. “It opened about five millimeters” is not reliable when the baseline and viewing angle are unknown.

Test cooling return

After the hot measurements, cool the bath gradually and observe whether the valve returns smoothly toward its seat. Binding, delayed return, residual gap, or tilted motion can explain warm-up and control problems.

Repeatability exposes intermittent sticking

Where the maker permits, perform multiple controlled cycles and compare start temperature and stroke. A unit that passes once and binds on another cycle should not be accepted.

Do not compare different thermostat designs casually

A conventional single valve, bypass thermostat, dual valve, map-controlled thermostat, and integrated housing can use different test criteria. Some electronically heated units require electrical checks in addition to bath testing. The simple distinction in stuck-open versus stuck-closed thermostats is not enough for these partial-travel cases.

Common Misdiagnoses

A new thermostat can still be wrong

Incorrect part selection, reversed installation, shipping damage, poor bleeding, incompatible housing, or manufacturing variation can create symptoms immediately after repair. Elecdura's guide to a thermostat appearing stuck open after replacement shows why installation evidence must be reviewed before blaming the new wax element.

Replacement Scope and Fitment Matching

Thermostat alone or complete housing

Some applications allow replacement of the insert. Others use a sealed plastic or aluminum module with sensors, electrical heaters, bypass valves, or multiple outlets. Replace the complete assembly when the thermostat is not serviceable, the housing is warped or cracked, the seal groove is damaged, or integrated components fail.

Leak evidence changes the scope

External seepage can originate from the housing, hose neck, seal, sensor, fastener load, or adjacent pipe. Cost and scope considerations in thermostat housing leak repair should be separated from a confirmed short-stroke failure.

Matching data for a replacement

Provide the OE number, vehicle make, model, year, engine code and displacement, VIN or chassis range where appropriate, opening-temperature marking, thermostat diameter and height, valve and bypass-disc dimensions, jiggle-pin orientation, seal type, housing reference, connector and pin count for controlled units, and photographs of the old component in its installed orientation.

Do not infer lift from outer dimensions

Two units with the same flange and overall height may use different spring force, wax charge, stroke, and bypass timing. Use application and reference evidence, then verify performance.

Wholesale Quality Control for Wax Elements

Batch inspection should control opening temperature, lift at specified points, full travel, closing behavior, dimensions, spring seating, frame alignment, surface finish, seal dimensions, and marking accuracy. A visual inspection cannot detect calibration or partial-stroke variation.

Use a controlled multi-position test jig

A bath should maintain uniform temperature and controlled heating rate, with calibrated reference sensors and fixtures that do not obstruct flow or movement. Elecdura's thermostat quality-test jig guide describes how batch checks can reveal outliers that a single sample misses.

Record curves, not only pass/fail marks

Start temperature and one final lift can hide irregular motion between points. For risk-sensitive programs, record stroke at multiple temperatures and maintain lot traceability.

Protect calibration during shipping

Packaging should prevent frame bending, piston impact, seal compression, corrosion, and mixed labels. Integrated housings need protection for hose necks, sensors, connectors, and sealing faces.

Frequently Asked Questions

Can a thermostat open in boiling water and still be bad?

Yes. Visible movement proves only that the element responds. It may start late, stop early, bind, or fail to reach the specified stroke. Measure temperature and lift against the exact specification.

Is boiling water always the correct test?

No. Some ratings and full-open points require a controlled range and method. Altitude changes boiling temperature, and direct contact with the vessel can distort results. Follow the maker's procedure.

Will partial opening always cause overheating?

Not at every condition. Low-load operation may need only a small flow area. The fault becomes apparent when heat generation exceeds the restricted circuit's capacity.

Can it cause slow warm-up?

Partial opening usually limits hot flow, but a valve that also leaks at its seat can cause both slow warm-up and high-load overheating. Measure both cold sealing behavior and hot stroke.

Should the thermostat be removed to prevent overheating?

No. Removal can disturb bypass control, coolant velocity, warm-up, emissions, heater performance, and local circulation. Install the correct functioning thermostat according to the engine design.

Is thermostat price a reliable quality indicator?

Price alone does not prove calibration, materials, or durability. Compare test data, dimensional control, traceability, and aftermarket supplier change management. General ownership considerations appear in Elecdura's thermostat replacement cost and symptom guide.

What should a wholesale buyer submit?

Send OE references, complete applications, opening and stroke requirements, thermostat and housing dimensions, bypass geometry, seal and connector details, annual quantity, sampling plan, packaging needs, and required test records. The engine coolant thermostat buying guide supports range planning, while exact application data controls each SKU.

Measure the Full Stroke Before Replacing Other Parts

A wax pellet that begins moving is not necessarily healthy. The thermostat must create enough repeatable travel, at the correct temperatures, to provide the flow area required at engine load. Combine an installed temperature and load pattern with controlled bench measurement, then rule out radiator, pump, air, fan, combustion-gas, and fitment faults.
