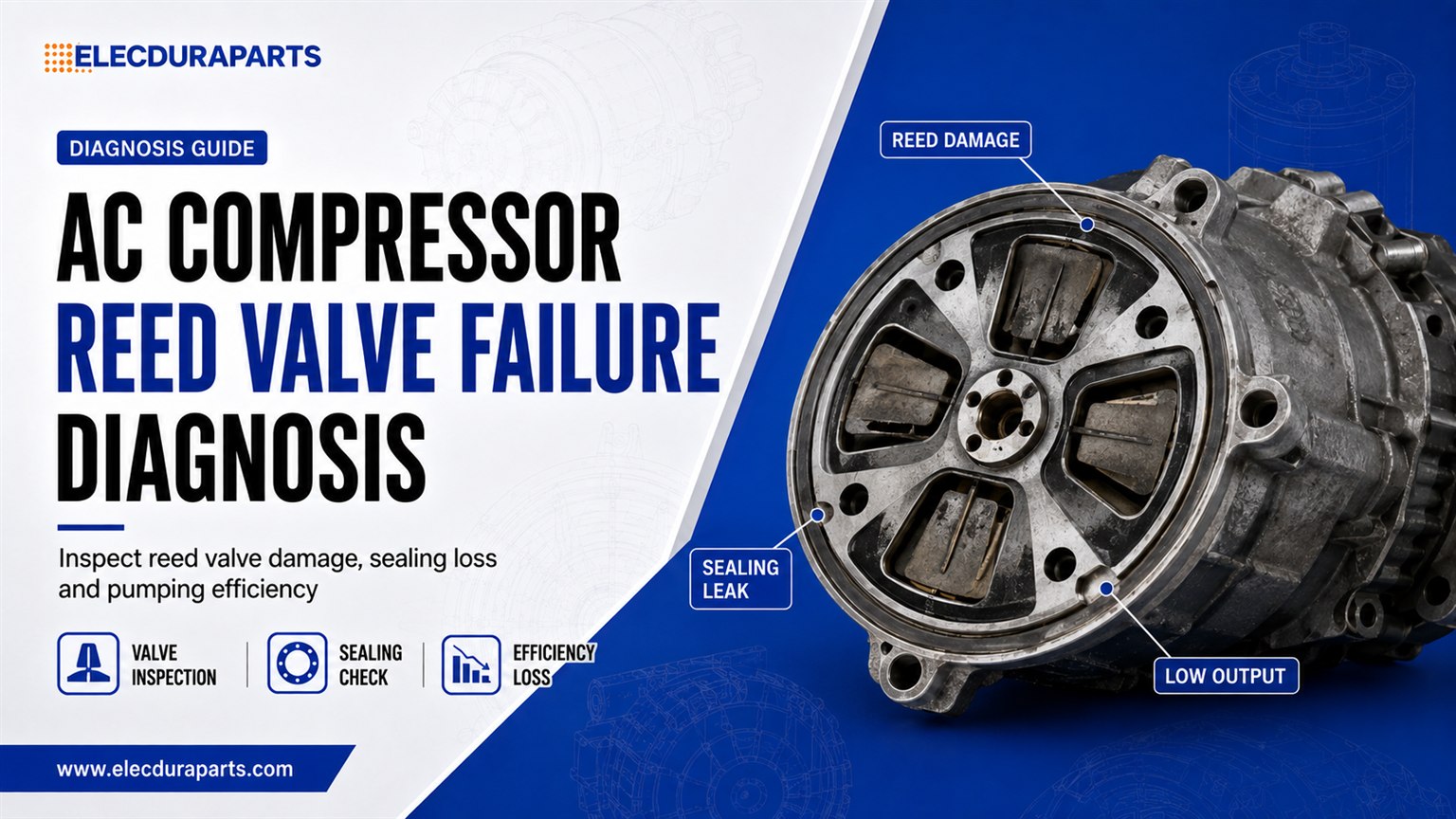

AC compressor reed valves control refrigerant flow into and out of each compression chamber. A suction reed should open as chamber pressure falls and close during compression. A discharge reed should open when chamber pressure exceeds the discharge side and close against reverse flow. If a reed cracks, loses sealing contact, carbonizes, bends, or is held open by debris, the compressor can continue rotating while moving much less refrigerant.
Weak cooling and unusual gauge pressures do not prove a reed valve failure. Low charge, excessive charge, a control-valve fault, clutch slip, an expansion-device problem, condenser airflow, an internal restriction, or incorrect compressor speed can create overlapping readings. Diagnosis must establish that the compressor receives vapor correctly, is driven or commanded correctly, and fails to create the expected pressure separation before an AC compressor replacement is approved.
Internal valve leakage usually reduces pumping efficiency. The low side may remain higher than expected, the high side may remain lower than expected, and the two sides may equalize more rapidly after shutdown. Those patterns are clues, not universal limits. Ambient temperature, cabin load, refrigerant type, compressor displacement control, engine speed, and airflow must be stabilized and compared with the exact service specification.
Observation | Possible reed-valve interpretation | Important alternatives |
|---|---|---|
Low side high and high side low | Reduced volumetric efficiency or internal leakage | Control valve held at low displacement, slow compressor, clutch slip |
Discharge pressure builds slowly with load | Leakage across suction or discharge reed | Low charge, command limitation, worn compression elements |
Rapid pressure equalization after stop | Internal reverse leakage | Expansion device flow, control valve path, system design |
Pulsing gauge needle or discharge line vibration | Uneven cylinder or reed operation | Normal compressor pulsation, hose resonance, charge condition |
Hot compressor with poor pressure ratio | Recompression and internal leakage heat | Low lubrication, high friction, low mass flow |
Metal or reed fragments in ports | Physical valve-plate damage | Debris from another internal component |
During compression, a suction reed must seal the inlet. If it leaks, some refrigerant is pushed back toward the suction passage instead of moving to the discharge side. The chamber then repeats work on gas that should have left the inlet region. Net mass flow and pressure ratio fall, while local heating and pulsation can increase.
Reed motion depends on pressure difference, mass, stiffness, stop height, and compressor speed. A valve may appear seated during static inspection but flutter or fail to close at operating speed. Carbon or a small particle can also create an intermittent leak. That is why a bench visual check cannot replace a controlled pumping test.
After compressed refrigerant enters the discharge chamber, the reed should close. Leakage sends some high-pressure gas back into the cylinder as piston or scroll volume expands. The compressor must recompress that gas, adding heat while producing less useful flow. Discharge temperature may rise even though system high-side pressure remains weak.
Liquid slugging, excessive discharge temperature, contamination, poor lubrication, incorrect oil, or abnormal pulsation can damage a reed. Replacing the compressor without correcting the system condition can repeat the failure. Inspect the refrigerant circuit and preserve debris before flushing or discarding components.
Recover and weigh refrigerant using approved equipment when charge accuracy is uncertain. Non-condensable gas, mixed refrigerant, or an incorrect mass changes both pressure and temperature relationships. A gauge pattern created by undercharge should not be used to condemn internal compressor valves.
Pressure has meaning only with refrigerant saturation temperature and operating conditions. Record ambient air, air entering the condenser, liquid-line and suction-line temperatures at defined points, cabin inlet and outlet air, blower state, engine speed, and test duration. Avoid comparing readings taken under different fan or door conditions.
Poor airflow tends to raise high-side pressure, but control responses and charge faults can complicate the picture. Verify fan direction, speed, shroud, core cleanliness, and recirculation. Use the AC condenser airflow test before interpreting a pressure ratio as an internal compressor defect.
For a clutch compressor, check clutch engagement, air gap, voltage drop, hub speed, belt condition, and slip. A pulley can rotate while the hub does not transmit full speed. For a variable-displacement compressor, review control current and commanded displacement. An electric compressor requires high-voltage command, speed, interlock, and isolation checks appropriate to the application.
The AC compressor control valve can hold displacement low and closely imitate weak reed-valve pumping.
From a stabilized condition, engage or command the compressor and watch how quickly suction pressure falls and discharge pressure rises. Record time, engine or compressor speed, and control state. A slow response with verified charge, airflow, expansion device, and command strengthens the case for low pumping efficiency, but it still does not isolate reed valves from worn pistons, scrolls, seals, or a bypass path.
Do not force pressure by blocking airflow, overcharging, or running beyond safe limits. Test at specified ambient conditions and speeds. A universal gauge chart cannot account for refrigerant, vehicle, variable displacement, or control strategy. Stop if high pressure, compressor temperature, noise, or oil condition becomes unsafe.
A compressor that circulates little refrigerant can produce weak line temperature changes. Internal leakage can also increase compressor-head temperature because gas is recompressed. Measure at repeatable locations and compare with pressure-derived saturation temperatures. A hot shell alone is not proof; low refrigerant mass flow and poor cooling can also overheat the compressor.
Reed compressors naturally create pulses that hoses, mufflers, and manifolds attenuate. An oscillating gauge needle may indicate unequal chamber pumping or valve flutter, but hose resonance, gauge damping, and normal design matter. A pressure transducer and scope can reveal frequency and consistency more clearly than a mechanical gauge.
If abnormal pulsation repeats at a rate connected to shaft speed and cylinder events, internal mechanical asymmetry becomes more plausible. If it changes with fan or hose position, external vibration may dominate. Do not open a charged system merely because a needle moves.
After stable operation, stop the compressor and record high- and low-side pressures at fixed intervals. Fast equalization can support an internal leak, but refrigerant can also pass through the expansion device, control valve, or other designed path. Compare with service information or a known-good system of the same design.
Lines and heat exchangers continue exchanging heat, so gauge movement is not caused only by mass flow. Record line temperatures and avoid interpreting the first seconds in isolation. A hot discharge hose cooling rapidly can change pressure even if internal leakage is limited.
Service valves and test equipment must be operated according to approved procedures. Trapping liquid or running a compressor against a closed path can cause dangerous pressure. Equalization is a passive observation, not permission to block the refrigerant circuit.
Look-alike fault | Why pressures can resemble weak pumping | Best separating evidence |
|---|---|---|
Low refrigerant charge | Low mass flow and limited pressure rise | Recovered weight, leak test, superheat/subcooling in context |
Control valve held at low displacement | Compressor intentionally pumps a small volume | Command/current and pressure response to controlled actuation |
Clutch or belt slip | Internal mechanism turns too slowly | Hub speed versus pulley/engine speed and heat marks |
Expansion device too open | Suction remains high and evaporator may flood | Superheat, bulb/sensor condition, command and outlet temperature |
Internal compressor wear outside reeds | Leakage past pistons, scrolls, seals, or bypass | Teardown or validated bench performance after system tests |
Incorrect compressor application | Wrong displacement or control range | OE number, label, pulley, ports, control type and application |
A restriction can create very low suction pressure and high upstream pressure, depending on its location. Temperature drop or frost at the restriction and pressure measurements on each side are useful. A clogged AC condenser, receiver drier, hose, or metering device requires a different repair scope.
Blend doors, heater-valve leakage, blower airflow, cabin humidity, evaporator condition, and control strategy influence vent air. Confirm refrigerant-side performance before translating warm air into compressor valve failure.
Metal particles, dark oil, burned odor, elastomer debris, or visible reed fragments change the repair decision. Collect samples in clean containers and note where they were found. Debris at the compressor outlet does not establish that the reed was the first failed component, but it demonstrates contamination that can damage a replacement.
Fine metallic material can circulate into a parallel-flow condenser and become difficult to remove. Elastomer fragments may come from hoses or seals. Desiccant beads indicate receiver-drier failure. Do not describe all contamination as AC compressor black death; record color, particle size, magnetic response where appropriate, and distribution.
Incorrect oil viscosity, chemistry, or quantity affects lubrication, heat transfer, sealing, and valve motion. Review the AC compressor oil amount and type for the exact refrigerant and application. Do not estimate system oil by draining one failed component alone.
A system that has been open, repeatedly undercharged, or contaminated may contain moisture that forms acids, degrades oil, corrodes internal surfaces, and freezes at the metering device. Confirm how long the circuit was open and whether the receiver drier or accumulator remains serviceable. Follow the AC receiver drier replacement guide rather than reusing a moisture-saturated component after compressor work.
Keep caps installed until connections are ready, minimize open time, use new compatible seals, evacuate with verified equipment, and confirm vacuum stability according to the service procedure. Vacuum retention is not a complete leak test, and evacuation does not remove liquid contamination trapped in debris or incorrect oil.
Record the vacuum equipment, ambient conditions, evacuation duration, recovered oil, and final charge mass. These installation records help distinguish an internal replacement defect from residual moisture, incorrect charge, or an uncorrected circuit problem during later warranty review.
Parallel-flow microchannels and integrated receiver-drier designs contain small passages that can trap metal and elastomer fragments. Flushing flow from one accessible port does not prove that every passage is clean. Inspect the exact construction and follow replacement guidance. The article on an AC condenser with an integrated receiver drier explains why heat-exchanger and moisture-control scope may be linked.
A checklist such as signs an AC compressor needs replacement can organize noise, leakage, clutch, temperature, and pressure observations. It cannot identify reed damage by itself. The final report should state the measured pressure ratio, dynamic response, command or drive proof, charge and airflow checks, and contamination evidence that justify replacement.
Pressure, temperature, speed, command, and equalization evidence can prove that the compressor fails to perform, but exact internal attribution may require controlled bench testing or teardown. If the compressor is not field-serviceable, replacement can be justified without claiming a visually unconfirmed reed fracture. Use precise language in warranty reports: “internal leakage or low volumetric efficiency” until the valve plate is inspected.
Cap ports immediately with compatible clean caps, retain oil and debris samples, photograph the label and ports, and avoid flushing the failed unit. Record recovered refrigerant mass, pressures, temperatures, commands, and drive speed. The AC compressor warranty evidence should accompany the return.
If contamination is present, inspect hoses, condenser, receiver drier, expansion device, and evaporator according to service guidance. Some parallel-flow heat exchangers cannot be reliably cleaned after severe metallic contamination. Use the decision framework in AC compressor kit versus bare compressor rather than installing a compressor into an unverified circuit.
Provide the OE number, vehicle, engine, model year or build range, refrigerant, compressor label, displacement or family, fixed or variable control, control-valve connector, pulley diameter and grooves, clutch voltage, port configuration, mounting points, and required quantity. When the label is missing, use the structured AC compressor identification process.
Confirm whether the quotation includes clutch, control valve, manifold seals, oil prefill, shipping oil, protective caps, installation hardware, receiver drier, expansion device, or flush materials. Ask for the oil specification and prefill quantity in writing; do not assume every compressor arrives ready for direct installation.
Dimensional inspection cannot reveal reed sealing or volumetric efficiency. A supplier's functional test should define speed, suction and discharge conditions, refrigerant or approved test medium, oil, temperature, displacement command, leakage limits, and acceptance range. Compare results by exact part number and retain batch traceability.
Importers can apply the automotive AC compressor supplier audit and review Elecdura's wholesale AC compressor program. Send the OE reference, application, label and port photographs, pressure/temperature record, command and speed evidence, contamination findings, quantity, and destination through the contact page.
First verify charge, compressor speed or command, control-valve state, expansion device, and gauge accuracy. Nearly equal readings prove poor pressure separation, not the specific internal component.
Many automotive compressors are serviced as assemblies. Valve-plate work requires cleanliness, correct parts, torque, sealing, oil management, and a performance test. Improvised repair can introduce leaks or debris.
Refrigerant may equalize through the expansion device, control valve, or another designed path. Compare the exact system with service information or a known-good unit under the same temperature conditions.
Determine leak duration, oil condition, compressor temperature, noise, and performance. Correct the leak and assess contamination rather than assuming every low-charge system has internal valve damage.
Include OE number, vehicle and engine, refrigerant, compressor label, pulley and ports, control type, pressure and temperature log, compressor speed or command, oil/debris findings, quantity, and destination.
