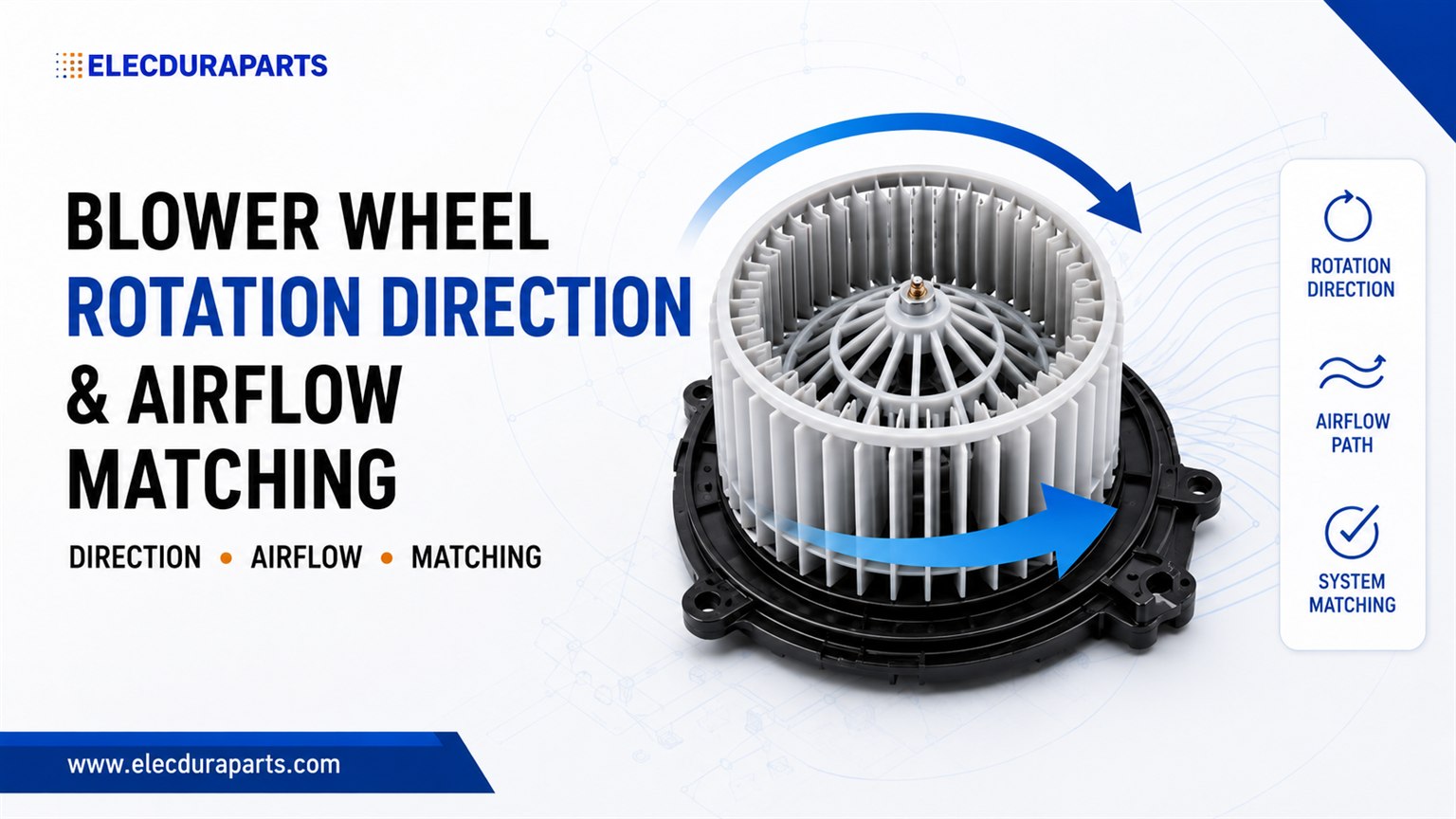

Blower Wheel Rotation Direction: Blade Curve, Housing, and Airflow Matching

Views: 0     Author: Site Editor     Publish Time: 2026-08-25      Origin: Elecdura

An HVAC blower motor can spin at full speed and still deliver weak airflow when its wheel rotates in the wrong direction or its blade curve does not match the scroll housing. A centrifugal blower draws air into the wheel near the hub, accelerates it outward through many curved blades, and collects it in a volute before discharging into the HVAC case. Reversing rotation does not simply reverse the air path; it makes the blade operate inefficiently inside a housing designed for the opposite hand.

Correct matching requires a defined viewing side, clockwise or counterclockwise shaft rotation, blade curvature, wheel diameter and width, hub offset, motor polarity or electronics, scroll outlet direction, and installed airflow. Elecdura's blower motor assembly range illustrates why the motor, wheel, housing, and connector should be treated as one aerodynamic and electrical unit.

Quick Answer: Define Direction from a Named Side

“Clockwise blower” is incomplete unless the observer's side is stated. The same shaft appears clockwise from one end and counterclockwise from the other. A reliable statement identifies rotation viewed from the wheel inlet, motor end, or shaft end, then confirms that the wheel's curved blades discharge into the expanding portion of the scroll.

Evidence

What it confirms

What remains unproven

Motor shaft rotates clockwise from motor end

Viewed rotation from a named side

Correct wheel hand and housing

Wheel physically fits shaft

Hub bore and attachment may match

Offset, airflow, balance, or blade direction

Air exits vents

Some system flow exists

Rated flow and static pressure

Current is within a broad range

Electrical load may be plausible

Correct aerodynamic operating point

Measured outlet flow matches reference

Installed performance is supported

Long-term vibration and thermal durability

Do not determine rotation from a still photo alone

A mirrored image, camera angle, hidden inlet, or curved blade profile can reverse the apparent hand. Request photographs of the wheel inlet, motor side, hub, and complete housing, plus a marked rotation arrow where available.

Use three independent descriptions

State rotation viewed from a named side, blade curve or wheel part number, and actual air path through the scroll outlet. Agreement among all three reduces ordering errors.

How a Centrifugal Blower Creates Airflow

Air enters axially and leaves radially

The wheel inlet near the center receives air along the shaft axis. Rotating blades add tangential velocity and throw air toward the wheel perimeter. The scroll housing collects that flow and converts part of its velocity into static pressure before directing it into the evaporator, heater core, filters, and ducts.

The outlet does not reverse when the motor reverses

The physical scroll outlet remains fixed. Backward wheel rotation produces disturbed, inefficient flow rather than useful reverse ventilation.

Forward-curved and backward-curved blades behave differently

Many passenger HVAC blowers use numerous forward-curved blades for compact size and high flow at relatively low pressure. Other applications can use different profiles. The blade's pressure and power characteristics depend on rotation, so a wheel with the wrong curvature can change both airflow and motor current.

More blades do not automatically mean more airflow

Blade count interacts with diameter, width, angle, speed, inlet shape, scroll clearance, and system resistance. Use an assembly performance reference rather than selecting by count.

The scroll has a hand and a cut-off

The volute area increases around the wheel toward the outlet. Near the outlet, a cut-off or tongue separates discharged flow from recirculating flow. Wheel rotation should carry air in the intended direction through this expanding passage. Wrong rotation raises turbulence and noise and reduces pressure capability.

Why Reversing Polarity May Not Solve the Problem

Simple brushed DC motors can reverse

A two-wire permanent-magnet brushed motor often reverses when supply polarity is swapped. That changes shaft direction but does not change wheel curvature, scroll hand, brush timing, suppression devices, connector keying, or the vehicle harness standard.

Internal diodes can make reversal unsafe

Some motors include suppression components that assume fixed polarity. Reversing power can create a short or damage electronics. Follow the exact circuit and motor specification.

Brushless and controlled motors do not reverse by swapping wires

An electronically commutated blower uses a controller to sequence phases. Power and ground reversal can destroy the module. Direction may be fixed in hardware or firmware. A PWM command controls speed, not necessarily rotation direction. Use the resistor and regulator architecture guide to identify the system type.

Connector fit is not electrical compatibility

Two assemblies can share a connector shell but use different pinout, command signal, feedback, voltage, current, or electronics.

Brush timing and cooling can be directional

A motor designed for one direction may arc more, create more electrical noise, or cool differently when run backward. Even if airflow improves temporarily, reverse operation may reduce service life.

Wheel Geometry That Must Be Matched

Diameter and width

Outer diameter controls tip speed at a given motor speed and must fit the housing with appropriate clearance. Width affects flow capacity and inlet alignment. A wheel that is slightly too large can rub after thermal expansion or case distortion; one too small can recirculate air at the tip.

Measure at consistent reference points

Record maximum blade diameter, overall wheel width, blade-pack width, inlet diameter, and hub projection. Do not include removable washers or motor flange dimensions in the wheel measurement.

Hub bore, attachment, and offset

Press fit, splines, flats, nuts, clips, and molded hubs are not interchangeable. Axial offset positions the wheel relative to the inlet ring and scroll cut-off. A wheel mounted too far toward either side can rub, leak air around the inlet, or lose performance.

Reuse of a press-fit wheel is risky

Removal can crack the hub, reduce retention, distort the wheel, or change balance. Use the service procedure and replace the complete assembly where specified.

Blade curve and open side

Record which side of the wheel is open to the air inlet and how the blades lean relative to intended rotation. Some double-inlet or twin-wheel blowers require matching geometry on both sides. One mirrored wheel can fit physically but be aerodynamically wrong.

Do not confuse blade lean with rotation arrow

The apparent leading edge depends on whether blades are forward- or backward-curved. Use original part data and housing flow evidence.

Symptoms of Wrong Rotation or Wheel Hand

Weak airflow at every speed

The motor may sound fast while vent airflow remains low. Before blaming direction, inspect the cabin filter, evaporator, doors, recirculation inlet, ducts, and wheel for blockage. Elecdura's weak-airflow amperage test links electrical load with physical output, while the blower resistor symptom guide separates speed-control faults.

Airflow can feel acceptable with no system resistance

A removed blower may move air freely on a bench but fail against the pressure drop of a filter, evaporator, heater core, and closed ducts. Test in the housing or against a representative restriction.

Unusual rushing, pulsing, or tonal noise

Wrong rotation disturbs flow near the scroll tongue and can produce turbulence or a different blade-pass tone. Similar noise can come from leaves, a cracked wheel, imbalance, loose mounting, wheel rub, or duct resonance.

Noise alone does not identify direction

Observe rotation and measure airflow, speed, current, and vibration before replacing parts.

Current lower or higher than expected

A backward-operating wheel may unload the motor and reduce current, or a mismatched wheel can increase power demand. Compare with the exact assembly at the same supply voltage and duct condition. A free-running low current is not proof of correct output.

Uneven temperature and defrost performance

Low airflow reduces heating, cooling, demisting, and defrosting even when refrigerant and coolant systems work. Safety-critical windshield clearing should be tested after repair in accordance with vehicle requirements.

Diagnostic Sequence

1. Identify the original assembly

Record OE number, motor and wheel markings, vehicle and HVAC option, left- or right-hand drive, front or rear location, connector and pinout, housing outlet direction, and installed photos. Compare old and replacement assemblies side by side without assuming the old unit is original.

Check repair history

Wrong direction is most likely after motor, wheel, wiring, connector, or HVAC-case service. Note whether polarity was repaired or a wheel transferred.

2. Inspect wheel and housing geometry

With power isolated, check blade curvature, cracks, missing vanes, debris, hub security, axial position, inlet ring, scroll tongue, rub marks, and mounting seal. Rotate by hand where permitted and feel for contact or bearing roughness.

Protect wheel balance

Do not bend blades to create clearance. A small mass change at the perimeter can produce high vibration at speed.

3. Establish the viewing side and rotation

Use a marked reference and safely observe startup through an approved access point. A brief video can help at high speed, but frame rate can create a wagon-wheel illusion that reverses apparent rotation. Confirm with a strobe or manufacturer method if necessary.

Never reach into an energized blower

Fans can start automatically. Secure clothing, tools, probes, and loose test material.

4. Confirm polarity and control

Measure power and ground at the motor under load. Compare terminal assignment with the wiring diagram. On PWM or brushless systems, capture command and output using the procedure in PWM and LIN control testing as general waveform context, while applying the HVAC-specific specification.

Do not repin before proving the motor design

Changing wires can damage suppression components or control electronics and may still leave the wrong wheel hand.

5. Measure motor speed, current, and airflow

At fixed system voltage and HVAC configuration, record motor current and speed at selected commands. Measure outlet airflow or pressure with a repeatable method. Compare to a known-good vehicle or manufacturer value when available.

Control door position and filter condition

Recirculation, mode, blend, and distribution doors change system resistance. Use the same positions for every comparison.

6. Test the full HVAC function

After correction, verify airflow at all speeds and modes, temperature response, defrost, recirculation, noise, vibration, connector heat, and module behavior. The complaint is not resolved merely because the wheel turns in the intended direction.

Common Matching Errors

Mismatch

Result

Evidence before reordering

Rotation stated without viewing side

Opposite motor supplied

Named-side arrow and installed video

Correct motor, mirrored wheel

Low pressure and turbulence

Blade curve and open-side photos

Correct wheel diameter, wrong offset

Rub or inlet recirculation

Hub-to-rim and flange dimensions

Two-wire motor used for controlled blower

No speed control or electrical damage

Pinout and command architecture

Wrong scroll housing hand

Outlet or mounting does not align

Housing outlet clock position

Wheel transferred and hub loosened

Vibration or wheel movement

Retention and balance inspection

Wrong voltage motor

Slow operation or overheating

Label and loaded terminal voltage

Left-hand drive does not automatically define wheel hand

HVAC packaging, motor orientation, and market configuration vary. Use the exact application and physical assembly, not steering position as a shortcut.

Voltage loss in the power or ground path

A weak relay, corroded splice, terminal, or ground can reduce motor speed and airflow. Measure loaded voltage directly at the motor. The broader distinction in blower high-speed-only diagnosis helps separate resistor-path faults from a directional mismatch.

Resistor or control-module limitation

A failed resistor stage or protected PWM module can limit speed. Inspect command and current before removing the wheel. If a connector is heat-damaged, follow the melted blower connector test rather than reversing polarity.

High current can trigger thermal protection

Wheel rub, excessive blade load, or bearing drag can overheat the resistor or module. Use measured current to decide whether the motor and wheel are compatible.

Replacement Scope and Matching Data

Motor only, wheel only, or complete assembly

Replace only a serviceable component when hub retention, balance, orientation, shaft, and housing can be restored to specification. A complete assembly reduces transfer errors when the wheel is press-fit, balanced with the motor, or integrated into the scroll.

Inspect the old assembly after removal

Retain labels, spacers, clips, seals, and wiring evidence. A missing spacer can create the same rub as a wrong wheel offset.

Information required for matching

Provide the OE number, vehicle make, model, year and HVAC option, VIN range where applicable, front or rear blower, left- or right-hand-drive configuration, voltage, motor type, connector pinout, rotation viewed from a named side, wheel diameter and width, blade curve, hub attachment and offset, housing outlet position, mounting dimensions, and photographs of all faces.

Include measured performance when diagnosing a mismatch

Send loaded motor voltage, current, speed, outlet airflow or pressure, noise and blade-imbalance vibration observations, and comparison with the original assembly. The fan example is a measurement reference, not an interchangeable product.

Wholesale Inspection and Packaging

Verify directional configuration at incoming inspection

Check label voltage, connector keying, pinout, viewed rotation, wheel hand, open side, diameter, width, offset, scroll outlet, mounting pattern, current, vibration, and airflow. A simple spin test does not release the batch.

Use a representative housing restriction

Free-air tests can miss weak static-pressure performance. Sample testing should use the correct scroll or a fixture that represents system resistance.

Protect wheel shape and balance

Packaging must prevent blade compression, hub impact, motor-flange bending, loose hardware, and contamination. Do not let the assembly carry carton loads through the wheel rim. Category planning can compare the UK blower motor supplier overview with the Australian supplier landscape, while each SKU needs its own directional specification.

Control silent substitutions

A change in wheel mold, motor winding, brush timing, bearing, connector, or housing can alter airflow and current. Require sample approval, traceability, and change notice under the aftermarket supplier audit framework.

Frequently Asked Questions

Can a blower motor run backward?

A simple brushed motor may reverse with polarity, but suppression, brush timing, wheel curvature, and housing hand may make reverse operation incorrect or unsafe. Brushless units usually require electronic commutation and should not be reversed by swapping power.

Will backward rotation produce no air?

It often produces some air, which is why the mismatch can be missed. Flow and static pressure can be far below the intended value.

How do I tell clockwise from counterclockwise?

First name the viewing side—motor end, shaft end, or wheel inlet—then observe rotation safely. Add blade curve and housing outlet evidence so the description cannot be mirrored.

Can a phone video show the wrong direction?

Yes. Frame-rate aliasing can create an apparent reverse rotation. Use startup observation, a strobe, or the approved method.

Why is airflow weak after replacing only the motor?

Possible causes include reversed polarity, wrong motor direction, transferred wheel installed backward, wrong offset, low voltage, hub slip, blocked filter, door fault, or an incompatible speed controller.

Can motor current prove wheel direction?

No. It can show an abnormal load, but different wrong configurations may raise or lower current. Combine current with rotation and airflow measurement.

What should a wholesale buyer submit?

Send OE references, full applications, voltage and motor type, connector and pinout, named-side rotation, blade curve, wheel and hub dimensions, scroll outlet orientation, current and airflow targets, packaging requirements, sample plan, and annual demand. Use the wholesale blower HVAC range for adjacent controls and Elecdura's aftermarket product scope for discovery.

Match the Wheel to the Scroll, Not Just the Shaft

Correct blower wheel rotation is defined by a named viewing side, the wheel's blade curvature, and the scroll housing's intended discharge path. Physical fit and motor noise are not performance tests. Verify the full assembly with loaded voltage, current, speed, airflow or static pressure, vibration, and HVAC function.

For exact matching, send Elecdura the OE reference, vehicle and HVAC configuration, motor and wheel photos, connector pinout, voltage, viewed rotation, blade curve, hub attachment and offset, wheel dimensions, scroll outlet direction, performance evidence, quantity, and inspection needs through the technical quotation form. Use Elecdura's wholesale process once the aerodynamic and electrical configuration is fixed.
