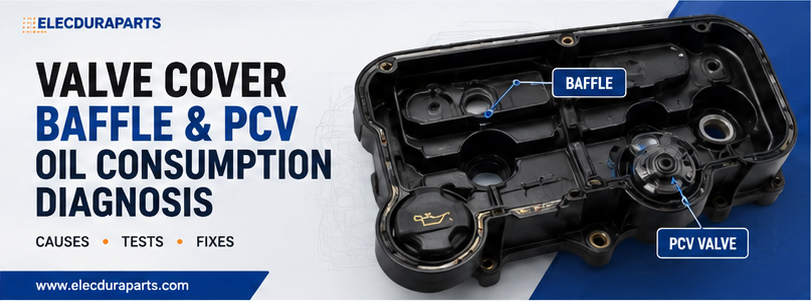

Valve Cover Baffle and PCV Oil Consumption Diagnosis

A valve cover can influence engine oil consumption even when its gasket is dry and its PCV diaphragm still responds. Many modern covers contain an oil-separation system: impact baffles, labyrinth passages, cyclonic chambers, mesh or molded separators, calibrated orifices, pressure-control valves, and drainback paths. Their job is to remove liquid oil from blow-by gas before the gas returns to the intake.

When separation or drainback fails, the engine can carry more oil mist into the intake without producing an obvious external leak. The resulting complaint may be blue smoke, spark-plug deposits, catalyst contamination, pooled oil in an intake hose, abnormal oil use, or a recurring PCV-related fault. The correct diagnosis must distinguish an internal integrated PCV system fault from ring blow-by, turbocharger oil leakage, valve-stem sealing, external leakage, or ordinary vapor residue.

Quick Answer: Follow the Oil, Gas, and Pressure Paths Together

A valve cover becomes a credible oil-consumption cause when evidence shows that oil is entering the ventilation stream at or immediately after the cover, crankcase pressure and PCV flow are consistent with the failure mode, the separator cannot drain or control carryover, and other major oil-entry paths have been reasonably excluded. Intake oil by itself is not enough because a turbocharger, upstream hose, previous repair, or normal condensation can leave similar residue.

Measure consumption before assigning a cause

Record the correct oil grade, fill procedure, level-check temperature, vehicle angle, mileage, duty cycle, and amount added. A vague statement that the engine “uses oil” cannot distinguish a true rate change from an inconsistent check or an overfilled crankcase.

Overfill can overwhelm a sound separator

Excess oil increases splash and can put the rotating assembly or return paths closer to the liquid level. Correct the level and repeat the observation before condemning the cover.

Understand What the Valve Cover Separator Must Do

Reduce gas velocity and change direction

Blow-by gas carries droplets with different sizes and momentum. A labyrinth forces the gas to turn, allowing heavier droplets to strike a wall and coalesce. Cyclonic passages use rotation, while mesh or textured surfaces provide area for droplets to combine. The cleaned gas continues toward the PCV outlet; separated oil should return to the cylinder head.

Separation efficiency changes with flow

A design that works at low gas volume can pass more oil when blow-by rises sharply under load. Diagnosis must therefore compare idle, cruise, deceleration, and loaded operation rather than treating the separator as a fixed filter.

Drain liquid oil without admitting an uncontrolled air path

Separated oil moves through small drains, slots, umbrella valves, or channels. Sludge, sealant, distorted plastic, a displaced insert, or incorrect installation can block return. Oil then accumulates until gas flow re-entrains it. A drain can also be exposed to pressure pulses that interfere with return.

A clean outlet does not prove every drain is open

Pooling may occur in a hidden chamber and release only during a turn, grade change, high load, or long deceleration. Reproduce the operating sequence associated with the smoke event.

Regulate crankcase pressure

The separator and pressure-control valve work as a system. Excess restriction can raise crankcase pressure and force oil through seals; excessive flow can create high vacuum, draw oil from the head, or disturb gasket sealing. Compare findings with the more focused valve cover PCV diaphragm symptoms rather than assuming every cover-related oil complaint is a torn diaphragm.

Pressure direction can reverse with operating state

Intake vacuum, boost, blow-by volume, fresh-air path restriction, and check-valve state can make the crankcase move from slight vacuum to pressure. A single idle reading is only one point on that operating map.

Establish a Reliable Oil-Consumption Baseline

Check external losses before internal carryover

Clean the engine and inspect the cover perimeter, oil cap, filler neck, fastener seals, ignition-well seals, breather nipples, cam plugs, timing-cover joint, vacuum pump, and nearby oil-feed lines. Airflow can move oil far from its source. The valve cover leak decision guide separates gasket service from complete-cover replacement.

Fluorescent tracer is a timing tool

When approved for the lubricant, tracer can show the first wet point after a controlled drive. It does not identify an internal oil-separation fault and should not be added indiscriminately.

Normalize the service interval and duty cycle

Extended idling, repeated short trips, sustained high speed, heavy towing, steep grades, engine braking, and high boost can produce different vapor and drainback conditions. Record fuel dilution, coolant contamination, and oil volatility concerns because they change the apparent level and mist behavior.

Use repeatable level checks

Follow the specified drain-back time and dipstick or electronic-level procedure. Photograph the reading, odometer, and amount added. Do not round every addition to a full container.

Trace Oil Through the Ventilation Circuit

Start at the fresh-air side

Inspect the fresh-air inlet, clean-side hose, and cover connection. Oil already present at this side may indicate reverse flow, high blow-by, a blocked regulated outlet, or turbo-inlet pressure behavior. Mark each hose orientation before removal.

Residue location matters more than color alone

A light film throughout an old system can be normal. A sharp change from dry to wet across one component is more diagnostic than a dark stain without a location map.

Inspect the regulated outlet and downstream junction

Remove the outlet hose carefully and compare wetness at the cover nipple, hose low points, intake manifold connection, and throttle region. If the cover outlet is saturated while the fresh-air path is dry, the separator or pressure regulator deserves closer testing. If the cover outlet is dry but oil appears later, look for another source.

Quantify collected liquid when possible

A catch container used only for a controlled diagnostic interval can measure carryover, provided it does not change restriction, freeze, violate emissions rules, or create an unsafe installation. Do not recommend an improvised permanent catch can as proof of repair.

Map the charge-air system on turbocharged engines

Oil can enter before the compressor through the crankcase vent or after the compressor through a turbo bearing and seal-control problem. Compare compressor inlet, outlet, charge-air cooler inlet, cooler outlet, and intake manifold. Elecdura's guide to oil in the intercooler explains why pooled quantity, source location, shaft evidence, and operating symptoms must be considered together.

Clean evidence before a repeat test

Residual oil from a previous turbo or PCV failure can continue moving through the system. Document and safely clean serviceable sections before using new residue as evidence.

Measure Crankcase Pressure Across Operating Conditions

Use a suitable low-pressure instrument

Crankcase pressure is often small relative to ordinary shop gauges. Use a calibrated low-range manometer or pressure transducer, connect at the specified point, and avoid a hose arrangement that fills with oil. Record pressure with engine speed, load, boost, and PCV command state.

Do not judge by oil-cap behavior alone

A cap that is difficult to remove, dances, or changes idle is a clue, not a calibrated test. Cover design, cap area, engine pulses, and idle-control strategy affect the sensation.

Interpret excessive vacuum

Strong vacuum can pull oil through separator passages, whistle through seals, increase oil-cap force, and affect idle when the cap is opened. A failed diaphragm, incorrect orifice, stuck valve, or wrong cover revision may be responsible. Compare the reading with the exact application specification.

Vacuum may be normal only in one mode

Some systems intentionally change flow paths between idle vacuum and boost. Verify check valves and fresh-air paths before concluding that one negative reading is excessive.

Interpret positive pressure

Positive pressure can result from excessive ring blow-by, a restricted outlet, collapsed hose, frozen condensate, blocked separator, wrong connection, or insufficient PCV capacity. It can force oil past gaskets and seals while also increasing vapor flow through any remaining opening.

Pressure under load separates capacity from idle function

A circuit can regulate correctly at idle and become positive only when cylinder leakage and boost increase. Capture the complaint condition safely on a dynamometer or with approved road-test instrumentation.

Inspect Baffles and Drainback Without Creating Damage

Use external evidence before destructive disassembly

Many covers are welded, bonded, or staked and are not designed to be opened. Cutting one apart can be useful for a warranty or engineering investigation but makes it unsuitable for return-to-service. First use borescope access, controlled flow tests, weight comparison, drain observations, and manufacturer information.

Shaking the cover is not a complete test

A rattle can indicate a loose baffle, but silence does not prove correct bonding, drain alignment, or separator geometry. Do not insert tools through ports where they can puncture a diaphragm or dislodge an internal valve.

Look for sludge and restricted returns

Remove the cover when justified and inspect accessible oil drains in the head, gasket openings, baffle returns, and low points. Sludge can reflect maintenance history, coolant contamination, low-temperature operation, or excessive sealant. Correct the system cause rather than treating the cover as the only dirty component.

Use material-compatible cleaning methods

Strong solvent, compressed air, heat, or wire probes can deform plastic, loosen bonded inserts, damage elastomers, or move debris into hidden passages. Follow the approved service method; replace a non-serviceable contaminated cover when cleanliness cannot be verified.

Check for distortion and broken internal welds

Heat, over-tightening, impact, and chemical exposure can distort the cover or separate an internal baffle. The related warped plastic valve cover inspection covers flange and sealing evidence; separator diagnosis must additionally examine internal chamber integrity and outlet alignment.

A flat flange does not prove a sound separator

The perimeter can seal while an internal wall is cracked. Conversely, a sound separator cannot compensate for a flange that leaks external oil or unmetered air.

Separate Valve Cover Carryover From Other Oil Sources

Use cylinder tests in context

Compression and leak-down results help identify uneven sealing or gross leakage, but acceptable static numbers do not prove low blow-by at every load. Combine them with crankcase pressure, gas flow, oil analysis, and cylinder-specific plug or borescope evidence.

Do not replace the cover to mask engine wear

A new separator may reduce carryover from a worn engine, but if gas volume exceeds the system design, oil consumption or seal pressure can remain.

Separate gasket leakage from separator failure

A cover can have both faults. Oil around the perimeter belongs to the external sealing decision, while oil at the PCV outlet belongs to the ventilation path. On applications with integrated components, the complete-cover scope may still be correct, but the evidence should document both reasons. The Mercedes valve cover leak example shows how gasket, PCV, and plastic housing decisions can overlap without being identical.

One replacement should not erase the diagnosis

Record pressure, carryover location, flange condition, and consumption baseline before removal. Otherwise, a later warranty review cannot determine whether the replacement addressed the measured fault.

Repair or Replace the Correct Scope

Service the PCV component only when the separator is sound

A diaphragm or valve kit may be reasonable when the cover is structurally sound, the baffles and drains are clean, the kit is approved for the application, and the calibrated spring, membrane, cap, and retention are correct. A generic membrane can change pressure regulation even if it physically fits.

Verify pressure after repair

Repeat crankcase pressure, idle response, and carryover observations. A quiet whistle is not proof that the intended pressure curve has returned.

Replace the complete cover when separation cannot be restored

A complete cover is more defensible when internal baffles are loose or cracked, drains are inaccessible and contaminated, molded passages leak, the flange is distorted, the separator is permanently integrated, or several calibrated elements are affected. Confirm the decision against the previously established gasket, PCV, and full-cover replacement boundaries.

Included parts change the installation risk

Determine whether the replacement includes gasket, bolt seals, oil cap, diaphragm, check valves, hose fittings, ignition-well seals, and mounting hardware. Reusing a hardened seal or damaged connector can imitate a defective new cover.

Correct upstream and operating causes

Address overfill, wrong oil, blocked hoses, excessive blow-by, turbo oil control, sludge formation, cooling problems, and maintenance interval. The best replacement cannot remain effective if the separator is immediately exposed to the same abnormal load.

Clean downstream oil safely

Service hoses, throttle components, manifold sections, and charge-air parts according to their material and contamination limits. Do not allow pooled oil to enter a diesel engine, where uncontrolled combustion can create a severe hazard.

Wholesale Matching and Quality Checks

Match the complete ventilation architecture

Valve covers that share an external outline may use different internal baffles, PCV calibration, hose nipples, sensors, caps, gasket grooves, bolt sleeves, and ignition-coil clearances. For Elecdura matching, provide the OE number, engine code, model year, market, cover markings, every hose connection, connector face, underside, gasket channel, and included-part requirement.

Do not infer internal design from color

Plastic shade, logo area, and surface ribs are weak evidence. Use molded numbers, port geometry, diaphragm location, underside structure, and application data. Elecdura's aftermarket replacement scope depends on verified configuration rather than cosmetic similarity.

Build inspection around oil-separation risk

• Check baffle welding or bonding and listen only as a secondary loose-part screen.

• Verify drain openings, molded passages, nipples, and check-valve orientation.

• Test PCV pressure-control components with the approved flow or decay method.

• Inspect flange flatness, gasket groove, bolt sleeves, cap sealing, and connector features.

• Protect long nipples, thin flanges, and integrated valves during packaging and stacking.

Sample approval should include a functional comparison

Compare a verified reference and sample using the same pressure-flow setup, fixture, temperature, and hose volume. A simple visual inspection cannot confirm separator efficiency or PCV calibration.

Qualify the supplier and warranty evidence

Distributors can compare regional supplier models through Elecdura's valve-cover market reviews for Australia, Italy, Mexico, Brazil, and the United States. Use those market pages as sourcing context, not as a substitute for application-specific functional validation.

Define the return evidence before shipment

A useful warranty file records oil-consumption baseline, crankcase pressure, outlet residue location, installation parts, engine condition, and post-repair result. Without those data, “uses oil” cannot separate cover performance from another engine fault.

Final Diagnostic and Ordering Sequence

1. Normalize oil level, grade, checking method, mileage, and duty cycle.

2. Clean and trace every credible external leak.

3. Map fresh-air, regulated, intake, and turbo charge-air paths.

4. Measure crankcase pressure at idle and during the complaint condition.

5. Locate the first significant oil accumulation in the ventilation path.

6. Inspect separator outlets, drains, baffles, hoses, and PCV regulation without destructive assumptions.

7. Evaluate blow-by, valve-stem, turbocharger, and oil-service alternatives.

8. Choose PCV service, cover replacement, or engine/turbo repair according to the isolated cause.

9. Repeat the consumption, pressure, and carryover measurements after repair.
