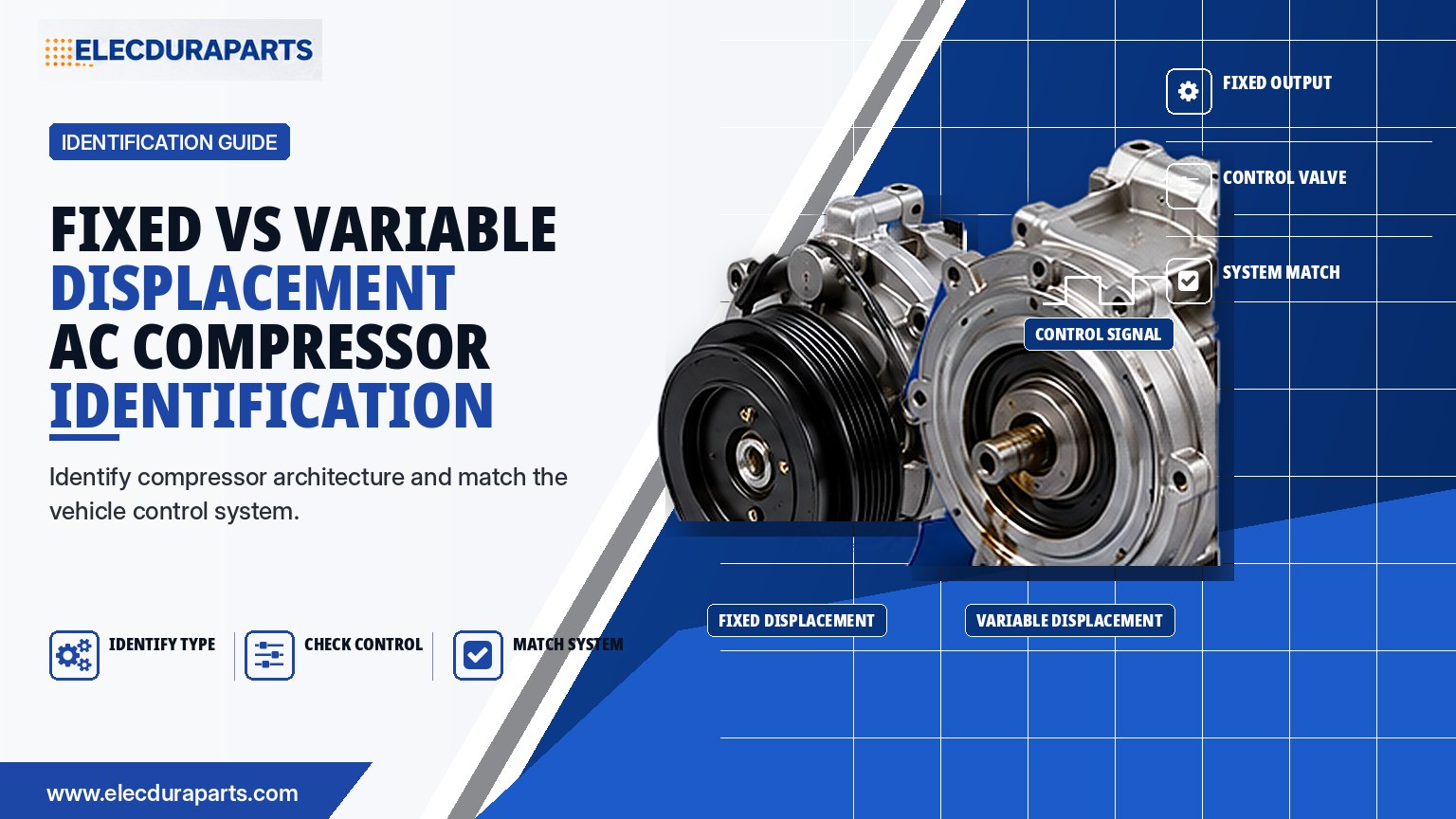

Fixed vs Variable Displacement AC Compressor: Identification and Matching

The difference between a fixed-displacement and variable-displacement AC compressor is not merely whether a clutch is visible. Fixed units pump a substantially defined volume per shaft revolution and regulate system output mainly by cycling, bypassing or other external controls. Variable units change the effective stroke or working volume inside the compressor, allowing capacity to respond to thermal load. Some variable compressors use a clutch; others rotate continuously. A mounting match therefore does not prove control compatibility.

For replacement selection, the compressor architecture must agree with the vehicle’s pressure regulation, clutch command, control-valve signal, pulley speed, refrigerant and lubricant requirements. Installing the wrong family can produce poor cooling, evaporator freeze risk, high pressure, belt load, diagnostic codes or immediate non-operation even when every bolt and hose can be connected.

Quick Comparison: Fixed vs Variable Displacement

The direct answer is that neither architecture is universally better. The vehicle system is designed around one control method. Replacement must reproduce that method and the original mechanical interfaces; it is not an opportunity to select a different architecture from appearance or advertised capacity.

How Fixed-Displacement Compressors Control Cooling

Pumping volume follows shaft speed

In a fixed-displacement compressor, pistons, scrolls or vanes move a designed volume each revolution. Refrigerant mass flow still changes with suction density, leakage and speed, but the mechanism does not continuously shorten its stroke to match cabin load. The system therefore needs another way to prevent excessive low-side pressure drop and evaporator icing.

Clutch cycling is a common control method

A cycling system disengages the clutch when evaporator temperature or suction pressure approaches a threshold, then re-engages as cooling demand returns. The timing is influenced by ambient temperature, blower speed, refrigerant charge and airflow. Rapid cycling is not automatically a compressor failure; review the AC compressor short-cycling diagnosis before selecting parts.

External regulation changes system behavior

Some fixed compressors work with an accumulator/orifice-tube system; others use an expansion valve and thermostat logic. Do not infer compressor family from the expansion device alone. Service information and exact compressor identification remain the authority.

Clutch evidence identifies one interface, not displacement

A clutch proves that the shaft can be disconnected. It does not prove fixed displacement, because some variable compressors retain a clutch for protection, economy or control. Likewise, a clutchless pulley strongly suggests continuous drive but does not reveal the valve calibration.

How Variable-Displacement Compressors Change Capacity

Swash-plate angle controls piston stroke

Many automotive variable compressors use axial pistons driven by a swash or wobble plate. Changing the plate angle changes piston stroke and therefore displacement. Internal crankcase pressure acts on the mechanism, and a control valve meters pressure to establish the angle. At low demand the compressor can continue rotating at minimal displacement instead of repeatedly cycling off.

Mechanical control valves respond without an ECU signal

Older or simpler variable compressors may use a mechanically regulated valve that responds to suction pressure or internal pressure balance. The absence of an electrical connector on the valve does not make the compressor fixed displacement. Identification may require model markings, valve location and technical catalog data.

Electronic valves receive a commanded signal

An electronically controlled valve may receive pulse-width modulation or controlled current from the HVAC or engine module. Command and direction vary by design. Connector fit and coil resistance do not prove equivalent flow calibration. The vehicle expects a relationship between signal and displacement; an incorrect valve can cool weakly, drive pressure too high or set a performance code.

Symptoms and electrical tests for this component are covered in AC compressor control valve diagnosis. That page diagnoses the valve; the present page determines whether the complete compressor architecture matches.

Why Clutchless Does Not Mean Electric

A clutchless belt-driven compressor still uses engine power

Its pulley turns the shaft continuously through the accessory belt, while internal displacement falls when cooling demand is low. A torque limiter or breakaway feature may protect the belt drive if the compressor locks. The electrical connector usually controls a valve rather than a high-voltage motor.

An electric compressor contains its own drive motor

Hybrid and EV compressors are independent of engine belt speed and require voltage, communication, insulation and oil compatibility checks. Orange cables or high-voltage markings change the safety procedure. Use electric versus belt-driven AC compressor identification before treating a unit as clutchless mechanical.

The 12/24 V versus high-voltage electric compressor guide further separates low-voltage auxiliary units from traction-voltage compressors.

Identification: Use an Evidence Hierarchy

Start with the OE and compressor model numbers

The vehicle OE number and compressor manufacturer/model provide the highest-value starting point. Verify supersessions by vehicle configuration and market; do not treat a marketplace cross-reference as engineering proof. Photograph the full label before cleaning because solvent can remove printing.

Confirm the drive and control interfaces

Record clutch presence, pulley grooves and diameter, hub or torque limiter, clutch coil connector, control-valve connector and pin count. Trace each connector to establish whether it belongs to the clutch, valve, speed sensor or another device. A two-pin connector may serve different functions on visually similar compressors.

Inspect ports, body and mounting family

Document suction and discharge port positions, manifold-pad dimensions, sealing type, mounting ears, case length and rear-head configuration. These features help narrow the family but cannot replace application and control data. If no number is readable, follow How to Identify an AC Compressor Without a Part Number.

Do not use one visual clue as a verdict

A valve connector can be hidden behind the compressor, a clutch can be obscured by a cover, and a mechanical valve can have no wires. Require at least application evidence, model/cross-reference evidence and physical-interface confirmation before assigning architecture.

Misidentification Risks

Diagnostic Differences Between the Architectures

Fixed systems require command and cycling evidence

Confirm clutch request, coil voltage under load, air gap, hub rotation and system pressures. A low-charge pressure switch can prevent engagement even when the compressor is mechanically sound. The automotive AC pressure switch test prevents bypass-based misdiagnosis.

Variable systems require command-versus-response evidence

Record the valve command, high- and low-side pressures, evaporator temperature, ambient conditions and engine speed. A command near one extreme with no pressure response can indicate valve, electrical, internal or charge problems. Interpret signal direction from service information; the same duty-cycle percentage does not mean the same displacement across systems.

Neither architecture can be judged from pressure alone

Condenser airflow, refrigerant charge, expansion-device behavior and sensor inputs affect pressures. A variable unit at low stroke can resemble a weak compressor; a fixed unit cycling normally can look intermittent. The high low-side pressure diagnosis shows how airflow, expansion valve and compressor evidence must be combined.

Failure Patterns That Depend on Architecture

A fixed compressor can pump correctly but cycle incorrectly

If the clutch coil, relay and air gap are functional, investigate the inputs deciding when the clutch should engage. Low refrigerant charge, an inaccurate evaporator-temperature input or a pressure-switch fault can produce short run periods. Conversely, welded relay contacts or an unintended command can keep the clutch engaged. Pressure protection should never be bypassed to make the system appear operational.

Mechanical pumping performance is evaluated only during a stable, permitted engagement. Record suction and discharge pressures, ambient conditions, condenser airflow and engine speed. A pressure difference proves some pumping, but output must be compared with the vehicle procedure because charge and expansion-device state alter the result.

A variable compressor can rotate normally while producing little capacity

A continuously driven pulley gives no visual proof of useful displacement. The control valve can remain at minimum stroke because of missing command, wiring resistance, debris, incorrect calibration or an internal crankcase-pressure problem. The shaft may turn quietly and the belt may look normal while vent temperature remains high.

Compare requested valve command with measured current or duty cycle and system response. If electrical command reaches the valve but pressure does not respond, verify refrigerant charge and the rest of the circuit before separating valve sticking from internal compressor wear. Installing a valve from a visually similar compressor is not a controlled test unless the part number and calibration are approved.

Clutch-equipped variable systems require two control checks

These systems can fail at the clutch interface or the displacement-control interface. A clutch that engages proves only torque transfer; it does not prove the valve increased stroke. A responsive control valve cannot create cooling when the clutch slips. Test both states in the order defined by the wiring and hydraulic architecture.

Do not use a control valve swap to avoid complete system diagnosis

A valve replacement may be reasonable when electrical and hydraulic evidence isolates it, the compressor is clean and mechanically sound, and the manufacturer supports service. Metal debris, burnt oil or shaft damage changes the repair scope. The compressor kit versus bare compressor guide explains how contamination and circuit opening affect companion parts.

For electric compressors, lubricant compatibility also protects motor insulation and cannot be inferred from the mechanical variable-compressor discussion. Use the electric compressor PAG versus POE guide when the drive motor is integrated.

Can One Architecture Replace the Other?

Not as a normal cross-reference. Converting fixed to variable or variable to fixed changes capacity control and can require different electronics, logic, pressure protection, pulley ratio and calibration. An adapter harness cannot make an incompatible compressor follow the correct displacement map. Use only a documented vehicle-specific conversion engineered and supported for the complete system.

A replacement marketed as “universal” still needs proof of mounting, belt alignment, port geometry, displacement behavior, speed range, refrigerant/oil compatibility and control. Without that evidence, use the original architecture.

Replacement Matching Checklist

Oil type and prefill policy must be explicit

Confirm required lubricant type, total system quantity and how much oil is supplied in the compressor. Do not add the full system amount on top of an unknown prefill. The compressor oil amount and type guide explains the installation record required.

Clutch and pulley dimensions belong to the compressor match

Record groove count, pitch family, effective diameter, offset, hub depth and coil voltage. A small pulley change alters compressor speed across the engine range. The unit may mount correctly but over-speed or misalign the belt.

Ports must match without forcing the hoses

Confirm manifold-pad orientation, pilot and bolt spacing, sealing face and nearby clearance. Twisting a hose into position preloads the fitting and can create a repeat leak. Never machine or drill a compressor port to make it fit.

Installation and Commissioning Checks

Find the original failure cause before fitting the unit

Inspect recovered oil and the circuit for debris, leakage, restriction and moisture. A failed fixed or variable compressor can contaminate components that are difficult to flush. Follow the AC compressor black-death procedure when metal or dark degradation products are present.

Verify control behavior after charge

Evacuate and charge by the approved mass. Record ambient temperature, engine speed, blower setting, command, high/low pressures and vent temperature. For an electronic variable compressor, verify valve command and response. For a cycling unit, verify engagement logic without bypassing protection.

Protect the warranty file

Record oil adjustment, replaced components, flushing or non-flushable decisions, vacuum, charge and post-installation pressures. The AC compressor warranty claims guide defines the evidence needed if the new unit later fails.

Wholesale and Distributor Controls

Do not consolidate SKUs on mounting appearance

Two compressors with a common body casting can carry different valves, rear heads, pulley ratios or internal displacement ranges. Warehouse consolidation must be supported by OE/application cross-reference and sample validation, not visual similarity.

Audit architecture-specific testing

A supplier should show how it verifies clutch torque, valve electrical characteristics, leakage, displacement response, oil cleanliness, labeling and traceability for each family. The AC compressor supplier audit guide turns those claims into review points.

For wholesale AC compressor sourcing, send the full matching sheet and required quantity. State whether the application is cycling fixed, mechanically variable, electronically variable or still unconfirmed; uncertainty should trigger identification, not an assumed substitution.

FAQ

Is a clutchless compressor always variable displacement?

Most clutchless belt-driven automotive compressors use variable displacement, but the pulley alone does not identify the exact control type or calibration. Verify the model and valve.

Can a variable compressor still have a clutch?

Yes. Some variable compressors use a clutch in addition to internal displacement control. Clutch presence therefore cannot classify displacement by itself.

Can I install a fixed compressor instead of a variable one?

Not without a documented system-specific conversion. The vehicle control, pressure regulation and pulley/application requirements are different. Use an approved exact-architecture replacement.

Does the control valve connector prove compatibility?

No. Connector fit does not prove coil characteristics, signal direction, hydraulic flow or calibration. Match the OE and compressor/valve reference.

What should be sent for a compressor quotation?

Send OE and compressor numbers, vehicle/engine/market, clutch or continuous-drive details, pulley, control valve and connectors, ports, mounts, oil/refrigerant specification and quantity through the Elecduraparts contact page.

Final Matching Rule

Identify compressor architecture from application, model data, drive interface and control method together. Then match pulley, valve, ports, mounts, refrigerant and oil. Fixed and variable displacement describe how the system regulates capacity; they are not interchangeable catalog labels.
