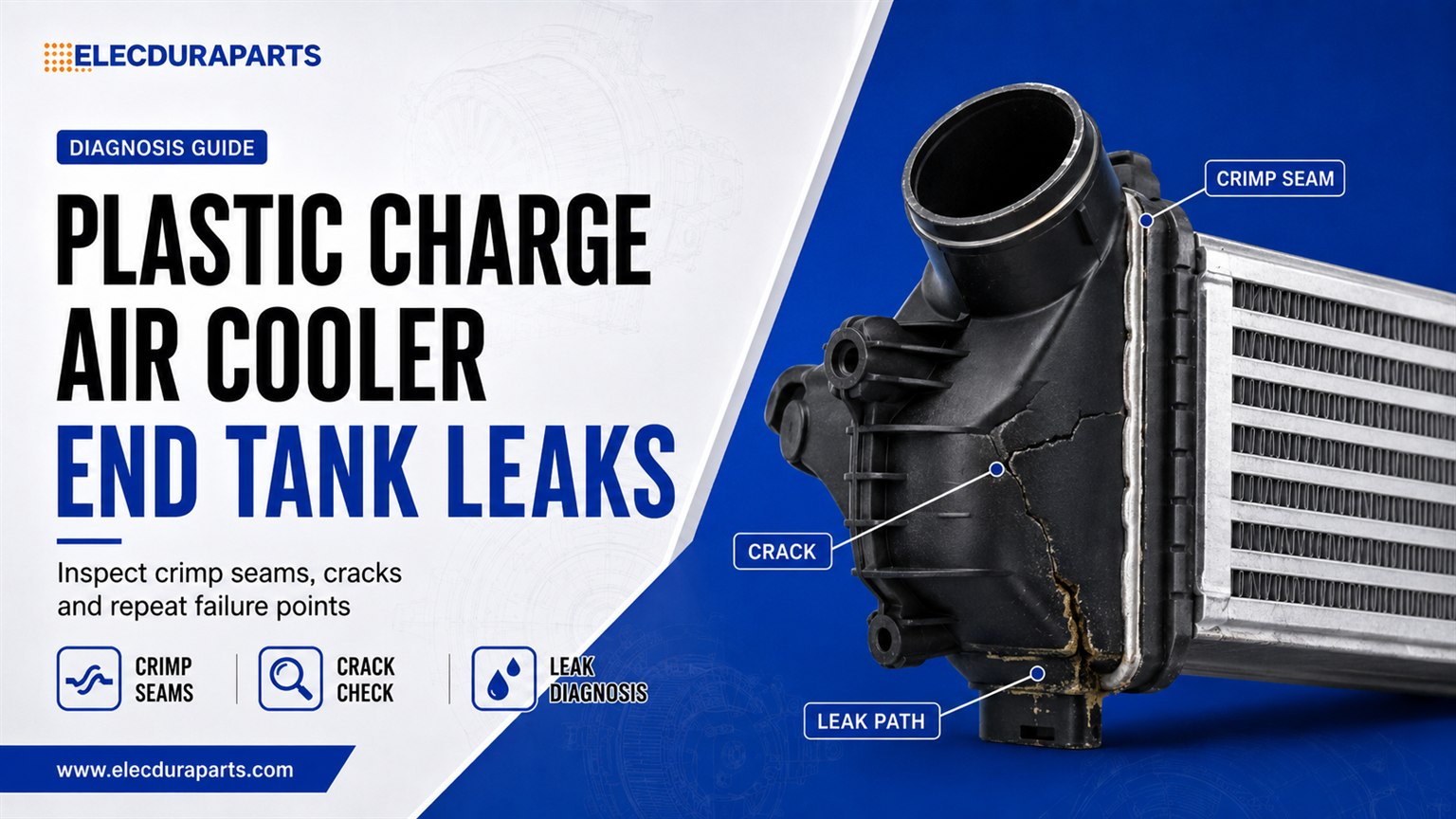

A plastic-end-tank charge air cooler can leak through a cracked tank, a relaxed crimp seam, a damaged tank-to-header gasket or a mounting load that pulls the joint out of alignment. All four failures can leave oily mist along the edge and reduce boost, but they require different corrective actions. Applying external sealant to the wet area rarely restores controlled gasket compression or removes the stress that opened the joint.
The tank, gasket, aluminum header, crimp tabs, ports and mounts operate as one pressure-bearing assembly. Heat cycles change plastic stiffness and dimensions, while boost pressure repeatedly loads the broad tank wall. Engine movement acts through boots and pipes. Chassis movement acts through the cooler mounts. Diagnosis must therefore identify the exact leak path and measure the surrounding geometry before a replacement is installed.
Common leak paths are the tank-to-header crimp seam, a molded port or corner, a mounting boss, and the adjacent tube-to-header region. Clean the assembly after documenting witness marks, then perform an approved regulated pressure test. If air emerges continuously along the gasket line, inspect crimp height, tab condition, header flatness and tank flange. If it begins at a molded corner or boss, inspect for stress cracking and mount misalignment. Do not assume the visible bubble location is the original crack; air can travel under the gasket before emerging.
Evidence | Likely failure boundary | Required next check |
|---|---|---|
Bubbles along a section of crimp seam | Gasket compression, relaxed tabs or distorted flange | Map start point and measure seam geometry |
Hairline crack from port base | Plastic tank stressed by pipe or boot | Check port alignment, supports and engine movement |
Crack at mounting boss | Chassis/mount load or installation mismatch | Measure mount centers and bracket flatness |
Leak at tube just inside header | Core/header fatigue rather than tank gasket | Isolate exact tube joint and inspect stack loads |
Oily seam but no test leak | Oil migrated from boot, pipe or another joint | Trace first wet point under controlled boost |
A molded plastic flange sits against an aluminum header with an elastomeric gasket between them. Tabs formed from the header are crimped over the tank flange. Their geometry creates and retains compression in the gasket. The gasket accommodates surface variation, thermal expansion and pressure cycles while separating the charge-air path from ambient air.
This is not simply a row of clips. Crimp height, tab angle, spacing, tank-flange thickness, header flatness and gasket cross-section work together. A replacement tank or core that appears dimensionally similar can leak if any element changes the compression window.
A locally over-crimped tab can crush or cut the gasket while neighboring tabs remain loose. The joint then carries pressure unevenly. Inspect the full perimeter rather than bending the nearest tab harder. Field recrimping without the specified fixture and dimensional criterion can damage the aluminum header or plastic flange.
Boost acts over the projected tank area. Even moderate pressure creates substantial total force on a broad wall. The tank shape uses ribs, curves and flange support to control deflection. Repeated expansion can work the gasket and crimp. A deformed tank may lift locally from the header, especially near wide flat sections, ports and corners.
The tank and header respond differently to temperature. The hot-side tank sees compressor discharge air, while the outlet tank operates cooler. Under repeated cycles, plastic can creep and the gasket can take a compression set. Correct material, reinforcement, wall geometry and crimp load are therefore essential. Color or surface texture does not identify the resin or its thermal capability.
When plastic remains stressed at elevated temperature, it can deform slowly. The flange may become thinner or less flat under the tabs. The gasket also relaxes. If the original compression margin is small, the seam begins to open during high boost and reseal when cold. That pattern explains why some coolers pass a brief bench check but leak after a long grade.
Tabs that are too high, uneven or damaged cannot retain uniform load. Header springback after forming and tool wear can change the joint. Receiving inspection should sample crimp dimensions at defined locations, not rely only on a visual statement that every tab is folded.
A twisted, cut, contaminated or incorrectly sized gasket creates a local channel. Excess lubricant can let it move during assembly. An incompatible elastomer may swell or harden under oil mist and temperature. Replacing the gasket alone is defensible only when the tank flange, header and crimp system are serviceable under an approved repair process.
Impact, improper clamping, overheating or mount stress can bend the aluminum header. The gasket cannot compensate indefinitely for a warped surface. Check flatness using the specified method after disassembly where service is permitted. A locally flattened or cracked crimp rail usually requires assembly replacement.
A charge-air pipe should meet the port without forcing the tank sideways. A short, twisted or wrongly sized boot can apply constant bending. Engine torque reaction then cycles the port root. Cracks often begin at a radius, weld line or rib transition where stress concentrates. Check the connection mechanics described in the diesel CAC leak symptoms guide, then inspect boots and clamps before installing another cooler.
Wrong bracket spacing, missing isolators, bent support panels or tightened fasteners that pull the cooler into position can preload a boss. Vibration adds fatigue. Compare free-state mount centers between the vehicle and cooler. Fasteners should align without using the tank or core as a lever.
Road debris, tools, neighboring brackets and loose shrouds can damage the tank. A rub mark is evidence of relative movement. Correct clearance and supports, not just the puncture. External adhesive over a moving contact point will fail again.
Heat, oil, cleaning chemicals and ultraviolet exposure can alter plastic properties. Fine surface crazing, discoloration and brittle fracture suggest material degradation, but appearance alone cannot identify the resin or remaining strength. Replace a structurally damaged pressure tank rather than attempting an unvalidated patch.
Oil mist can spread across the cooler and make a joint look guilty. Preserve the wet pattern before washing. The oil-in-intercooler diagnostic guide explains why a small internal oil film can mark any escaping-air path without proving the turbocharger has failed.
Leak location | Distinguishing evidence | Repair boundary |
|---|---|---|
Boot-to-port joint | Wet ring, displaced hose, clamp witness marks | Boot, clamp, pipe alignment and support |
Tank-to-header seam | Bubbles begin under crimp rail or gasket line | Approved gasket/crimp repair or CAC replacement |
Tank wall or port | Visible crack opens under controlled pressure | Tank/CAC replacement; correct load source |
Tube-to-header joint | Leak remains inside header edge, away from gasket path | Core/CAC replacement |
External contamination only | No leak during correct test; wetness starts elsewhere | Trace upstream source |
The charge-air-system pressure-test guide covers regulated system isolation. For core-focused acceptance criteria, use the CAC pressure-test and buyer checklist. Both require application-specific pressure limits; more pressure is not a better diagnosis.
Note boost, engine speed, load, temperature and time to symptom. A hot-only leak supports thermal relaxation, while an impact crack may leak at all temperatures. Record whether the complaint appeared after cooler, pipe, engine-mount or front-end work.
Capture tank seams, ports, boots, brackets, isolators, stack position and surrounding clearance. Look for fasteners sitting off-center, shiny contact points, missing pads and pipes that do not line up naturally. Do this before loosening mounts because stress can disappear after removal.
Use a material-compatible method and avoid forcing water into the charge tract. Dry completely. Mark suspected areas so the test can distinguish the first leak from air traveling along the seam.
Use mechanically retained adapters, regulated air or the specified medium, and the manufacturer’s pressure and duration. Pressurize gradually and keep personnel away from stored-energy release paths. Apply approved detection fluid in sections. Note the first bubble location and whether leakage changes with temperature if the procedure includes thermal conditioning.
Manipulating a tab, tank or hose during the test can trigger sudden failure. Depressurize fully before inspection or disassembly. A pressurized plastic tank can release fragments or plugs with dangerous force.
If the whole system leaks, cap the CAC according to procedure and test it separately. Inspect boot geometry and clamp placement. Air that escapes at a boot can travel across the tank seam. Do not order a complete cooler until its own boundary fails.
Compare installed bracket centers with the relaxed cooler. Check port angle and pipe alignment. Inspect engine mounts and flexible connections. A replacement that needs force to align is wrong, or the vehicle structure remains distorted.
The removed cooler is no longer exposed to hot charge air, engine movement or chassis twist. If the complaint is load- and temperature-specific, a static test should be interpreted with installed witness marks and the approved thermal procedure. Never exceed test limits to force a leak to appear.
High differential pressure can indicate internal restriction, while a seam leak reduces delivered boost. Both can coexist. Use the CAC pressure-drop diagnosis when the engine lacks air but the static boundary test passes.
A hot tank is not automatically cracked. High outlet temperature can result from blocked fins, fan failure or heat recirculation. Inspect the system using the heavy-duty cooling stack guide and the more detailed off-highway stack inspection procedure.
A serviceable design may permit tank, gasket or crimp work using a fixture, specified parts, dimensional targets and a complete pressure test. Many automotive CACs are supplied as nonserviceable assemblies. Bending tabs with pliers or hammering the rail does not control gasket compression and can initiate an aluminum crack.
Sealant applied over the seam does not correct relaxed crimp load, tank creep, a cut gasket or header warp. It can hide the first leak path and contaminate the charge tract if drawn inward. A pressure-bearing repair must be validated for temperature, oil mist, vibration and boost cycles, not merely stop bubbles for a few minutes.
Successful plastic welding depends on known compatible resin, clean substrate, joint design and controlled process. A structural crack at a port or mounting boss experiences repeated load. Unless the cooler manufacturer authorizes a repair and provides validation criteria, replacement is the defensible choice.
Inspect radiator, condenser, CAC and brackets for collision damage or shifted supports. The off-highway cooler-stack diagnostic guide shows how one distorted frame can load several heat exchangers. Replace missing isolators and straighten or replace damaged supports according to the vehicle procedure.
Ports should enter boots to the specified depth without angular force. Clamps must sit in the correct zone behind a sound bead. Allow the intended flexible length for engine movement. A rigid short connection transfers torque reaction directly into the plastic port.
Heavy oil, fragments or cleaning chemicals can affect the tank and gasket while threatening the engine. Follow the charge air cooler replacement-after-turbo-failure guide when internal debris cannot be removed and verified.
Blocked fins raise charge temperature and tank thermal exposure. Clean from the correct direction with approved pressure and chemistry. Separate stacked exchangers when necessary rather than pushing debris into a hidden interface.
If the part identity is uncertain during a remote inquiry, first use the radiator, condenser and intercooler comparison. Only the charge-air heat exchanger belongs to the pressurized intake tract and requires tank, port and boost-boundary matching described here.
Provide the OE number, vehicle or equipment model, year or serial range, engine and emissions configuration. One chassis may use different tank, port or sensor arrangements. The CAC versus intercooler terminology guide helps prevent ordering the wrong heat exchanger.
Measure core height, width and thickness separately from overall dimensions. Record tank material, inlet and outlet diameters, bead geometry, port direction, sensor ports, mount centers and isolator style. Photograph the crimp seam, identification and every side.
Include photographs of cracked bosses, worn pads, bracket position, pipe alignment and contact marks. State whether the cooler failed after collision or front-end repair. The supplier must match the relaxed geometry; it cannot correct a bent vehicle structure.
Confirm whether boots, clamps, isolators, brackets, sensors or plugs are supplied. Reusing distorted connection hardware can compromise a sound cooler. For fleets comparing core designs, the bar-and-plate versus tube-and-fin CAC guide explains construction differences that should not be inferred from tank shape alone.
Check | Why it matters | Record |
|---|---|---|
Crimp height and uniformity | Controls gasket compression | Defined sample locations and acceptance range |
Tank flange and wall | Detects molding damage, warp and cracks | Visual result and dimensional fixtures |
Ports and beads | Controls boot seal and retention | Diameter, roundness, angle and damage |
Mount centers | Prevents installation preload | Fixture or measured coordinates |
Pressure boundary | Confirms seam, tank and core integrity | Medium, pressure, duration and criterion |
Packaging | Prevents tank, fin, port and boss impact | Caps, supports and carton inspection |
For market context, review the heavy-duty CAC supplier overview. For equipment applications, the off-highway cooling-system sourcing checklist adds machine-duty information. Final approval still requires an exact part, fixture and pressure-test plan.
External sealant does not restore gasket compression or correct tank and header distortion. Use only an approved repair process; otherwise replace the assembly.
Plastic creep, gasket relaxation and differential expansion can reduce sealing load at temperature. Preserve hot-load evidence and follow the specified thermal test.
Not without an approved fixture, dimensions and complete validation. Local hand bending can overcompress the gasket or crack the header.
No. Oil mist can migrate from a boot or pipe joint. Clean after documentation and locate the first air leak under controlled pressure.
Replace damaged isolators, brackets or hardware required by the service procedure. A new CAC installed under the original preload can fail again.
Send OE and application data, core/overall dimensions, tank and port photographs, mount centers, failure location, pressure-test result, pipe alignment, required accessories and quantity through the Elecduraparts contact page.
A plastic end-tank leak must be traced to the crimp gasket, molded tank, port, mounting boss or adjacent core joint. Replace or repair only within the proven service boundary, then correct mount and pipe loads before commissioning. A cooler that fits between the brackets but requires force to connect is not correctly matched, and a sealed seam installed under the same stress is a repeat failure waiting to happen.
