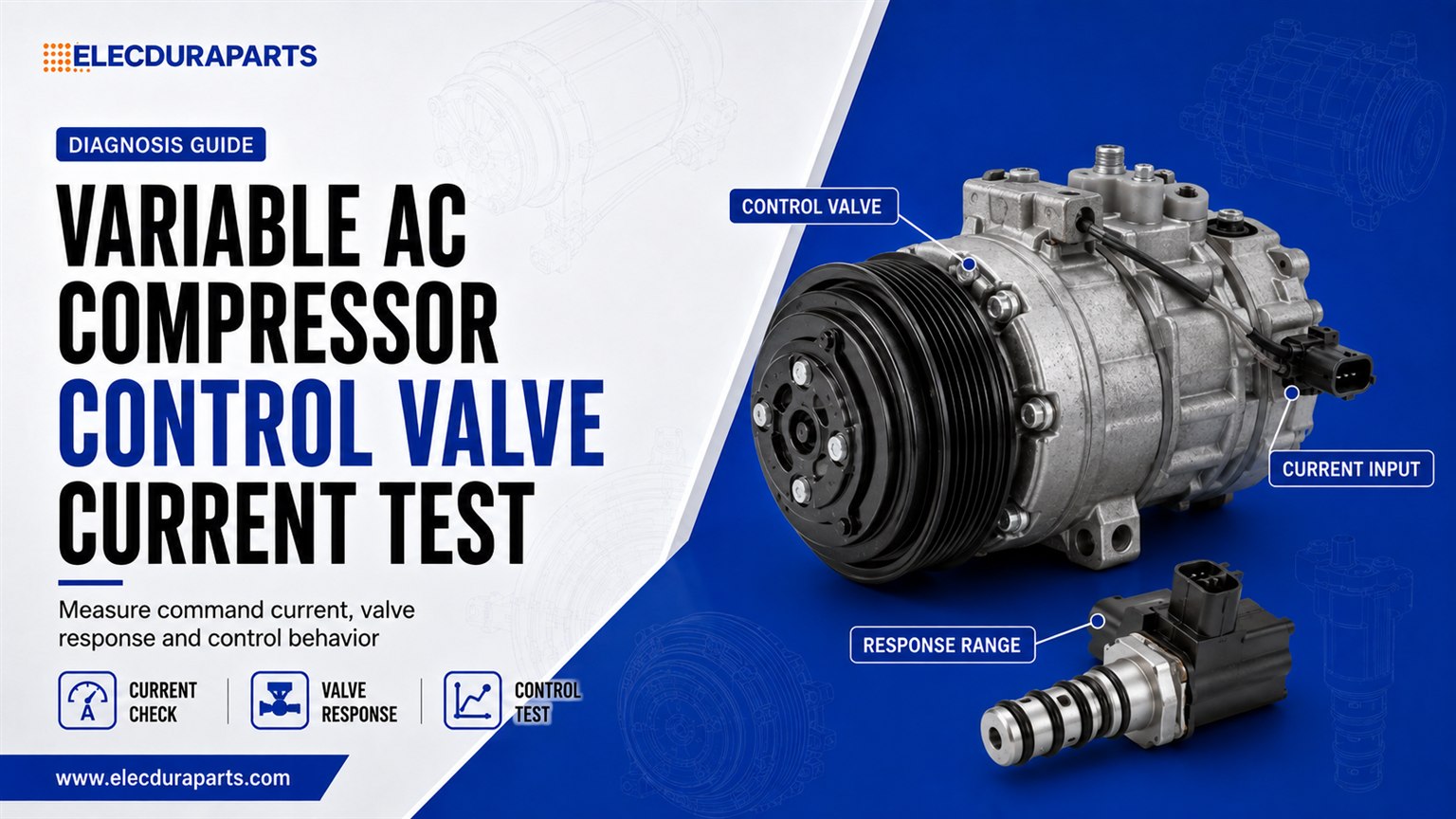

Variable AC Compressor Control Valve Current and Displacement Test

A variable-displacement AC compressor can rotate continuously while pumping almost no useful refrigerant. Its control valve changes crankcase or control-chamber pressure, which alters swash-plate angle, piston stroke, scroll control, or another internal capacity mechanism. A weak pressure difference therefore does not automatically mean the compressor is worn out. The valve may be receiving the wrong command, the command may not reach it, or the compressor may fail to respond mechanically.

The most useful test compares electrical command with refrigerant-side response. Record requested displacement, measured valve current or PWM waveform, coil voltage, suction and discharge pressure, line temperatures, compressor speed, and operating load together. Only then can a technician distinguish command failure from a stuck valve or damaged compression mechanism.

Quick Answer: What Does Control-Valve Current Prove?

Identify the Compressor and Valve Strategy

Determine whether the compressor is externally controlled

Some variable compressors use an electronically controlled solenoid. Others regulate displacement internally from suction pressure and do not accept a proportional current command. A compressor may also use a clutch plus an electronic valve, a clutchless pulley with a breakaway feature, or an electric drive. Use the label, OE reference, connector, wiring diagram, and application data. The AC compressor control-valve symptoms guide provides the initial distinction.

Do not assume current direction from another valve

Depending on design, increasing current can increase or decrease displacement. Some systems specify current; others specify duty cycle at a defined frequency. A scan-tool percentage may be inverted or represent desired capacity rather than electrical output. Obtain the exact control description before calling a response backward.

Confirm valve coil and connector identity

Two valves can fit the same compressor bore but use different coil resistance, connector keying, flow calibration, screen design, or default position. Record terminal count, connector face, retaining method, valve length, sealing locations, and part number. A physically installed but incorrectly calibrated valve can create unstable pressure without setting a circuit code.

Verify System Conditions Before Command Testing

Confirm refrigerant identity and charge mass

Low charge limits mass flow and may cause the controller to reduce capacity. Excess charge, non-condensables, or mixed refrigerant changes pressure response. Recover and weigh refrigerant when charge is uncertain. Do not use valve current to compensate for an unknown charge.

Record oil service history

Wrong oil, excessive oil, debris, or incompatible additives can affect valve movement and compressor lubrication. Follow the AC compressor oil specification and amount. A valve contaminated by system debris may be a symptom of broader compressor or hose deterioration.

Prove condenser and evaporator heat transfer

Weak condenser airflow can create high discharge pressure and cause capacity reduction. Low evaporator airflow can lower suction load and trigger protection. Record blower performance, vent and line temperatures, fan state, and condenser pressure response using the condenser airflow test.

Confirm compressor speed

For a clutch-driven unit, verify hub speed and belt transmission. For a clutchless pulley, inspect the drive interface and breakaway mechanism. A slipping hub or damaged drive can imitate low displacement even when valve current is correct. Electric compressors require commanded and actual speed plus high-voltage safety checks.

Measure the Valve Circuit Correctly

Scope PWM before relying on average voltage

A multimeter may show an average that hides incorrect frequency, missing pulses, poor amplitude, or driver shutdown. Capture duty, frequency, high and low voltage, polarity, and stability at the valve connector while it remains connected. Compare with scan command at several operating points.

Use a suitable current measurement

Low-current clamps need adequate resolution and zeroing. A series meter changes the circuit if burden voltage is excessive. Record current waveform or stable average according to the specification. State where the measurement was made and whether the ECU controls power or ground.

Check loaded voltage drop

Measure across connectors, splices, driver feed, and ground while current flows. A corroded terminal can pass resistance testing with the valve disconnected but reduce current hot. Move the harness carefully and repeat at operating temperature. Do not use a test lamp on a low-current ECU driver.

Compare commanded and actual current

Some scan tools display both. A difference can indicate current-control saturation, circuit resistance, shorted coil, driver protection, or inaccurate scan scaling. Verify with an external measurement before replacing the ECU or valve.

Build a Current-to-Pressure Response Test

Stabilize at a defined operating point

Set ambient airflow, cabin load, blower, engine speed, doors, and recirculation according to service guidance. Record suction and discharge pressure, line temperatures, vent temperature, compressor speed, current, and command. Allow each step to stabilize without exceeding pressure or temperature limits.

Command several steps, not only minimum and maximum

A stuck valve may respond near one end but not through the middle. Use safe incremental commands and record the direction, size, and delay of pressure change. The curve may be nonlinear. Compare with exact service data or a known-good system rather than a universal amperage chart.

Observe suction and discharge together

Increasing displacement normally changes both sides as mass flow rises, but condenser airflow, metering, and load affect magnitude. A suction change without appropriate discharge response can point to restriction or pumping inefficiency. A pressure response opposite to expectation may indicate inverted command interpretation.

Include temperature response

Pressure movement alone does not prove useful cooling. Track suction-line temperature, liquid-line temperature, vent air, and pressure-derived saturation values. Incorrect blend-door position can hide a valid refrigerant response at the vents.

Separate a Stuck Valve From Internal Compressor Wear

A valid command with no response is not enough

Before condemning the valve, confirm charge, speed, oil, condenser airflow, expansion device, and pressure sensors. Before condemning the compressor, confirm that the valve actually changes control pressure or is substituted through an approved test. Both faults can produce low pressure ratio.

Use default-state behavior carefully

Disconnecting a valve may place it at minimum or maximum displacement depending on design and can set protection logic. Only use the specified unplugged or substitute-resistor test. Do not assume a pressure change proves the replacement valve calibration.

Look for debris on the valve screen

Metal, dark oil, elastomer particles, or desiccant indicates a system problem. Photograph and retain debris. Cleaning or replacing the valve without addressing contamination can lead to repeat sticking or compressor damage. Severe metallic material requires the broader compressor contamination assessment.

Compare hot and cold response

Valve clearance, oil viscosity, coil resistance, and internal leakage change with temperature. Repeat identical current steps after hot soak. A pressure response that degrades while measured current remains valid supports mechanical or hydraulic temperature sensitivity.

Rule Out Sensor and Controller Causes

Verify pressure sensor accuracy

The ECU can regulate displacement correctly for a false input. Compare scan pressure with calibrated gauges and account for sensor type and location. Review the AC pressure switch and sensor architecture before back-probing or substitution.

Check evaporator temperature plausibility

A biased or misplaced evaporator sensor can keep capacity low to prevent icing. Compare cold-soak values with ambient and monitor temperature against independent evidence. Also inspect blower airflow and evaporator blockage.

Review compressor protection states

High coolant temperature, excessive refrigerant pressure, wide-open throttle, low battery voltage, engine torque limits, or communication faults may limit current. Preserve codes and freeze frame. A controller that intentionally reduces displacement should not be overridden to prove compressor performance.

Diagnostic Decision Matrix

Repair or Replace?

Use a controlled substitute test only when the procedure permits

Some service methods use a dedicated valve driver, known-good valve, resistance substitute, or commanded-current tool to separate the ECU circuit from the compressor response. The tool must match valve polarity, frequency, current range, and protection requirements. A generic PWM generator connected directly to an ECU-controlled circuit can backfeed the driver, overheat the coil, or command the opposite displacement.

Record the original waveform before substitution

Capture voltage and current at several scan commands first. Then isolate the circuit exactly as directed and apply the approved substitute while monitoring pressures, temperatures, and safe limits. A pressure response under external control shows that the compressor can change capacity; it does not prove the original valve's full calibration or the controller's inputs.

Investigate unstable capacity instead of averaging it away

Surging vent temperature or alternating suction pressure can result from valve stick-slip, unstable current, an expansion valve hunting, evaporator icing, sensor noise, or intermittent compressor drive. Log valve current, command, suction pressure, evaporator temperature, and compressor speed at a sufficient sample rate. If current remains stable while capacity oscillates, hydraulic or refrigerant control becomes more likely. If current changes first, trace the controller's reason.

Separate intentional modulation from short cycling

A variable compressor can modulate internally without disengaging its clutch, while another system cycles both clutch and displacement. Review the AC compressor short-cycling diagnosis and mark whether the clutch, valve command, or both change. Do not interpret normal capacity modulation as an intermittent electrical failure.

Repeat the response test after hot soak

Coil resistance, control-valve clearance, oil viscosity, compressor internal leakage, and terminal resistance change with heat. Hold the same engine speed, cabin load, blower, and airflow, then repeat identical current steps. Record valve current rather than assuming duty produces the same current hot. A valve that becomes slow or unresponsive at temperature can pass a short cold bench check.

Verify commissioning after any valve replacement

Install new compatible seals, observe cleanliness, restore the specified oil balance, evacuate, leak-test, and charge by mass. Replace the receiver drier or accumulator where service guidance requires it; use the receiver-drier replacement procedure to protect a newly opened circuit. Then repeat the complete current-to-pressure curve rather than checking only vent temperature.

Document evidence for warranty and repeat-failure analysis

Retain the valve and any screen debris, cap the compressor, and record cold and hot coil values, waveform, current, pressures, temperatures, charge mass, oil condition, compressor speed, and control permissions. The AC compressor warranty record allows a supplier to distinguish a valve defect from contamination, wrong calibration, poor charge, sensor bias, or internal compressor wear.

Do not erase uncertainty with an unsupported diagnosis

If the system proves low pumping at maximum verified displacement but the valve cannot be separately tested, report “low displacement response or internal compressor fault” rather than claiming a stuck valve. Accurate scope language improves return analysis and prevents the next technician from treating an assumption as confirmed teardown evidence.

For fleet comparisons, use the same refrigerant charge, ambient range, airflow setup, engine speed, sensor locations, and stabilization time. A reference curve is valuable only when its test conditions and compressor part number are traceable. Store the waveform and pressure table with the vehicle or batch record. Recheck abnormal samples before assigning a production-lot failure.

Control-valve replacement can preserve a sound compressor

A separately serviceable valve is a reasonable scope when the coil or valve failure is proven, oil is clean, internal pumping responds when controlled, shaft sealing and drive are sound, and the manufacturer provides removal, sealing, and commissioning procedures. Cleanliness is critical because a small particle can alter the new valve.

Valve replacement is not a cure for compressor debris

If the removed valve screen contains metal or oil is burned, inspect the complete circuit. A new valve can temporarily restore control while damaged compression surfaces continue generating debris.

Complete compressor replacement needs circuit planning

Internal wear, damaged displacement mechanism, shaft leakage, seizure, or contamination can justify the full unit. Use the compressor kit versus bare compressor decision and replace moisture-control components as required.

Fitment and Wholesale Matching

Match the valve calibration to the compressor application

Provide OE number, compressor label, vehicle, engine, build range, refrigerant, compressor family, displacement, connector photographs, valve retaining method, dimensions, seal locations, coil resistance specification, control frequency/current convention, and quantity. Use the compressor identification process when the label is missing.

Clarify supply scope

Confirm whether the offer includes valve, seals, retaining hardware, screen, connector pigtail, oil, or complete compressor. A valve that physically fits but has the wrong calibration can cause chronic poor cooling without an electrical code.

Use dynamic sample testing

Resistance and dimensions cannot prove flow calibration. Supplier validation should define oil or test medium, temperature, pressure conditions, current or duty steps, flow or control-pressure response, leakage, hysteresis, and contamination cleanliness. Retain part-number and batch traceability.
